The Freedom Line

Freedom 4x4

Freedom 5x10

Freedom 5x10 Plus

Freedom 4x8

The Freedom CNC router line offers a universal platform with the rigidity and repeatability required to process many materials, including wood, plastics, foam, aluminum, composites and more. Whatever material you are working with, we can configure and build a CNC router to accurately and efficiently get the job done.

All Freedom CNC routers are proudly engineered and produced by Diversified Machine Systems, a leader in the CNC industry. The same industrial components demanded by Fortune 500 companies are standard on all our Freedom machines, which translates into a durable product that your business can depend on.

Every Freedom CNC router is produced in Colorado Springs, CO at our world headquarters where we handle everything from welding the frame together to assembling the various components and finally conducting quality control cuts.

Rest easy knowing every Freedom CNC router comes with lifetime technical support.

Ideal For

The Freedom 4×4 CNC router brings high quality and durability to a small workspace. It is ideal for small, specialty manufacturing like Orthotics and for shops requiring a very small footprint like garage or home shops.

Common Materials

Wood – Foam – Composites – Aluminum – Plastics – Acrylics – Leather

Common Industries

Woodworking – Orthotics – Automotive – Plastics & Acrylics – Sign Making – Aerospace – Other Medical – Marine – Energy – Manufacturing

Average Build Time

4-6 weeks

Starting Price

$40,000

Base Features

  • 3-Axis CNC Router
  • Fagor 8070 OL 3-axis industrial controller with 17″ LCD color monitor
  • Moving Gantry Design
  • Rigid Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • Fagor Industrial AC Servo Motors & Amplifiers On All Axes
  • Ball Screw Assembly On All Axes
  • 220 Volt 3-Phase Power
  • Table  –  4’x4’ 1” Phenolic Table (aluminum tables also available)
  • Dust Collection  –  Hood provided and dust delivery collection on top of Z-axis accepts a 5″ dust collection line from customer’s system
  • Vacuum Pump  –  5 hp or 10 hp Becker available as an Option
  • Ball Screw Drive  –  Recirculating ball screw assembly on all axes
  • Electro Spindle Hiteco  –  10 hp / 7.5 kW Standard (other hp options available)

Specs

  • Rapid Feed Rate  –  Up to 1400 inches per minute
  • X Axis Stroke  –  48” / 1219 mm
  • Y Axis Stroke  –  48” / 1219 mm
  • Z Axis Stroke –  12” / 305 mm
  • X & Y Axes  –  Laser calibrated
  • 12” Of Z-Axis Travel
  • 9” Of Clearance Under The Bridge
  • Power Requirement  –  220V, 3-phase, 60 HZ (Amps determined by spindle option)
  • Lubrication  –  Manual
  • M-Code  –  M04 M-Code for counter clockwise spindle rotation

Customizations

  • Spindle Accessories
  • Table Options
  • Table Accessories
  • CAD/CAM Software Options
  • Control Accessories
  • Utility Options
  • Dust Collection Options
  • Vacuum Options
  • Vacuum Accessories
  • Safety Options for Compliance

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty



Ideal For

The Freedom 4×8 CNC router is a great entry-level, industrial machine or can be a fine addition to the advanced home workshop. It is ideal for processing 4×8 wood and plastic sheet material or composite panels and nested-based applications. Great for hardwood, thin aluminum sheet cutting and 3D pattern making or carving.

Common Materials

Wood – Foam – Composites – Aluminum – Plastics – Acrylics – Leather

Common Industries

Woodworking – Automotive – Plastics & Acrylics – Sign Making- Aerospace – Medical – Marine – Energy – Manufacturing

Average Build Time

4-6 weeks

Starting Price

$42,500

Base Features

  • 3-Axis CNC Router
  • Fagor 8070 OL 3-axis industrial controller with 17″ LCD color monitor
  • Moving Gantry Design
  • Rigid Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • Fagor Industrial AC Servo Motors & Amplifiers On All Axes
  • Ball Screw Assembly On All Axes
  • 220 Volt 3-Phase Power
  • Table  –  4’x8’ 1” Phenolic Table (aluminum tables also available)
  • Dust Collection  –  Hood provided and dust delivery collection on top of Z-axis accepts a 5″ dust collection line from customer’s system
  • Vacuum Pump  –  5 , 10 or 15hp Becker available as an Option
  • Ball Screw Drive  –  Recirculating ball screw assembly on all axes
  • Electro Spindle –  Hiteco 10 hp / 7.5 kW Standard (other hp options available)

Specs

  • Rapid Feed Rate  –  Up to 1400 inches per minute
  • X Axis Stroke  –  48” / 1219 mm
  • Y Axis Stroke  –  96” / 2438 mm
  • Z Axis Stroke –  12” / 305 mm
  • X & Y Axes  –  Laser calibrated
  • 12” Of Z-Axis Travel
  • 9” Of Clearance Under The Bridge
  • Power Requirement  –  220V, 3-phase, 60 HZ (Amps determined by spindle option)
  • Lubrication  –  Manual
  • M04 M-Code for counter clockwise spindle rotation

Customizations

  • Spindle Accessories
  • Drill Bank
  • Table Options
  • Table Accessories
  • CAD/CAM Software Options
  • Control Options & Accessories Utility Options
  • Dust Collection Options
  • Vacuum Options
  • Vacuum Accessories
  • Safety Options for Compliance

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty



Ideal For

The Freedom 5X10 Standard CNC Router is an upgrade from the Freedom 4×4 or 4×8 in strength and weight and provides a large work area ideal for nested-based machining. The table size is ideal for larger woodworking jobs and can finish a cabinet system much faster than conventional means. This machine is also good at machining hardwoods, Baltic Birch sheets, thin aluminum and composite panels.

Common Materials

Wood – Foam – Composites – Aluminum – Plastics – Acrylics

Common Industries

Woodworking – Automotive – Plastics & Acrylics – Sign Making – Aerospace – Medical – Marine – Energy – Manufacturing

Average Build Time

4-6 weeks

Starting Price

$52,000

Base Features

  • 3-Axis CNC Router
  • Fagor 8070 OL 3-axis industrial controller with 17″ LCD color monitor
  • Moving Gantry Design
  • Rigid Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • Fagor Industrial AC Servo Motors & Amplifiers On All Axes
  • Ball Screw Assembly On All Axes
  • 220 Volt 3-Phase Power
  • 5’x10’ 1” Phenolic Table (aluminum tables also available)
  • Dust Collection  –  Hood provided and dust delivery collection on top of Z-axis accepts a 5″ dust collection line from customer’s system
  • Vacuum Pump  –  5 , 10 or 15hp Becker available as an Option
  • Ball Screw Drive  –  Recirculating ball screw assembly on all axes
  • Electro Spindle –  Hiteco 10 hp / 7.5 kW Standard (other hp options available)

Specs

  • Rapid Feed Rate  –  Up to 1400 inches per minute
  • X Axis Stroke  –  60” / 1524 mm
  • Y Axis Stroke  –  120” / 3048 mm
  • Z Axis Stroke –  12” / 305 mm
  • X & Y Axes  –  Laser calibrated
  • 12” Of Z-Axis Travel
  • 9” Of Clearance Under The Bridge
  • Power Requirement  –  220V, 3-phase, 60 HZ (Amps determined by spindle option)
  • Lubrication  –  Manual
  • M04 M-Code for counter clockwise spindle rotation

Customizations

  • Spindle Accessories
  • Drill Bank
  • Table Options
  • Table Accessories
  • CAD/CAM Software Options
  • Control Options & Accessories Utility Options
  • Dust Collection Options
  • Vacuum Options
  • Vacuum Accessories
  • Safety Options for Compliance

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty



Ideal For

The Freedom 5X10 Plus CNC Router is changing the game when it comes to rigidity and versatility. This machine offers 15″ in Z-axis travel and to do that, we had to make some very special changes to our traditional 5×10 standard frame. The most notable being an entirely unique bridge to the Freedom line pulled directly from our DMS Essential 3-axis line. This heavier bridge means you do not sacrifice rigidity or quality by increasing your Z axis clearance. Customers needing to machine taller parts or foam billets find this router ideal.

Common Materials

Wood – Foam – Composites – Aluminum – Plastics – Acrylics

Common Industries

Woodworking – Automotive – Plastics & Acrylics – Sign Making – Aerospace – Medical – Marine – Energy – Manufacturing

Average Build Time

8-10 weeks

Starting Price

$57,700

Base Features

  • 3-Axis CNC Router
  • Fagor 8070 OL 3-axis industrial controller with 17″ LCD color monitor
  • Moving Gantry Design
  • Rigid Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • Fagor Industrial AC Servo Motors & Amplifiers On All Axes
  • Ball Screw Assembly On All Axes
  • 220 Volt 3-Phase Power
  • 5’x10’ 1” Phenolic Table (aluminum tables also available)
  • Dust Collection  –  Hood provided and dust delivery collection on top of Z-axis accepts a 5″ dust collection line from customer’s system
  • Vacuum Pump  –  10 or 15hp Becker available as an Option
  • Ball Screw Drive  –  Recirculating ball screw assembly on all axes
  • Electro Spindle –  Hiteco 10 hp / 7.5 kW Standard (other hp options available)

Specs

  • Rapid Feed Rate  –  Up to 1400 inches per minute
  • X Axis Stroke  –  60” / 1524 mm
  • Y Axis Stroke  –  120” / 3048 mm
  • Z Axis Stroke –  15″ / 381 mm
  • X & Y Axes  –  Laser calibrated
  • 12” Of Z-Axis Travel
  • Power Requirement  –  220V, 3-phase, 60 HZ (Amps determined by spindle option)
  • Lubrication  –  Manual
  • M04 M-Code for counter clockwise spindle rotation

Customizations

  • Spindle Accessories
  • Drill Bank
  • Table Options
  • Table Accessories
  • CAD/CAM Software Options
  • Control Options & Accessories Utility Options
  • Dust Collection Options
  • Vacuum Options
  • Vacuum Accessories
  • Safety Options for Compliance

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty



Ideal For

The Freedom 5X12 Standard CNC Router is an upgrade from the Freedom 5×10 in strength and weight and provides a large work area ideal for nested-based machining. The table size is ideal for larger woodworking jobs and can finish a cabinet system much faster than conventional means. This machine is also good at machining hardwoods, Baltic Birch sheets, thin aluminum and composite panels.

Common Materials

Wood – Foam – Composites – Aluminum – Plastics – Acrylics

Common Industries

Woodworking – Cabinet Making

Average Build Time

8-10 weeks

Starting Price

$55,000

Base Features

  • 3-Axis CNC Router
  • Fagor 8070 OL 3-axis industrial controller with 17″ LCD color monitor
  • Moving Gantry Design
  • Rigid Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • Fagor Industrial AC Servo Motors & Amplifiers On All Axes
  • Ball Screw Assembly On All Axes
  • 220 Volt 3-Phase Power
  • 5’x12’ 1” Phenolic Table (aluminum tables also available)
  • Dust Collection  –  Hood provided and dust delivery collection on top of Z-axis accepts a 5″ dust collection line from customer’s system
  • Vacuum Pump  –  10 or 15hp Becker available as an Option
  • Ball Screw Drive  –  Recirculating ball screw assembly on all axes
  • Electro Spindle –  Hiteco 10 hp / 7.5 kW Standard (other hp options available)

Specs

  • Rapid Feed Rate  –  Up to 1400 inches per minute
  • X Axis Stroke  –  60” / 1524 mm
  • Y Axis Stroke  –  120” / 3048 mm
  • Z Axis Stroke –  15″ / 381 mm
  • X & Y Axes  –  Laser calibrated
  • 12” Of Z-Axis Travel
  • 12” Of Clearance Under The Bridge
  • Power Requirement  –  220V, 3-phase, 60 HZ (Amps determined by spindle option)
  • Lubrication  –  Manual
  • M04 M-Code for counter clockwise spindle rotation

Customizations

  • Spindle Accessories
  • Drill Bank Option
  • Dust Collection Options
  • Vacuum Options
  • Vacuum Accessories
  • Safety Options for Compliance

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty

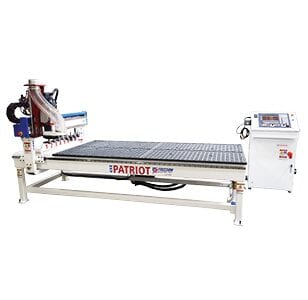

Looking for Freedom Machine Tool or FMT Patriot?

Diversified Machine Systems still services all CNCs sold under the names of Freedom Machine Tool and FMT Patriot. If you own one of these machines and have a service or upgrade question, our team of experts will happily assist you at customerservice@dmscncrouters.com or 855-266-5063.
