3-Axis Machines

Named after American National Parks, our CNC routers are strong, long-lasting and always made in the USA.

DMS 3-Axis CNC Routers

DMS CNC routers offer a universal platform ideal for configurability for a myriad of applications. Our machines feature a large bridge, rails and ball screw which, when combined with a heavier gauge, all-streel frame, results in a machine that is rugged, durable and ideal for high production factories.

Looking for something custom? Our engineers have over 70 years of combined CNC experience with a proven track record of designing custom CNC solutions. Contact us with your production goals and we will design a machine to fit your floor space and exceed your goals.

Arches

This 3-Axis Moving Table CNC machine features a moving table design with moving single or twin tables and single or multiple spindle options. The twin table machine configuration allows pendulum processing between the tables thereby providing the ability to cut on one station while loading in the other. This robust machine is designed for the ultimate rigidity on required strokes up to 12′ long.

3-Axis-Moving-Table

Bryce

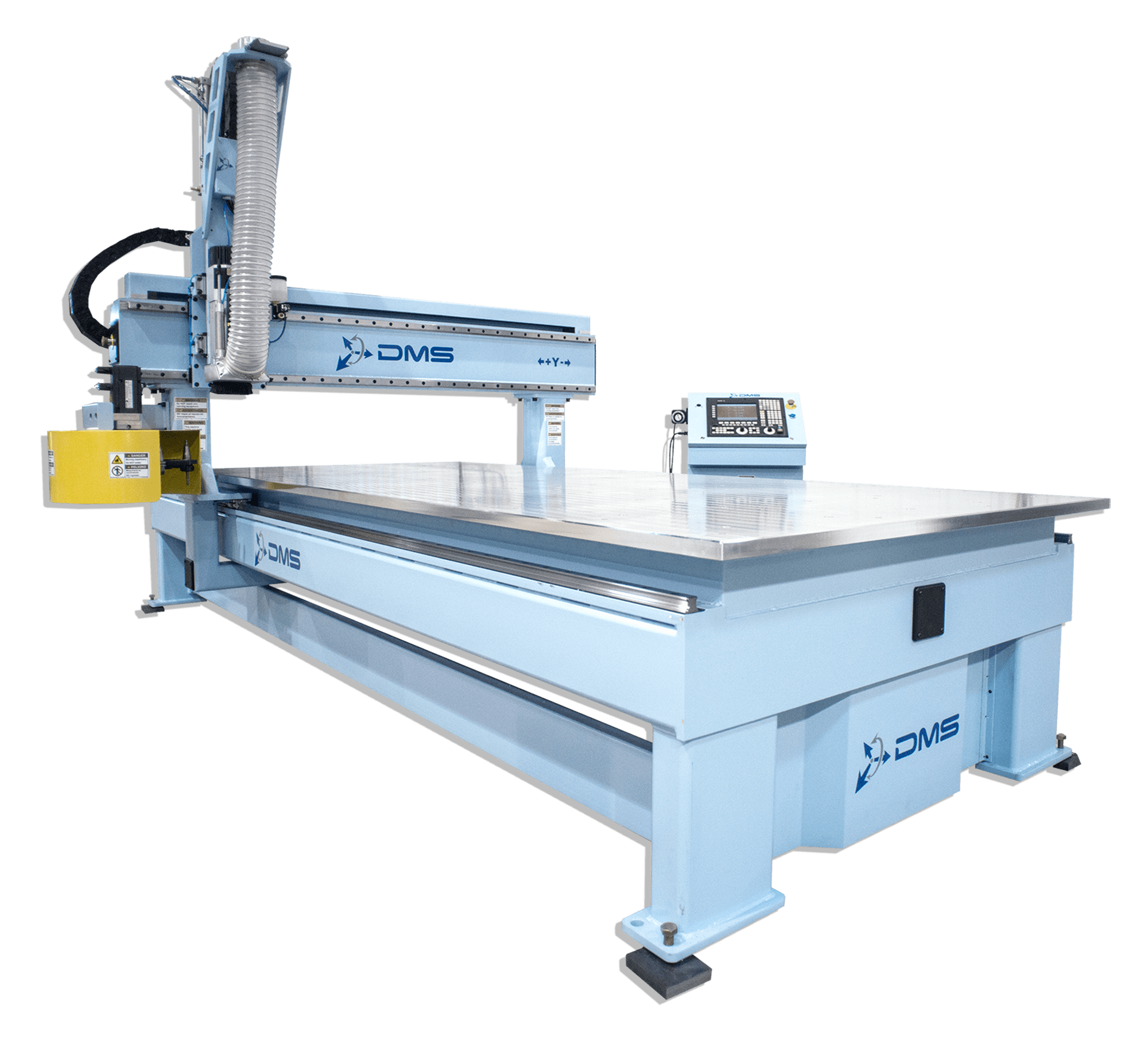

The DMS 3-Axis Low-Rail, Small-Format, Moving Gantry CNC machine features a stationary table design with various customization options. This machine configuration is perfect for medium-duty work and nested-based machining typical of cabinet companies. It is also good for cutting hardwoods, Baltic Birch sheets, thin aluminum sheets, solid surface material and composite panel machining. All models have Fagor controllers.

Acadia 3-axis machine

Pinnacles

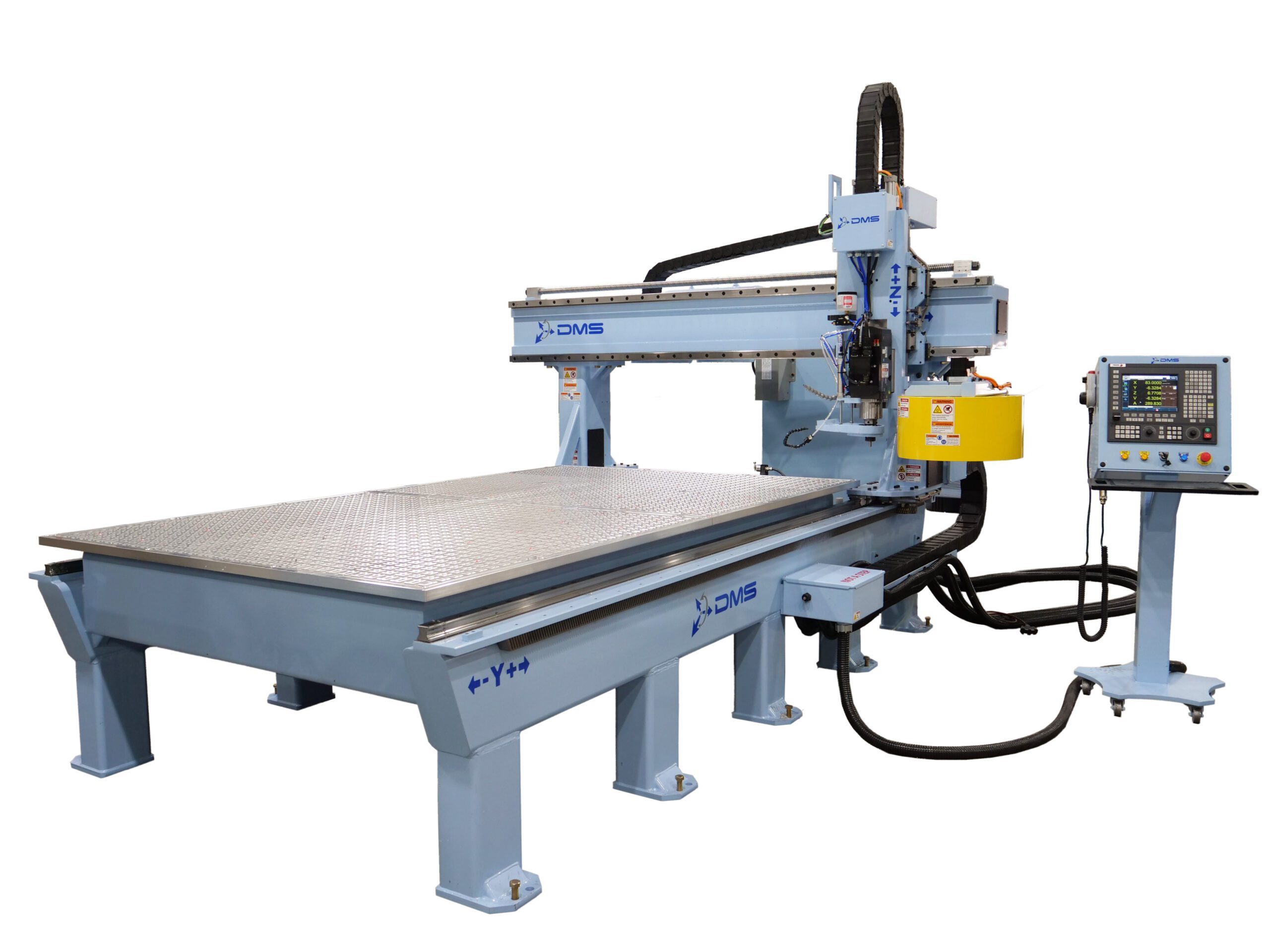

The 3-Axis Gantry CNC Machine is one of the most versatile machines on the market. Boasting an all-steel frame that is stress relieved and welded in house, this rigid machine is capable of handling anything from aluminum to foam. The shear versatility alone makes this one of our most popular models. A Rack & Pinion design on the Y Axis guides this machine quickly and accurately through cuts. The Fagor Control System and matching Servo Motors enable this machine to achieve tight tolerances as well as handle a variety of production needs. The Z Axis is capable of up to 48” and the table length can be extended as far as you need. The capability to add an additional gantry allows you to run two individual product runs at once and maximize your efficiency.

3 Axis Moving Gantry

Sequoia

This 3 -Axis Large Format U -frame Gantry CNC Machine is a continuous -use, heavy duty machine that is feature rich, and can be used to process a wide variety of applications ranging from foam to aluminum. This machine can be manufactured with a universal fixture table, which can perform multiple tasks without requiring the user to stop production. The design of this machine allows for easy loading/unloading of large materials, as the front doors slide open and close. The universal fixture table gives your business the option to improve productivity by reducing downtime between part runs. This machine features an all -steel frame, which is stress relieved and welded in -house to ensure the highest quality. All models have 48” of Z and Fagor controllers.

5-Axis Yellowstone Machine Cutout

Zion

This 3-Axis Enclosed CNC machine features an enclosed design and all steel frame, making it ideally suited for high-speed wood or foam machining.

3 axis moving gantry
