Glacier

This 5 -Axis Large Format Gantry CNC Machine is a continuous-use, heavy-duty large-scale machine that can be used to process a wide variety of applications from foam to aluminum. These routers allow more flexibility and are suitable for complex machining requirements, including particularly large parts in the aerospace & transportation industries. This machine offers the precision required by many industries. Complete in -house steel fabrication and assembly ensures that each machine is the highest-performing machine in its class. This model includes a Fagor Control System and matching Fagor Sercos Drive system, as well as Dual Helical Rack & Pinion Drive.

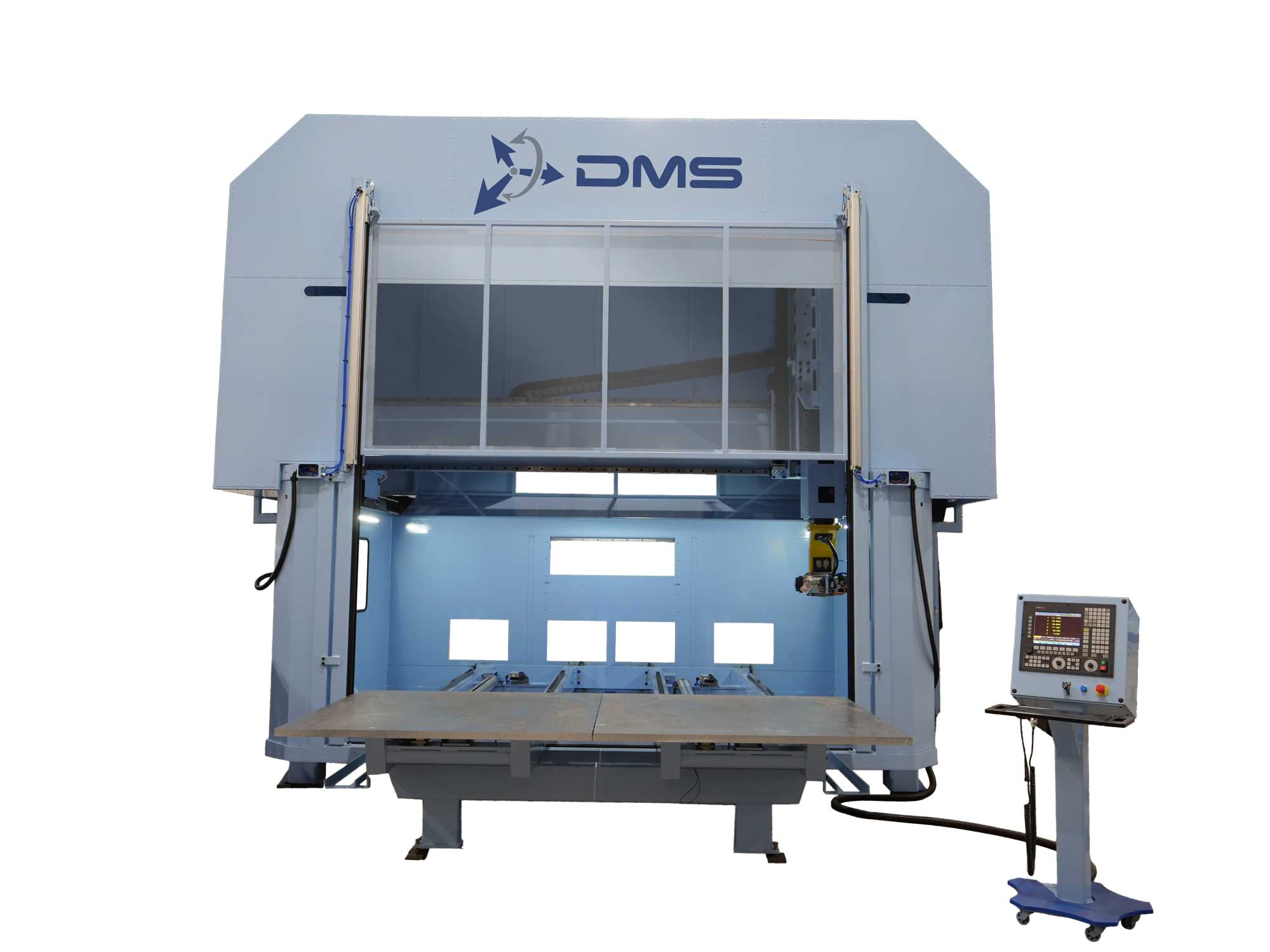

5 Axis Low Rail Enclosed Overhead Gantry With Logo

Common Materials

Wood – Foam – Composites – Plastics

Common Industries

Carbon Fiber – Thermoforming



Base Features

  • 5-Axis Moving Gantry CNC Router
  • Fagor 8065 Power Controller
  • Stress-Relieved Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • Fagor Sercos Drive System with Absolute Feedback on All Axes
  • 460-480 Volts Standard 3-Phase Power (other voltage options available)
  • Ball Screw Driven-Recirculating Ball Screw Assembly on all Axes
  • All Axes Laser Calibrated
  • Sealed Electrical Cabinet with A/C
  • Teach Pendant
  • Manual Doors

Specs

  • Z Axis Stroke –  48″
  • X Axis Stroke – 132″
  • Y Axis Stroke – 72″
  • Lubrication  –  Manual
  • M04 M-Code for Counter Clockwise Spindle Rotation
  • Compressed Air Requirements 10 CFM at 95 PSI
  • C Axis +/- Rotation of 363 Degrees

Customizations

  • Dual Shuttle Table Option Available
  • Custom Table Sizes
  • Automatic Doors Option Available
  • Stationary and Retractable Roof Options Available
  • Automatic Tool Changer
  • Tool Height Sensor
  • Automatic Vacuum Valves
  • Lubrication – Automatic
  • Barcode Reader
  • Quick-Change Fixture
  • Multiple Vacuum Pump Options Available
  • Multiple Spindle Options Available
  • Table Options: 5’x5′, 7’x5′, 10’x5′, 12’x5′, 12’x6′ or shuttle table: 5’x5′, 6’x5′, 6’x7′

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty
