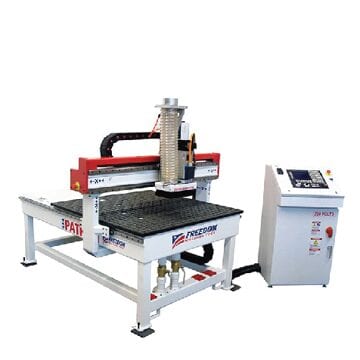

Freedom 4

The Freedom 4×4 CNC router brings high quality and durability to a small workspace. It is ideal for small, specialty manufacturing like Orthotics and for shops requiring a very small footprint like garage or home shops.

Freedom 4

Common Materials

Wood – Foam – Composites – Aluminum – Plastics – Acrylics

Common Industries

Woodworking – Cabinet Making

Average Build Time

4-6 weeks

Starting Price

$40,000

Base Features

  • 3-Axis CNC Router
  • Fagor 8070 OL 3-axis industrial controller with 17″ LCD color monitor
  • Moving Gantry Design
  • Rigid Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • Fagor Industrial AC Servo Motors & Amplifiers On All Axes
  • Ball Screw Assembly On All Axes
  • 220 Volt 3-Phase Power
  • 4’x4’ 1” Phenolic Table (aluminum tables also available)
  • Dust Collection  –  Hood provided and dust delivery collection on top of Z-axis accepts a 5″ dust collection line from customer’s system
  • Vacuum Pump  –  10 or 15hp Becker available as an Option
  • Ball Screw Drive  –  Recirculating ball screw assembly on all axes
  • Electro Spindle –  Hiteco 10 hp / 7.5 kW Standard (other hp options available)

Specs

  • Rapid Feed Rate  –  Up to 1400 inches per minute
  • X Axis Stroke  –  48” / 1219 mm
  • Y Axis Stroke  –  48” / 1219 mm
  • Z Axis Stroke –  12” / 305 mm
  • X & Y Axes  –  Laser calibrated
  • 12” Of Z-Axis Travel
  • 9” Of Clearance Under The Bridge
  • Power Requirement  –  220V, 3-phase, 60 HZ (Amps determined by spindle option)
  • Lubrication  –  Manual
  • M-Code  –  M04 M-Code for counter clockwise spindle rotation
  • Customizations

Customizations

  • Spindle Accessories
  • Drill Bank Option
  • Dust Collection Options
  • Vacuum Options
  • Vacuum Accessories
  • Safety Options for Compliance

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty

Looking for Freedom Machine Tool or FMT Patriot?

Diversified Machine Systems still services all CNCs sold under the names of Freedom Machine Tool and FMT Patriot. If you own one of these machines and have a service or upgrade question, our team of experts will happily assist you at customerservice@dmscncrouters.com or 855-266-5063.
