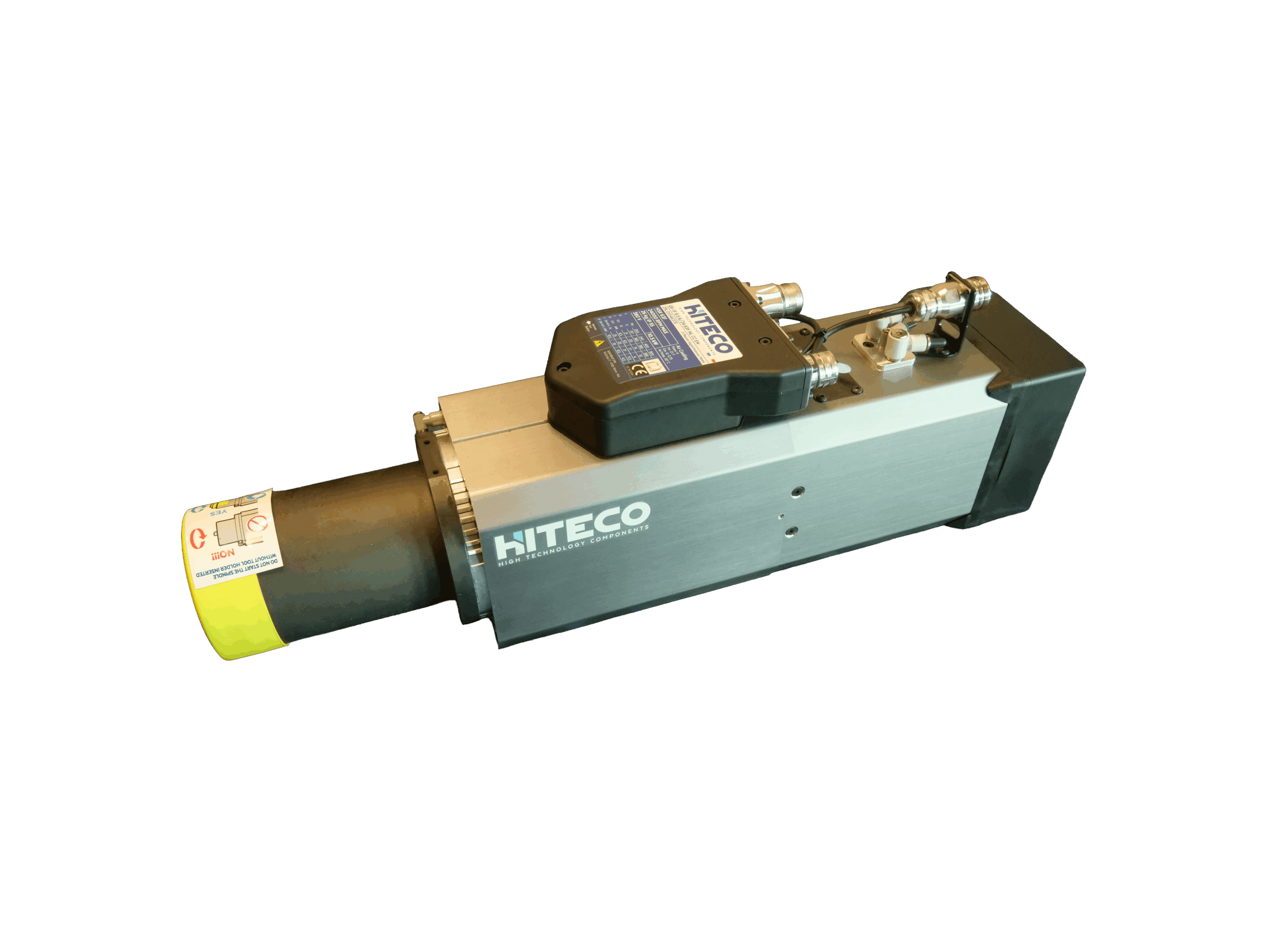

Hiteco PT400 High Torque CNC Spindle Motor – HSK 63F Long Nose, 8.5 kW / 10.5 kW

The Hiteco PT400 high torque CNC spindle motor is designed for heavy-duty machining operations that demand strong low-speed torque, accuracy, and reliability. Built with an HSK 63F tool interface and long nose configuration, this spindle is ideal for aggressive cutting, large tooling, and applications requiring precise tool engagement and rigidity. Rated at 8.5 kW continuous S1 power at 6,000 RPM and 10.5 kW S6 intermittent power at 6,000 RPM, the PT400 delivers exceptional torque performance while maintaining a maximum speed capability of up to 24,000 RPM. Integrated ceramic bearings and a 4-pole motor design provide smooth operation, reduced vibration, and long service life. This spindle includes a TTL encoder for accurate speed feedback and positioning, making it well suited for advanced CNC systems and production environments. Fan-cooled air cooling simplifies installation while ensuring consistent thermal management.

• Specifications:
  ◦ Manufacturer: Hiteco
  ◦ Model: PT400
  ◦ Tool Interface: HSK 63F
  ◦ Nose Type: Long Nose
  ◦ Maximum Speed: 24,000 RPM
  ◦ S1 Power (Continuous): 8.5 kW at 6,000 RPM
  ◦ S6 Power (Intermittent): 10.5 kW at 6,000 RPM
  ◦ Voltage: 380 V
  ◦ Motor Type: 4-Pole
  ◦ Bearings: Ceramic
  ◦ Cooling Method: Fan Cooled (Air)

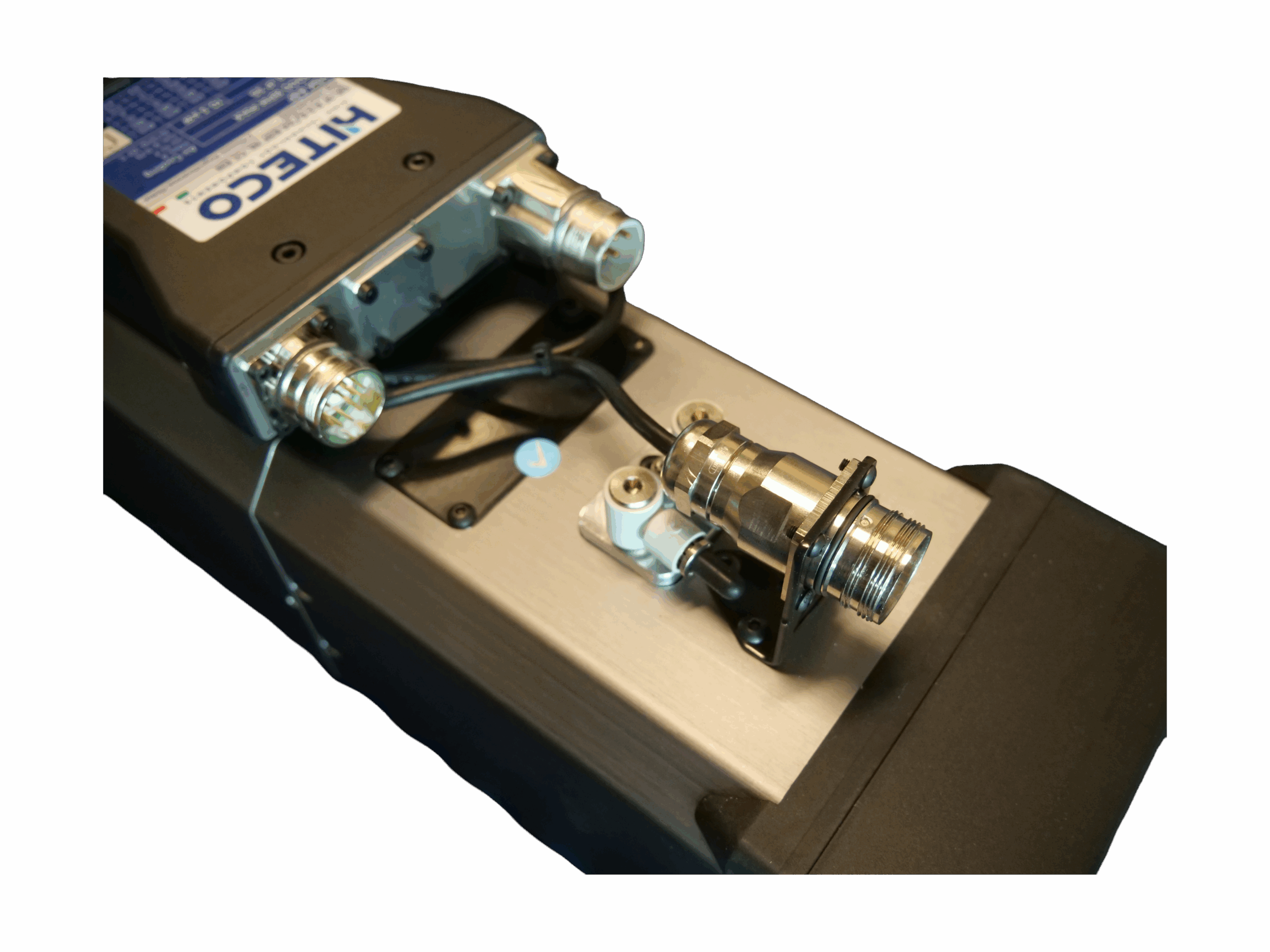

  ◦ Encoder: TTL Feedback
  ◦ Configuration Code: QE-1F 8.5 / 6 24 63F NL CC EN
  ◦ Serial Reference: 29L0554637E
• Applications:
  ◦ Heavy-duty CNC routing and machining
  ◦ High torque cutting operations
  ◦ Automatic tool changer CNC systems
  ◦ Production environments using HSK 63F tooling
• Features & Benefits:
  ◦ High torque output for demanding cuts
  ◦ HSK 63F interface for superior rigidity and repeatability
  ◦ Long nose design for extended reach and clearance
  ◦ Ceramic bearings for durability and high-speed stability
  ◦ TTL encoder for precise speed and motion feedback
  ◦ Air-cooled design for simplified integration and service
