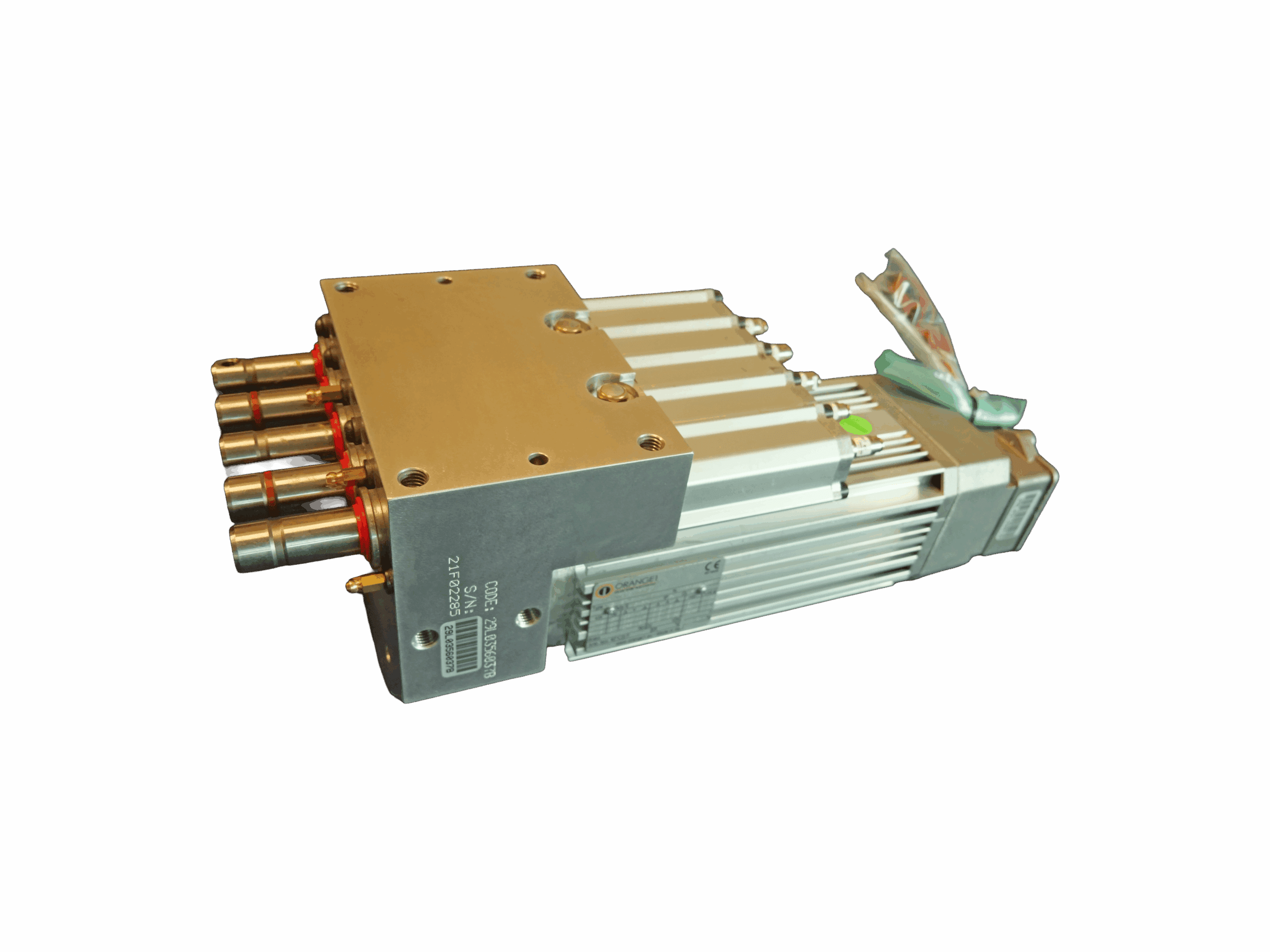

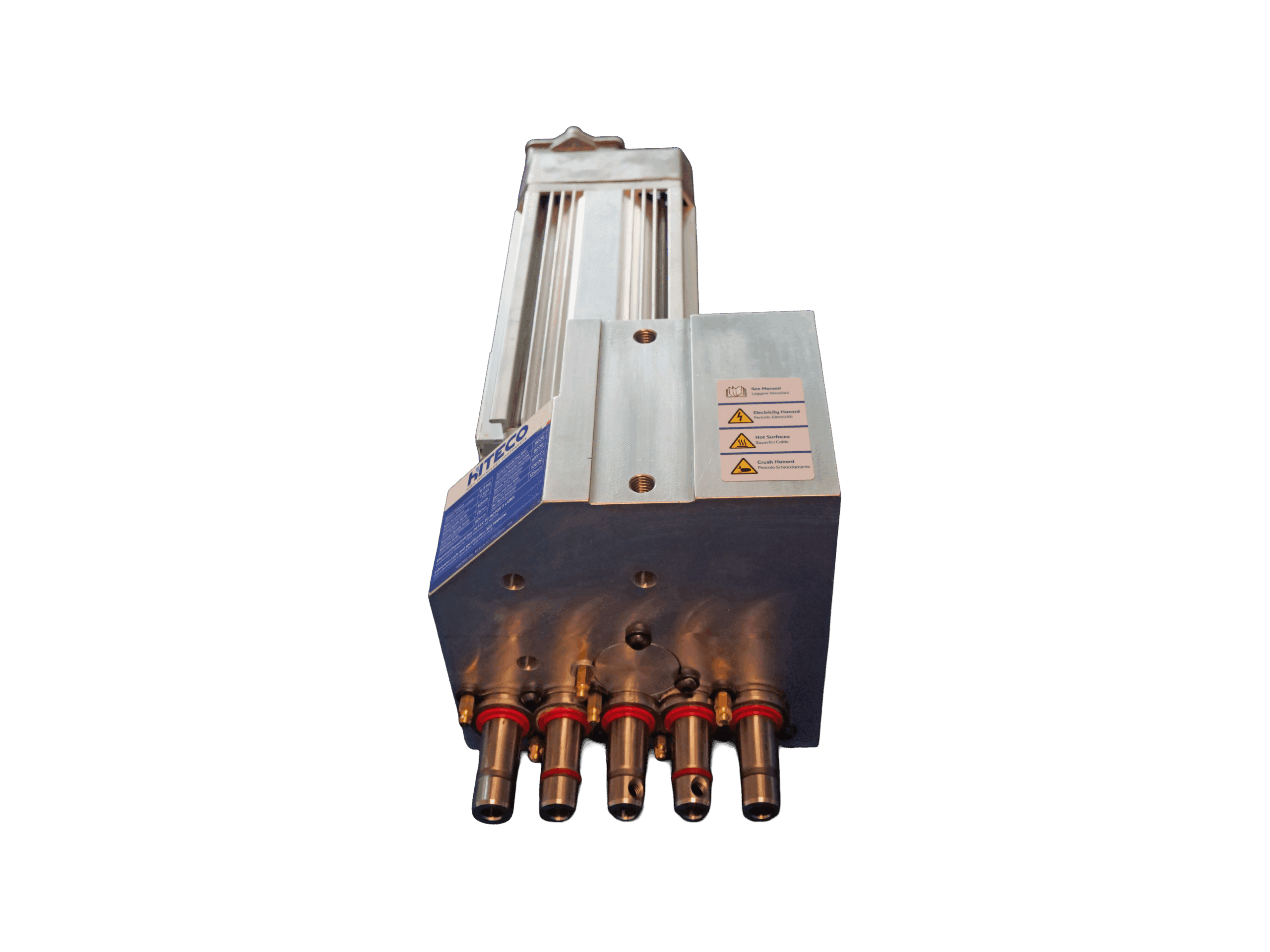

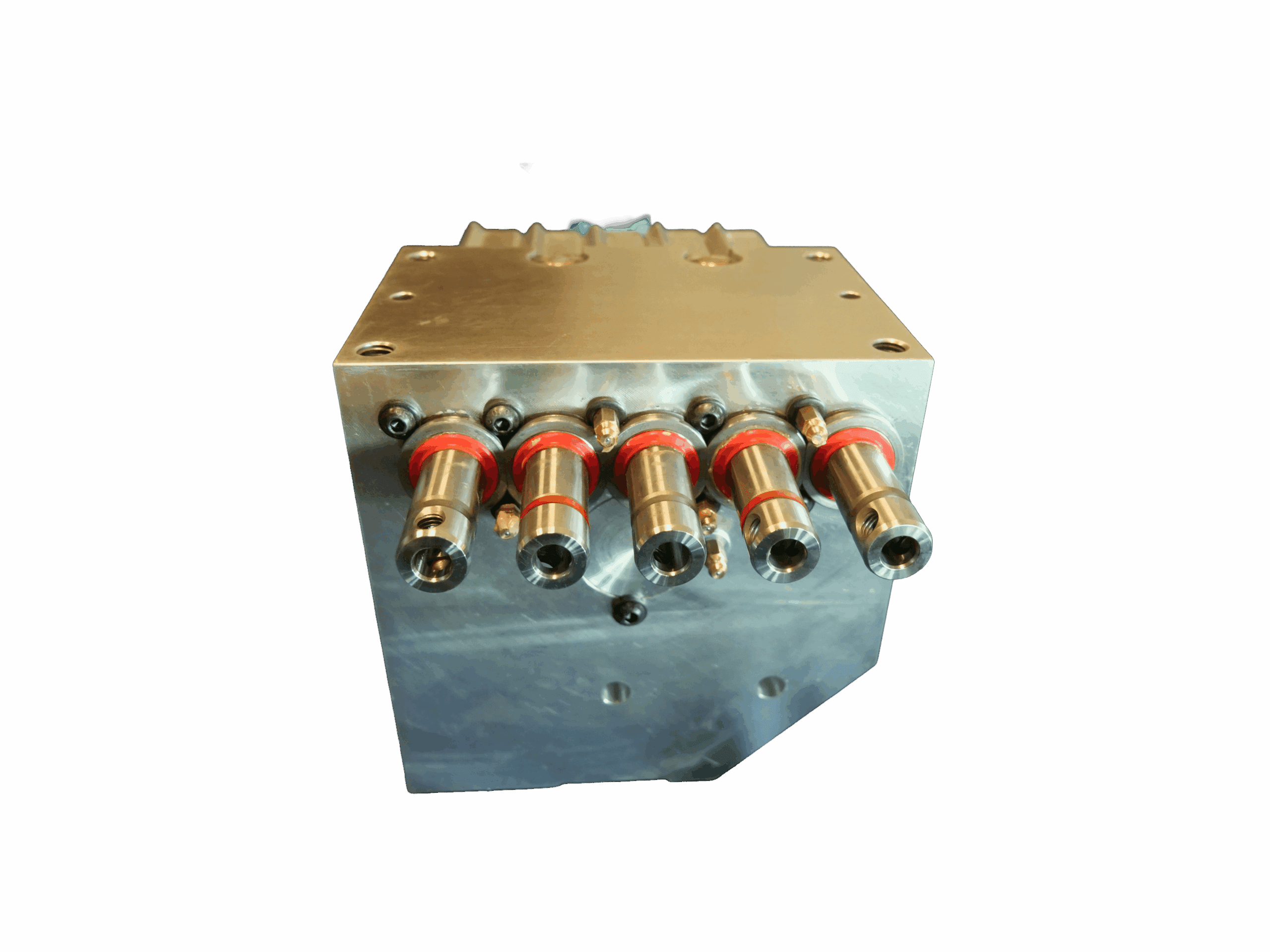

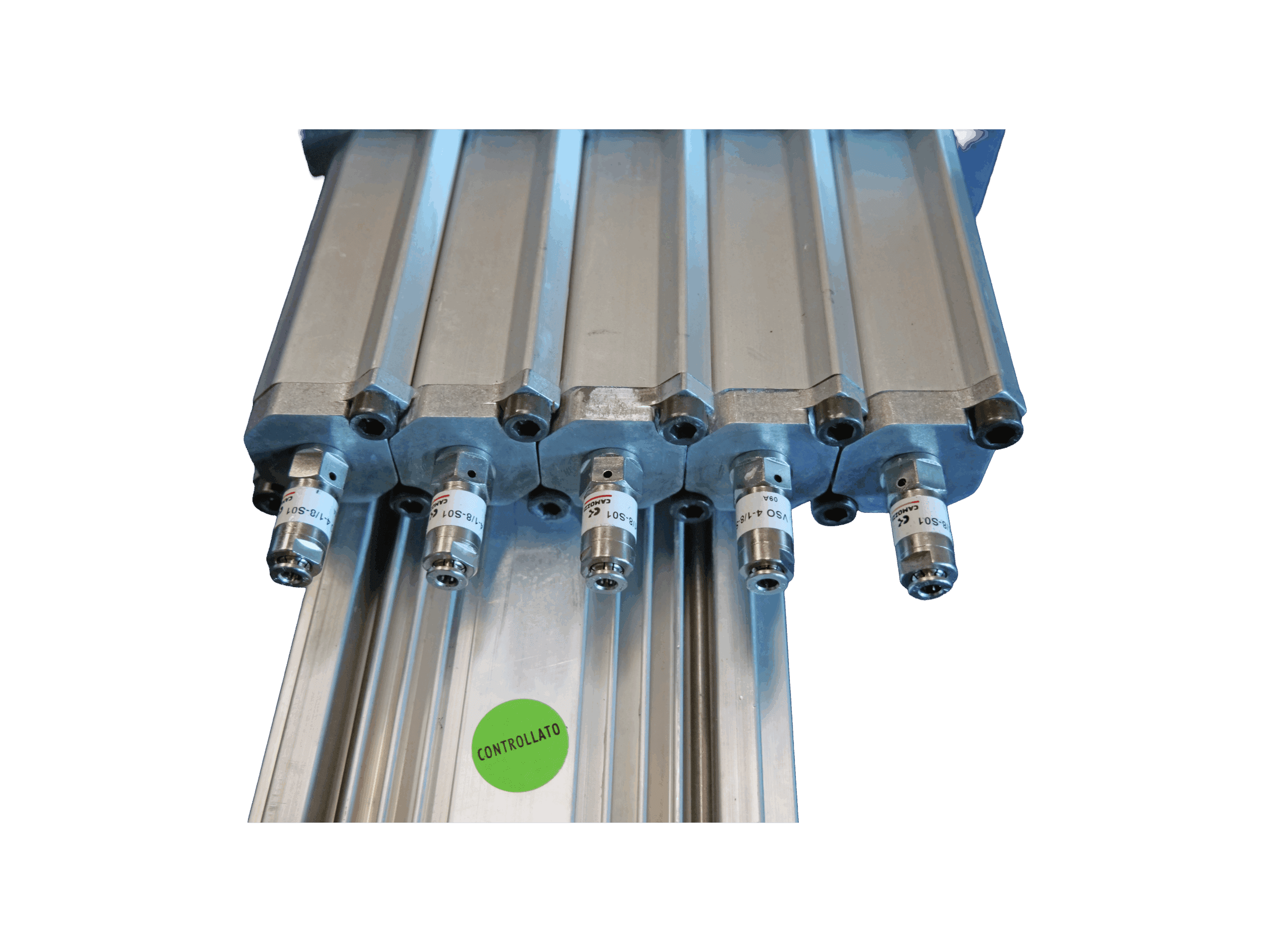

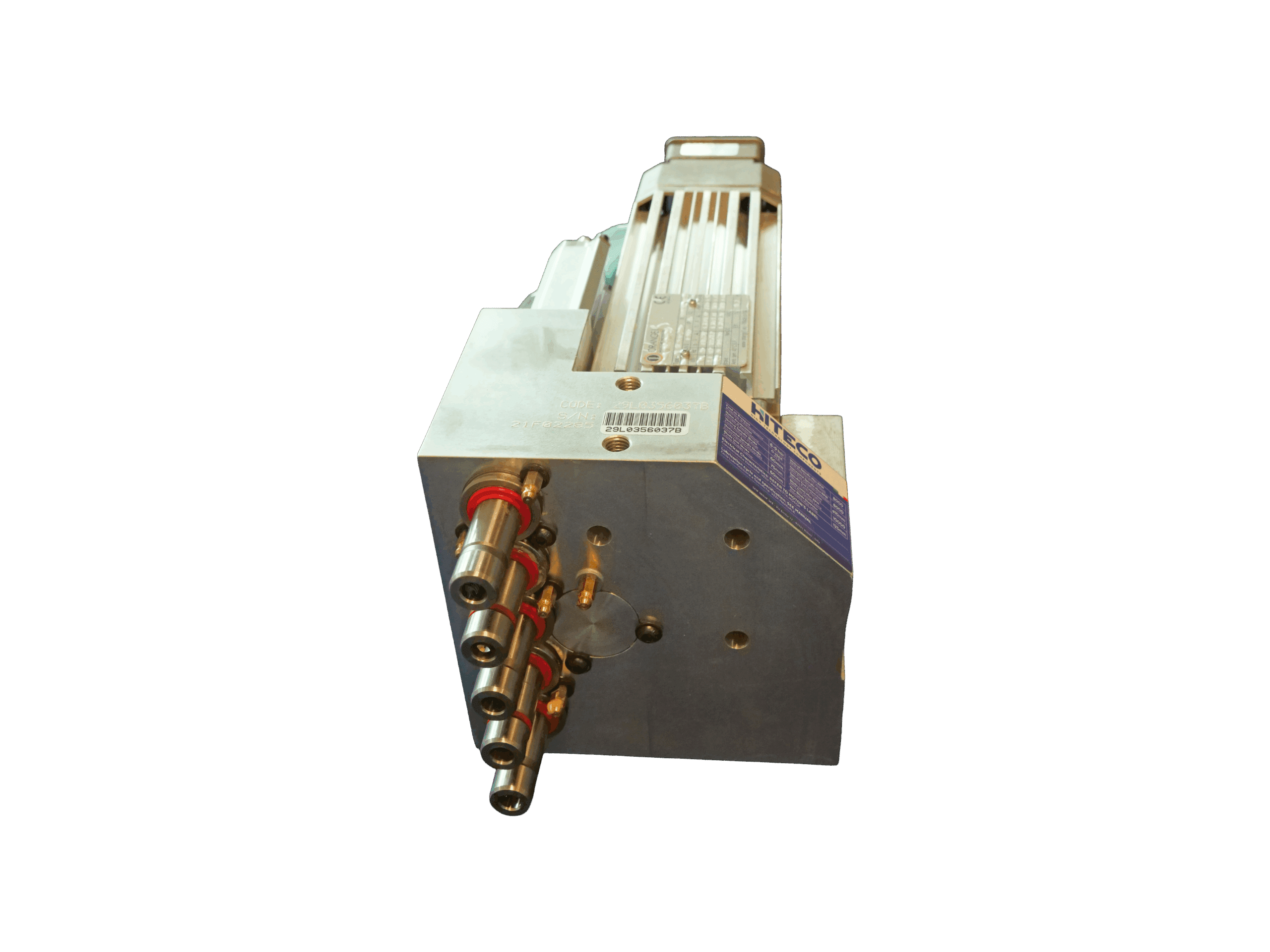

Boring Head – 5 Vertical Spindle Assembly Ø20mm Weldon Shaft (TF.A.5V.0H.0B.A)

The 5 Vertical Spindle Boring Head (TF.A.5V.0H.0B.A) is a precision-engineered multi-spindle unit designed for simultaneous vertical drilling or boring operations. Built for speed, accuracy, and rigidity, this head features five independent spindles with Ø20mm shafts and Weldon-type tool tapers, allowing fast tool changes and consistent concentricity. Each spindle is capable of operating at speeds up to 8000 RPM, providing the performance required for high-efficiency machining and repetitive drilling processes. With a compact, durable aluminum and steel body, the assembly maintains alignment under load and ensures long-term reliability in production environments. The head also includes an integrated air/oil lubrication system and ships with replacement O-rings and fittings.

• Specifications:
  • Model: TF.A.5V.0H.0B.A
  • Part Number: 29L0356037B
  • Number of Spindles: 5 (Vertical)
  • Spindle Shaft Diameter: Ø20 mm
  • Tool Interface: Weldon-type taper
  • Maximum Speed: 8000 RPM
  • Maximum Tool Length: 70 mm
  • Orientation: Vertical spindle configuration
  • Material: Precision-machined aluminum and steel construction
  • Included Components: Head assembly, O-ring set, and spare fittings
  • Lubrication: Integrated air/oil system

• Applications:
  • Multi-hole drilling and boring operations
  • CNC machining centers and automated drilling systems
  • Wood, plastic, and non-ferrous metal machining
  • High-volume manufacturing and panel processing

• Features & Benefits:
  • Five synchronized spindles for efficient multi-hole operations
  • Weldon-style tool interface ensures accurate and secure tool holding
  • High-speed operation up to 8000 RPM for fast cycle times
  • Heavy-duty construction for precision and longevity
  • Supplied with replacement seals and fittings for easy maintenance
