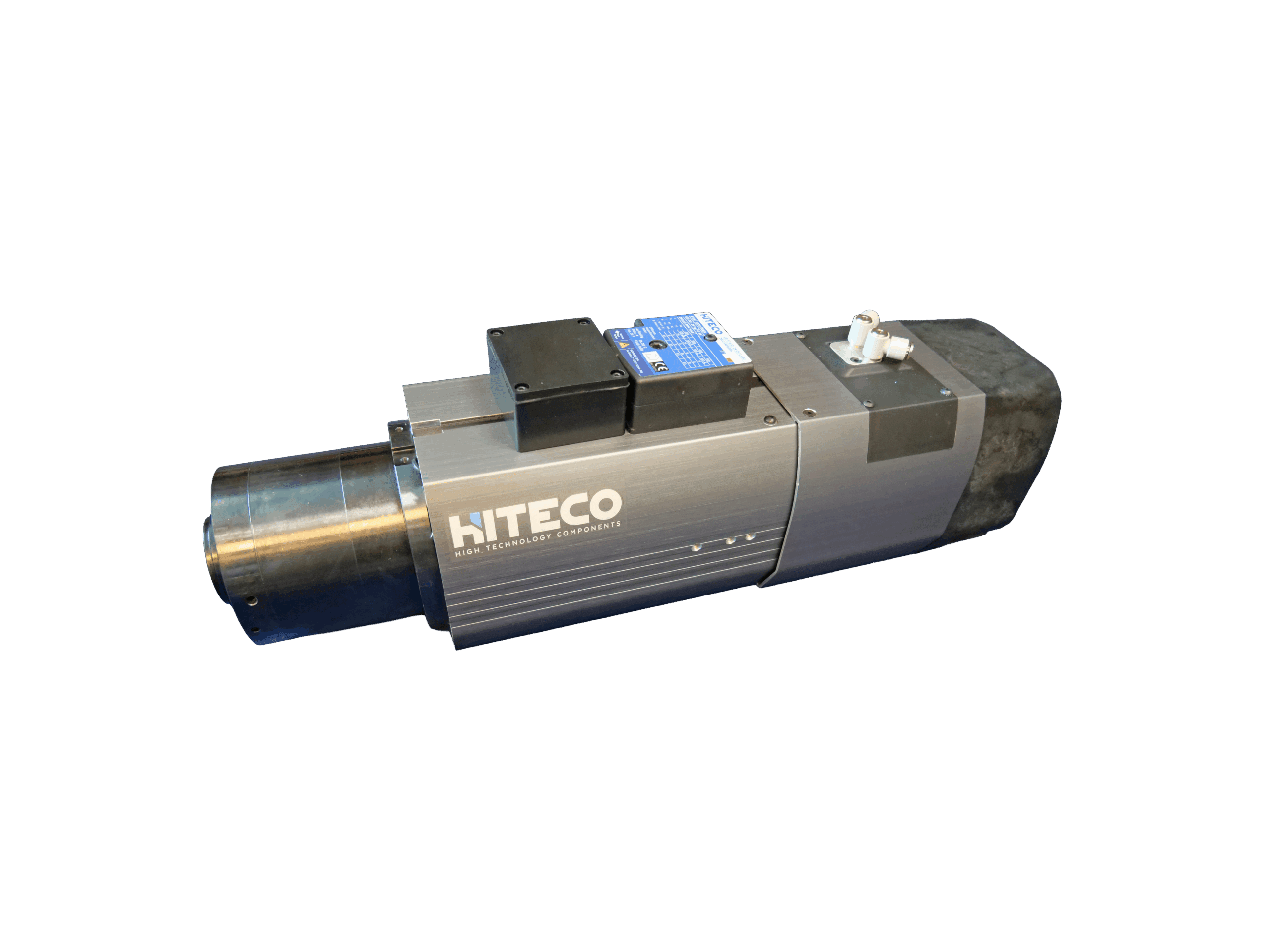

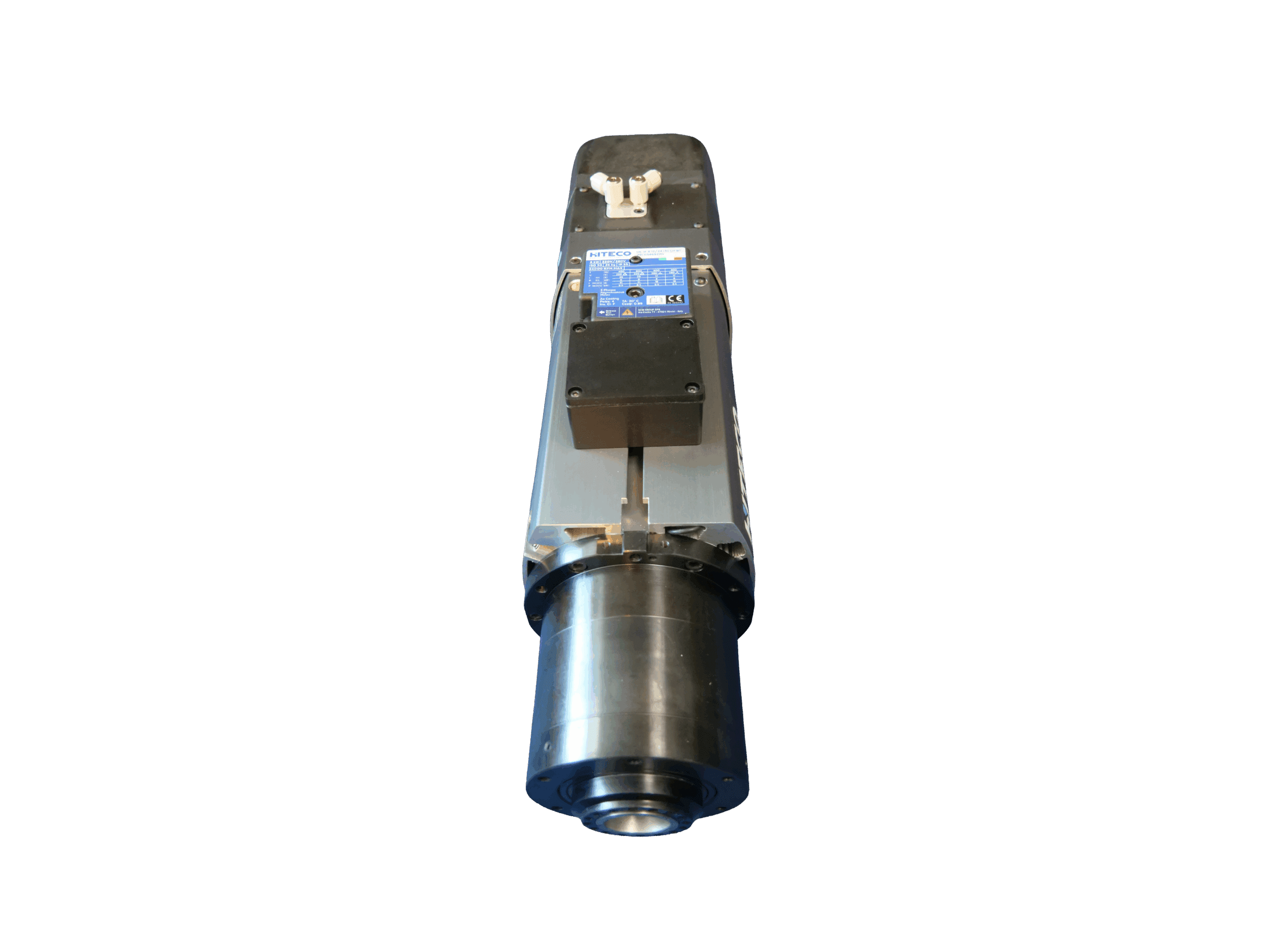

Hiteco UE-1F ISO30 Spindle – 8kW S1 / 9.5kW S6, Long Nose, Air Cooled, 24k RPM

The Hiteco UE-1F 8/12 24 I30 LH BT spindle is a premium ISO30 air-cooled electrospindle engineered for industrial CNC routers and automated machining centers. Designed for high-duty production environments, it delivers 8kW continuous power (S1) and up to 9.5kW peak output (S6), supporting high-speed machining up to 24,000 RPM with excellent thermal stability. Its long-nose configuration allows improved reach for deep or complex toolpaths, while the air-cooling system provides consistent operating temperatures without requiring an external coolant loop. This spindle is ideal for wood, composite, plastic, and non-ferrous metal machining in demanding manufacturing, aerospace, and fabrication settings.

Built with Hiteco’s precision engineering, the UE-1F spindle features a 3-phase asynchronous motor, ISO30 tool interface, and a rugged aluminum housing designed for long service life and reliable performance in continuous-use applications.

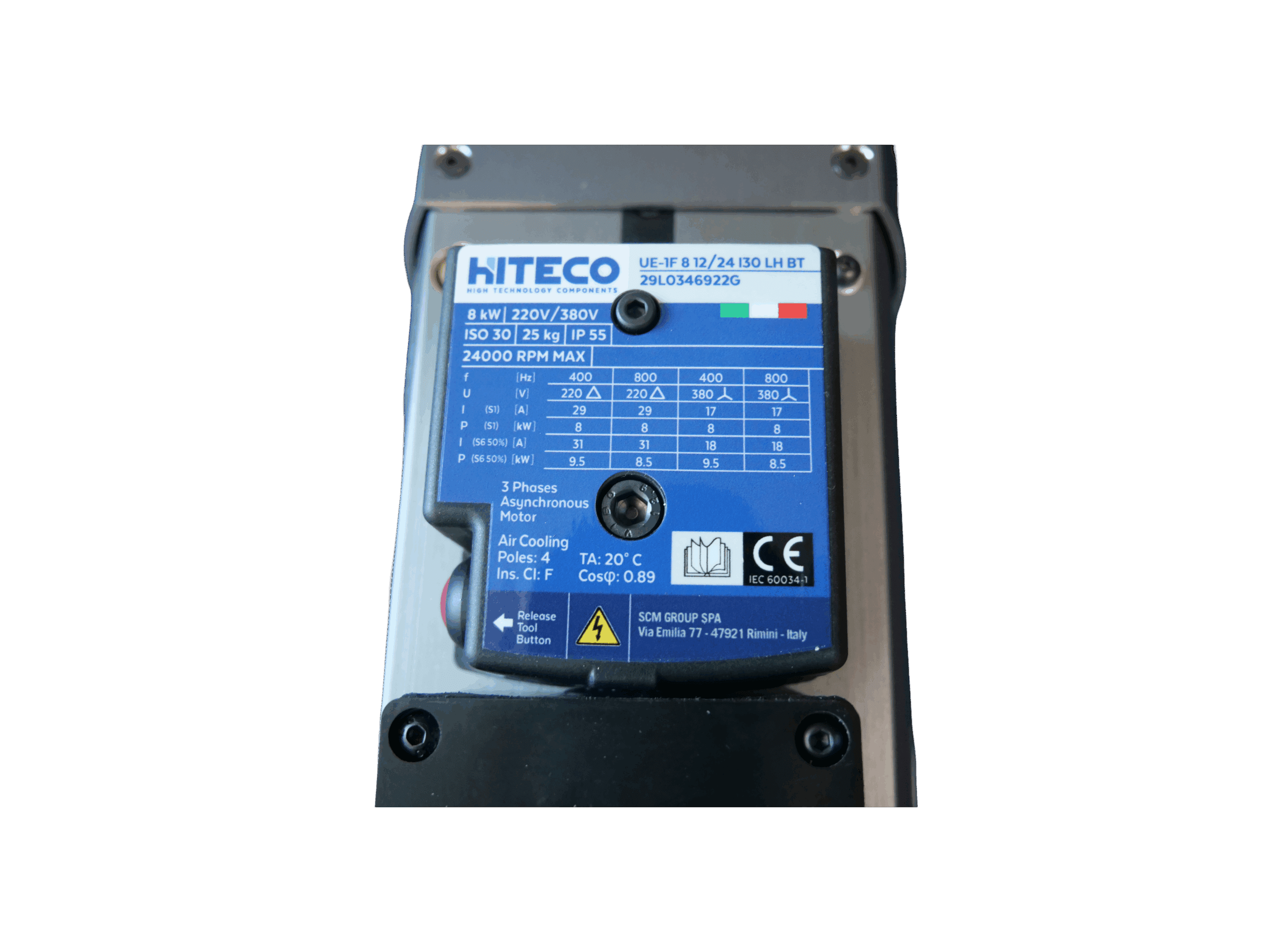

Specifications:

• Model: UE-1F 8/12 24 I30 LH BT
• Manufacturer Item #: 29L0346922G
• Tool Interface: ISO30
• Cooling Type: Air cooled
• Continuous Power (S1): 8 kW (10.7 HP)
• Peak Power (S6 50%):5 kW (12.7 HP)
• Voltage: 220V / 380V
• Frequency: 400 Hz
• Max Speed: 24,000 RPM
• Motor Type: 3-phase asynchronous
• Poles: 4
• Duty Rating: S1 and S6
• Insulation Class: F
• Nose Style: Long nose
• Housing Protection: IP55
• Included Components: Spindle unit with factory wiring and connectors

Applications:

• CNC routers using ISO30 tool holders
• High-speed machining of wood, plastics, composites, and aluminum
• Industrial production lines requiring continuous-duty spindle performance
• Automated systems where long-nose reach improves toolpath access

Features & Benefits:

• High-speed 24,000 RPM output for smooth cutting and fine surface finish
• Long-nose ISO30 design enhances reach for complex machining operations
• Air-cooled system reduces maintenance and eliminates coolant requirements
• 8kW continuous (S1) power supports demanding production workloads
• Engineered by Hiteco for maximum durability and reliability
