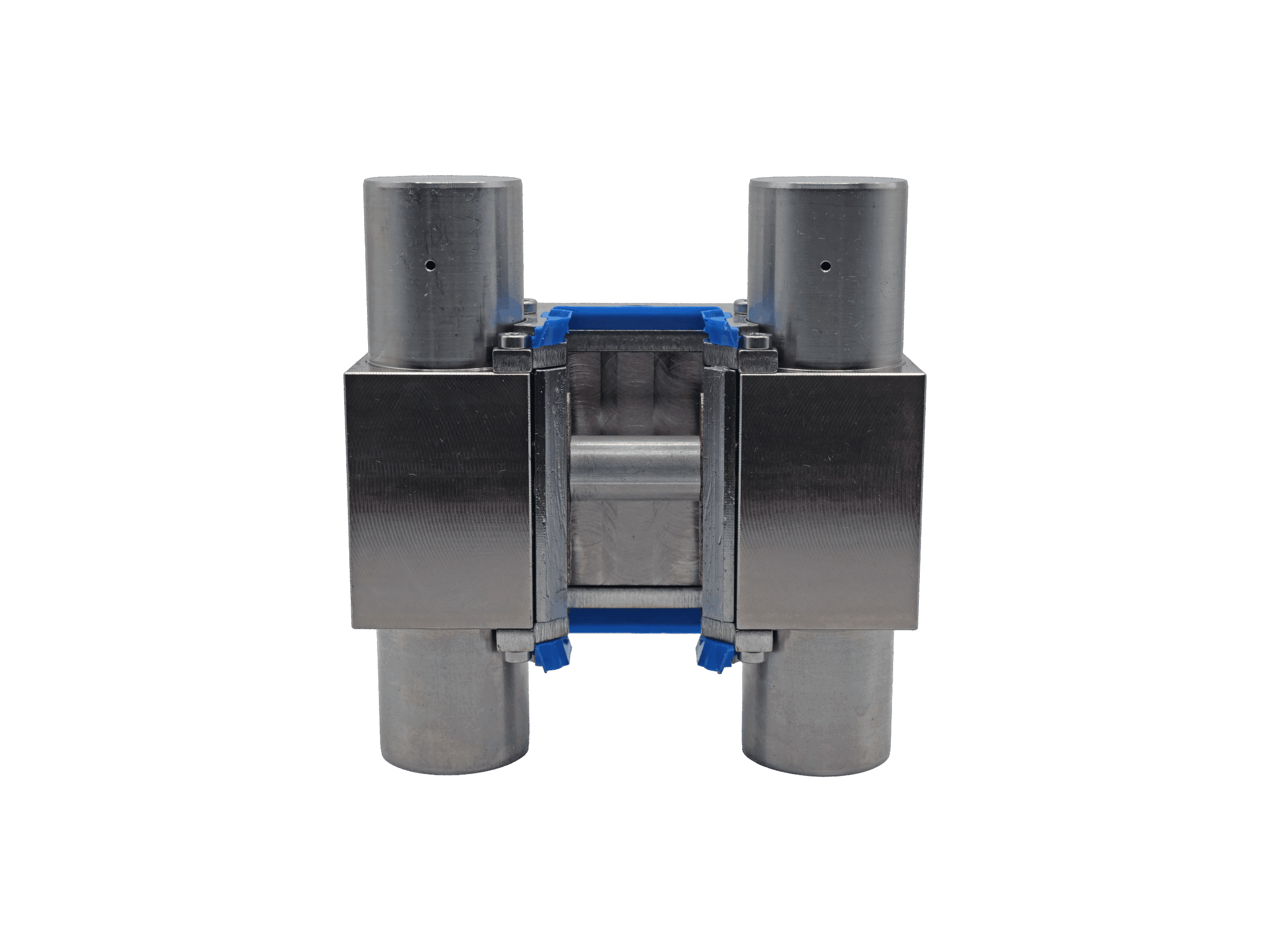

Zimmer Linear-Guide Braking Element – 35mm Bosch Rail (Air to Release)

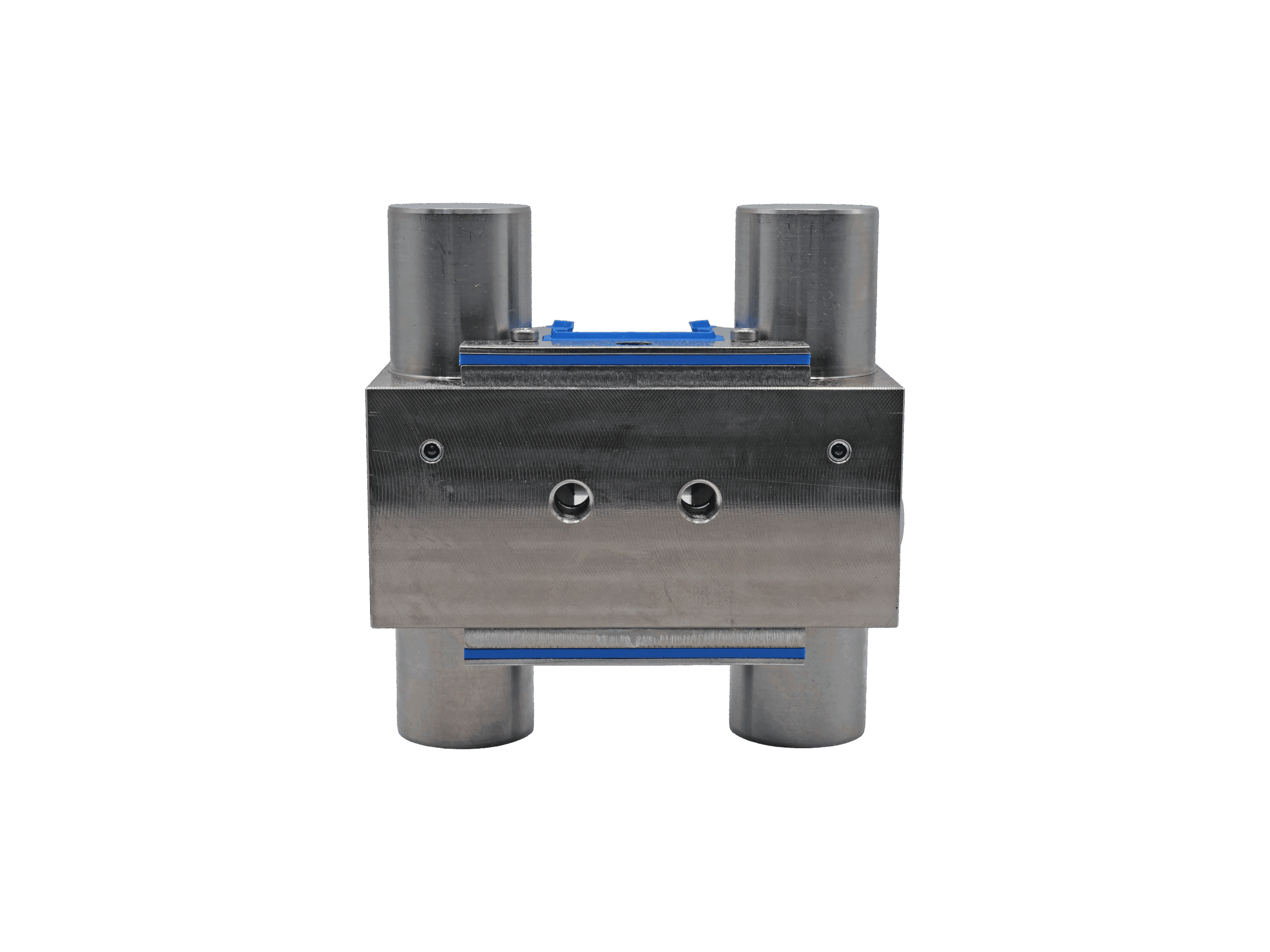

Zimmer Linear-Guide Braking Element – 35mm Bosch Rail (Air to Release) - Image 2

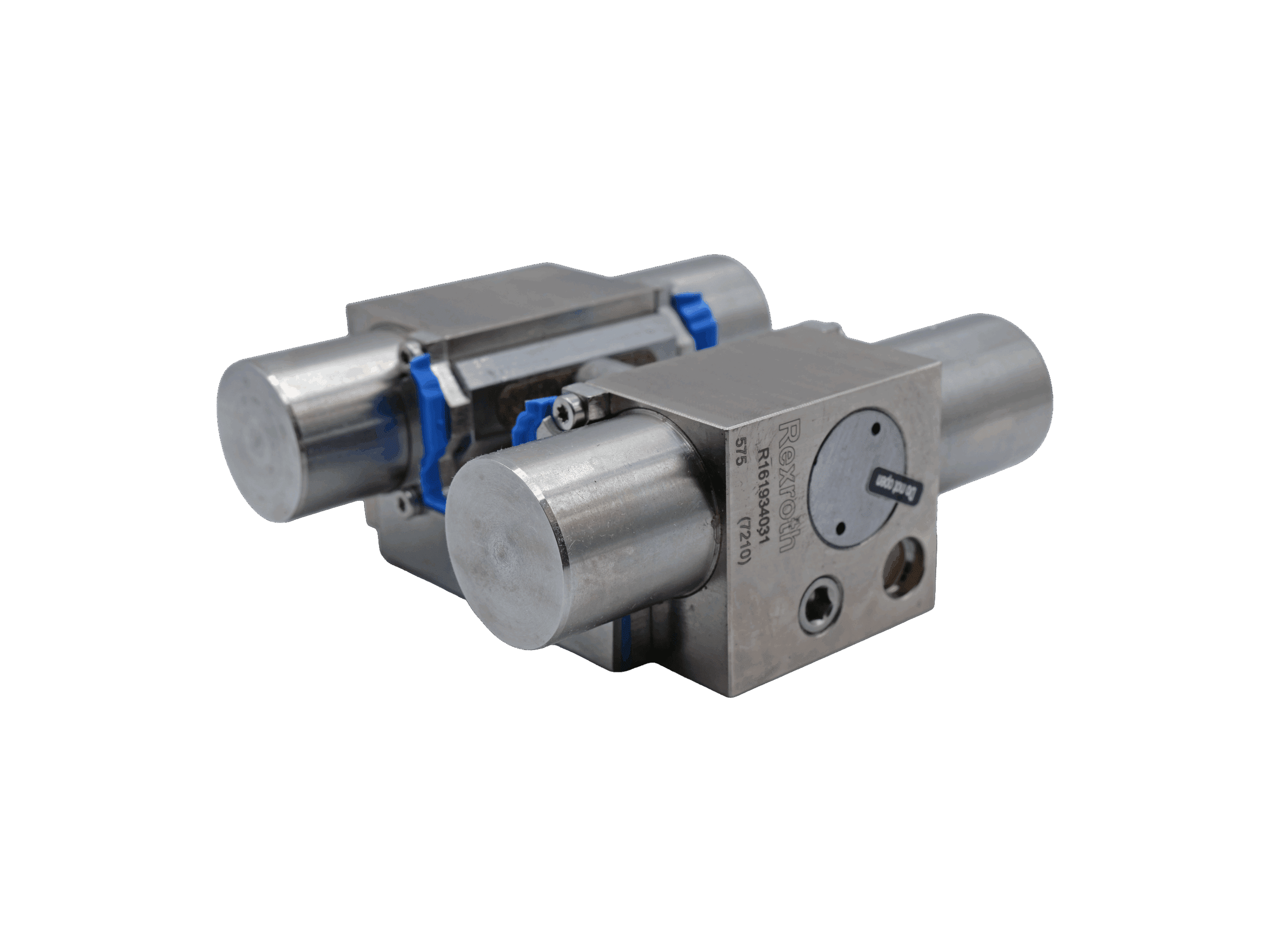

Zimmer Linear-Guide Braking Element – 35mm Bosch Rail (Air to Release) - Image 3

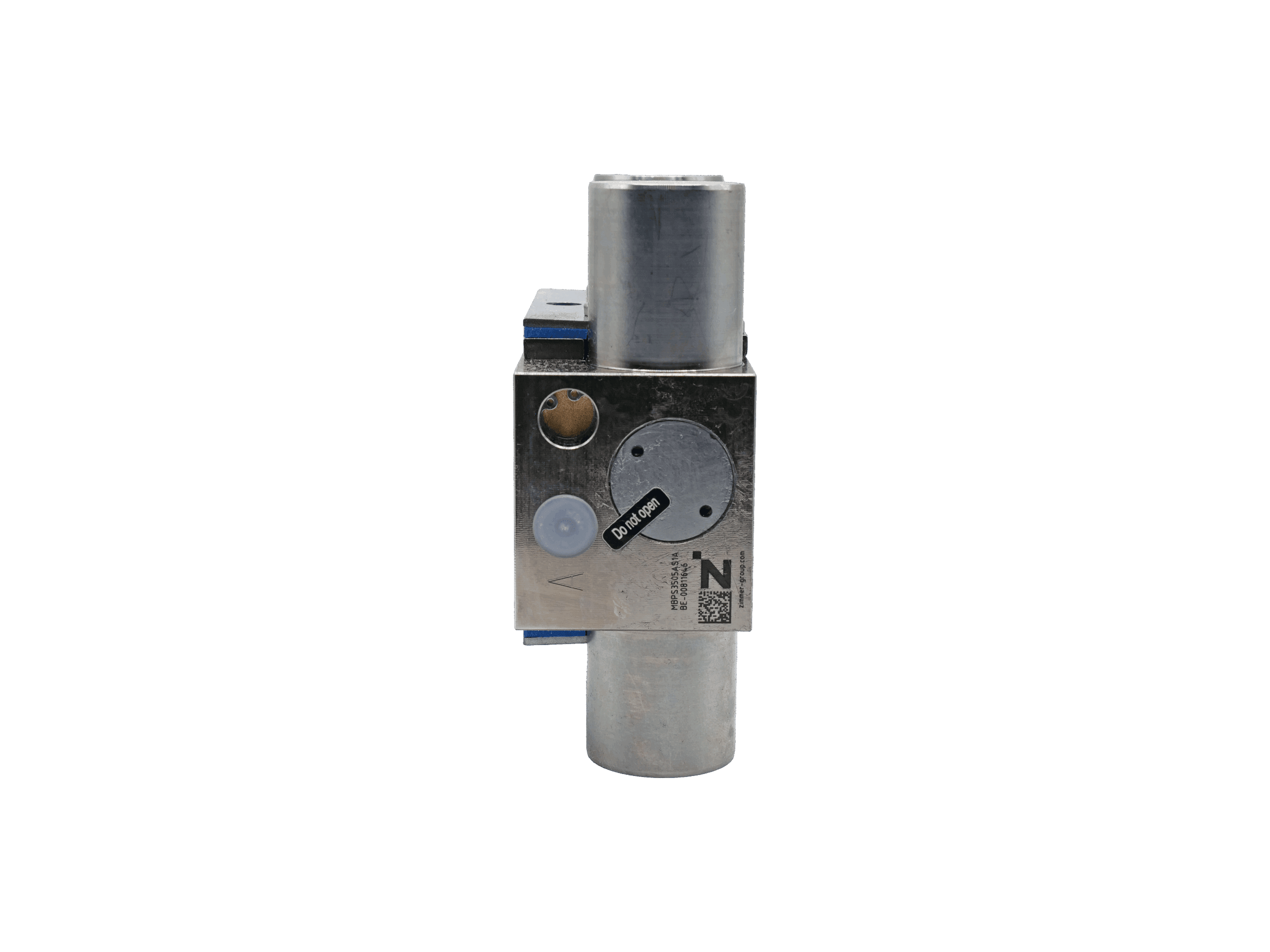

Zimmer Linear-Guide Braking Element – 35mm Bosch Rail (Air to Release) - Image 4
Zimmer Linear-Guide Braking Element – 35mm Bosch Rail (Air to Release) - Image 5

Zimmer Linear-Guide Braking Element – 35mm Bosch Rail (Air to Release)

$1,672.95

Zimmer Linear-Guide Braking Element (R161934031) for 35mm Bosch Rexroth rails. Pneumatically released, spring-actuated brake provides secure, fail-safe holding and precision positioning. Ideal for CNC, automation, and linear motion systems.

1 in stock

SKU BRAKE-35MM Categories ,

The Zimmer Linear-Guide Braking Element (Part #R161934031) is an air-released brake built for 35mm Bosch Rexroth linear guide rails. It delivers precise motion control and secure holding by using spring force to engage the brake and compressed air to release it. Its steel and aluminum construction withstands repeated engagement cycles and heavy operational loads. The brake supports safety-critical applications by providing stable, mechanical holding whenever air pressure drops. Its compact profile, reliable performance, and maintenance-friendly design allow it to integrate cleanly into Rexroth linear guide systems.

  • Specifications:
    • Manufacturer: Zimmer Group
    • Part Number: R161934031
    • Compatible Rail Size: 35 mm (Bosch Rexroth Linear Guide)
    • Actuation Type: Pneumatic (Air to Release)
    • Holding Mechanism: Spring force actuation
    • Operating Pressure: Typically 5–8 bar (air release)
    • Material: Hardened steel with anodized aluminum housing
    • Mounting Type: Direct mount to linear rail carriage
    • Operation Mode: Fail-safe (brake engages without air)
    • Function: Secure holding and position locking on linear axes
    • Dimensions: Optimized for 35mm Bosch rail standard
  • Applications:
    • CNC and automation systems requiring secure position locking
    • Axis braking for linear motion assemblies
    • Vertical or inclined axis holding applications
    • Precision positioning and safety locking during power-off conditions
  • Features & Benefits:
    • “Air to release” function provides safe fail-locked operation
    • Compatible with Bosch Rexroth 35mm linear guide rails
    • Durable steel construction ensures long service life
    • Compact, maintenance-friendly design
    • High clamping force and repeatable holding accuracy
