STI MA-15 Coded Magnetic Safety Switch 445071549 Non-Contact Sensor 24VDC M12

STI MA-15 Coded Magnetic Non-Contact Safety Switch designed for machine guarding and industrial safety applications. This magnetically coded safety sensor provides tamper-resistant monitoring of safety gates, access doors, and machine guards without physical contact between the actuator and sensor.

The MA-15 operates on 24VDC and features 2 Normally Closed (NC) safety contacts and 1 Normally Open (NO) auxiliary contact, with an M12 male connector interface. Suitable for use in manufacturing, automation, packaging, and machine safety systems.

Features

• Manufacturer: STI (Scientific Technologies Inc.)
• Model: MA-15
• MSI Part Number: 445071549
• Type: Coded Magnetic Safety Switch
• Operating Voltage: 24VDC Only
• Contact Configuration: 2 NC + 1 NO
• Connector: M12 Male
• Non-contact magnetic sensing technology
• Tamper-resistant coded actuator design
• Compact industrial housing

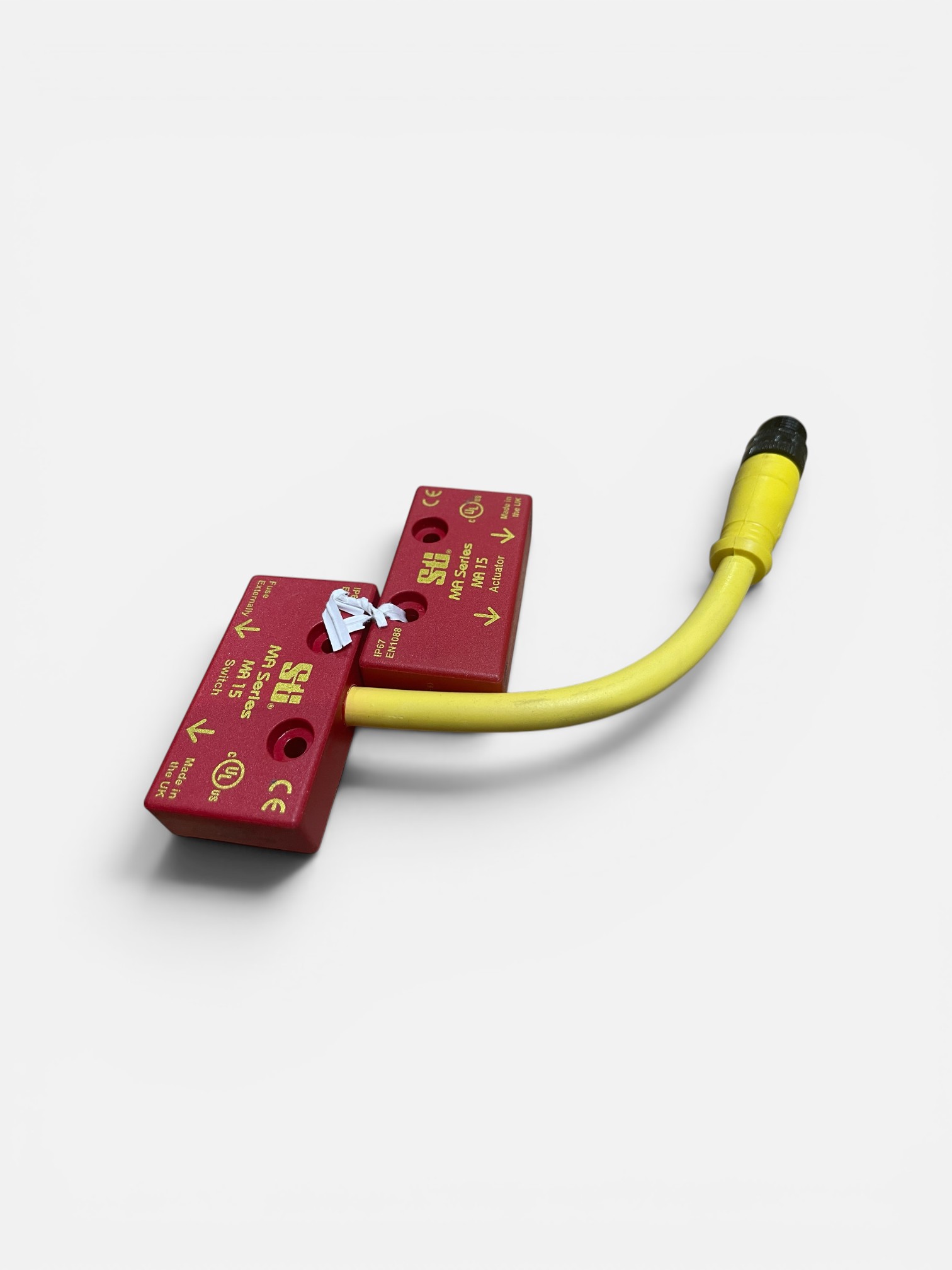

• Includes actuator as shown

Applications

• Safety Gate Monitoring
• Machine Guard Interlocks
• Packaging Equipment
• CNC Machinery
• Industrial Automation
• Manufacturing Systems
• Access Door Monitoring

Included

• 1 × STI MA-15 Safety Switch
• 1 × Matching Coded Actuator
• Attached cable with M12 male connector
