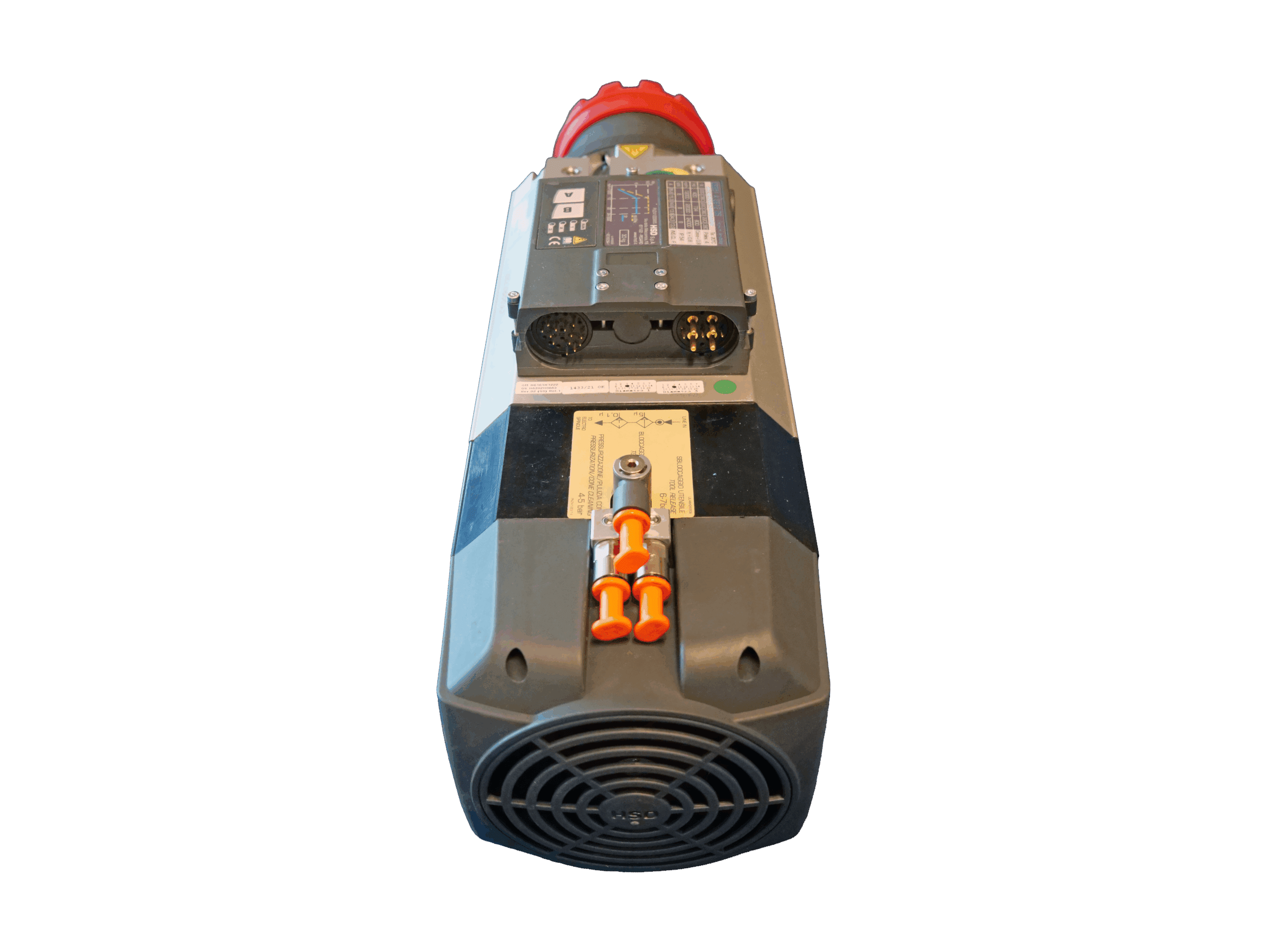

8 kW / 10 HP CNC Spindle Motor – ISO 30 Long Nose, Air Cooled, 4-Pole, 220 / 380 V

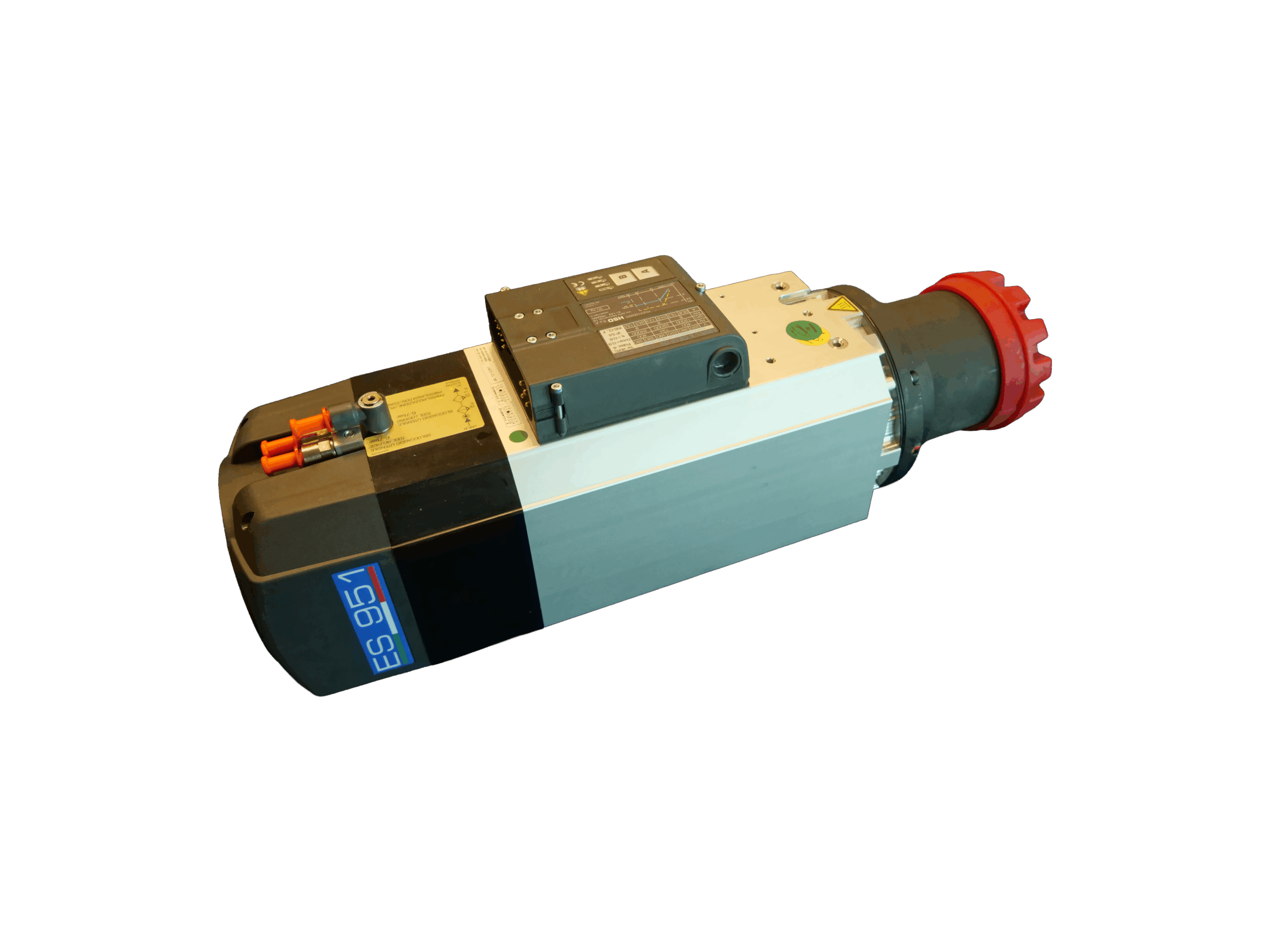

The HSD ES951 ISO30 long-nose spindle delivers a balance of power, precision, and longevity for high-speed industrial routing and milling. Running on 220 / 380 V three-phase power, this 4-pole air-cooled spindle produces 8 kW continuous (S1) and 9.6 kW peak (S6) output, equivalent to 10 HP and 12 HP respectively. The integrated fan cooling system maintains stable temperatures through continuous operation, while the ISO30 tool interface ensures secure clamping and fast changes in demanding applications. Its long-nose construction extends tool reach for deep cuts and complex geometries, supported by ceramic bearings for smooth, low-vibration performance. Ideal for wood, composite, and light metal machining, the ES951 combines durability, speed, and compatibility with modern digital CNC systems.

• Specifications:
  • Power: 8 kW (S1) / 9.6 kW (S6)
  • Horsepower: 10 HP (S1) / 12 HP (S6)
  • Voltage: 220 / 380 V (3 Phase)
  • Speed (RPM): Up to 24 000 RPM
  • Poles: 4-Pole
  • Cooling Type: Air Cooled (Fan Assisted)
  • Tool Interface: ISO 30 Long Nose
  • Bearing Type: Ceramic Bearings
  • Material / Finish: Machined Aluminum Body with Silver and Black Finish
  • Connection Type: Pre-wired electrical harness with digital interface
  • Included Components: Spindle motor assembly only
• Applications:
  • High-speed routing and profiling for CNC routers and machining centers
  • Deep milling, engraving, and multi-axis operations
  • Wood, composite, and light metal cutting
  • OEM and retrofit replacement for ISO30 spindle systems
• Features & Benefits:
  • Delivers 8 kW continuous and 9.6 kW peak for heavy-duty production
  • Long-nose configuration extends cutting reach and flexibility
  • Air-cooled fan system ensures consistent thermal management
  • Ceramic bearings reduce vibration and increase service life
  • Digital-ready design for modern CNC machine integration
