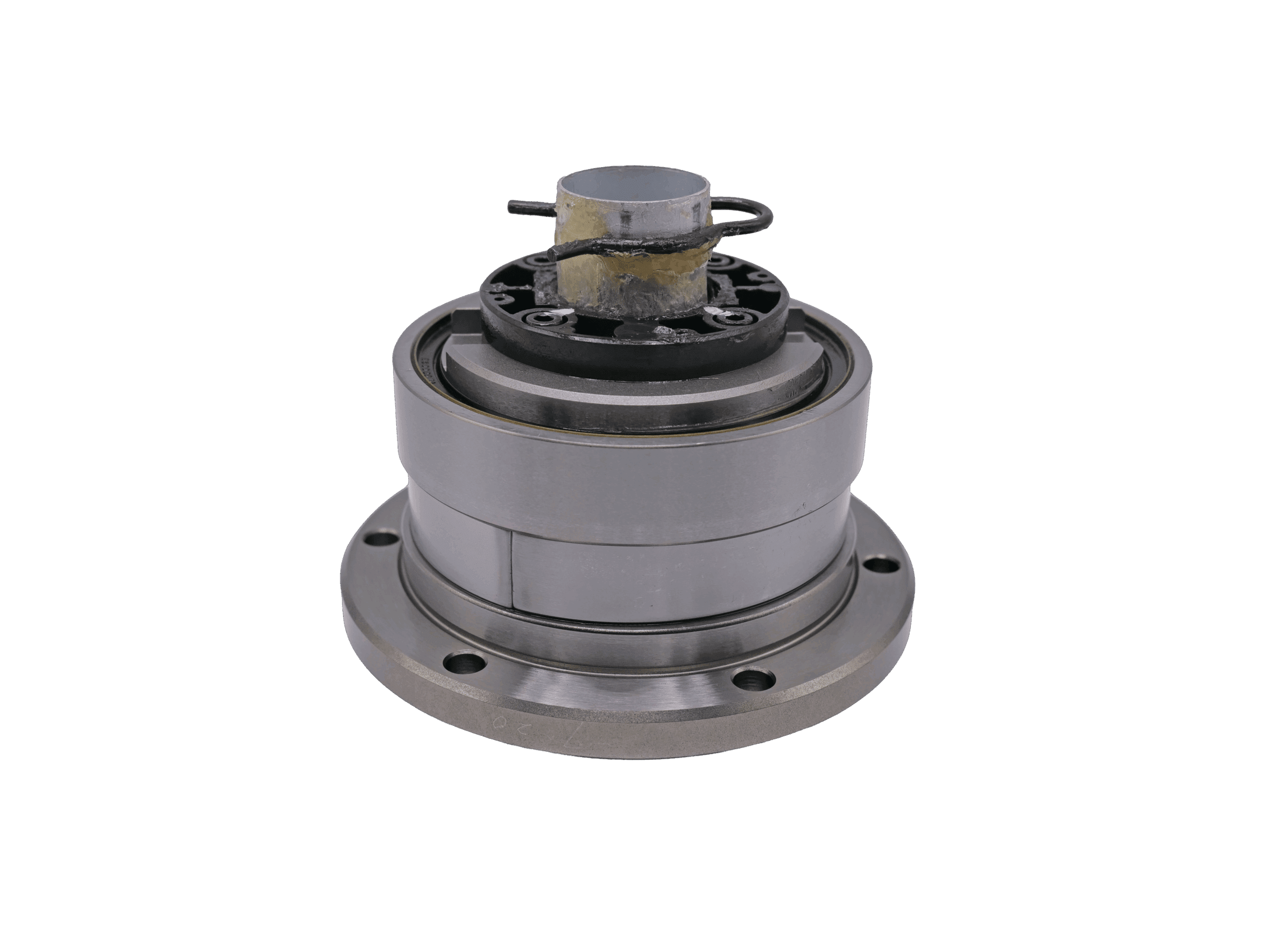

THK Spinning Ball Nut – BLR2525-3.6UU (25/25 Standard Type)

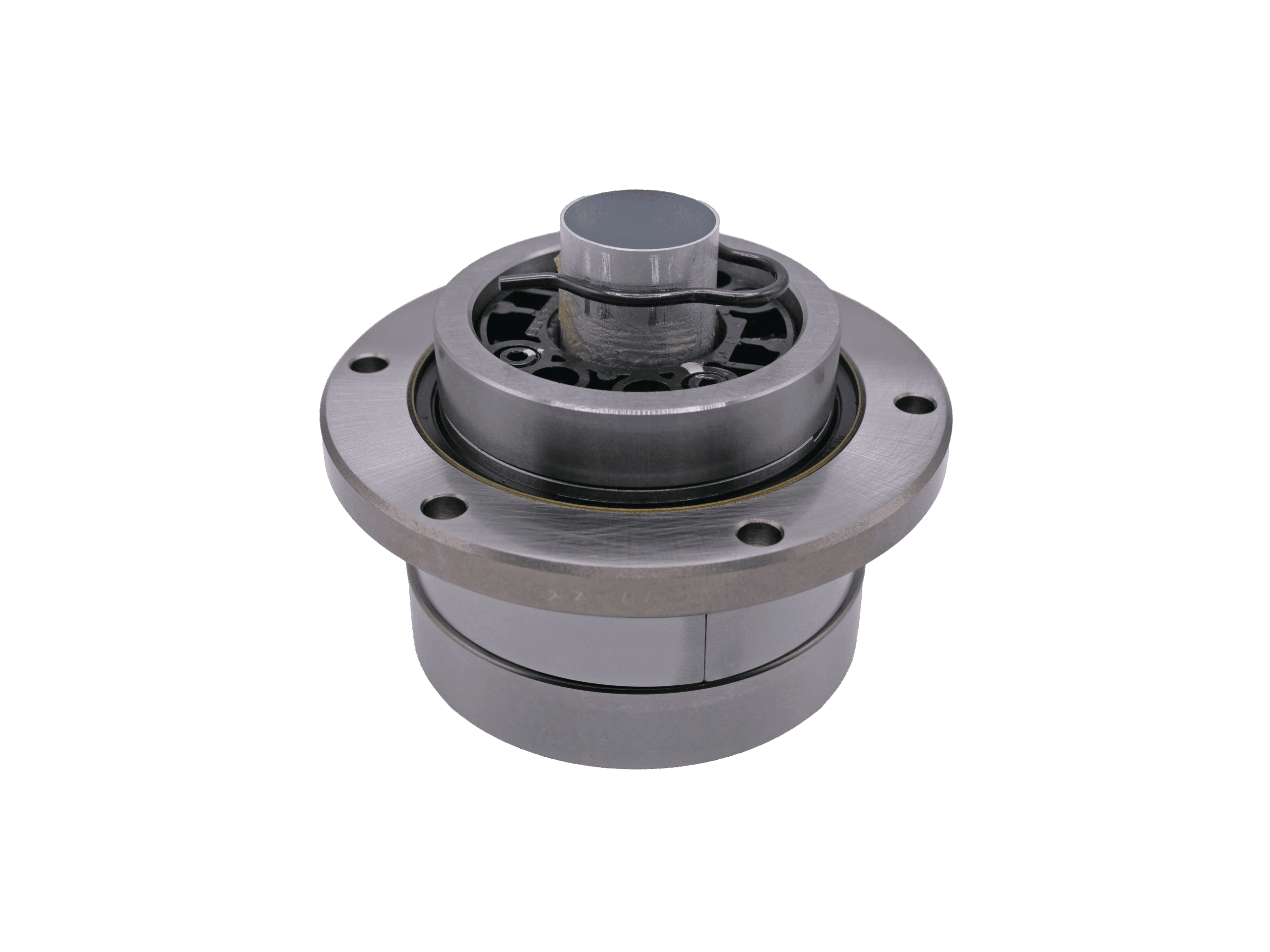

THK Spinning Ball Nut – BLR2525-3.6UU (25/25 Standard Type) - Image 2

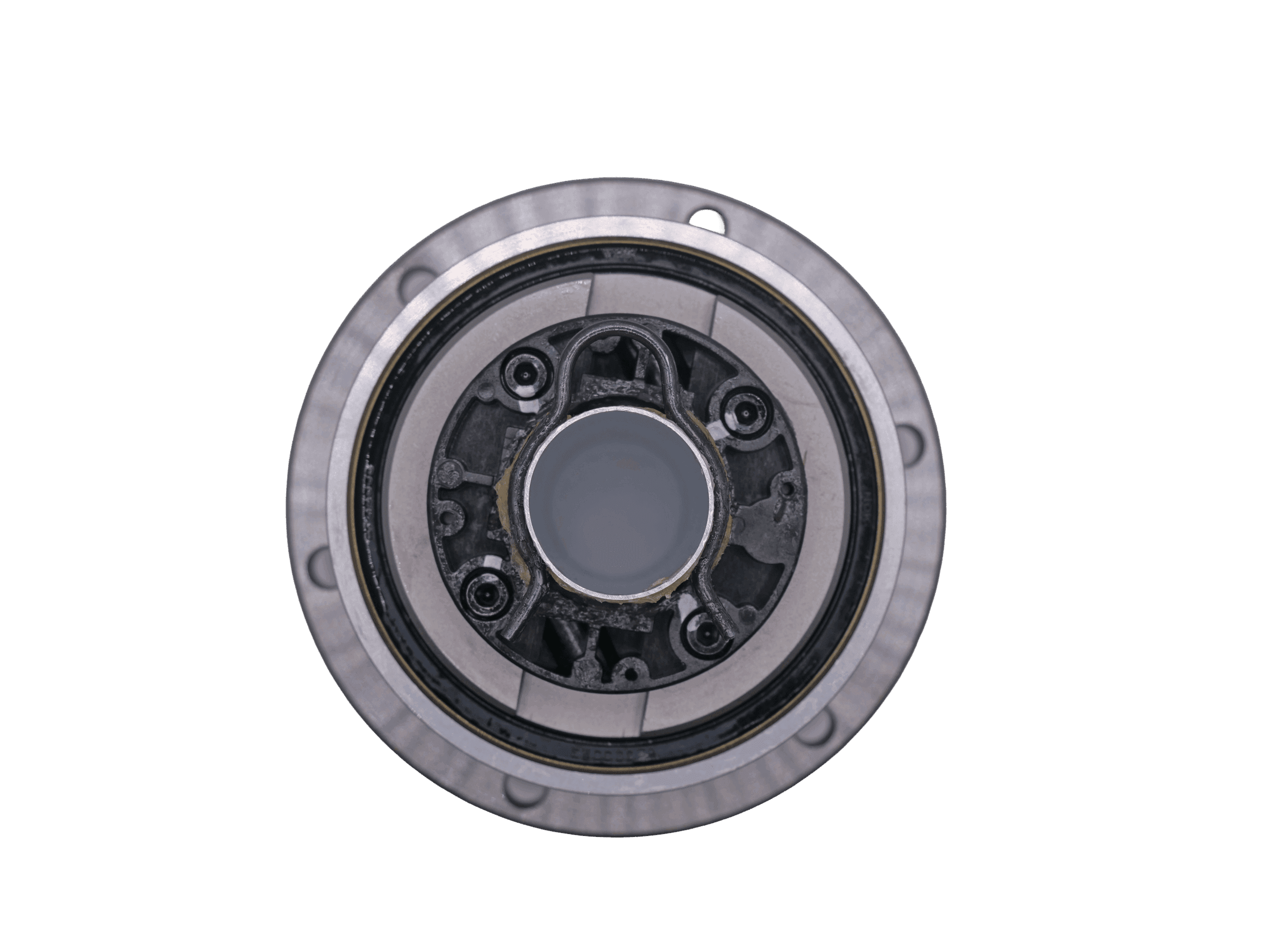

THK Spinning Ball Nut – BLR2525-3.6UU (25/25 Standard Type) - Image 3

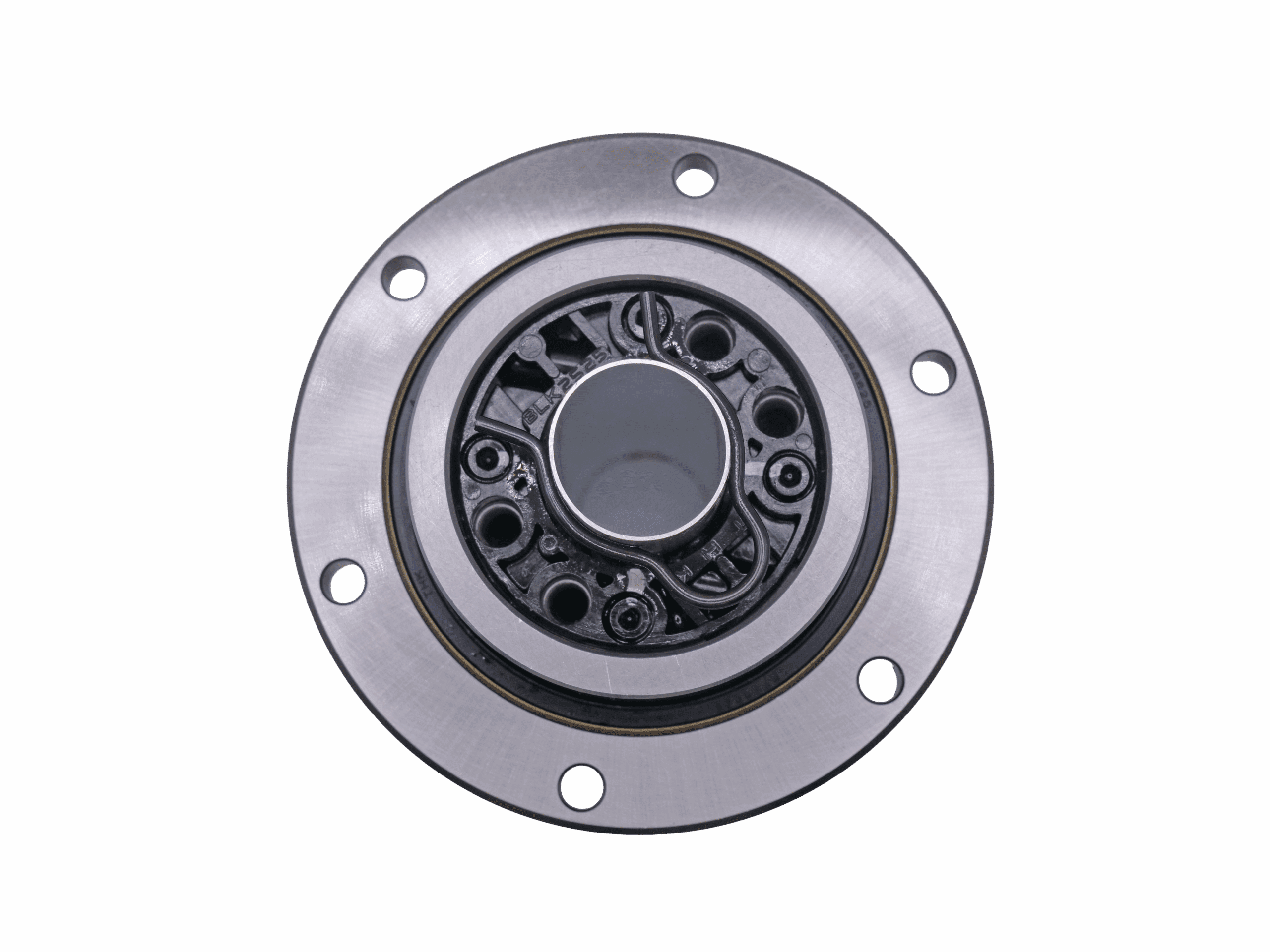

THK Spinning Ball Nut – BLR2525-3.6UU (25/25 Standard Type) - Image 4
THK Spinning Ball Nut – BLR2525-3.6UU (25/25 Standard Type) - Image 5
THK Spinning Ball Nut – BLR2525-3.6UU (25/25 Standard Type) - Image 6

THK Spinning Ball Nut – BLR2525-3.6UU (25/25 Standard Type)

$818.53

THK BLR2525-3.6UU spinning ball nut for 25mm ball screws. Designed for high-speed, accurate linear motion with low backlash and long service life. Precision-ground steel body with double-sealed construction for clean, efficient operation in CNC and automation systems.

11 in stock

SKU BNUT-2525-20 Categories ,

The THK BLR2525-3.6UU Spinning Ball Nut is a premium-grade linear motion component designed for precision applications requiring accuracy, rigidity, and durability. Engineered for 25mm ball screws with a 25mm lead, this nut provides efficient load distribution through its internal recirculating ball mechanism. The double-sealed (UU) design prevents contamination while maintaining consistent lubrication during operation. Constructed from hardened steel and ground to tight tolerances, the BLR2525-3.6UU delivers quiet, low-friction performance under continuous-duty conditions. Ideal for CNC routers, industrial automation, and high-speed positioning systems where precision and longevity are critical.

  • Specifications:
    • Manufacturer: THK
    • Model: BLR2525-3.6UU
    • Ball Screw Diameter: 25 mm
    • Lead: 25 mm
    • Type: Spinning Ball Nut (Standard Drawing)
    • Construction: Recirculating ball type, double-sealed ends
    • Material: Hardened steel with precision-ground raceways
    • Lubrication: Grease preloaded, compatible with oil systems
    • Mounting Style: Flanged design
    • Preload: Standard light preload configuration
    • Dynamic Load Rating: High-capacity precision series
    • Noise Level: Low, ideal for automated or CNC use
  • Applications:
    • CNC machinery and high-speed linear motion systems
    • Industrial automation and robotics
    • Linear actuators and positioning systems
    • Replacement ball nut for precision ball screw assemblies
  • Features & Benefits:
    • Genuine THK ball nut ensures perfect compatibility and precision fit
    • High rigidity and smooth motion for consistent accuracy
    • Double-sealed UU design reduces maintenance and contamination
    • Precision-ground internal surfaces minimize backlash and friction
    • Engineered for long operational life in demanding environments

Additional information

Compatible DMS Machines

DMS 2057 DMS 2075 DMS 2077 DMS 2078 DMS 2084 DMS 2096 DMS 2097 DMS 2098 DMS 2100 DMS 2114 DMS 2119 DMS 2126 DMS 2132 DMS 2136 DMS 2137 DMS 2147 DMS 2152 DMS 2161 DMS 2162 DMS 2165 DMS 2170 DMS 2171 DMS 2173 DMS 2183 DMS 2184 DMS 2185 DMS 2188 DMS 2192 DMS 2193 DMS 2197 DMS 2198 DMS 2199 DMS 2202 DMS 2203 DMS 2204 DMS 2206 DMS 2212 DMS 2214 DMS 2216 DMS 2218 DMS 2223 DMS 2226 DMS 2234 DMS 2238 DMS 2239 DMS 2257 DMS 2258 DMS 2262 DMS 2264 DMS 2278 DMS 2279 DMS 2280 DMS 2284 DMS 2292 DMS 2293 DMS 2302 DMS 2303 DMS 2318 DMS 2322 DMS 2323 DMS 2328 DMS 2334 DMS 2341 DMS 2343 DMS 2345 DMS 2346 DMS 2353 DMS 2365 DMS 2374 DMS 2384 DMS 2385 DMS 2386 DMS 2401 DMS 2408 DMS 2415 DMS 2420 DMS 2424 DMS 2450 DMS 2451 DMS 2454 DMS 2463 DMS 2489 DMS 2527 DMS 2539 DMS 2548 DMS 2574 DMS 2587 DMS 2592 DMS 2627 DMS 2628 DMS 2635 DMS 2674 DMS 2709 DMS 2740 DMS 2928 DMS 2931 DMS 2932 DMS 2934 DMS 2938 DMS 2951 DMS 2957 DMS 2961 DMS 2980 DMS 2998 DMS 3004 DMS 3005 DMS 3039 DMS 3044
