3.8 kW / 5 HP CNC Spindle Motor – ISO 30 Tool Holder, Air Cooled (ES915 Series)

The HSD ES915 ISO 30 spindle is a compact, high-efficiency motor built for industrial CNC routers and milling machines requiring air-cooled operation and stable output. With a continuous rating of 3.8 kW (S1) and peak output up to 4.6 kW (S6), this 2-pole asynchronous motor delivers smooth power across a wide speed range up to 24 000 RPM.
Its ISO 30 tool interface supports rapid tool changes and secure clamping for routing, drilling, and engraving operations. An integrated fan cooling system ensures steady temperatures without external chillers, reducing maintenance needs and improving uptime.
Compact aluminum housing and precision ceramic bearings provide low vibration and excellent longevity under continuous duty. Ideal for wood, composite, and aluminum processing where accuracy and speed matter.

• Specifications:
  • Power: 3.8 kW (S1) / 4.6 kW (S6)
  • Voltage: 220 / 380 V (3 Phase)
  • Speed (RPM): Max 24 000 RPM
  • Poles: 2 Pole

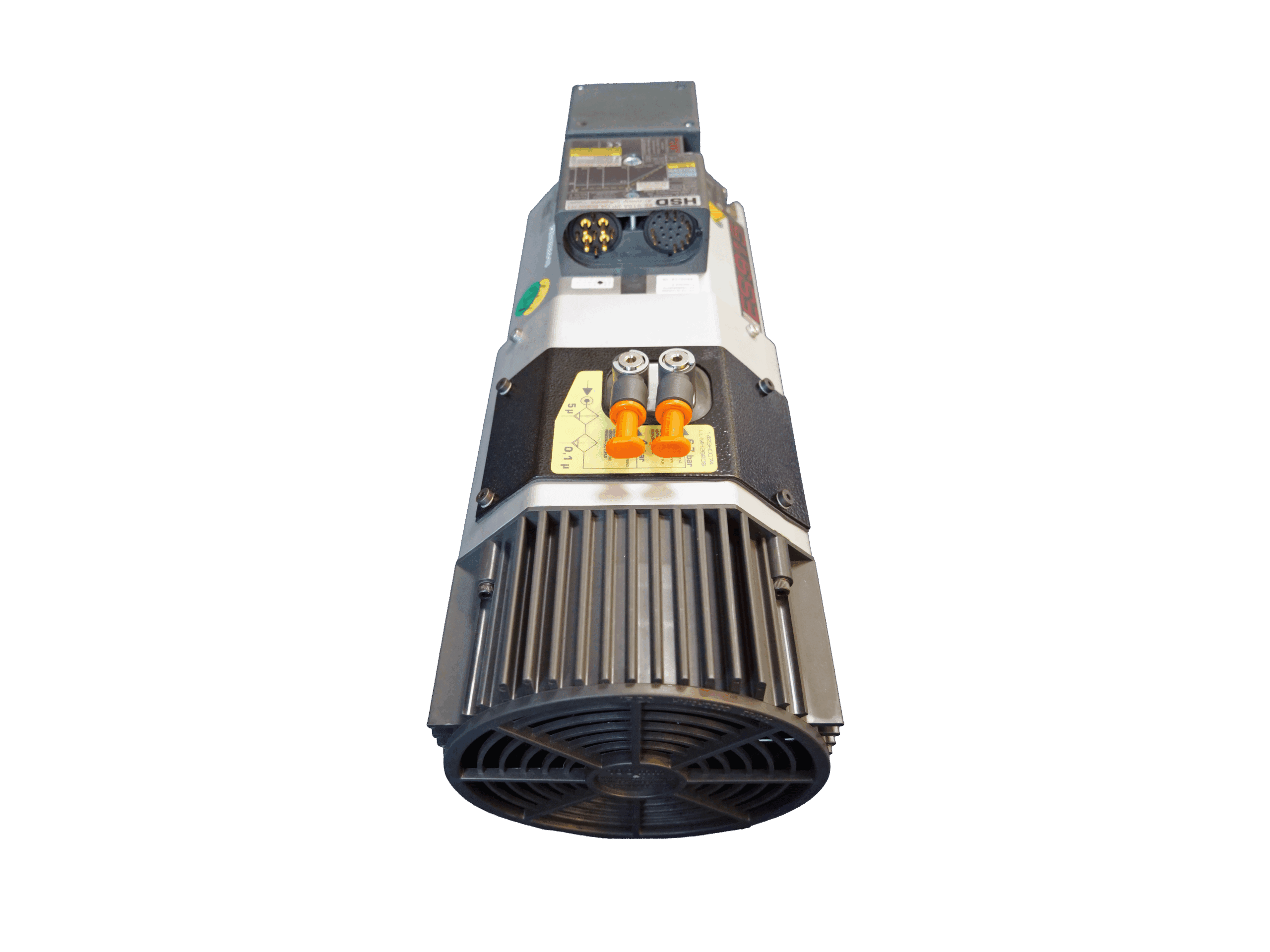

  • Cooling Type: Air Cooled with Integrated Fan
  • Tool Interface: ISO 30
  • Bearing Type: Ceramic Bearings
  • Weight: 21 kg (approx.)
  • Material / Finish: Machined Aluminum Body with Black/Silver Finish

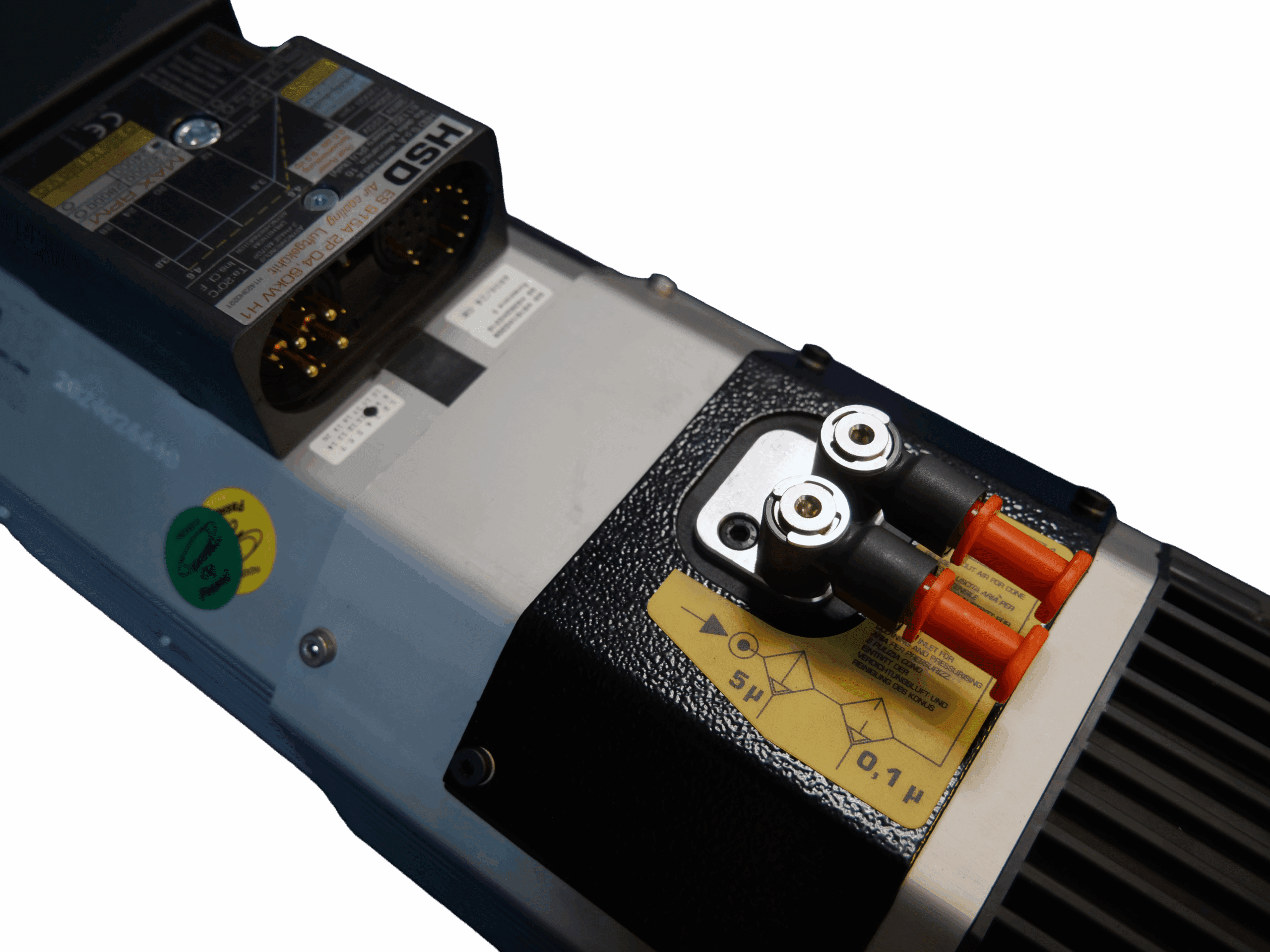

  • Connection Type: Pre-wired electrical harness and air ports
  • Included Components: Spindle motor assembly only

• Applications:
  • CNC routers for wood, plastic, and composite machining
  • Light metal and aluminum cutting operations
  • High-speed engraving and profiling machines
  • OEM replacement for ISO 30 spindle systems

• Features & Benefits:
  • Air-cooled system eliminates need for external chillers
  • ISO 30 tool holder design ensures secure fit and fast tool changes
  • Delivers consistent 3.8 kW continuous power with low vibration
  • Lightweight housing for easy integration and efficient operation
