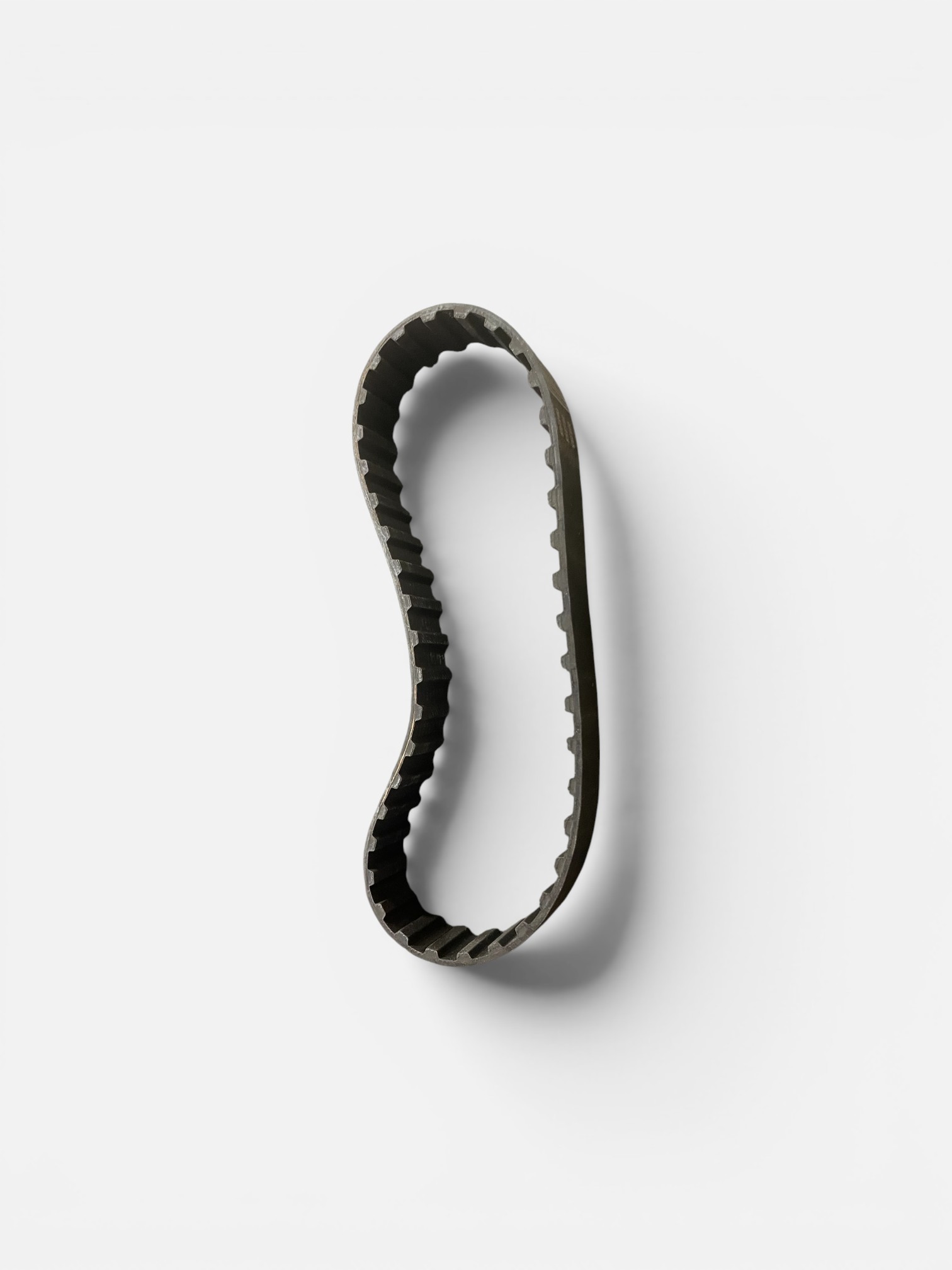

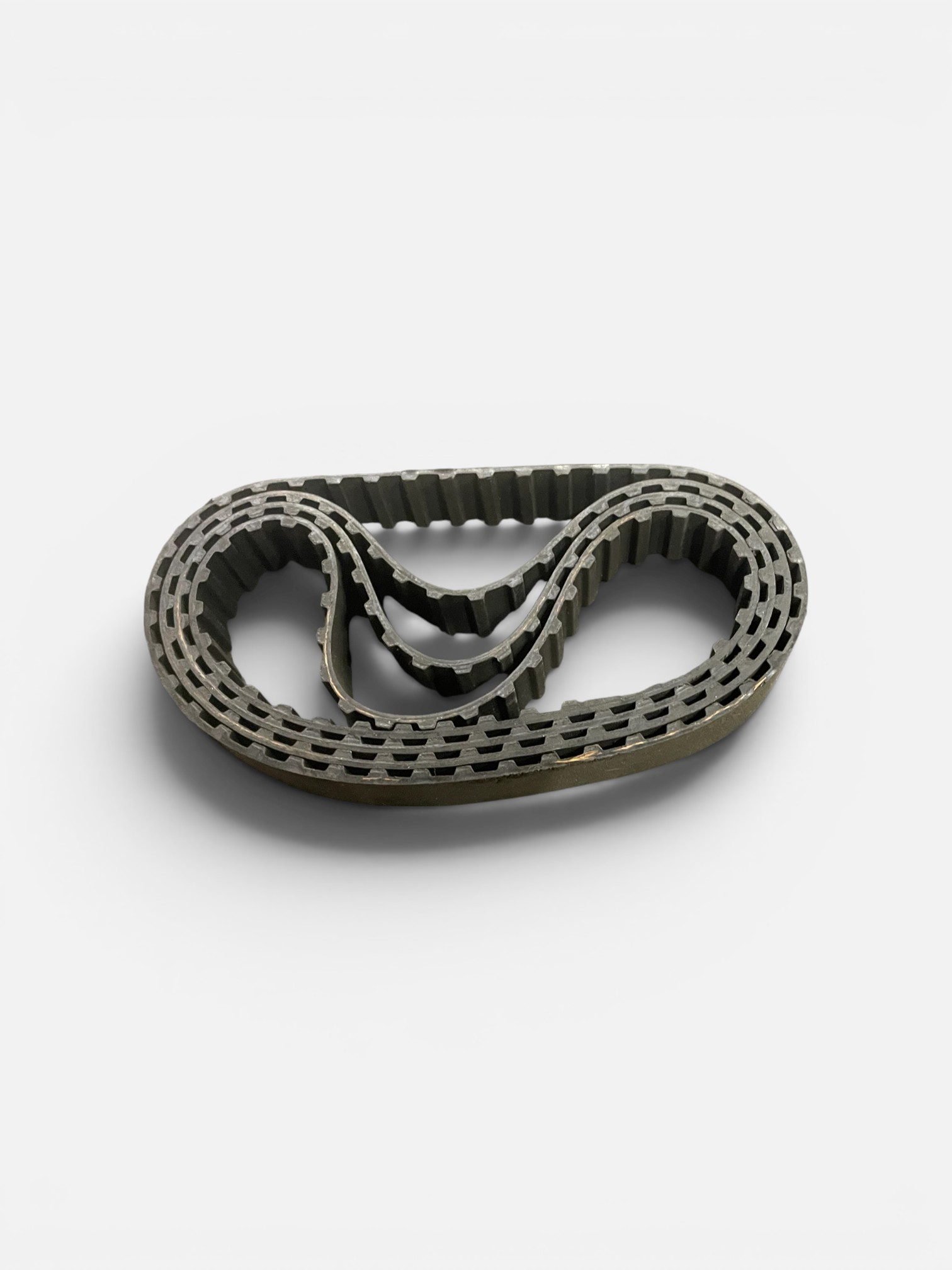

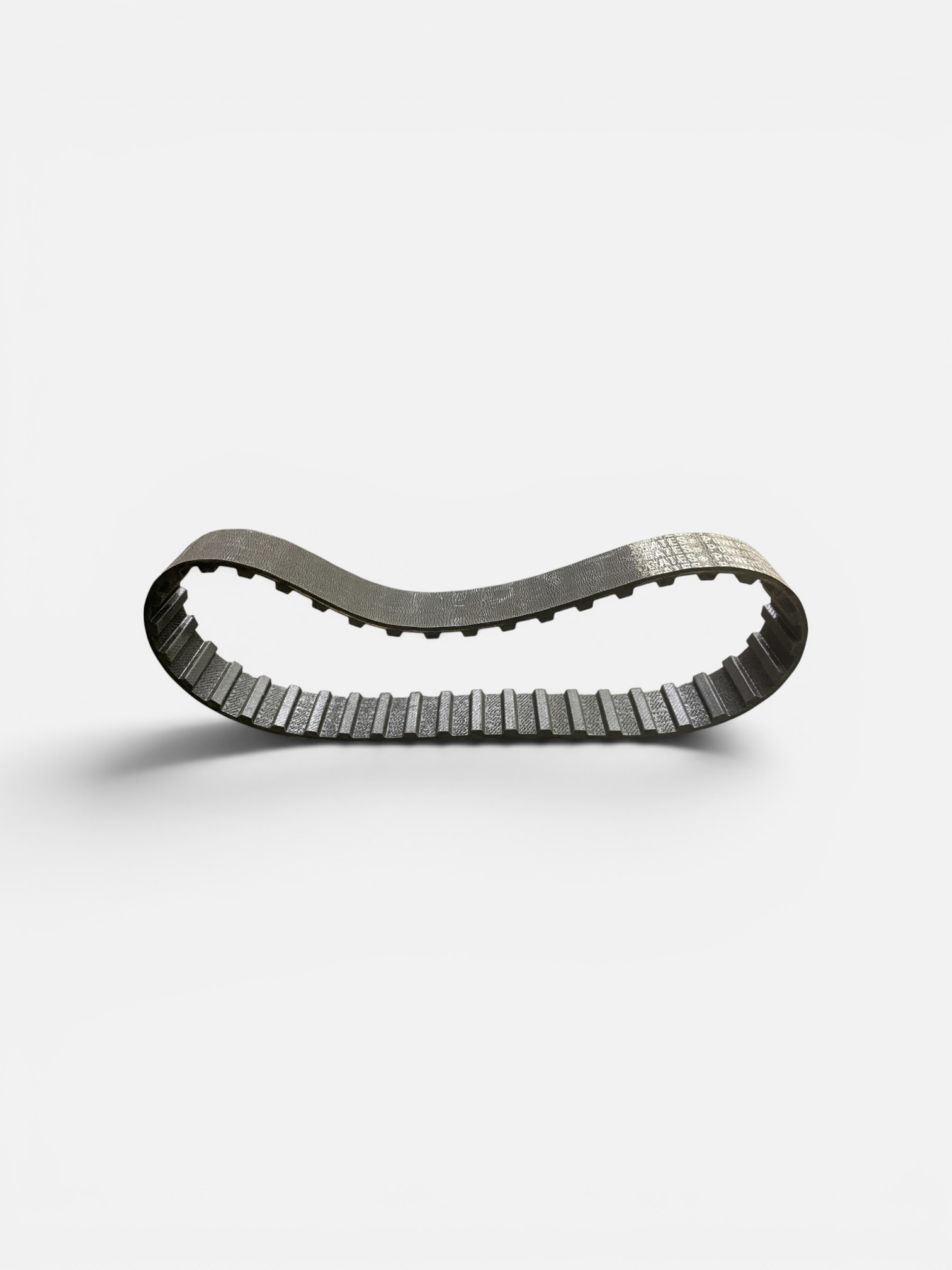

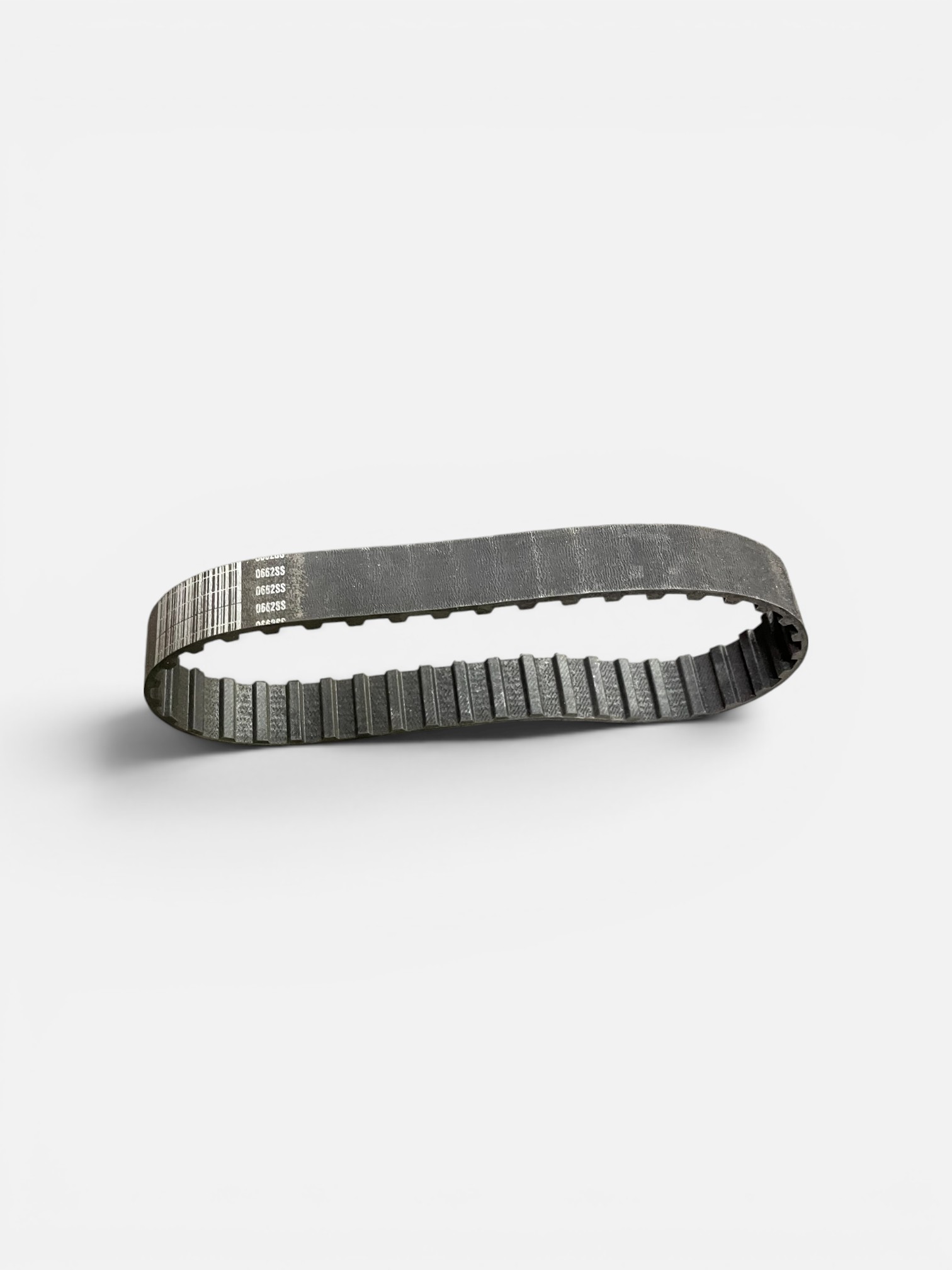

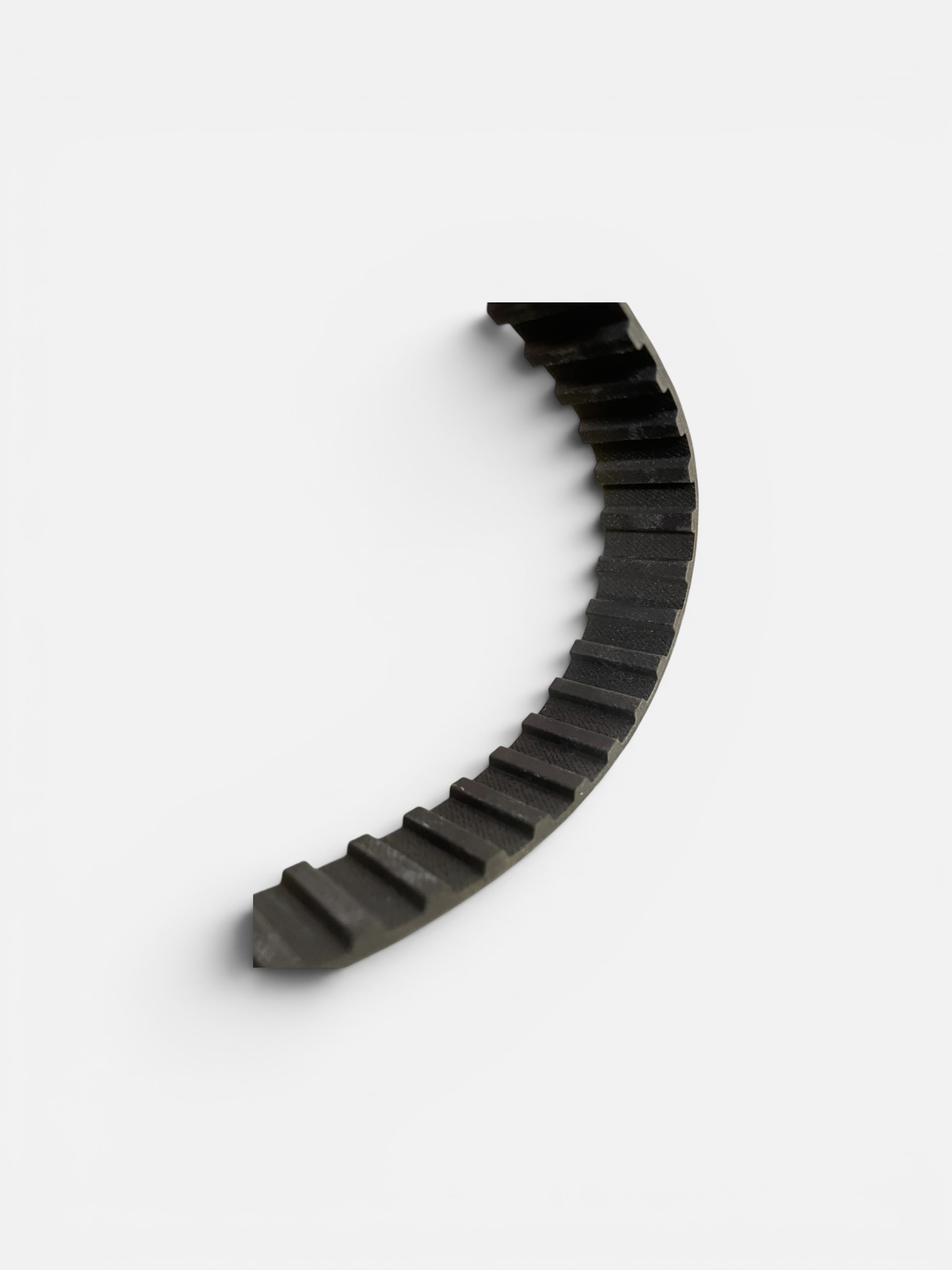

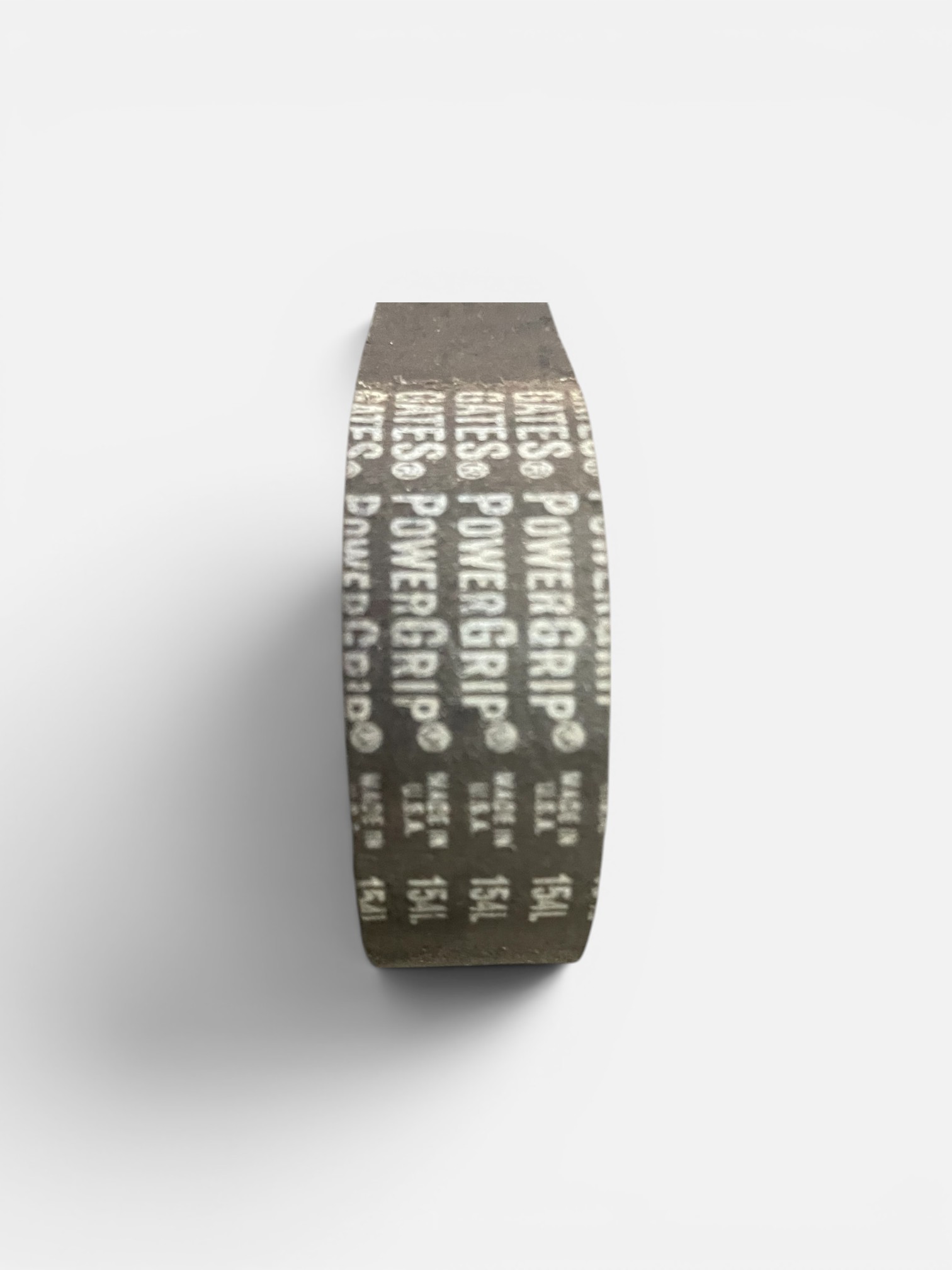

154L075 Timing Belt 15.4″ Pitch Length 3/4″ Wide Neoprene Fiberglass Drive Belt

The 154L075 Timing Belt is a precision synchronous drive belt designed for reliable, non-slip power transmission in industrial machinery. It features a 15.4-inch pitch length, 3/4-inch width, and 41 teeth with a 3/8-inch (L Series) pitch. Constructed with a durable neoprene body and fiberglass tensile cords, this belt provides excellent wear resistance, minimal stretch, and long service life.

Ideal for CNC machinery, packaging equipment, conveyors, office equipment, and industrial automation systems.

Features

• Part Number: 154L075
• Belt Type: Timing Belt / Synchronous Belt
• Pitch Length: 15.4 in
• Belt Width: 3/4 in (0.75″)
• Tooth Count: 41
• Tooth Pitch: 3/8 in (L Series)
• Material: Neoprene
• Tensile Cords: Fiberglass
• Positive, non-slip drive
• High wear resistance
• Low maintenance operation

Applications

• CNC Machinery
• Industrial Automation
• Conveyor Systems
• Packaging Equipment
• Printing Machinery
• Office Equipment
• Material Handling
• General Power Transmission

Included

• 1 × 154L075 Timing Belt
