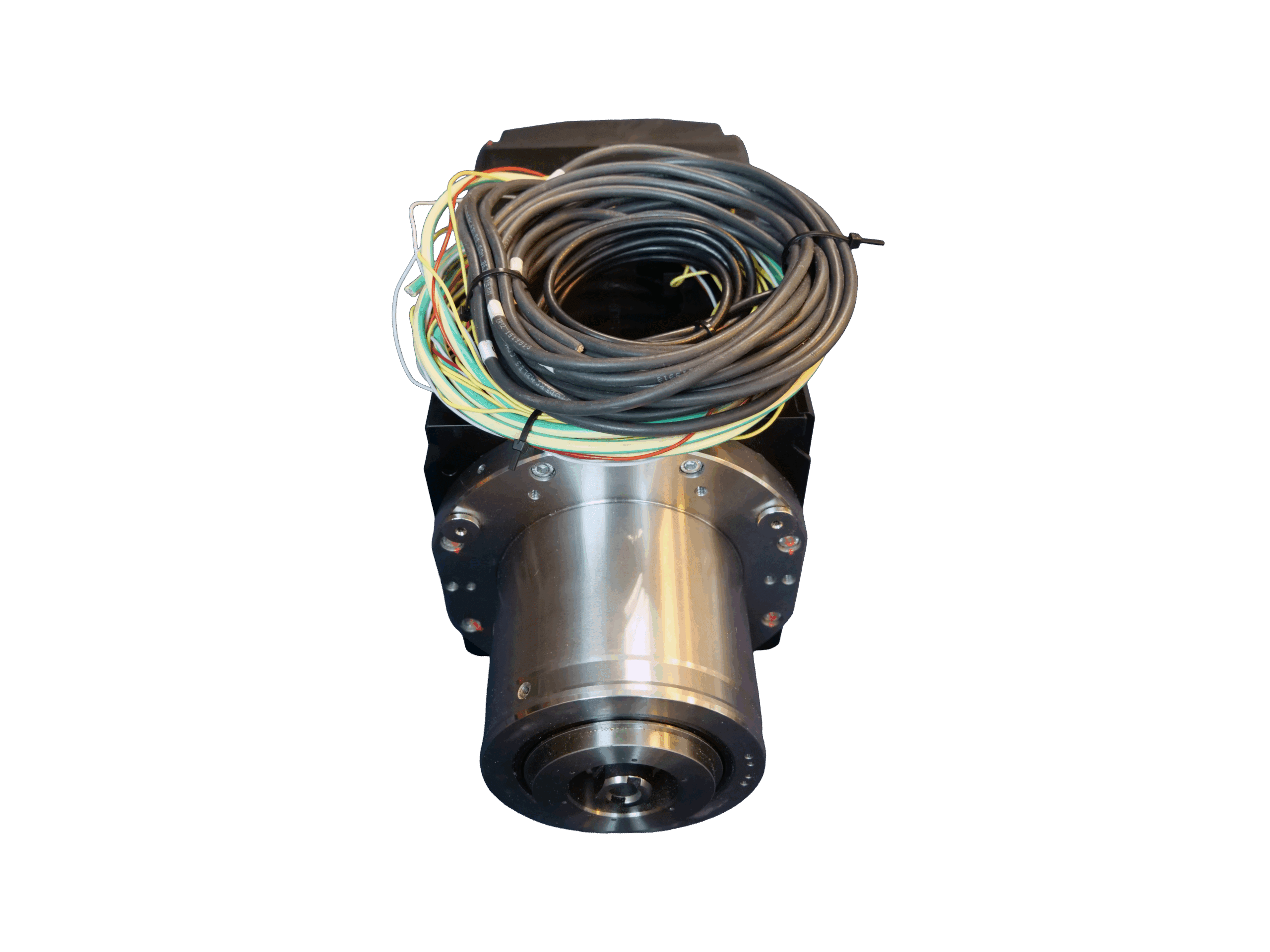

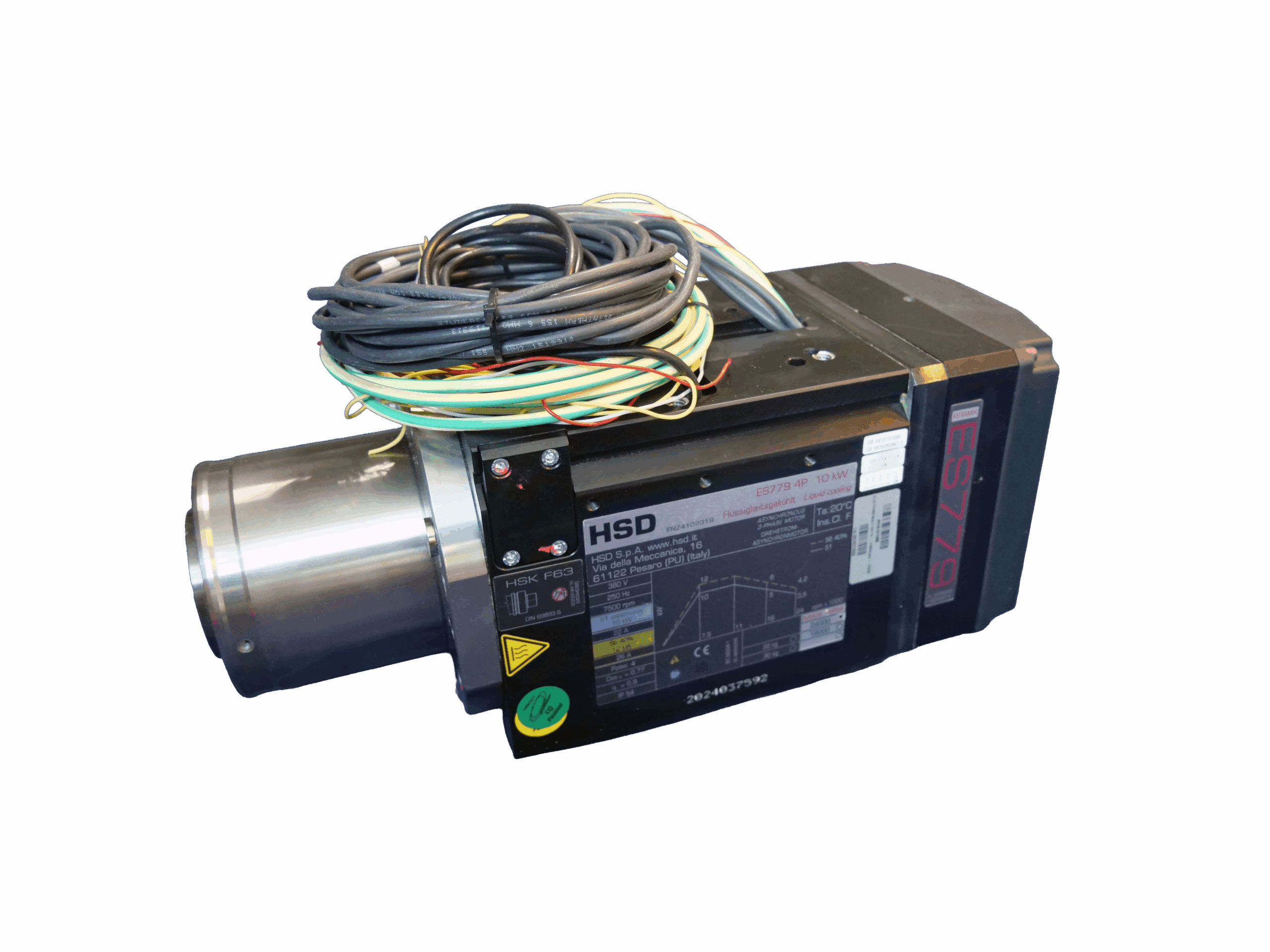

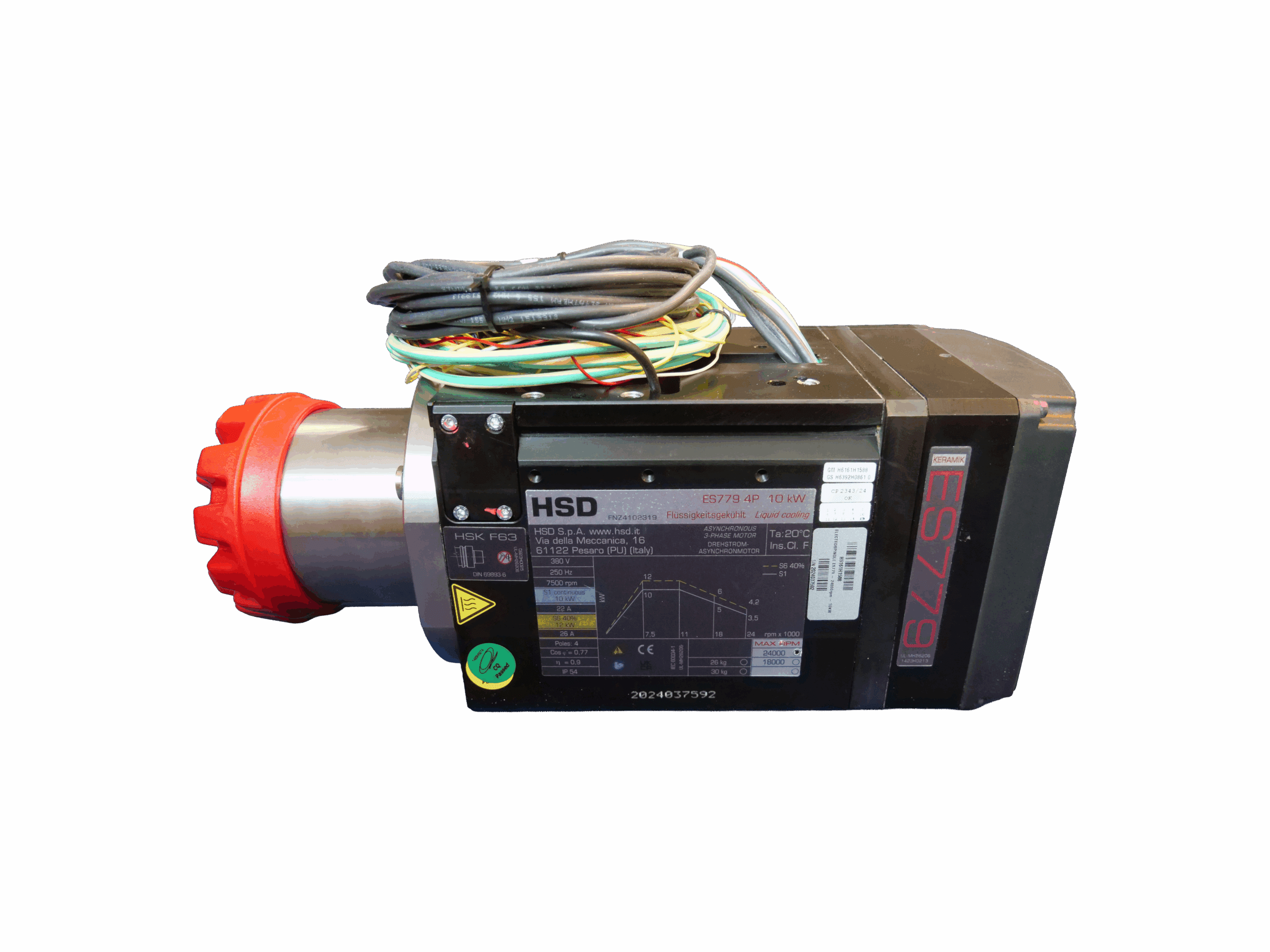

10 kW / 12 kW CNC Spindle Motor – HSK F63 Long Nose, 4-Pole, Liquid Cooled, 380 V

The ES779 HSK F63 spindle delivers exceptional cutting accuracy and consistency for demanding industrial CNC machines. Operating at 380 V with a 4-pole asynchronous motor, it provides 10 kW continuous (S1) and 12 kW intermittent (S6) power output. Its liquid-cooling system maintains optimal operating temperatures even during extended high-speed use, while the ceramic bearing design ensures reduced vibration and extended service life.
The long-nose configuration enhances reach and tool flexibility for deep-profile routing, cutting, and engraving tasks. Ideal for woodworking, composite machining, and aluminum cutting where precision and reliability are critical.

• Specifications:
  • Power: 10 kW (S1) / 12 kW (S6)
  • Voltage: 380 V (3 Phase)
  • Speed (RPM): Up to 24 000 RPM
  • Poles: 4-Pole
  • Cooling Type: Liquid Cooled
  • Tool Interface: HSK F63
  • Bearing Type: Ceramic Bearings
  • Weight: Approx. 30 kg
  • Material / Finish: Machined Alloy Housing with Black Anodized Finish

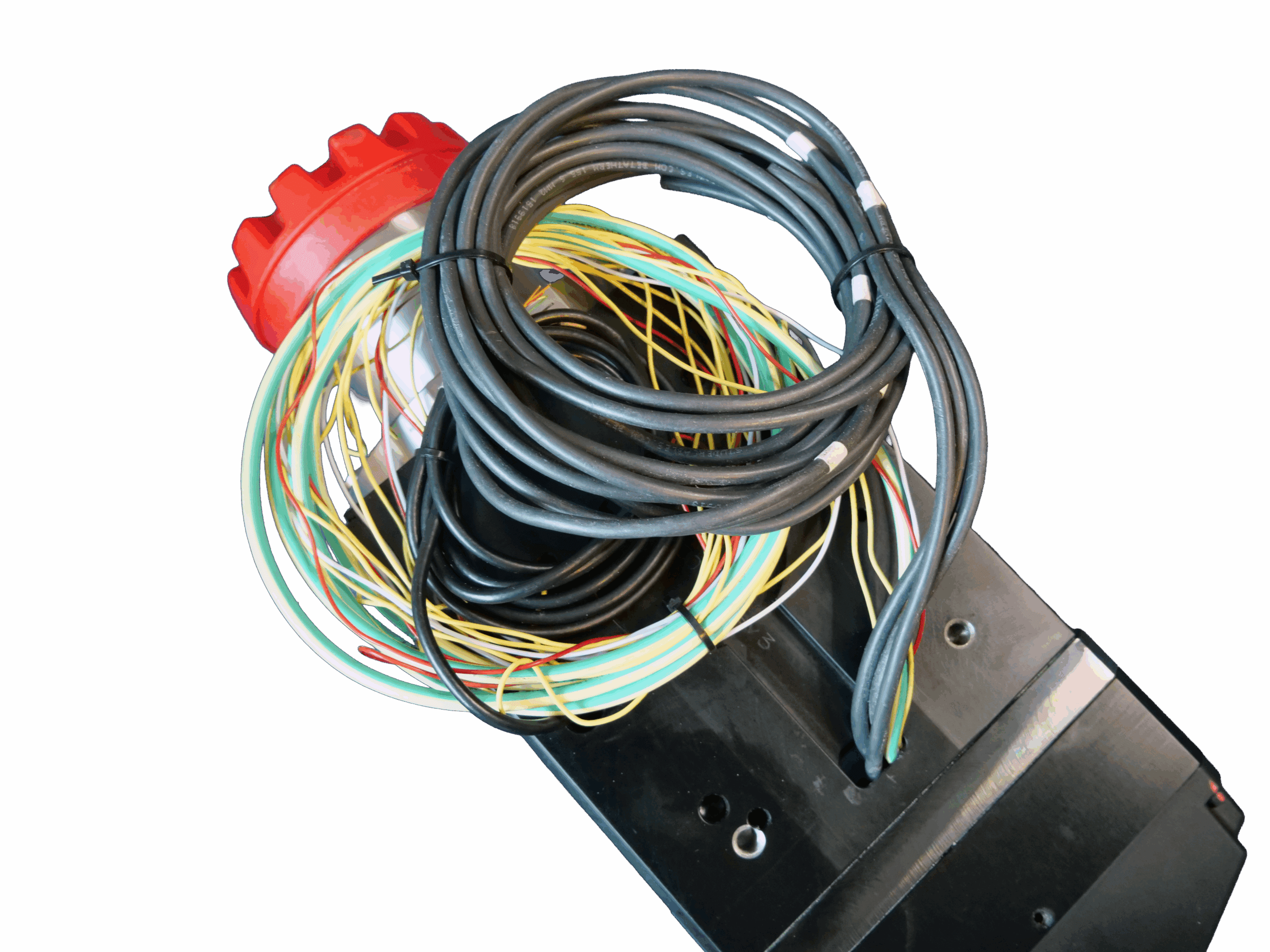

  • Connection Type: Electrical Harness with Pre-wired Leads
  • Included Components: Spindle Motor Assembly only

• Applications:
  • CNC routers and machining centers for wood, plastics, and composites
  • Aluminum milling and profiling operations
  • High-precision routing and engraving tasks
  • OEM replacement for industrial CNC systems requiring HSK F63 spindles

• Features & Benefits:
  • Liquid-cooled system enhances longevity and stability under continuous load
  • Long-nose design provides extended reach and tool accessibility
  • Ceramic bearings reduce vibration for improved surface finish
  • Engineered for 24 000 RPM high-speed performance with minimal runout
