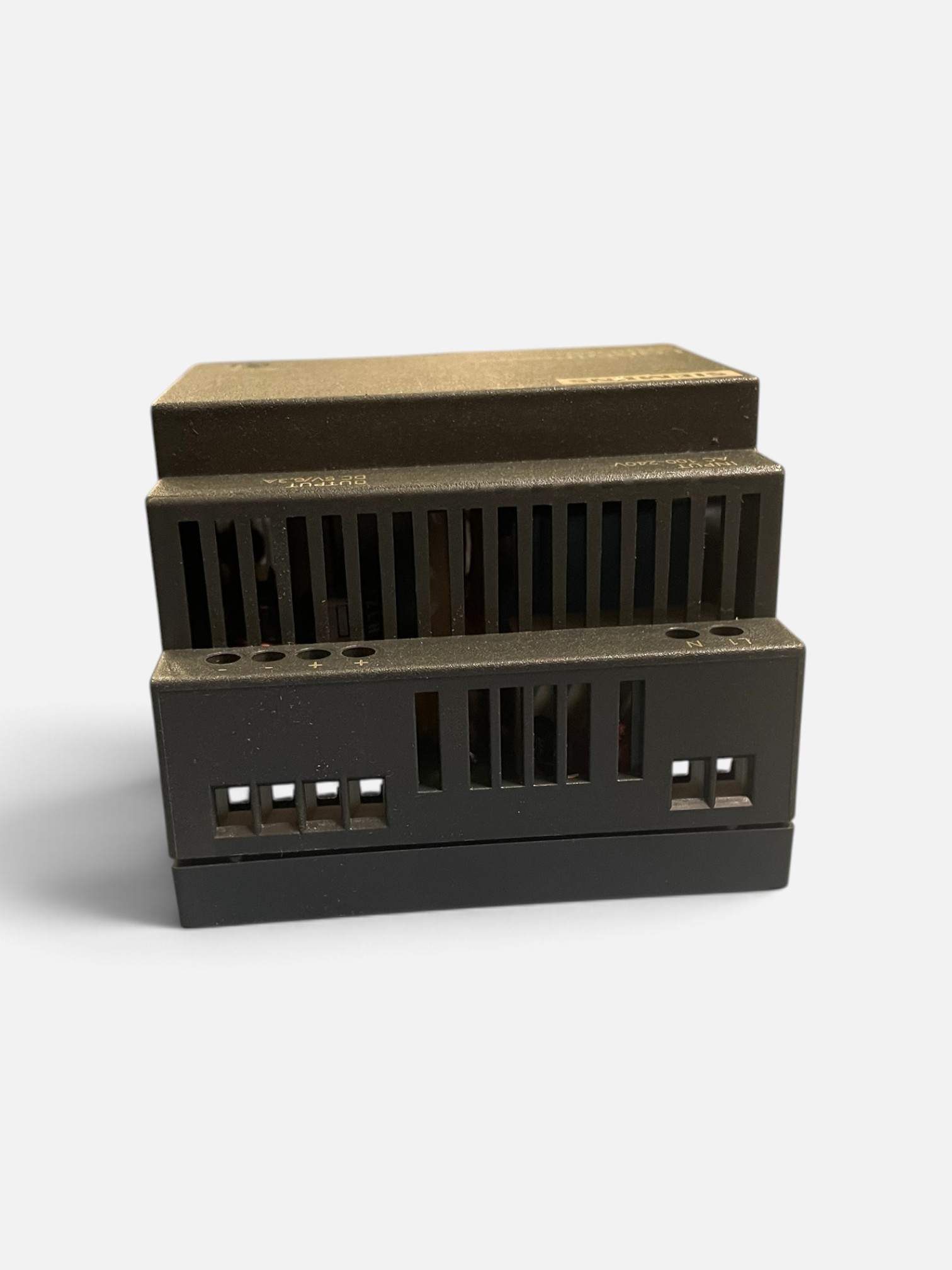

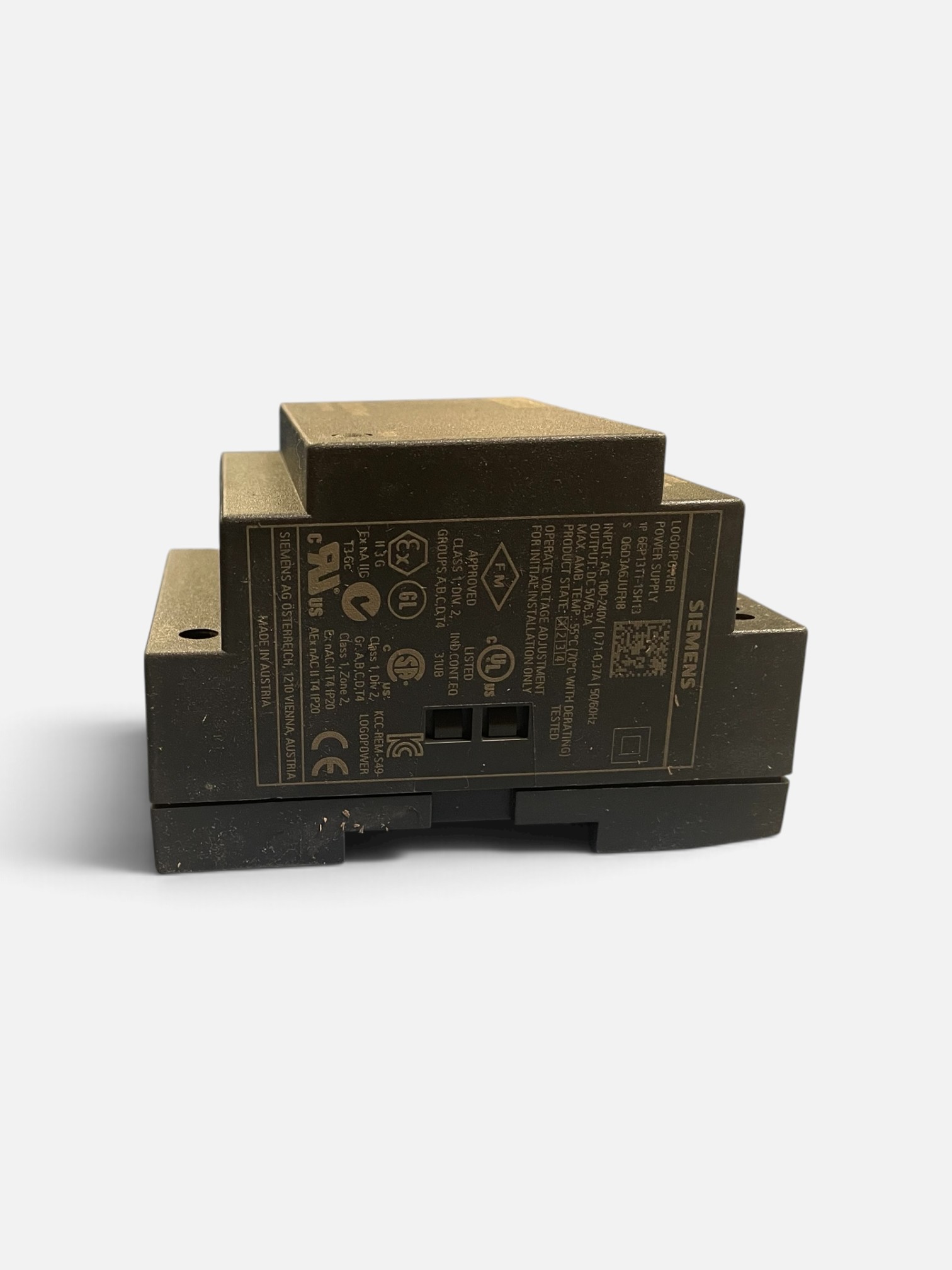

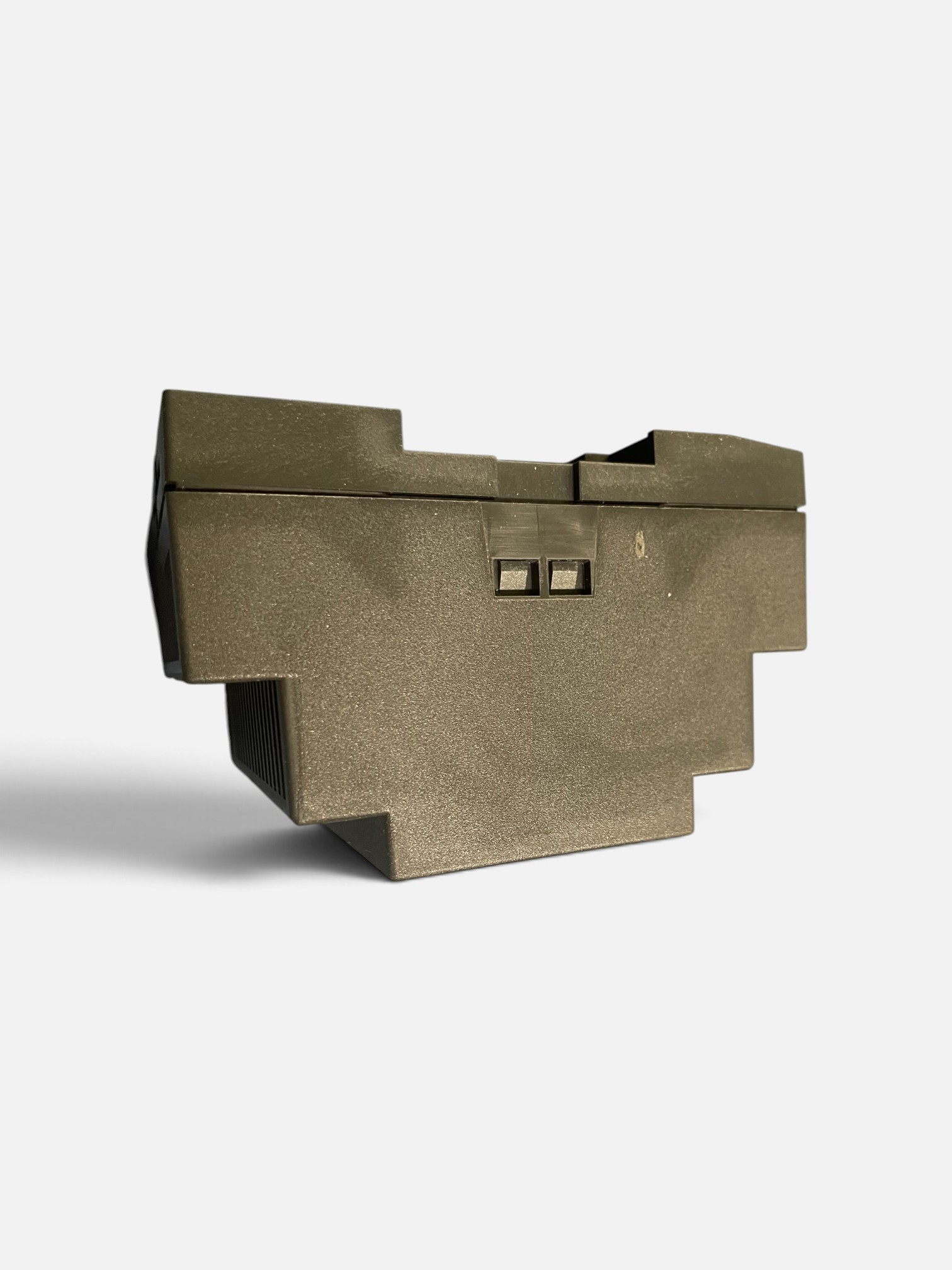

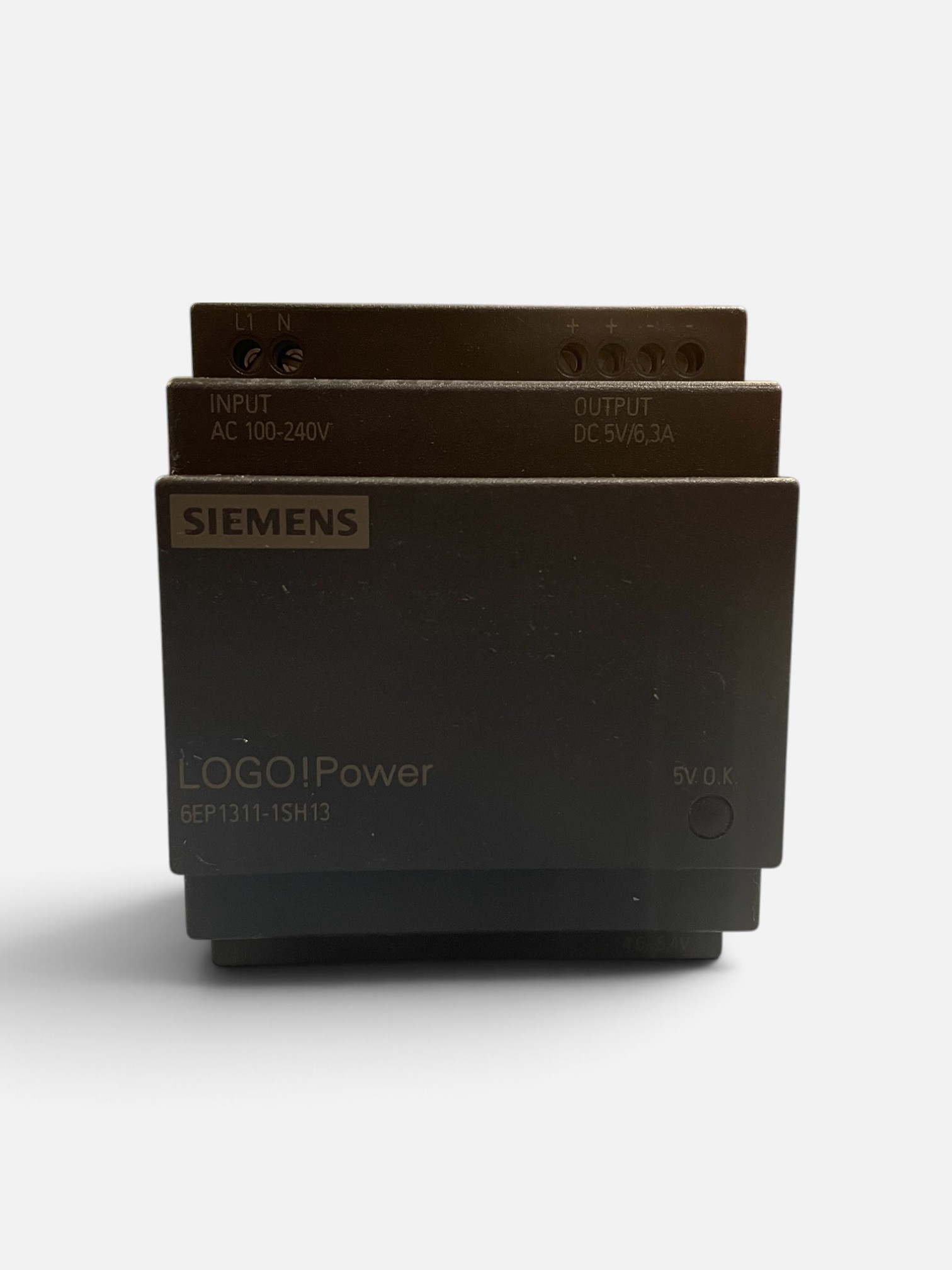

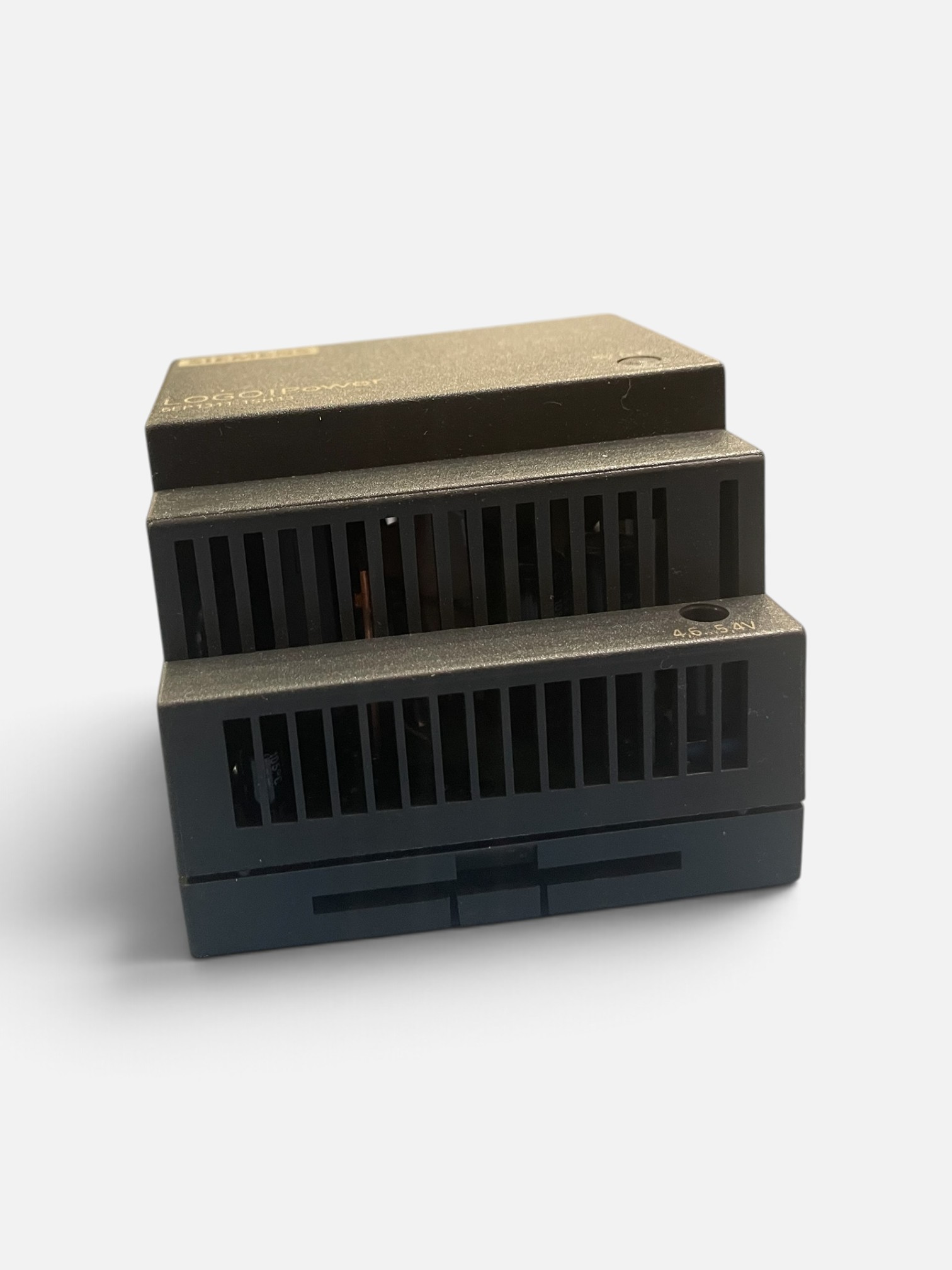

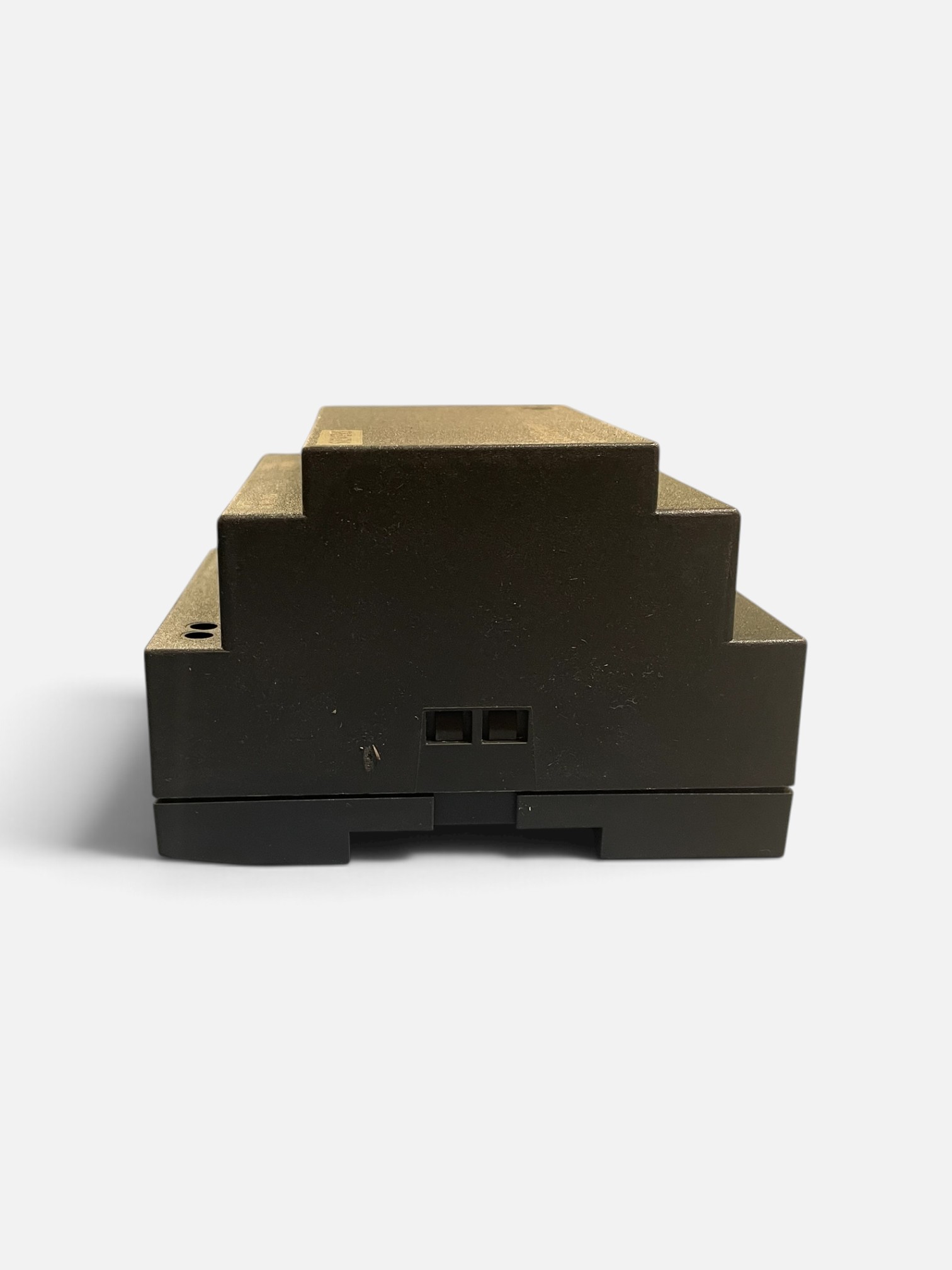

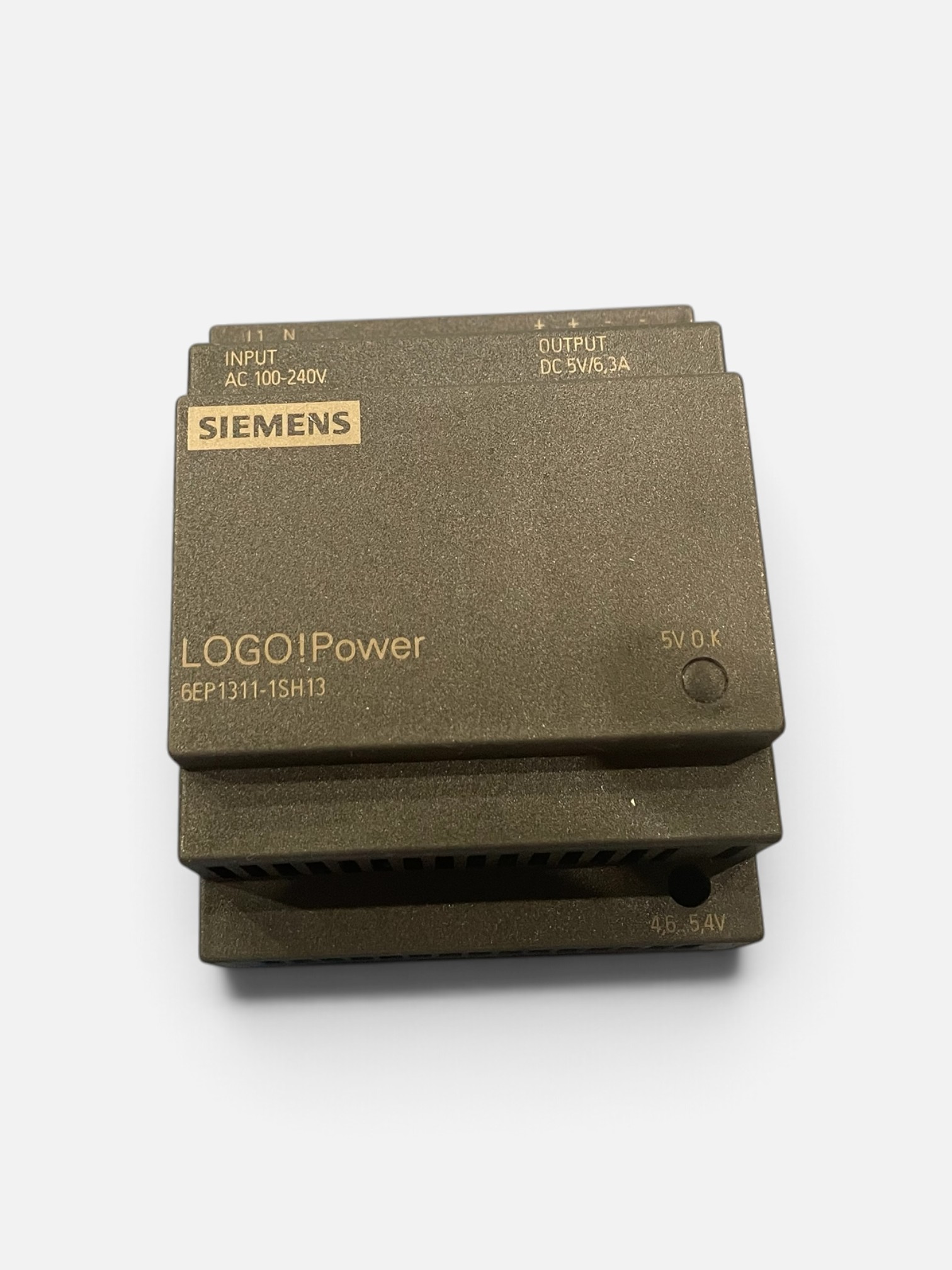

Siemens 6EP1311-1SH13 LOGO!POWER 5V 6.3A Power Supply (DMS P/N POWER-5A-200)

Siemens LOGO!POWER 6EP1311-1SH13 stabilized power supply designed to provide reliable 5V DC power at 6.3A for industrial automation and control applications. The unit accepts a wide 100-240V AC input and provides a regulated 5V DC output with up to 31.5W of power. It is designed for DIN-rail mounting and is well suited for control cabinets, CNC equipment, automation systems, and electronic control applications.

The output voltage is adjustable from approximately 4.6 to 5.4V DC, and the power supply includes output overvoltage protection and short-circuit protection.

Specifications

• Brand: Siemens
• Part Number: 6EP1311-1SH13
• Product Family: LOGO!POWER
• Input: 100-240V AC
• AC Input Range: 85-264V AC
• Output: 5V DC
• Output Current: 6.3A
• Output Power: 31.5W
• Output Adjustment: 4.6-5.4V DC
• Frequency: 47-63 Hz
• Mounting: DIN Rail
• Connection: Screw terminals

Dimensions

• Width: 72 mm (2.83″)
• Height: 90 mm (3.54″)
• Depth: 52.6 mm (2.07″)
• Weight: Approximately 0.25 kg (0.55 lb)
• DIN Rail: EN 60715, 35 × 7.5/15 mm

Applications

• Industrial automation
• CNC machinery
• Control cabinets
• PLC control systems
• Industrial electronics
• Sensors and control circuits
• Machine tools
• Automation equipment

Features

• Genuine Siemens LOGO!POWER power supply
• 100-240V AC wide-range input
• 5V DC regulated output
• 6.3A rated output current
• 31.5W output power
• Adjustable output voltage
• DIN-rail mountable
• Output overvoltage protection
• Short-circuit protection
• Compact industrial design

Package Includes

• 1 × Siemens LOGO!POWER 5V/6.3A Power Supply
