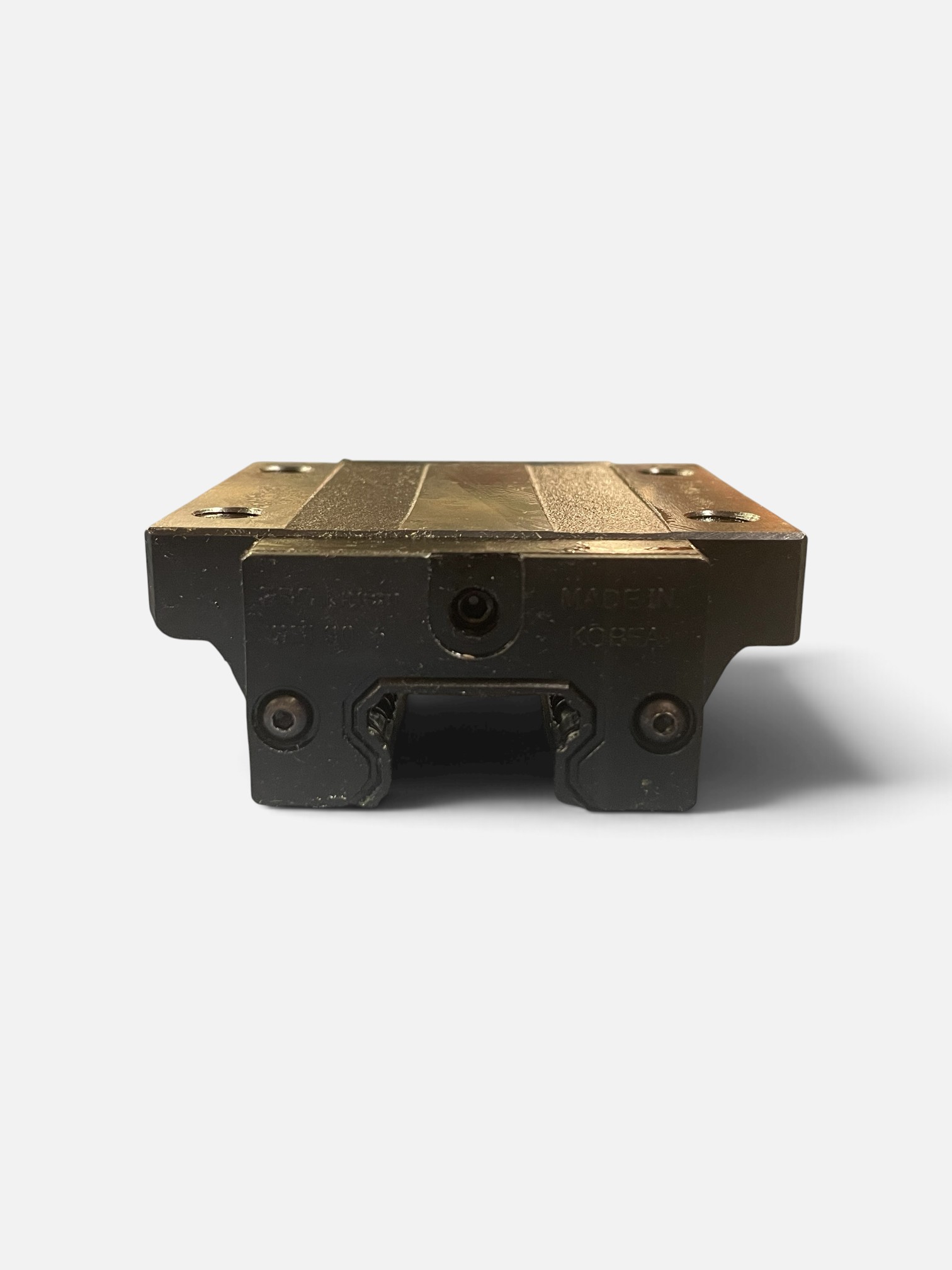

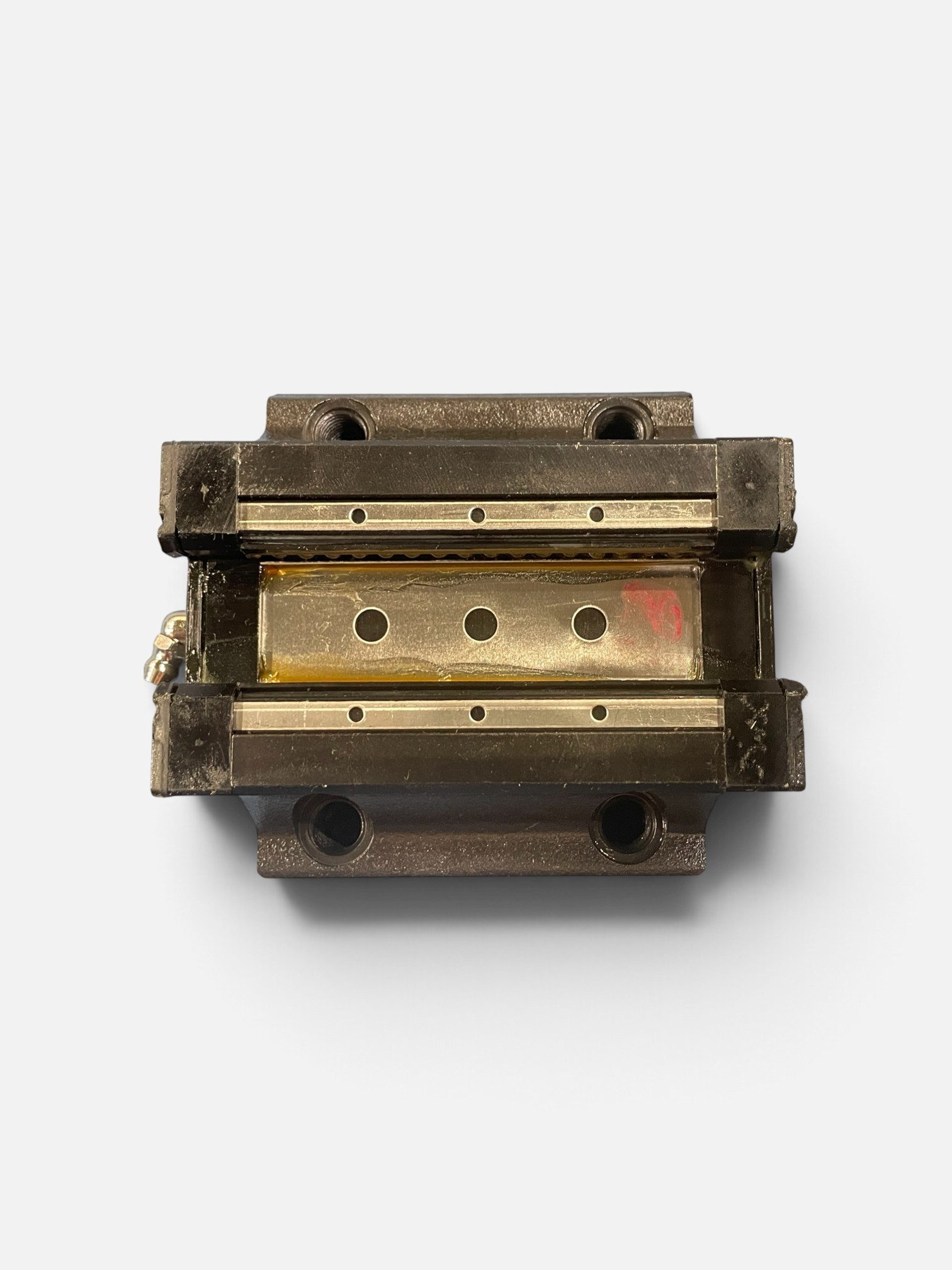

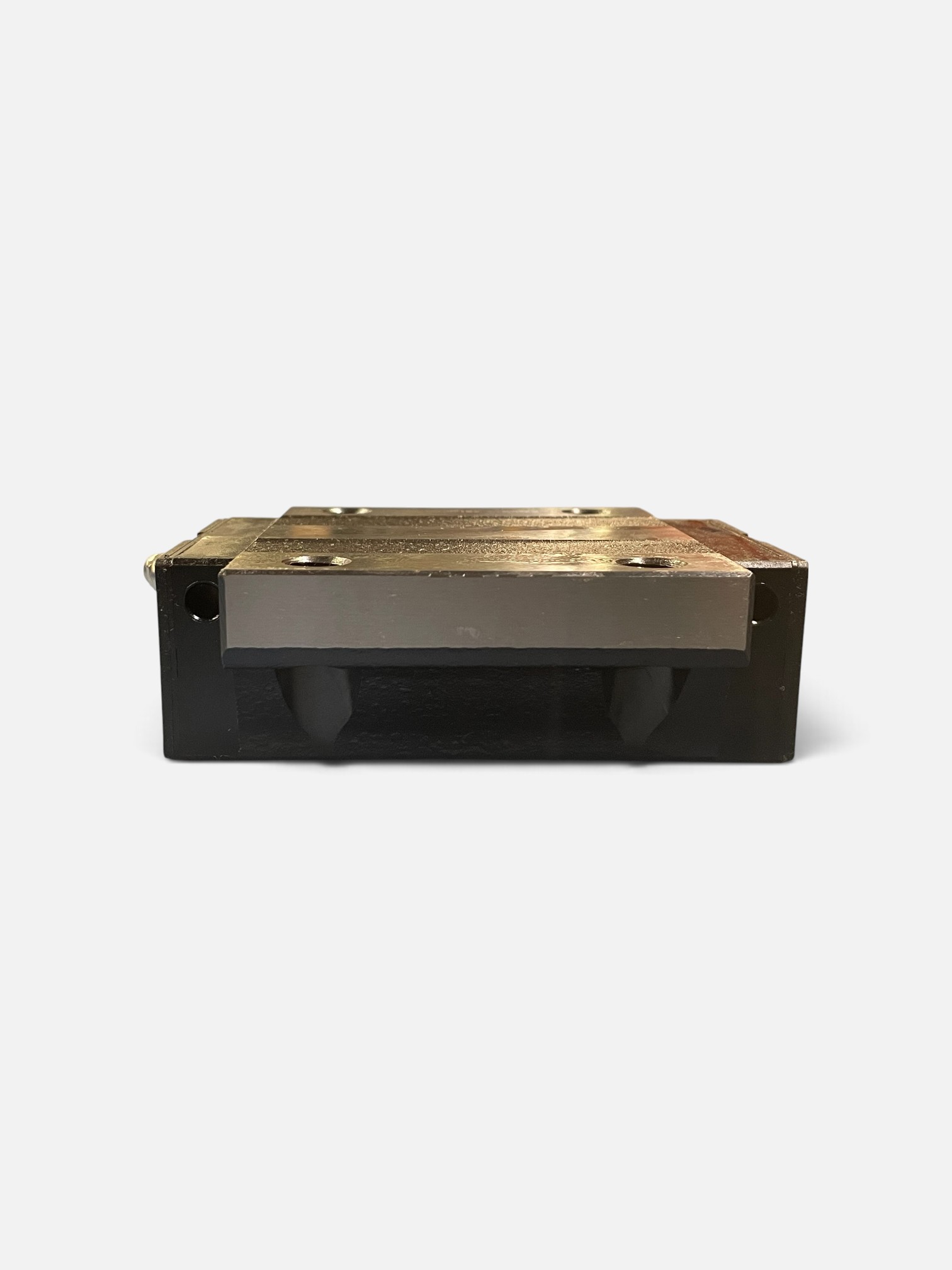

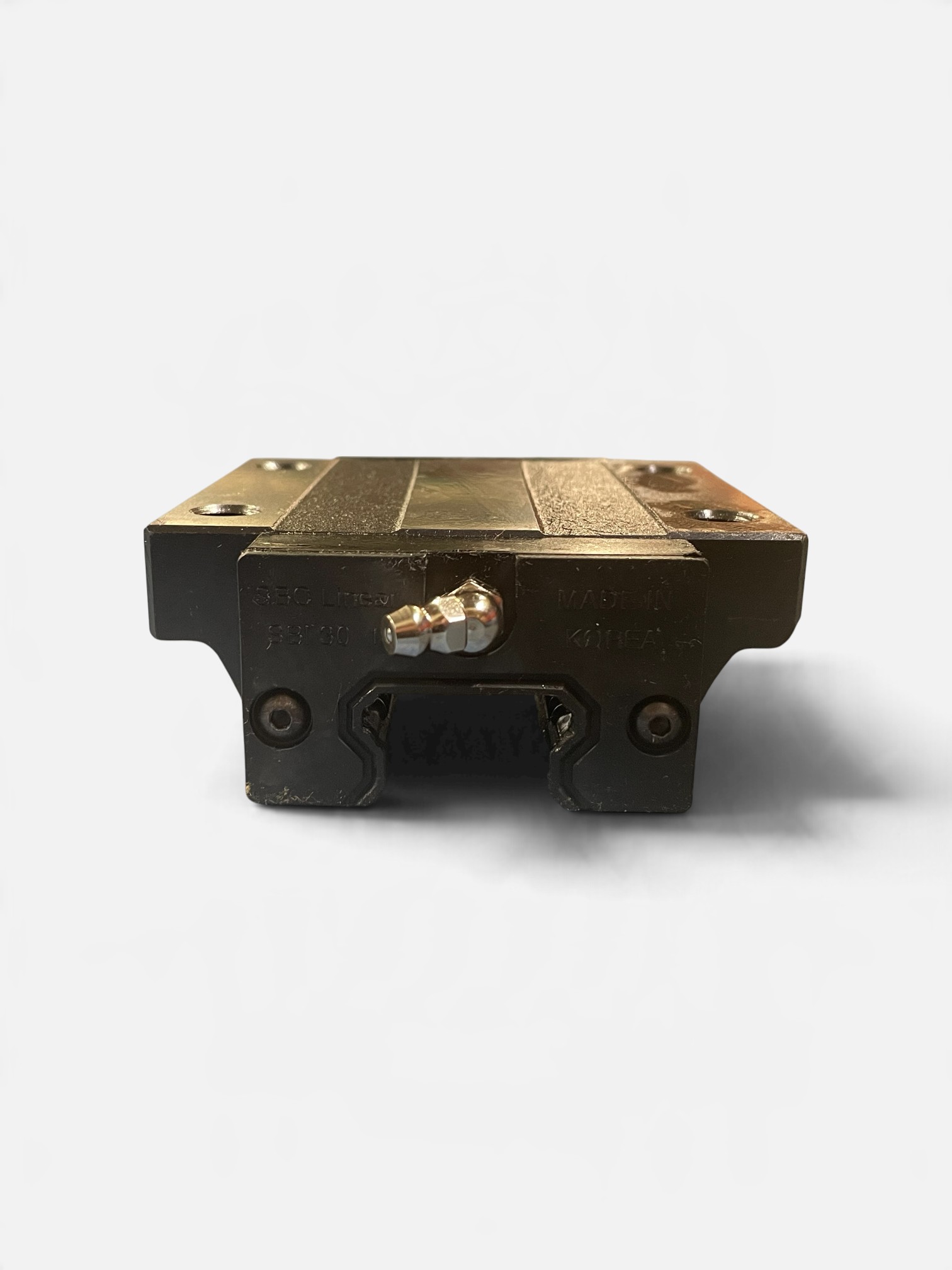

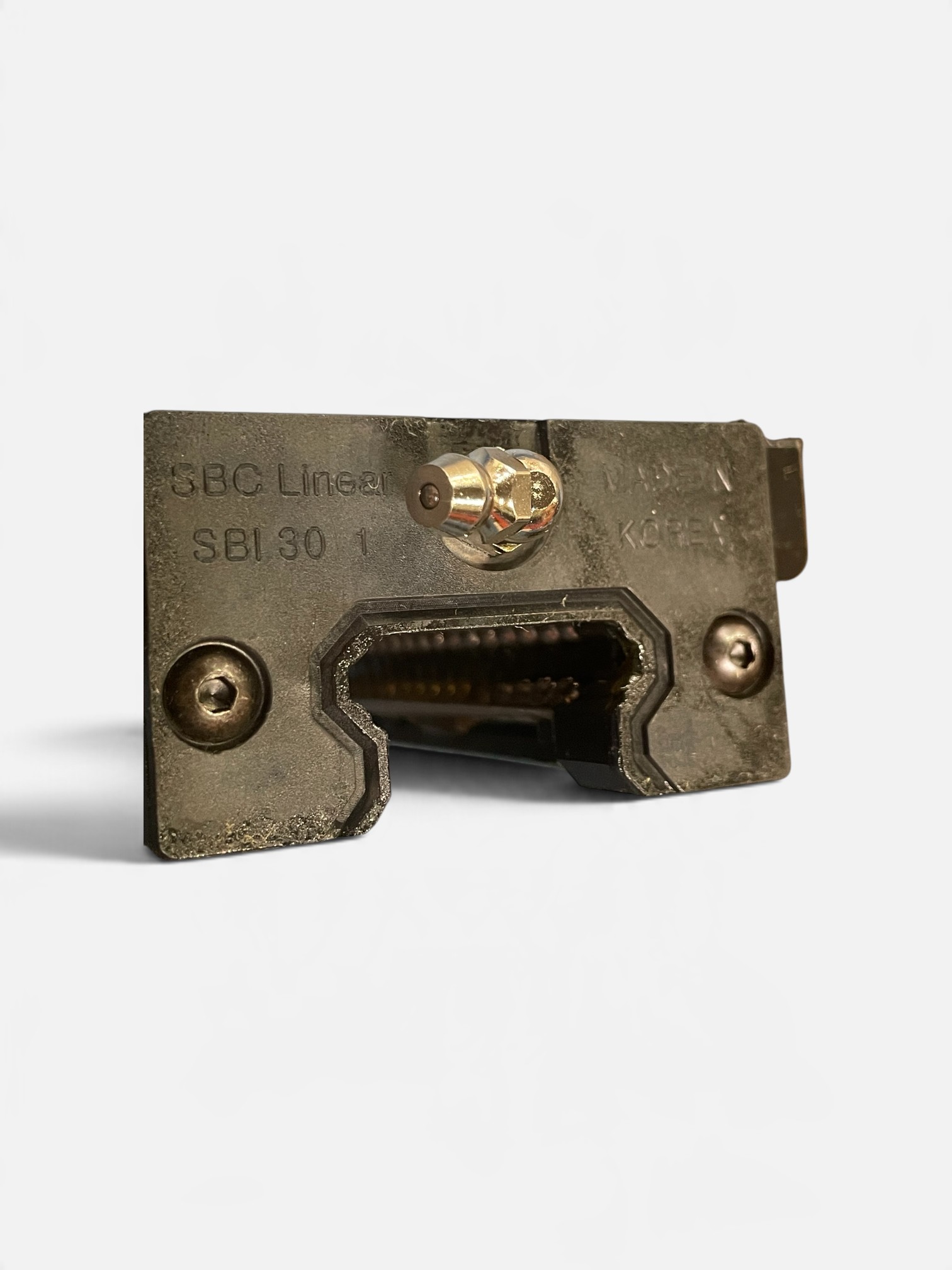

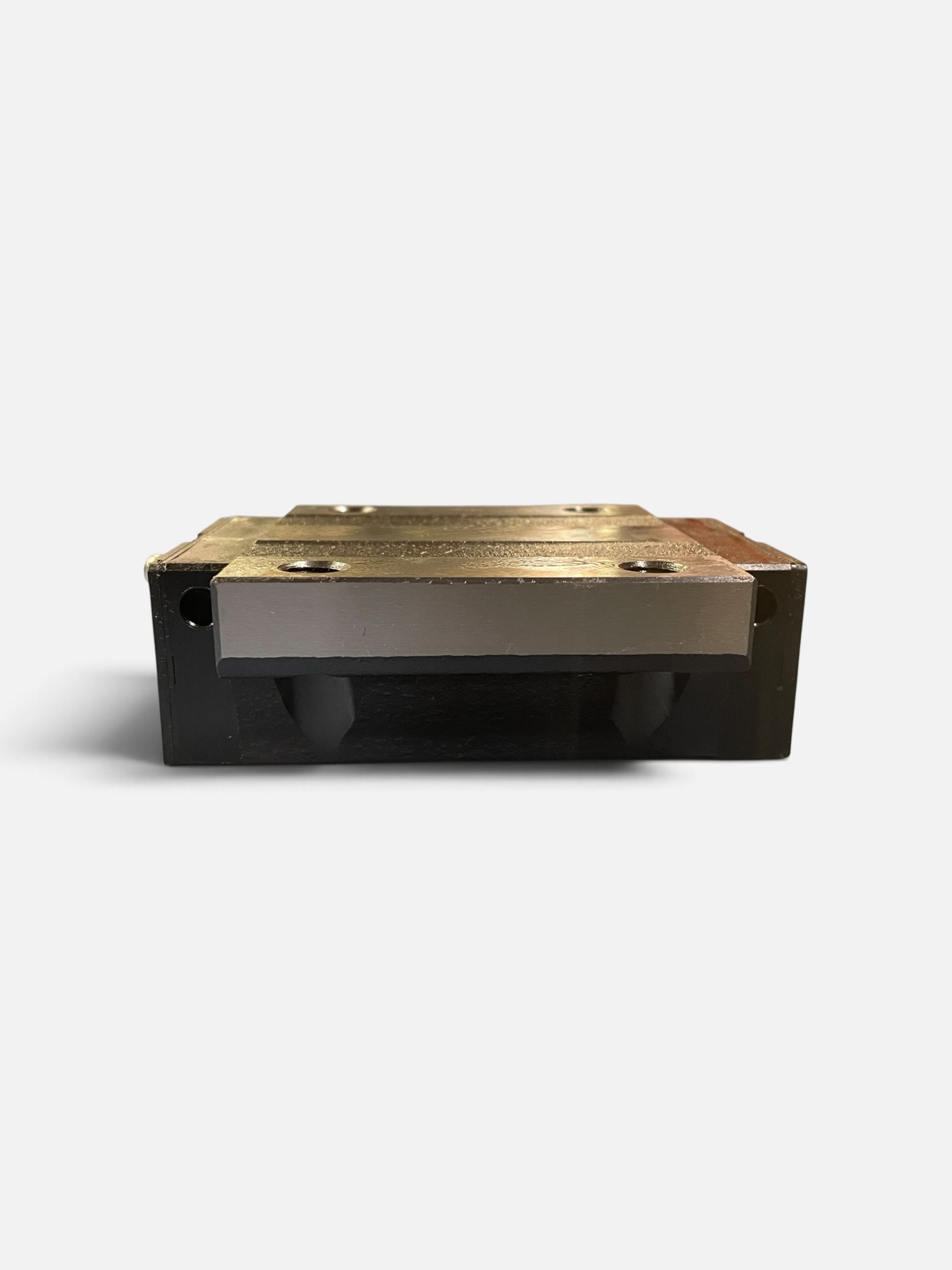

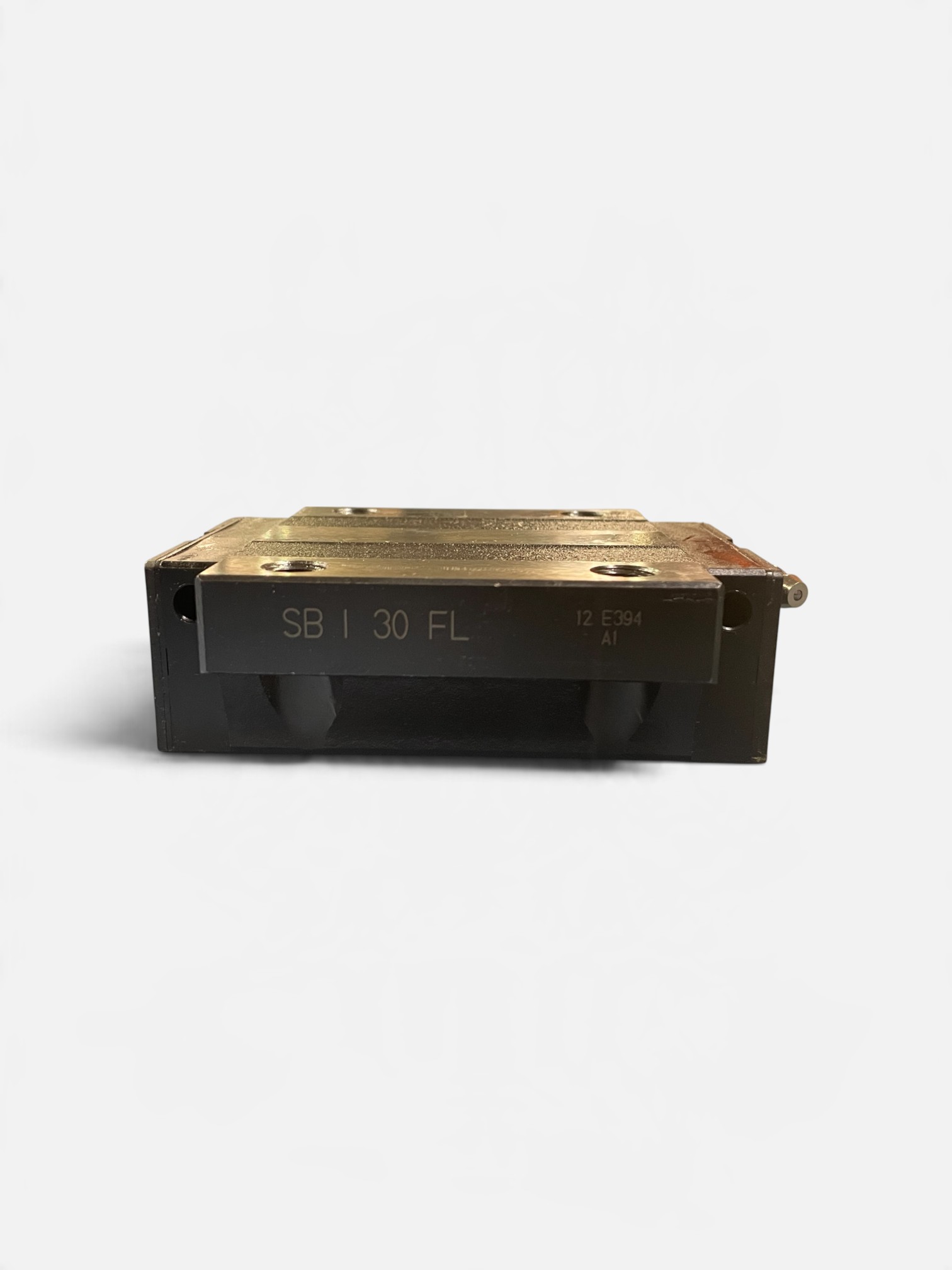

JenaTec SBI30-FL-C-K3 30mm Flange Block Heavy Preload Linear Guide Bearing (DMS P/N RAIL-30-BLK-80-J)

The JenaTec SBI30-FL-C-K3 is a 30 mm flange-type linear guide block from the SBI heavy-load linear rail system. It is designed to provide smooth linear motion with high rigidity and load capacity for industrial machinery and automation equipment.

The K3 preload configuration provides heavy preload for applications where increased rigidity is required and vibration, impact, or overhung loads may be present. The SBI30 FL block is the standard-length flange configuration.

This block is suitable for use with compatible 30 mm SBI-series linear guide rails. Please verify rail series, mounting dimensions, preload, and block configuration before purchase.

Specifications

• Brand: JenaTec / Kuroda Jena Tec
• Series: SBI
• Model: SBI30-FL
• Part Number: SBI30-FL-C-K3
• Block Size: 30 mm
• Block Type: FL — Flange, Standard Length
• Preload: K3 Heavy
• Preload Range: Approximately 8–10% of basic dynamic load rating
• Basic Dynamic Load Rating: 42.8 kN
• Basic Static Load Rating: 65.4 kN
• Block Weight: Approximately 1.25 kg / 2.76 lb
• Application: Linear motion / industrial automation

Manufacturer specifications identify K3 as the heavy-preload configuration, intended for applications requiring increased rigidity and resistance to vibration and impact.

Dimensions

Manufacturer dimensions for the SBI30 FL configuration:

• Height (H): 42 mm
• Width (W): 90 mm
• Length (L): 107.6 mm
• Mounting Length (L1): 79.6 mm
• Mounting: M10
• Rail Width: 30 mm system
• Mounting dimensions: 72 mm × 52 mm

Dimensions are based on the SBI30 FL manufacturer’s dimensional data.

Applications

• CNC machinery
• Machine tools
• Industrial automation
• Linear positioning systems
• Robotics
• Milling machines
• NC lathes
• Material-handling equipment
• Heavy-duty linear motion systems

Package Includes

• 1 × JenaTec SBI30-FL-C-K3 30mm Flange Block
