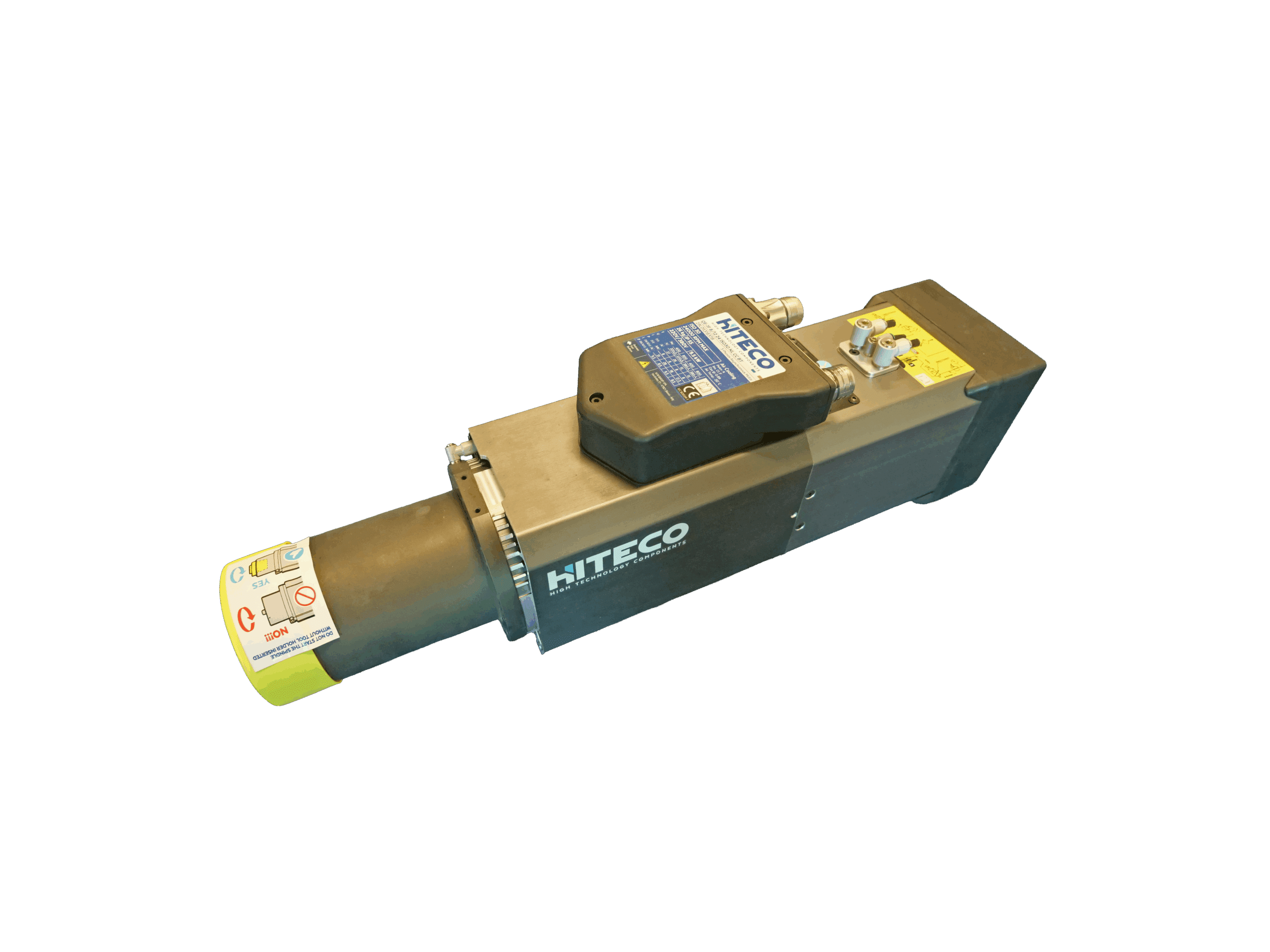

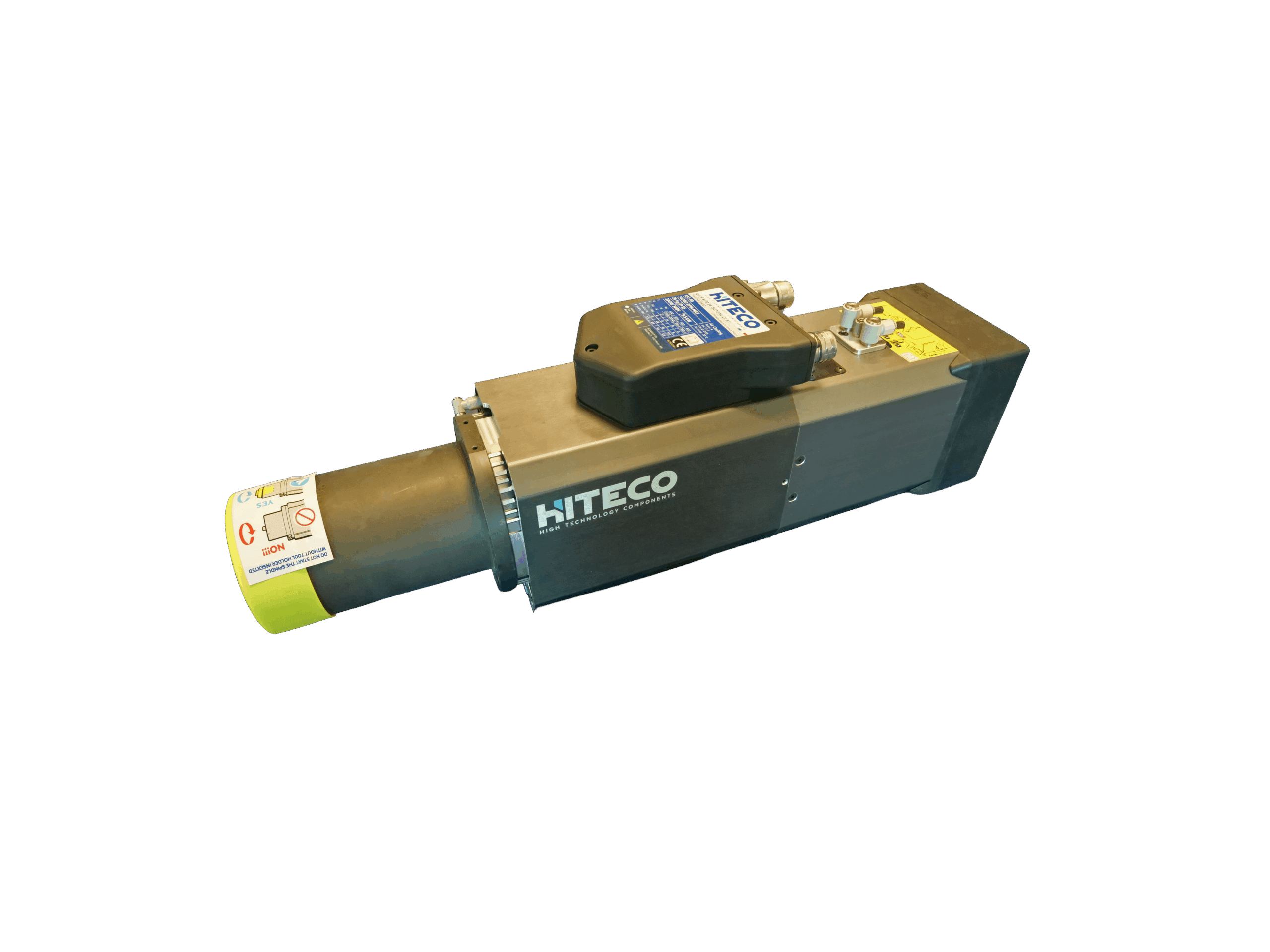

Hiteco QE-1F CNC Spindle Motor – ISO30 Long Nose, 8kW / 9.5kW, 24,000 RPM

The Hiteco QE-1F CNC spindle motor is engineered for high-speed, high-precision CNC routing applications. Featuring a long nose ISO30 tool interface, this spindle provides excellent rigidity, reach, and compatibility with automatic tool changer systems. Rated at 8.0 kW (10 HP) continuous S1 power and up to 9.5 kW (12 HP) S6 intermittent power, the QE-1F delivers reliable torque across demanding machining cycles. Its 4-pole motor design and ceramic bearings ensure smooth operation, reduced vibration, and extended service life at speeds up to 24,000 RPM. Fan-cooled air cooling simplifies installation and maintenance while providing dependable thermal control in production environments.

• Specifications:
  ◦ Manufacturer: Hiteco
  ◦ Model: QE-1F
  ◦ Tool Interface: ISO30

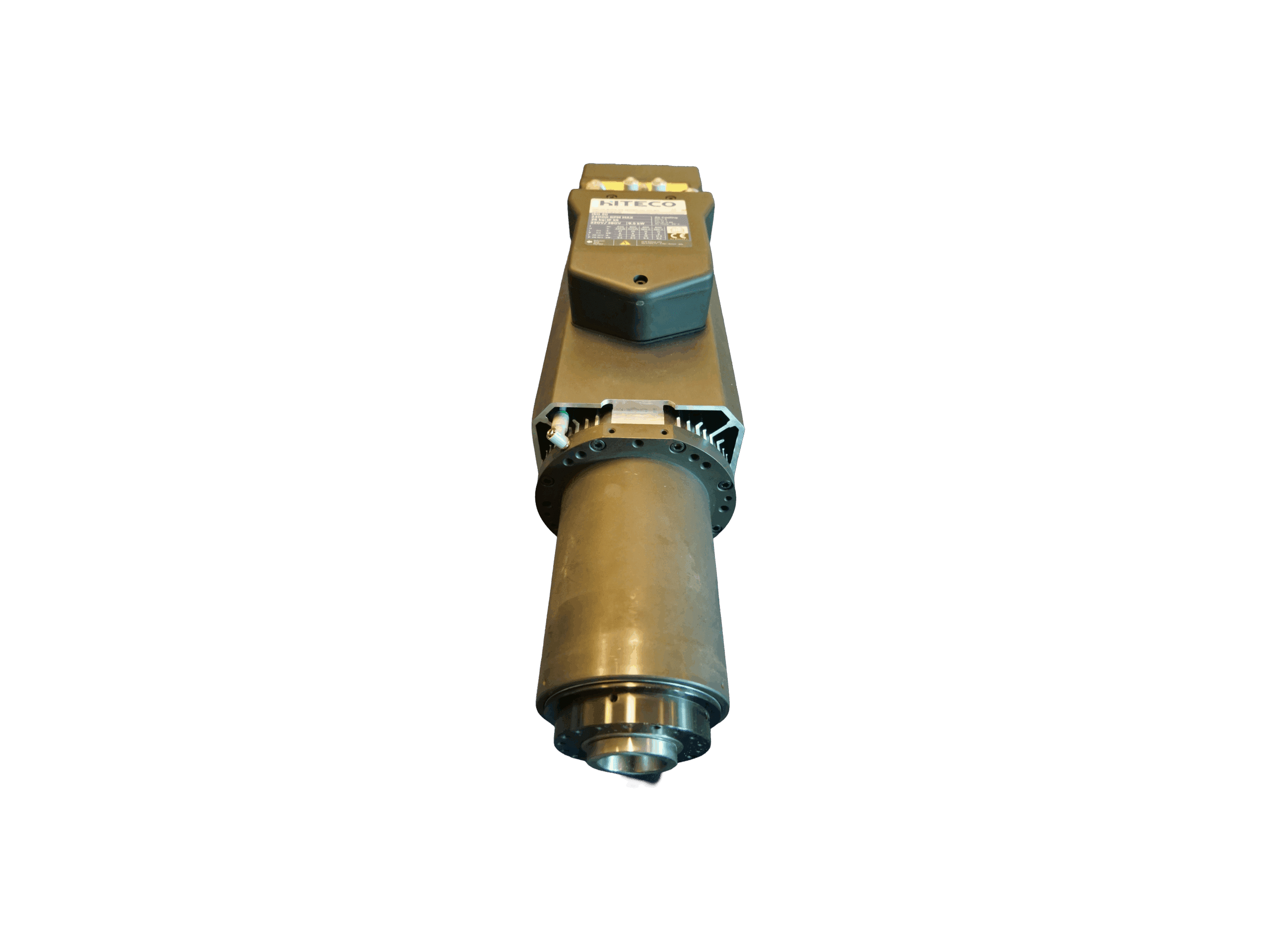

  ◦ Nose Type: Long Nose
  ◦ Rated Speed: 24,000 RPM
  ◦ S1 Power (Continuous): 8.0 kW / 10 HP
  ◦ S6 Power (Intermittent): 9.5 kW / 12 HP
  ◦ Voltage: 220 / 380 V
  ◦ Motor Type: 4-Pole
  ◦ Bearings: Ceramic
  ◦ Cooling Method: Fan Cooled (Air)

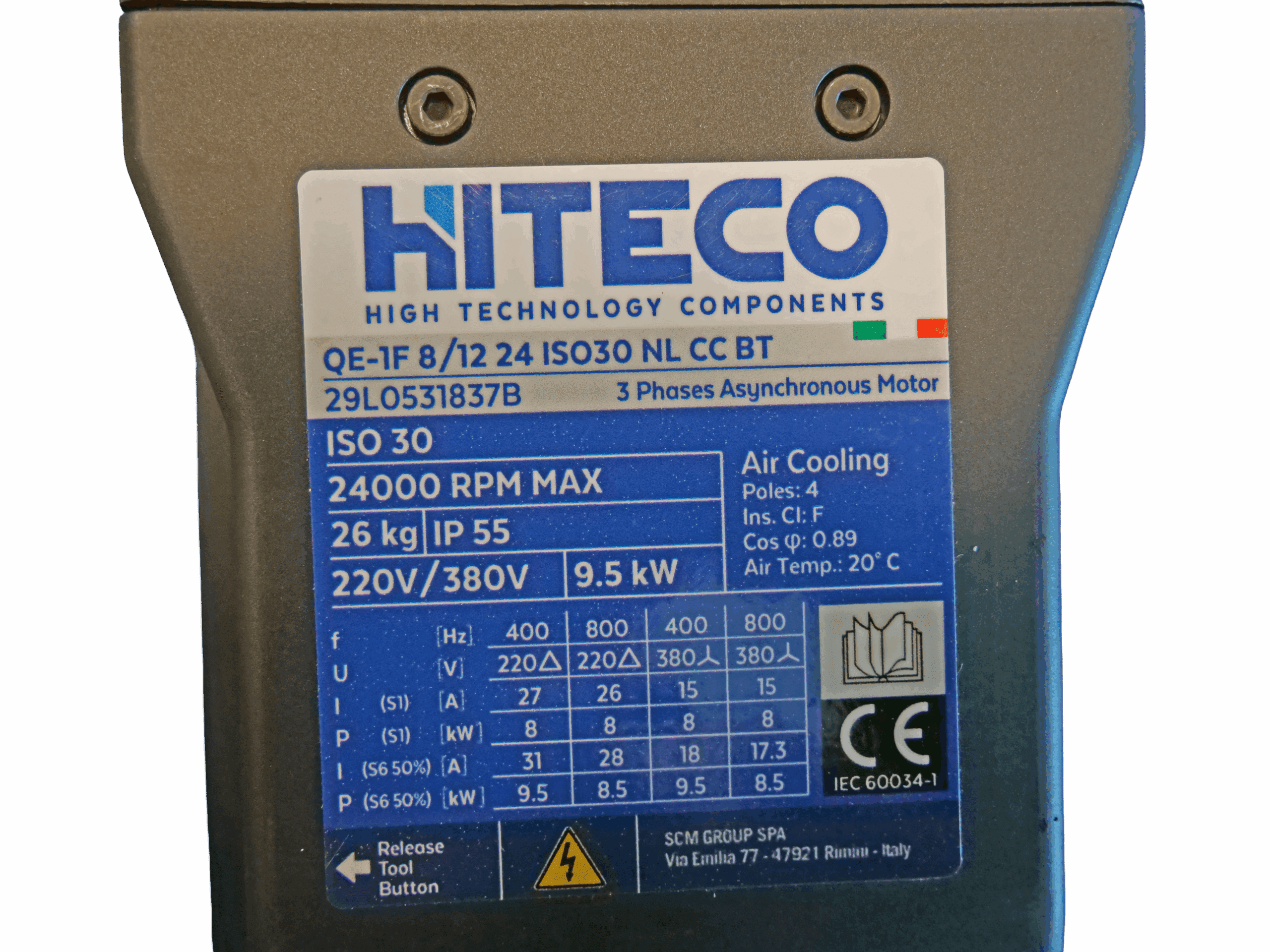

  ◦ Configuration Code: QE-1F 8/12 24 ISO30 NL CC BT
  ◦ Serial Reference: 29L0531837B
• Applications:
  ◦ CNC routers for wood, plastics, and composite materials
  ◦ High-speed machining operations
  ◦ Automatic tool changer CNC systems
  ◦ Industrial production routing environments
• Features & Benefits:
  ◦ Long nose ISO30 design for extended reach and rigidity
  ◦ Ceramic bearings for high-speed stability and durability
  ◦ Strong continuous and peak power output
  ◦ Smooth, low-vibration operation at high RPM
  ◦ Air-cooled design for simplified installation and service
