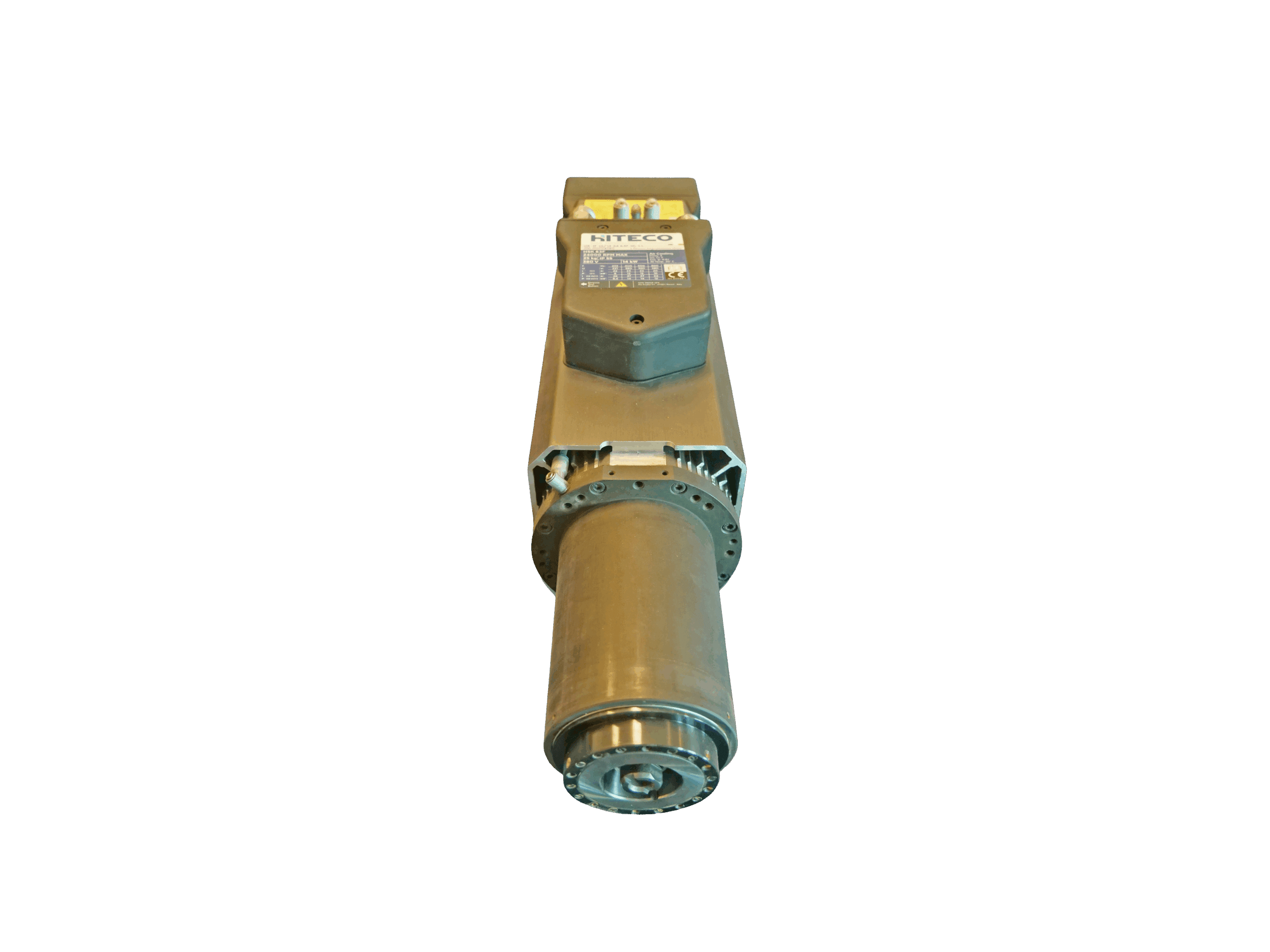

Hiteco PT400 High Torque CNC Spindle Motor – HSK 63F Long Nose, 12 kW / 14 kW

The Hiteco PT400 QE-1F high torque CNC spindle motor is engineered for heavy-duty production environments requiring maximum cutting power, rigidity, and reliability. Featuring an HSK 63F tool interface and long nose configuration, this spindle supports aggressive machining operations, large-diameter tooling, and high material removal rates. This spindle delivers 12 kW (16 HP) continuous S1 power and up to 14 kW (18 HP) S6 intermittent power, with a maximum operating speed of 24,000 RPM. A 4-pole motor design combined with ceramic bearings ensures smooth rotation, reduced vibration, and extended service life under demanding loads. Fan-cooled air cooling simplifies system integration while maintaining consistent thermal performance. The PT400 platform is well suited for industrial CNC routers and machining centers that rely on high torque, precision, and long-term durability.

• Specifications:
  ◦ Manufacturer: Hiteco
  ◦ Series: PT400
  ◦ Tool Interface: HSK 63F
  ◦ Nose Type: Long Nose
  ◦ Maximum Speed: 24,000 RPM
  ◦ S1 Power (Continuous): 12 kW (16 HP)
  ◦ S6 Power (Intermittent): 14 kW (18 HP)
  ◦ Voltage: 380 V
  ◦ Motor Type: 4-Pole
  ◦ Bearings: Ceramic

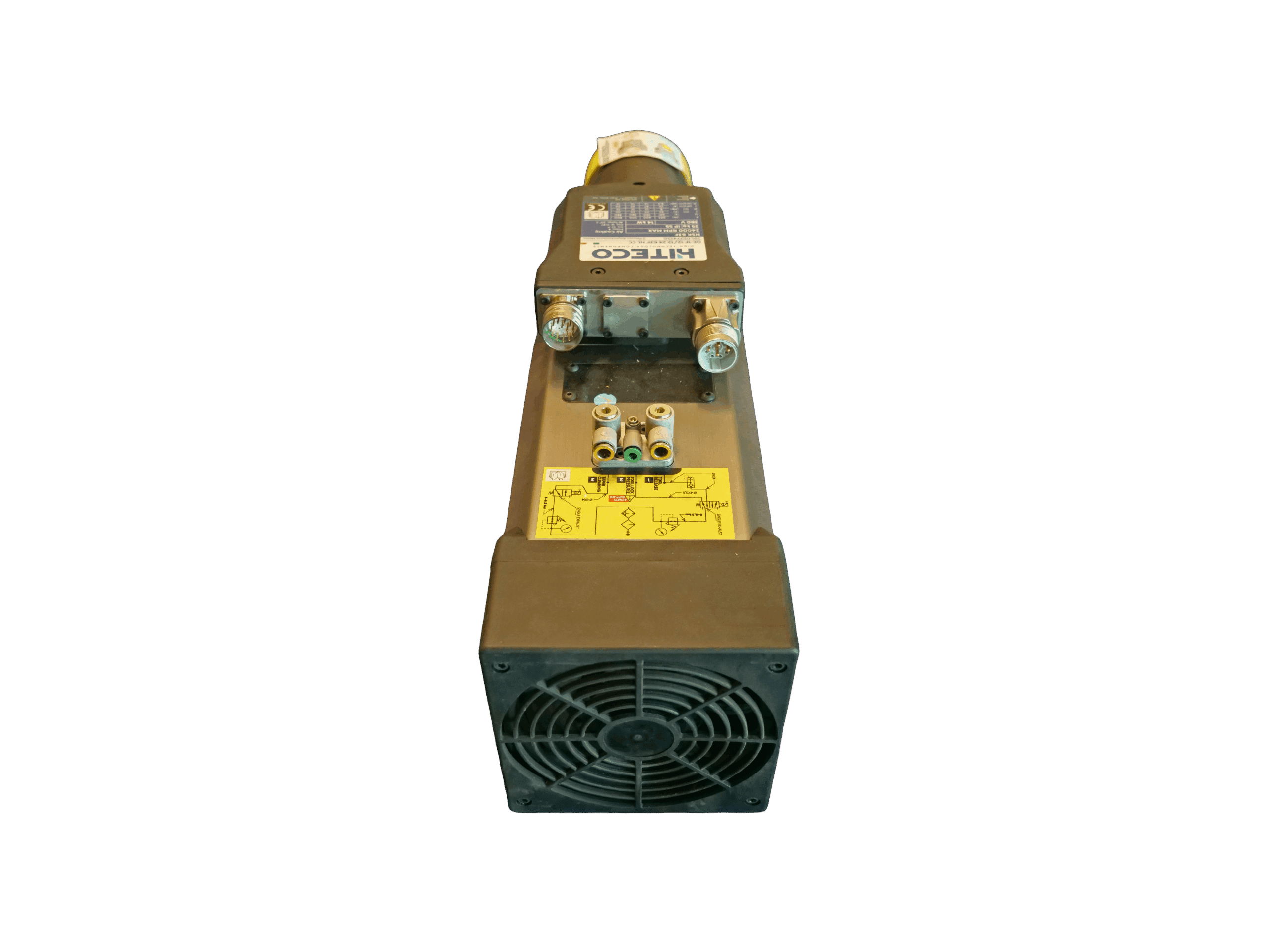

  ◦ Cooling Method: Fan Cooled (Air)

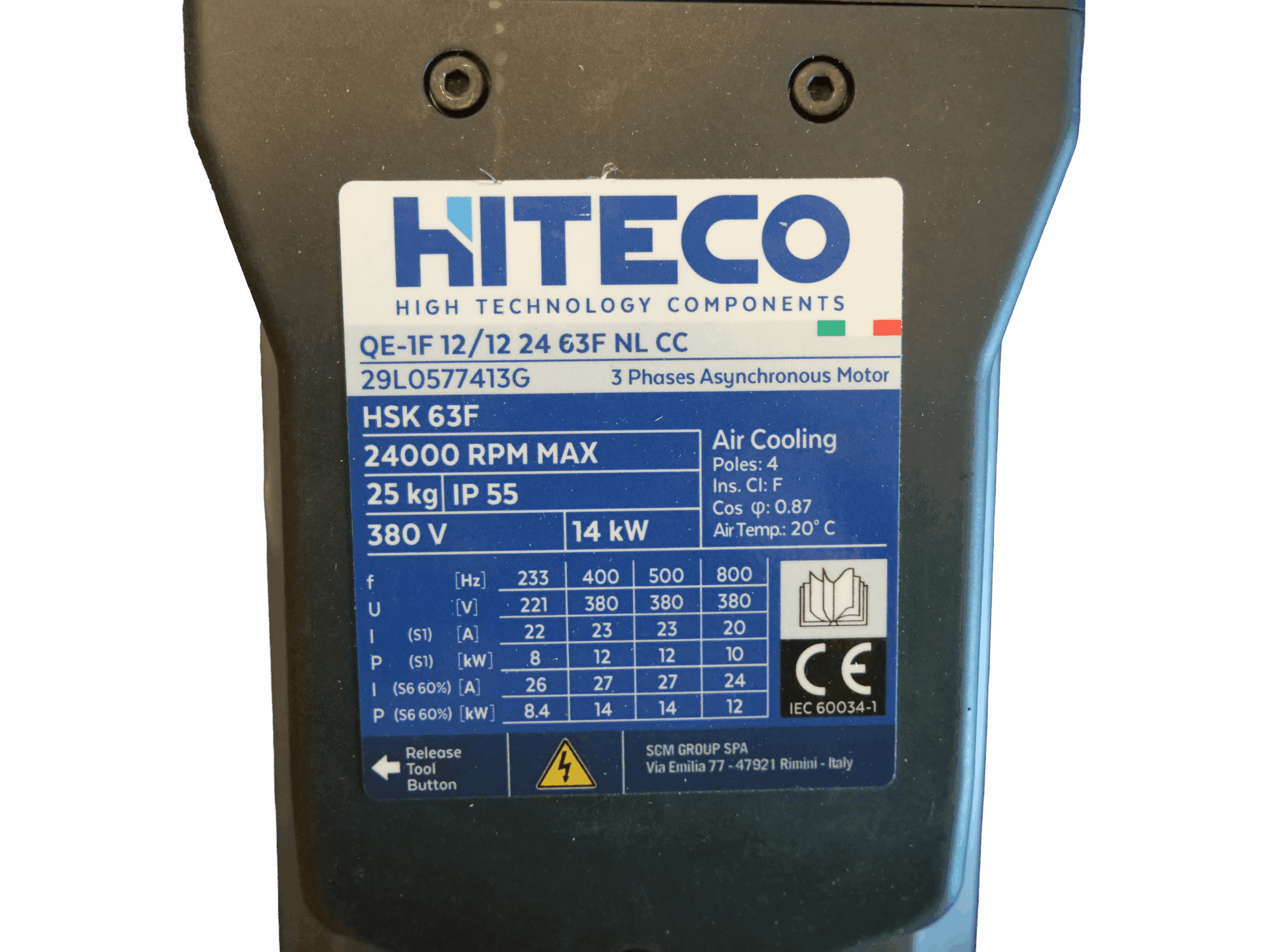

  ◦ Configuration Code: QE-1F 12/12 24 63F NL CC
  ◦ Serial Reference: 29L0577413G
• Applications:
  ◦ High torque CNC routing and machining
  ◦ Heavy material removal operations
  ◦ CNC systems using HSK 63F tooling
  ◦ Industrial production and manufacturing environments
• Features & Benefits:
  ◦ High continuous and peak power output
  ◦ HSK 63F interface for superior rigidity and accuracy
  ◦ Long nose design for extended reach and tool clearance
  ◦ Ceramic bearings for high-speed durability and stability
  ◦ Air-cooled design for simplified installation and service
  ◦ Built for demanding, high-load CNC applications
