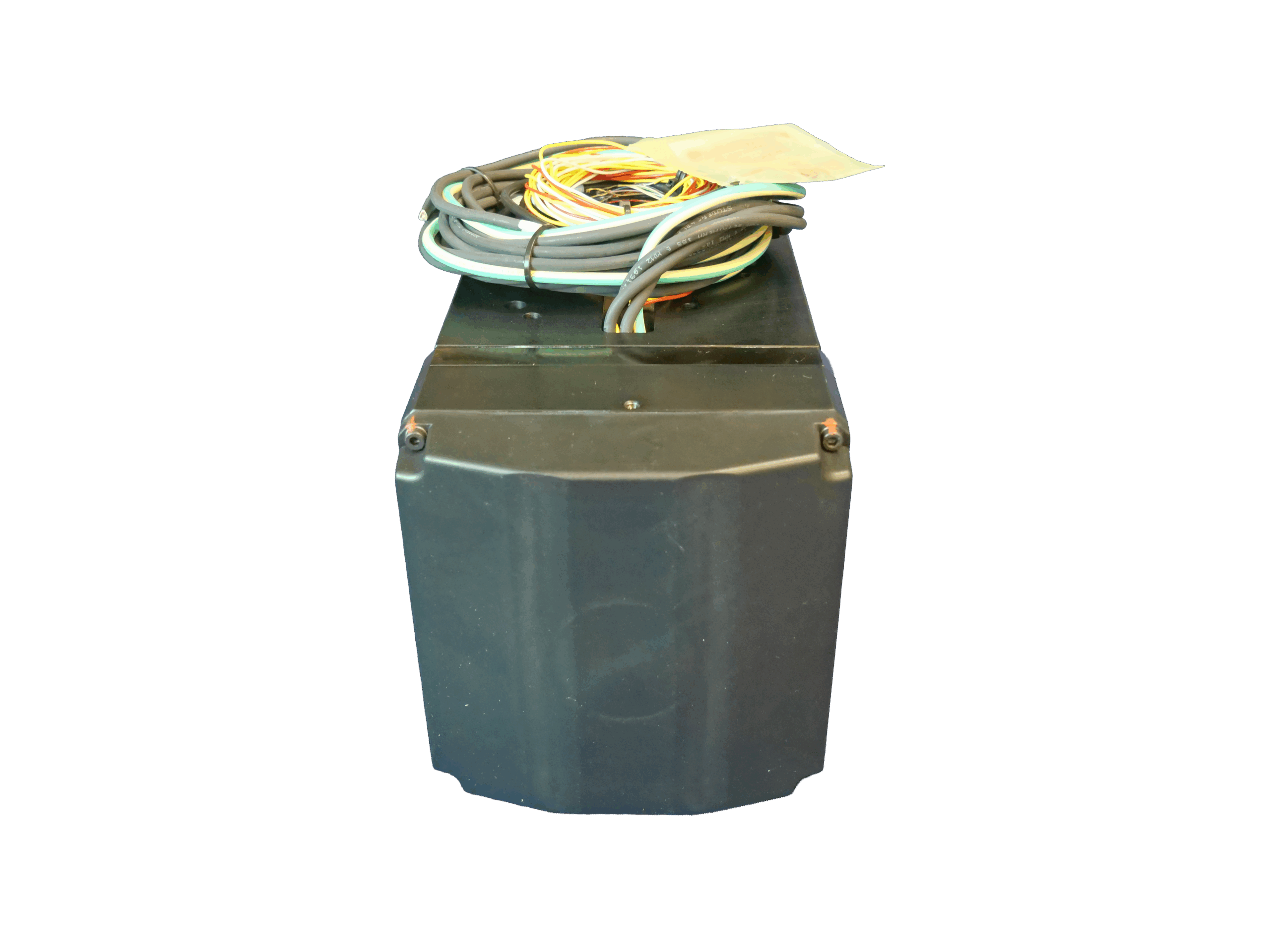

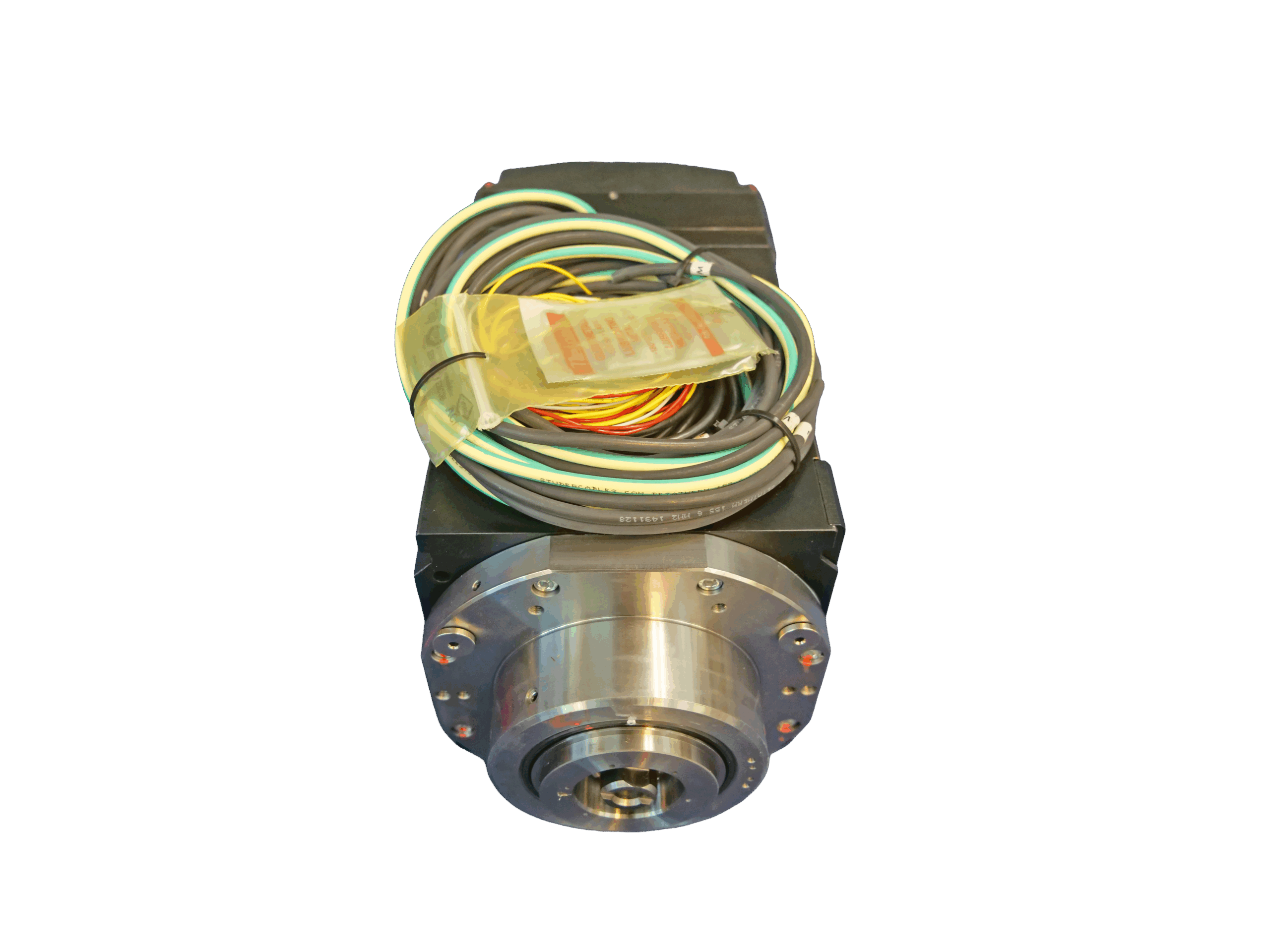

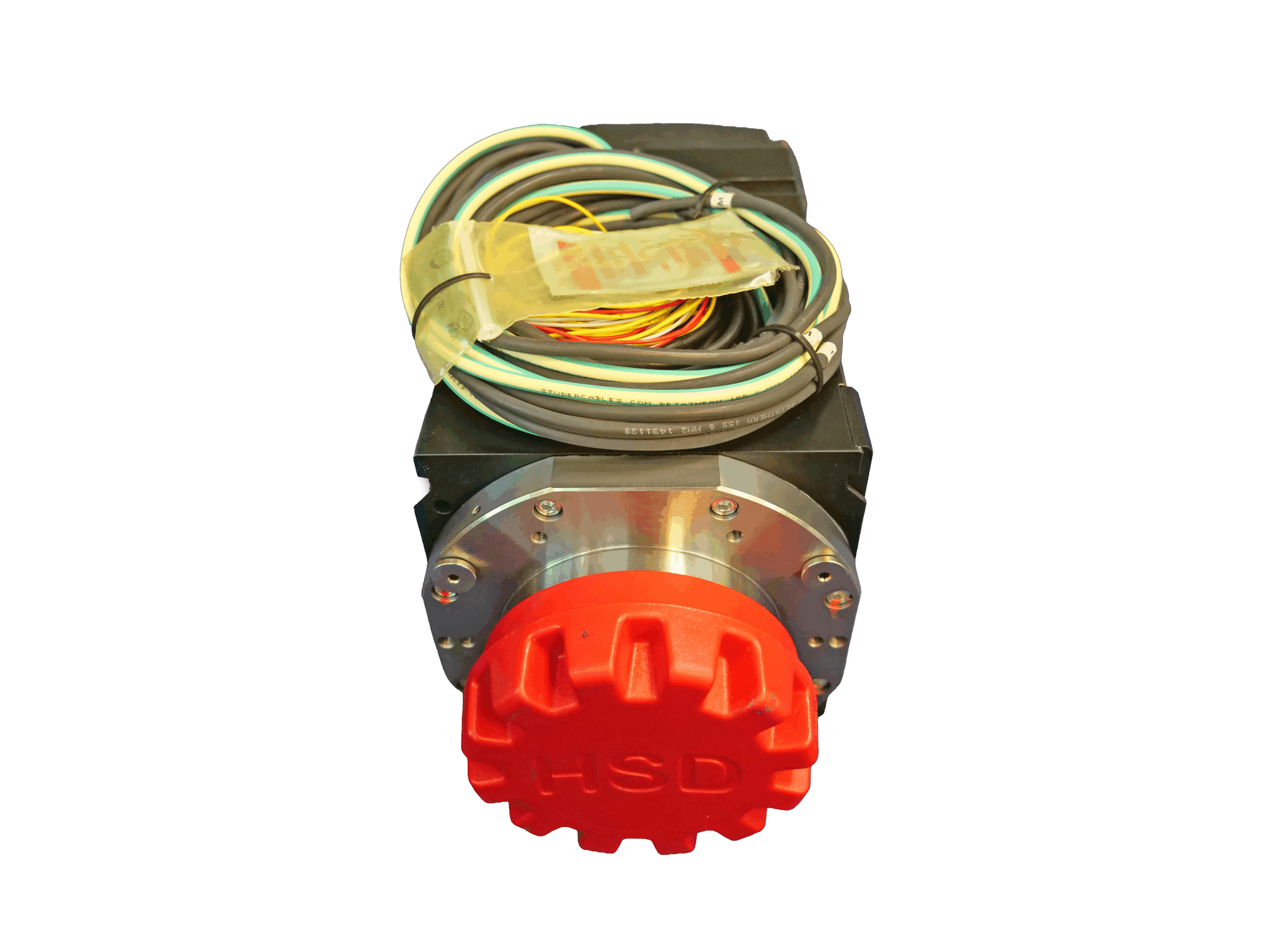

ES779 HSK F63 Liquid Cooled Spindle – 10kW, 22,000 RPM, Short Nose

The ES779 HSK F63 Spindle Motor delivers industrial-grade cutting performance with a 10kW continuous power rating and liquid cooling for stable thermal operation. Engineered for precision CNC routing and machining, this spindle features a short nose configuration, fixed cylinder design, and HSK F63 tool interface for secure high-speed tool retention.
Operating at 380V, the ES779 achieves speeds up to 22,000 RPM with grease-lubricated bearings and onboard sensors including Standard, S3, and S5. This configuration includes no encoder and is built for durability in continuous-duty environments.

Designed as an upgraded replacement for the discontinued H616H0588A model, this unit maintains full compatibility while improving reliability and cooling performance.

*DMS TO MACHINE MOUNTING HOLES UPON PURCHASE.

Specifications:

• Power: 10kW
• Voltage: 380V
• Speed (RPM): 22000 RPM
• Cooling Type: Liquid cooled
• Tool Interface: HSK F63
• Bearing Type: Grease lubricated
• Configuration: Short nose, fixed cylinder
• Sensors: Standard + S3 + S5
• Encoder: None
• Material / Finish: Precision-machined aluminum and steel assembly

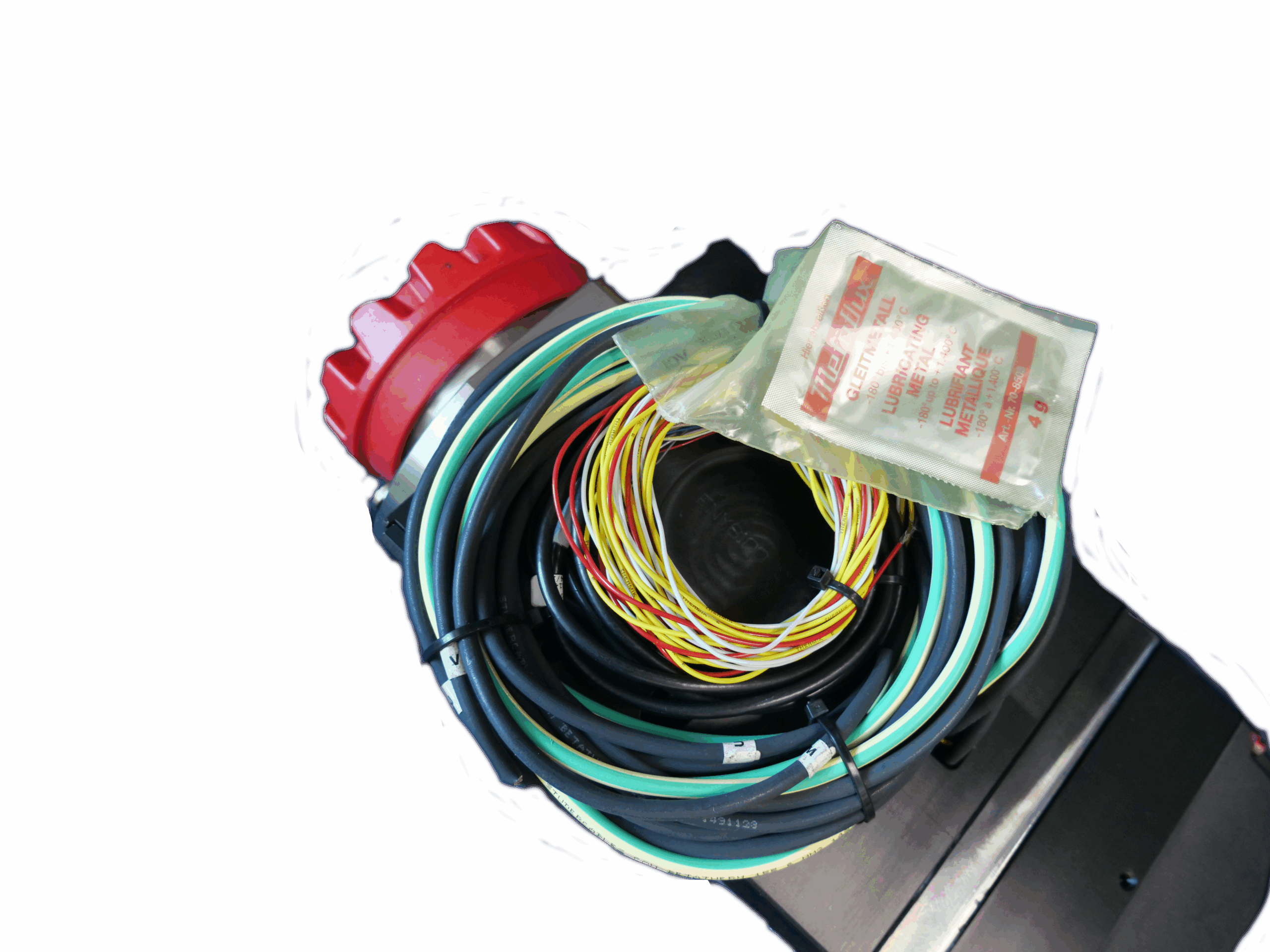

• Included Components: Spindle motor with factory wiring harness

Applications:

• High-duty CNC routing
• HSK F63 machining centers
• Precision woodworking and composite processing
• Replacement for ES779 H616H0588A spindle systems

Features & Benefits:

• Liquid-cooled design for superior thermal stability
• High speed 22,000 RPM performance
• HSK F63 interface for secure tool holding
• Factory-equipped sensor package S3 and S5
• Short nose configuration for compact machine builds
• Direct OEM replacement for discontinued H616H0588A
