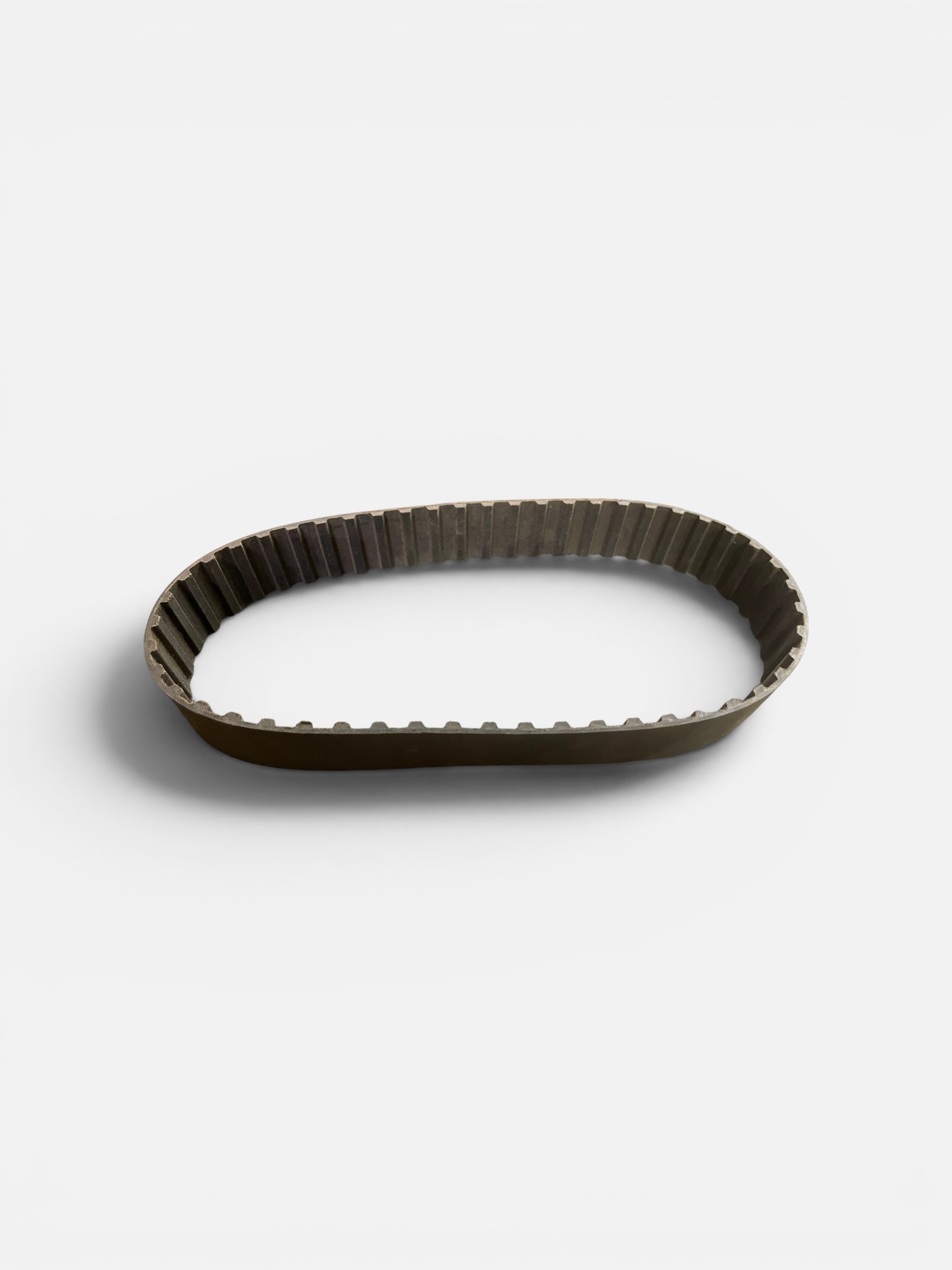

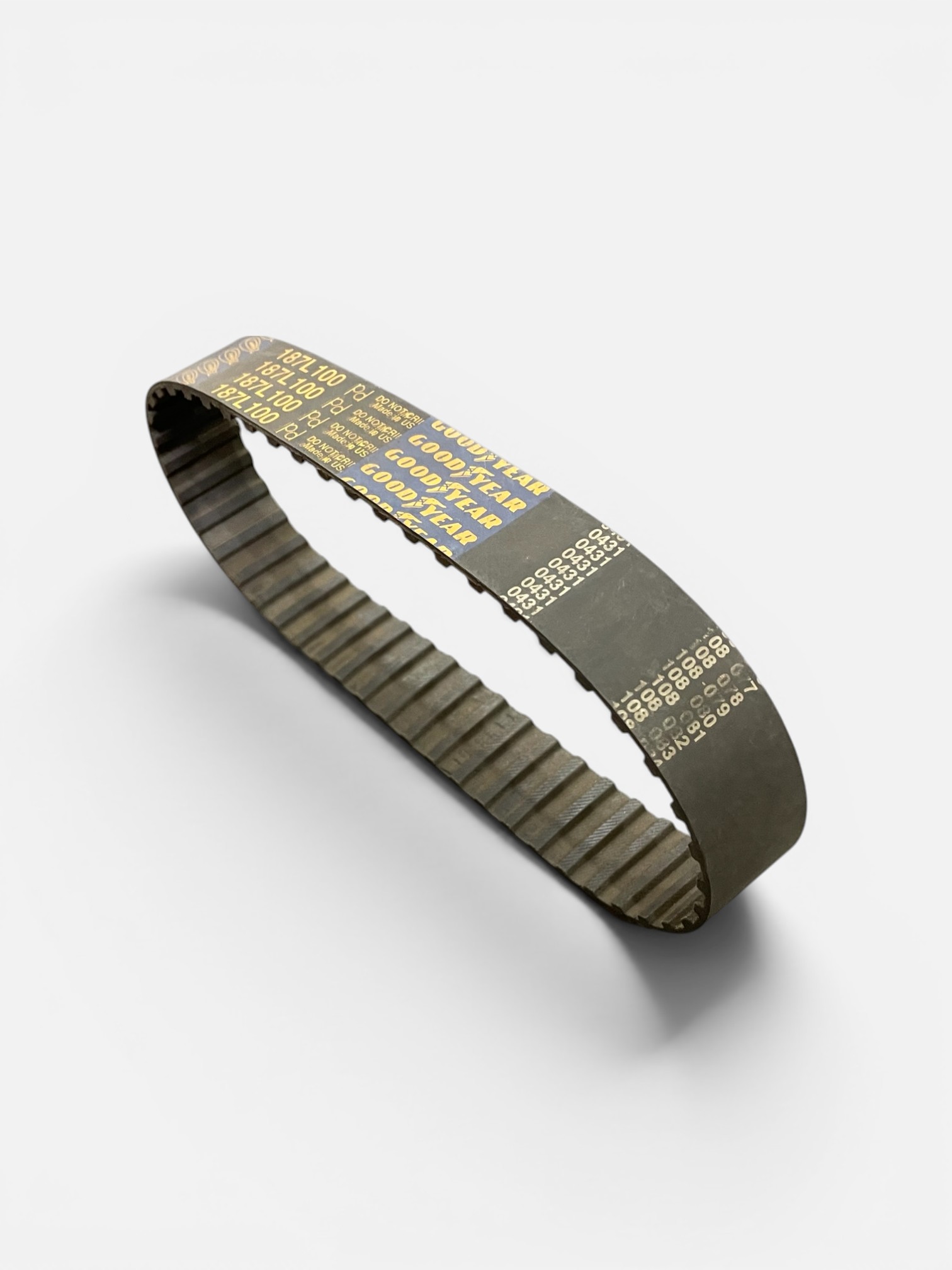

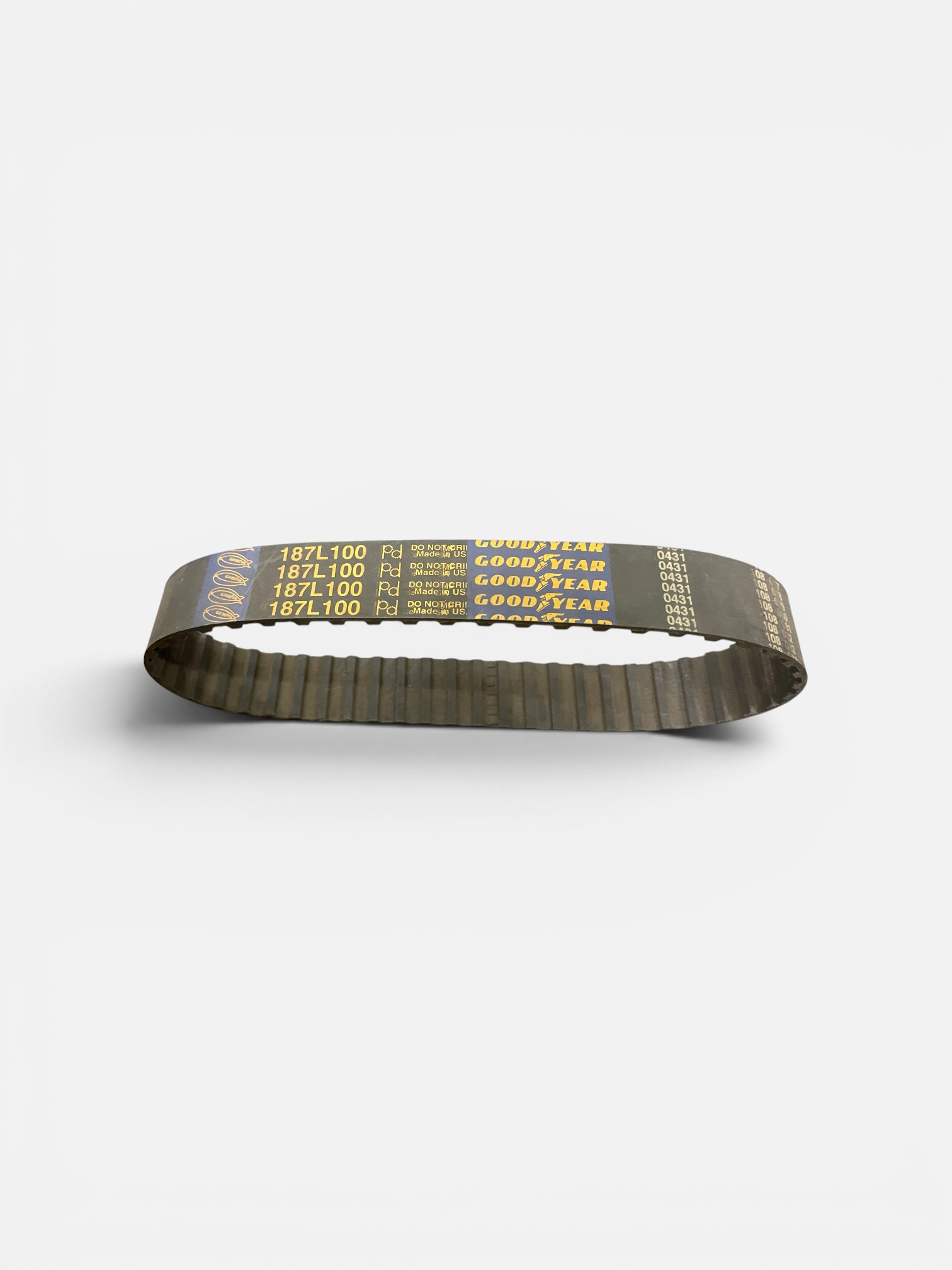

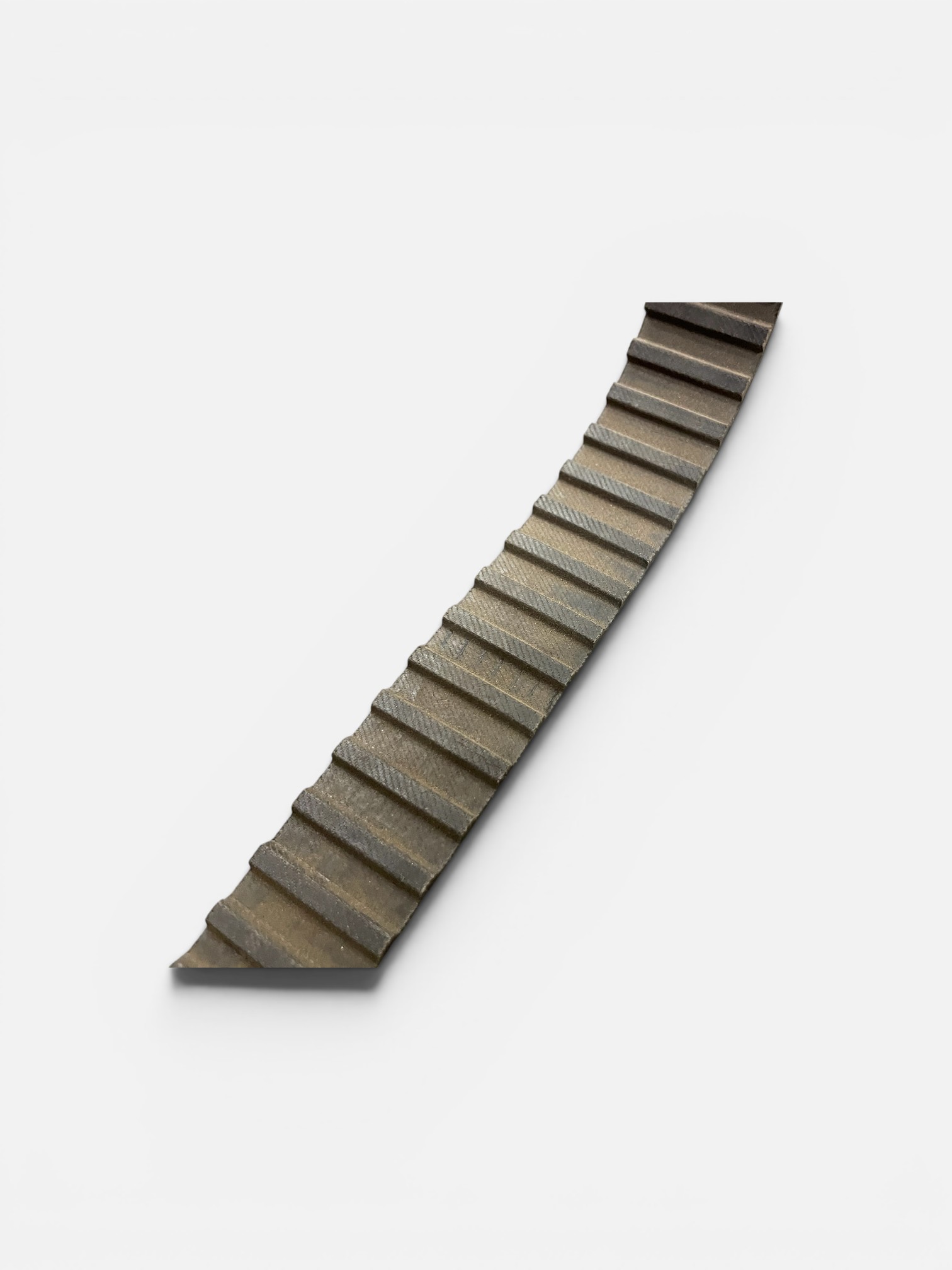

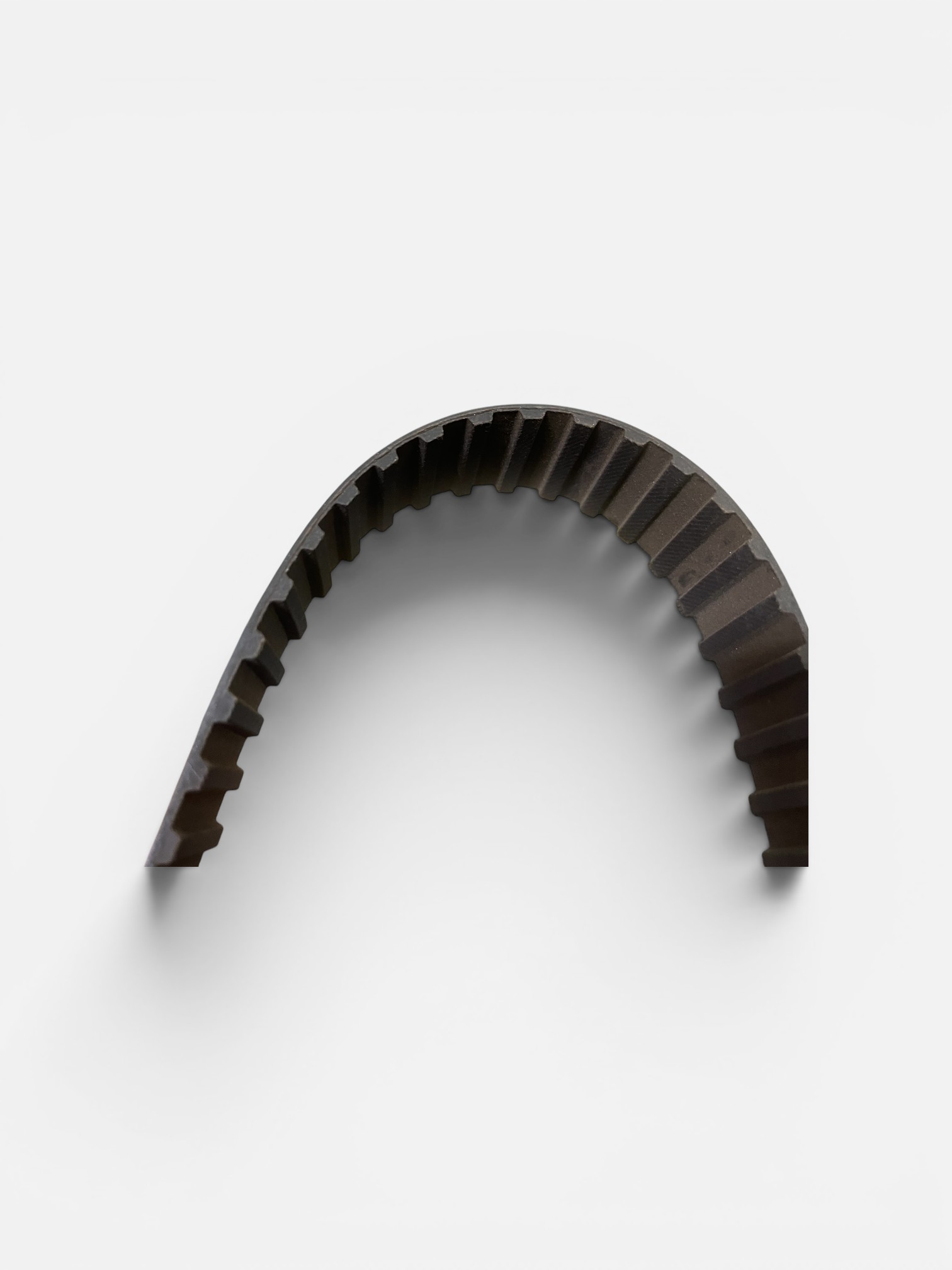

187L100 Timing Belt 18.7" Pitch Length 1" Wide Neoprene Fiberglass Drive Belt
187L100 Timing Belt 18.7" Pitch Length 1" Wide Neoprene Fiberglass Drive Belt - Image 2
187L100 Timing Belt 18.7" Pitch Length 1" Wide Neoprene Fiberglass Drive Belt - Image 3
187L100 Timing Belt 18.7" Pitch Length 1" Wide Neoprene Fiberglass Drive Belt - Image 4
187L100 Timing Belt 18.7" Pitch Length 1" Wide Neoprene Fiberglass Drive Belt - Image 5

187L100 Timing Belt 18.7″ Pitch Length 1″ Wide Neoprene Fiberglass Drive Belt

$30.80

7 in stock

SKU BELT-187L100 Category

The 187L100 Timing Belt is a precision synchronous drive belt designed for accurate, non-slip power transmission in industrial machinery and automation equipment. Featuring an 18.7-inch pitch length, 1-inch width, and L-Series (3/8″ pitch) tooth profile, this belt delivers reliable performance for applications requiring precise timing and consistent motion.

Constructed from neoprene with fiberglass tensile cords, the belt provides excellent wear resistance, minimal stretch, and long service life in demanding industrial environments.

Features

  • Part Number: 187L100
  • Belt Type: Timing Belt / Synchronous Belt
  • Pitch Length: 18.7 inches
  • Belt Width: 1 inch
  • Tooth Pitch: 3/8 inch (L-Series)
  • Material: Neoprene
  • Tensile Cords: Fiberglass
  • Positive, non-slip drive
  • High wear resistance
  • Low maintenance operation
  • Reinforced construction for extended service life

Applications

  • CNC Machinery
  • Industrial Automation
  • Conveyor Systems
  • Packaging Equipment
  • Printing Machinery
  • Material Handling Equipment
  • Robotics
  • General Industrial Power Transmission

Included

  • 1 × 187L100 Timing Belt

Additional information

Dimensions 12 × 10 × 2 in

Compatible DMS Machines

DMS 2211 DMS 2221 DMS 2276 DMS 2281 DMS 2282 DMS 2283 DMS 2288 DMS 2298 DMS 2299 DMS 2300 DMS 2354 DMS 2362 DMS 2369 DMS 2375 DMS 2376 DMS 2382 DMS 2392 DMS 2405 DMS 2409 DMS 2416 DMS 2417 DMS 2419 DMS 2428 DMS 2440 DMS 2444 DMS 2473 DMS 2474 DMS 2495 DMS 2506 DMS 2510 DMS 2525 DMS 2526 DMS 2537 DMS 2546 DMS 2547 DMS 2548 DMS 2564 DMS 2578 DMS 2579 DMS 2583 DMS 2599 DMS 2600 DMS 2601 DMS 2607 DMS 2608 DMS 2611 DMS 2647 DMS 2648 DMS 2666 DMS 2672 DMS 2683 DMS 2702 DMS 2704 DMS 2716 DMS 2722 DMS 2727 DMS 2735 DMS 2743 DMS 2747 DMS 2749 DMS 2755 DMS 2772 DMS 2778 DMS 2796 DMS 2798 DMS 2807 DMS 2808 DMS 2812 DMS 2823 DMS 2838 DMS 2839 DMS 2859 DMS 2876 DMS 2885 DMS 2890 DMS 2897 DMS 2905) DMS 2919 DMS 2920 HMS 1000 HMS 1001 HMS 1007
