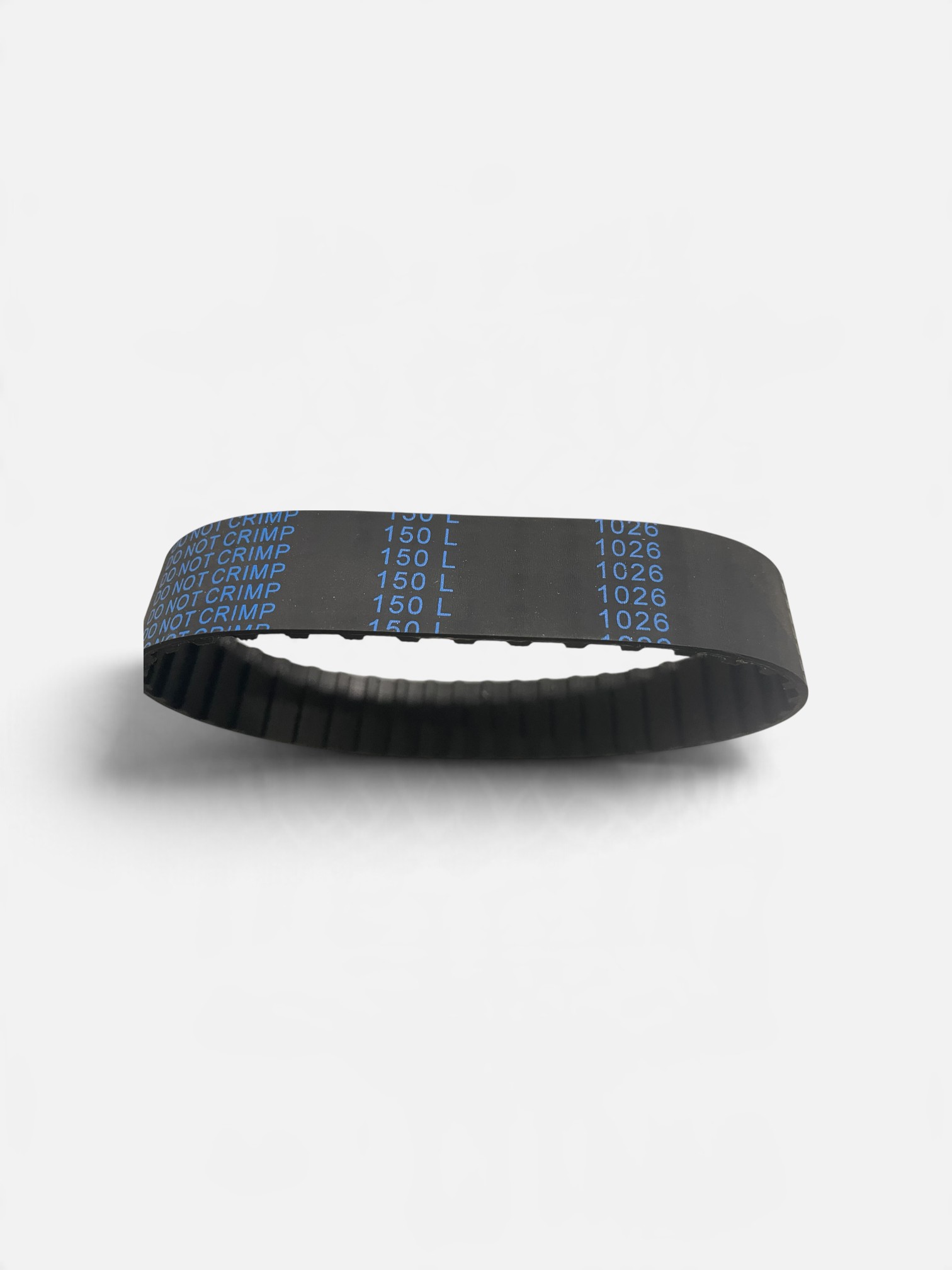

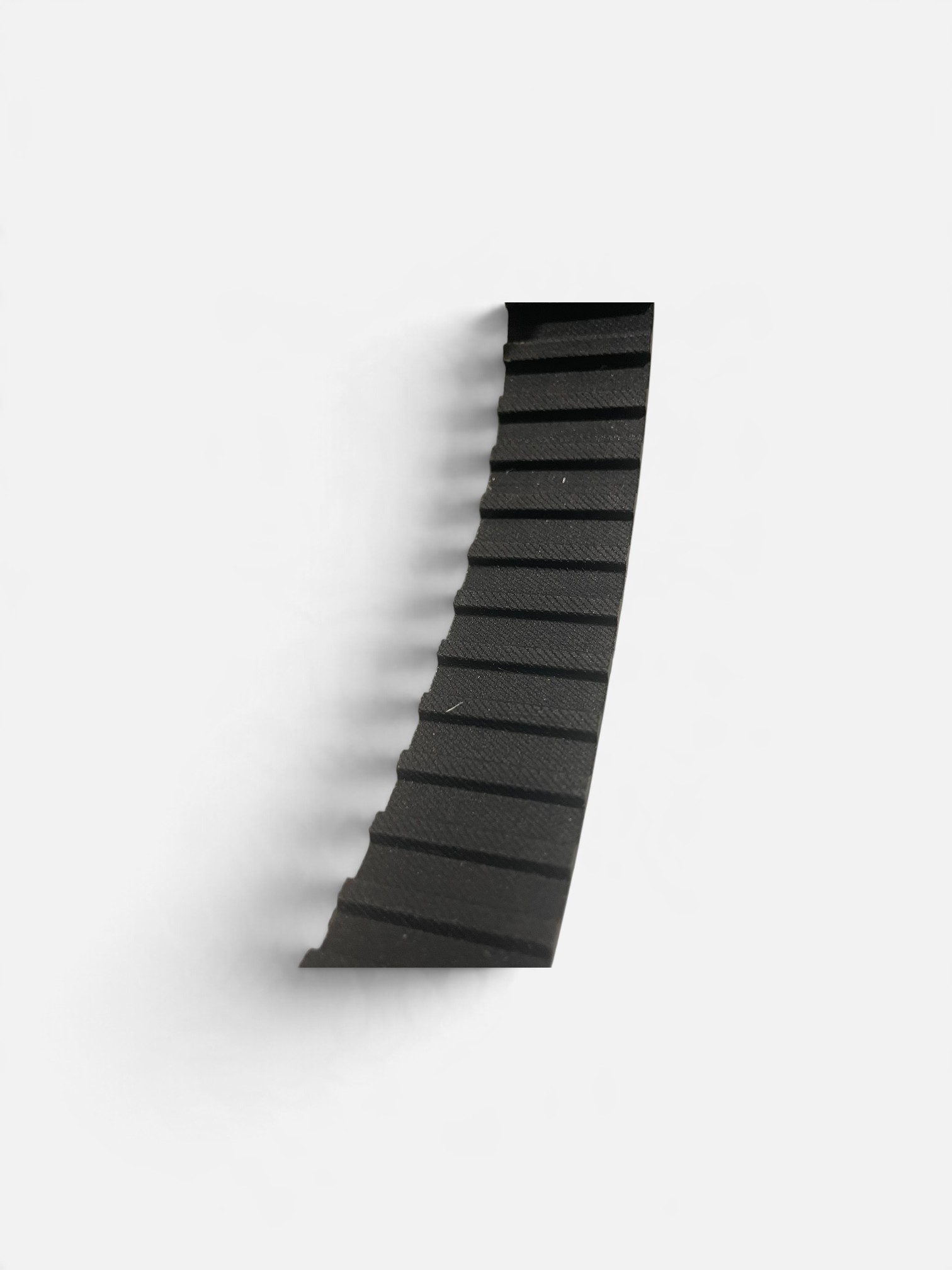

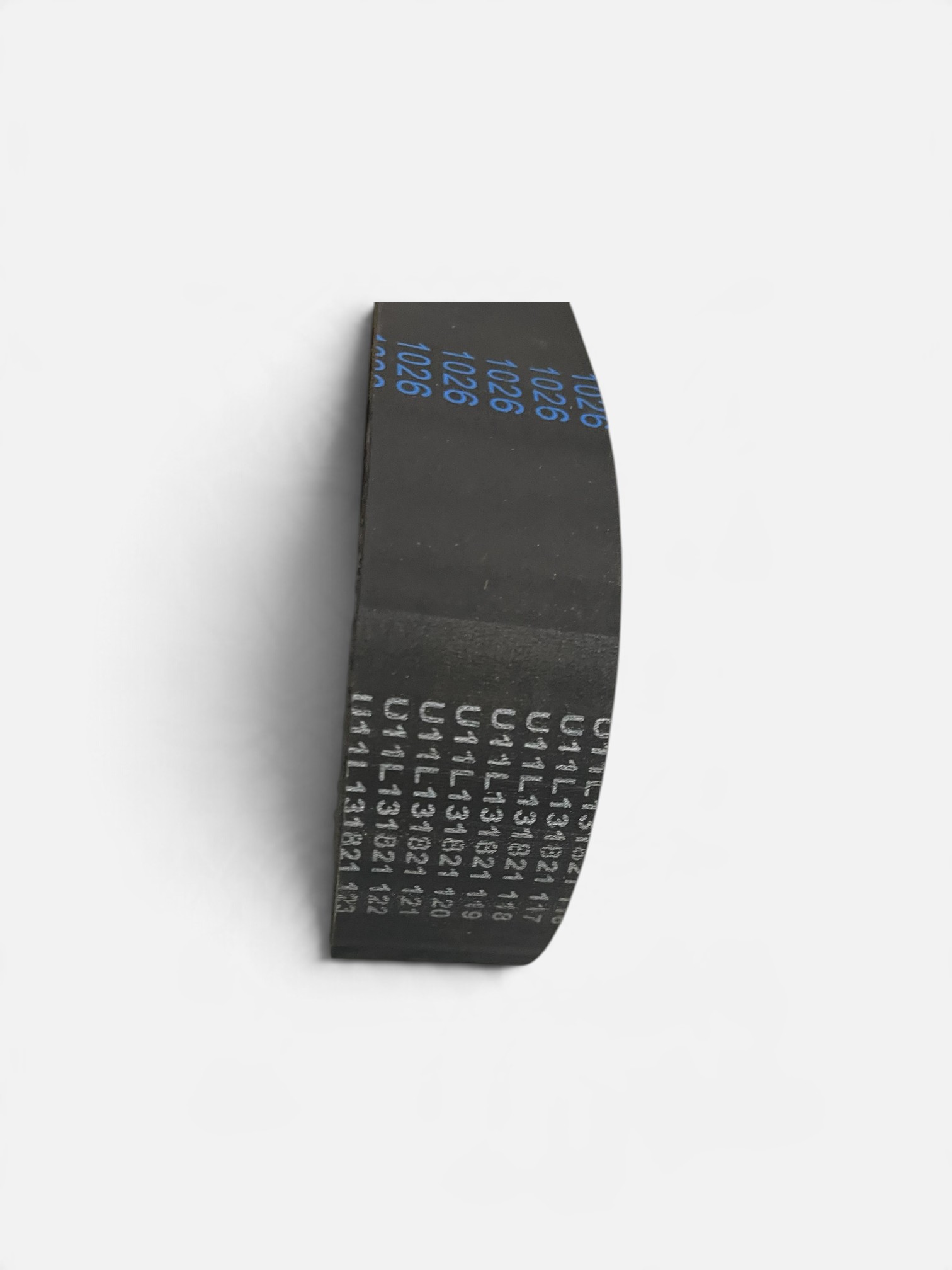

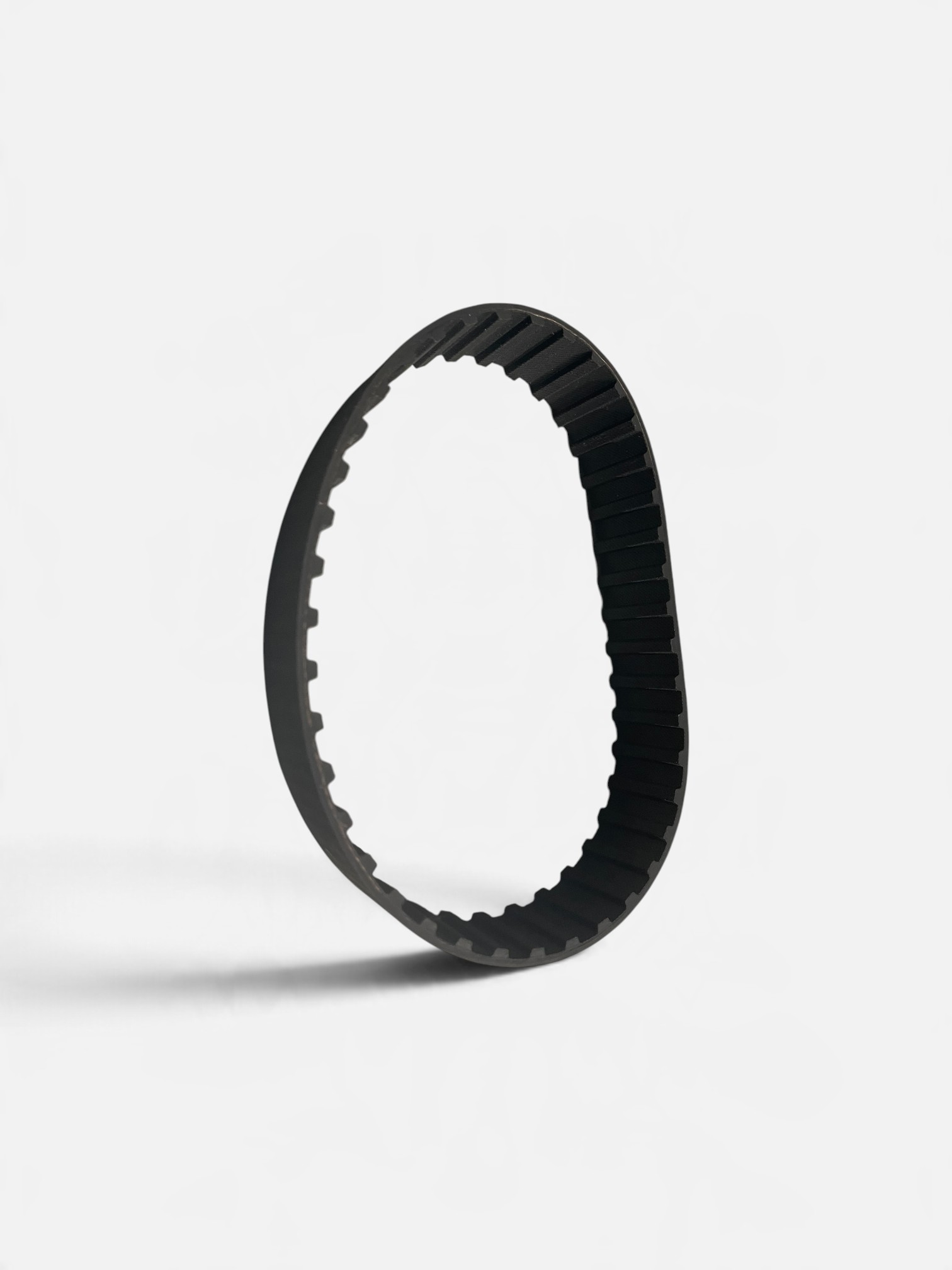

150L100 Timing Belt 15″ Pitch Length Neoprene Fiberglass Reinforced (DMS P/N BELT-150L100)

The 150L100 timing belt is a synchronous drive belt constructed from neoprene rubber with glass-fiber reinforcement. Designed for compatible power transmission systems, it provides positive, non-slip engagement with matching timing belt pulleys.

The belt has a 15.00-inch pitch length and uses the standard L profile, with a 3/8-inch nominal width commonly associated with the L100 designation. It is suitable for industrial machinery, automation equipment, and mechanical drive applications requiring a compatible L-profile timing belt.

Please verify the belt profile, width, tooth count, and pulley compatibility before ordering.

Specifications

• Part Number: 150L100
• Belt Type: Synchronous Timing Belt
• Profile: L
• Pitch Length: 15.00 inches
• Pitch: 3/8 inch
• Nominal Width: 3/8 inch
• Material: Neoprene rubber
• Reinforcement: Glass fiber
• Tooth Count: 40
• Application: Power transmission and industrial machinery

Dimensions

• Pitch Length: 15.00″ (381 mm)
• Belt Width: Approximately 3/8″ (9.5 mm)
• Tooth Pitch: 3/8″ (9.525 mm)
• Tooth Count: 40

Applications

• Industrial machinery
• CNC and automation equipment
• Mechanical drive systems
• Conveyors and positioning systems
• Synchronous power transmission

Features

• Neoprene construction
• Glass-fiber reinforcement
• Positive synchronous drive
• Standard L-profile tooth design
• 15-inch pitch length
• Designed for compatible L-profile timing pulleys

Package Includes

• 1 × 150L100 Timing Belt
