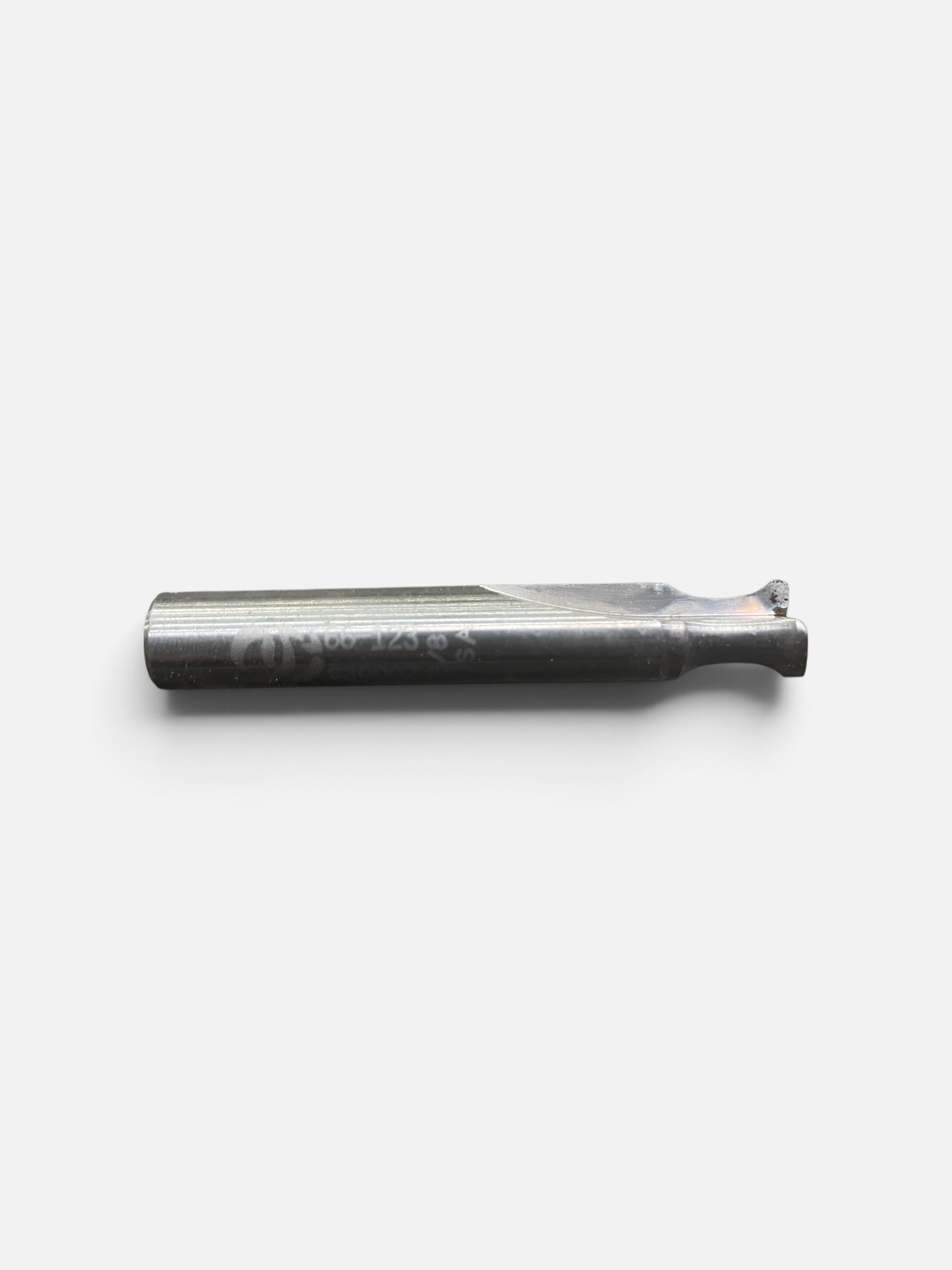

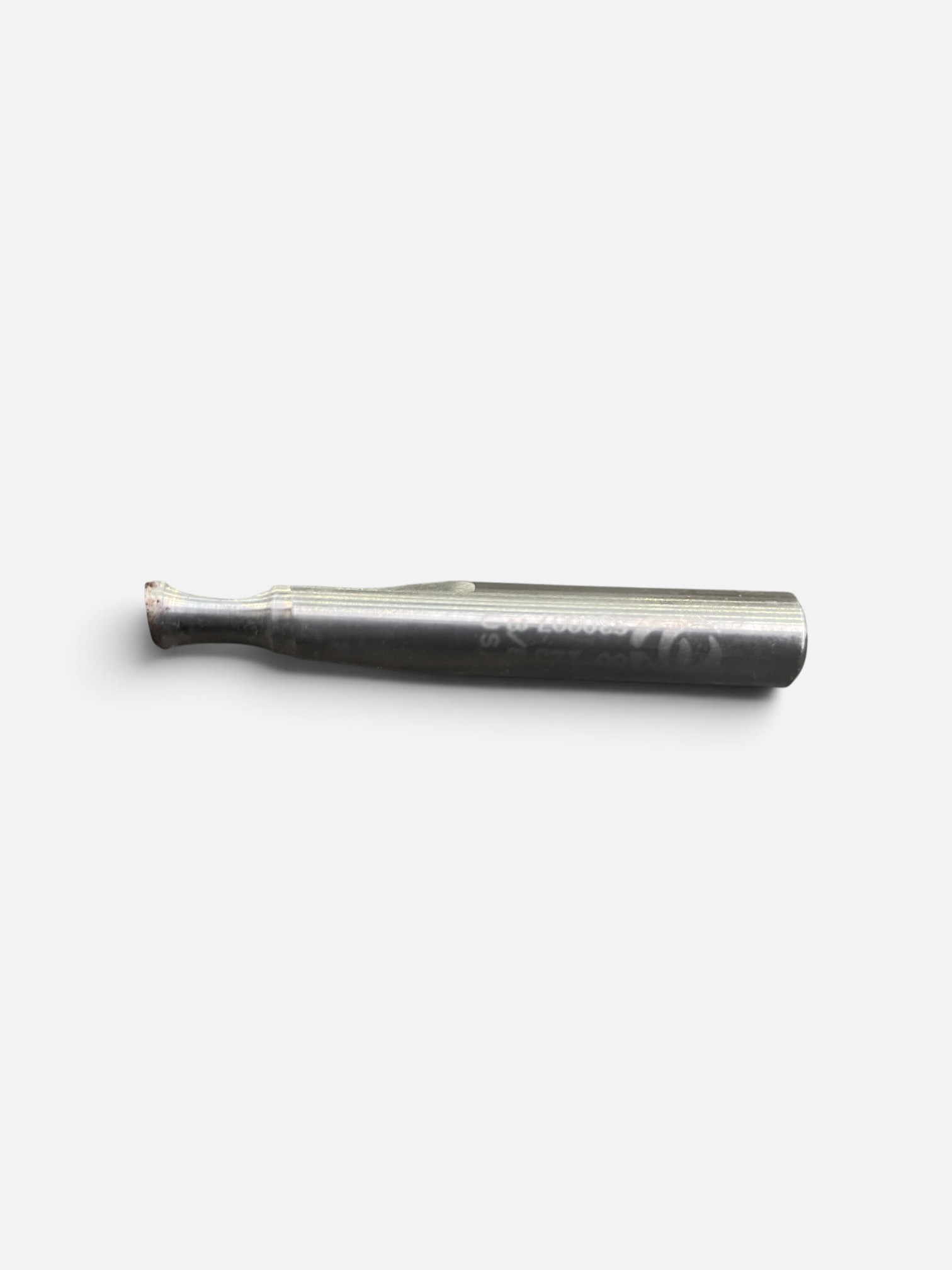

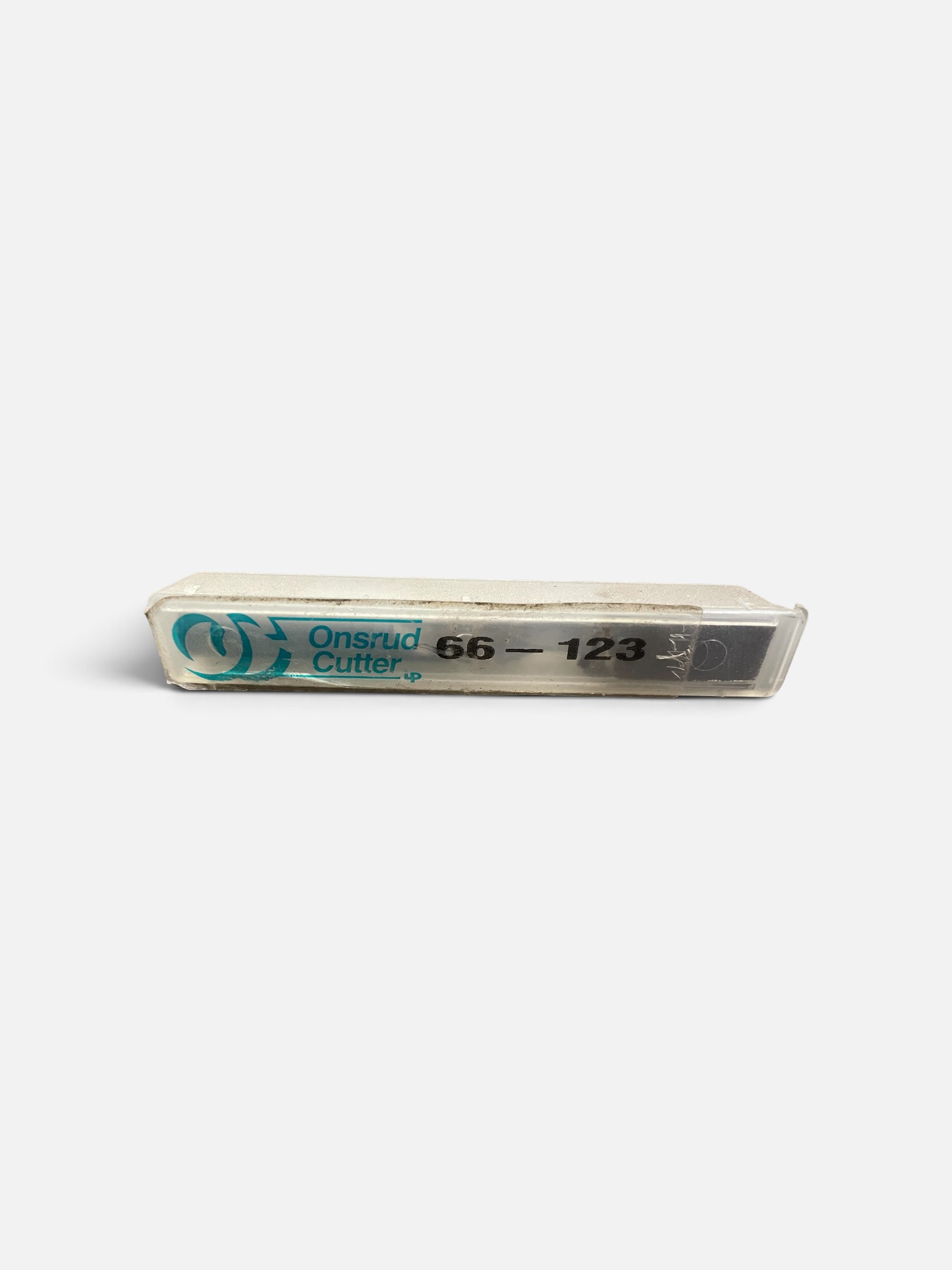

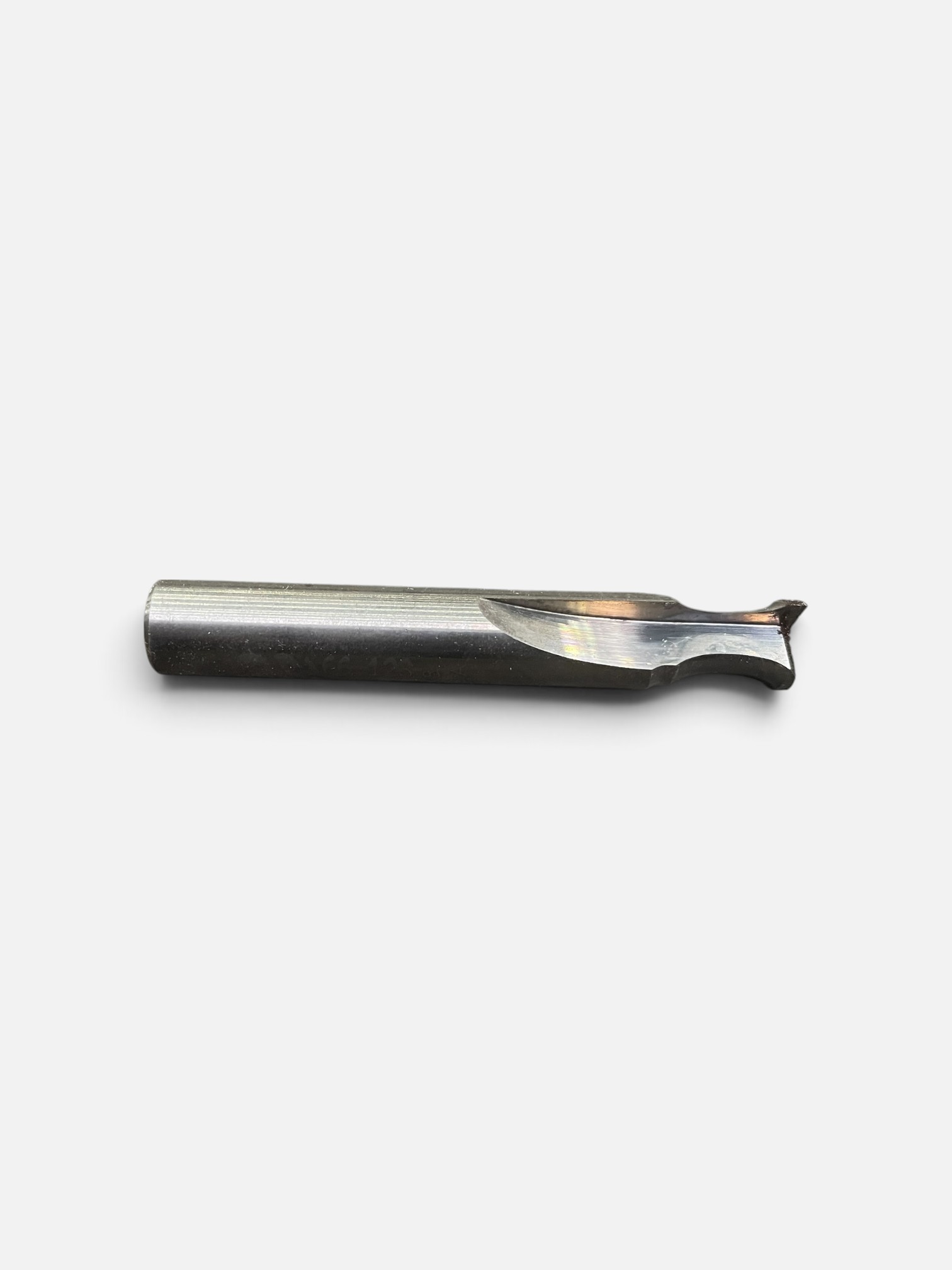

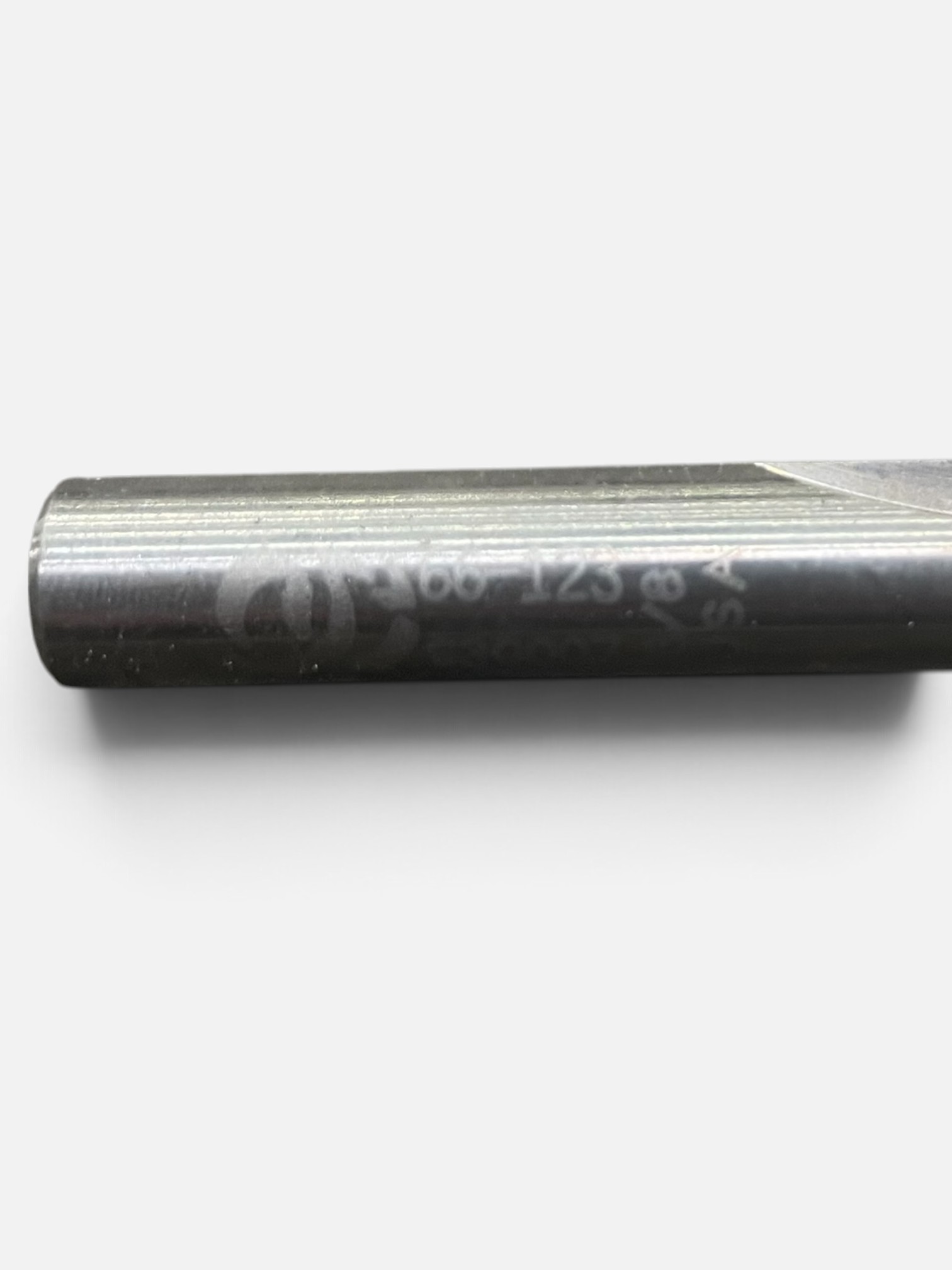

Onsrud Cutter 66-123 3/8″ Carbide 2-Flute V-Flute 3/8″ Radius Router Bit

• New Onsrud Cutter 66-123 solid carbide edge-rounding router bit. This precision 2-flute straight V-flute cutter is designed specifically for rounding and finishing the edges of sheets and parts.

  The 66-123 features a 3/8″ cutting diameter, 1/2″ length of cut, 3/8″ shank, and 2-1/2″ overall length, with a 3/8″ edge radius.

  Designed for CNC routing and finishing applications involving soft plastics, hard plastics, and solid-surface materials.

  Specifications

  • Manufacturer: Onsrud Cutter
  • Part Number: 66-123
  • Series: 66-000
  • Cutter Diameter: 3/8″
  • Length of Cut (LOC): 1/2″
  • Shank Diameter: 3/8″
  • Overall Length (OAL): 2-1/2″
  • Number of Flutes: 2
  • Flute Type: Straight V-Flute
  • Helix Angle: 0°
  • Radius: 3/8″
  • Opening: 0.4062″
  • Small Flute Length: 0.255″
  • Tip to Radius: 1/16″
  • Maximum Material Thickness: 3/8″
  • Material: Solid Carbide
  • Coating: Uncoated
  • Cutting Type: Center Cutting
  • Cutting Direction: Right Hand
  • Application: Edge Rounding / Finishing

  Applications

  The Onsrud 66-123 is designed for rounding the edges of sheets and parts.

  Ideal for:

  • Soft plastics
  • Hard plastics
  • Solid-surface materials
  • Cast acrylic
  • Nylon
• PVC
• Plastic sheets
• Plastic components
• CNC edge rounding
• Edge finishing and profiling

The 3/8″ radius produces a smooth rounded edge and is suitable for material up to approximately 3/8″ thick.

Package Includes

1 × Onsrud Cutter 66-123 Solid Carbide Edge Rounding Router Bit
