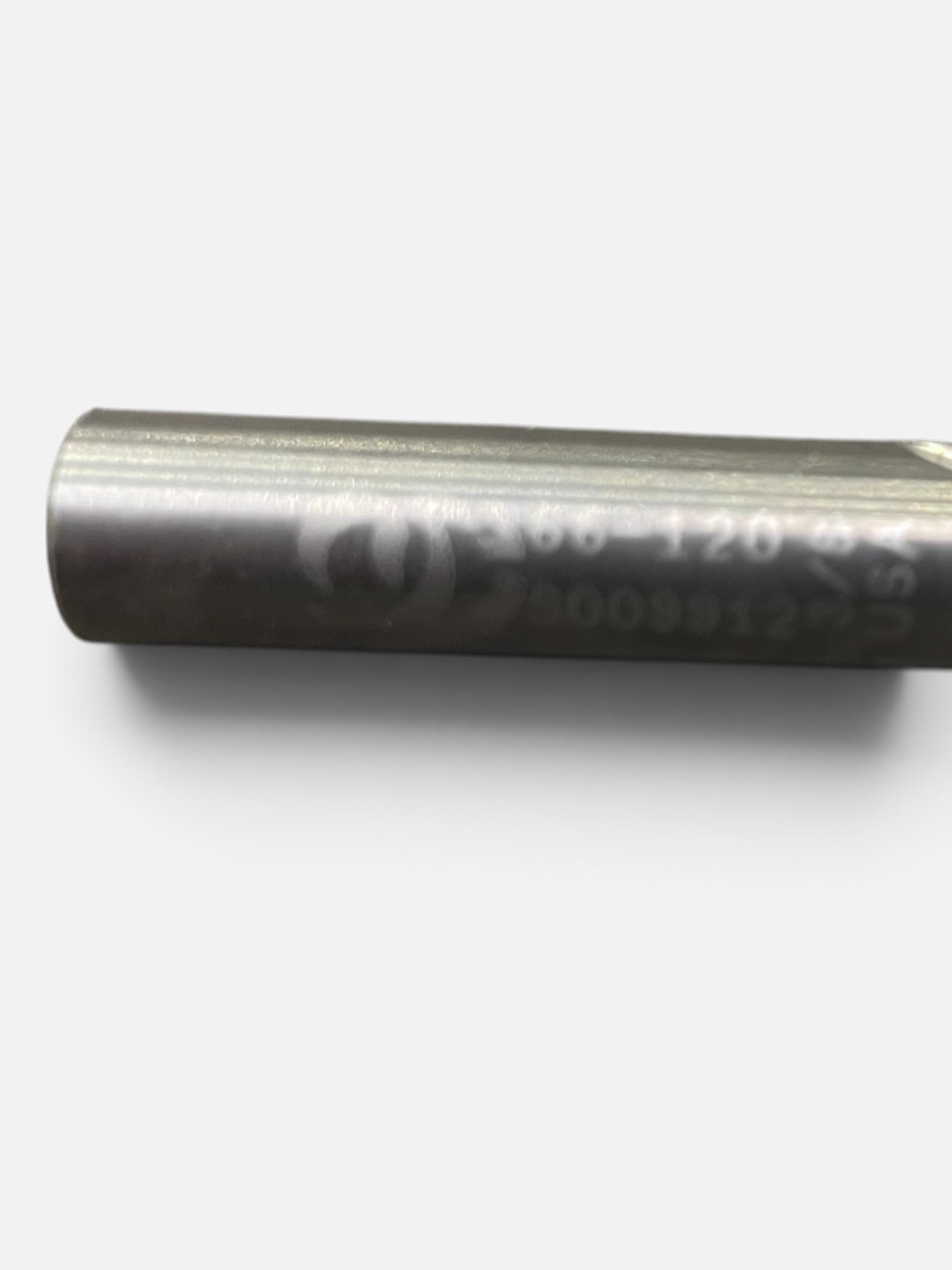

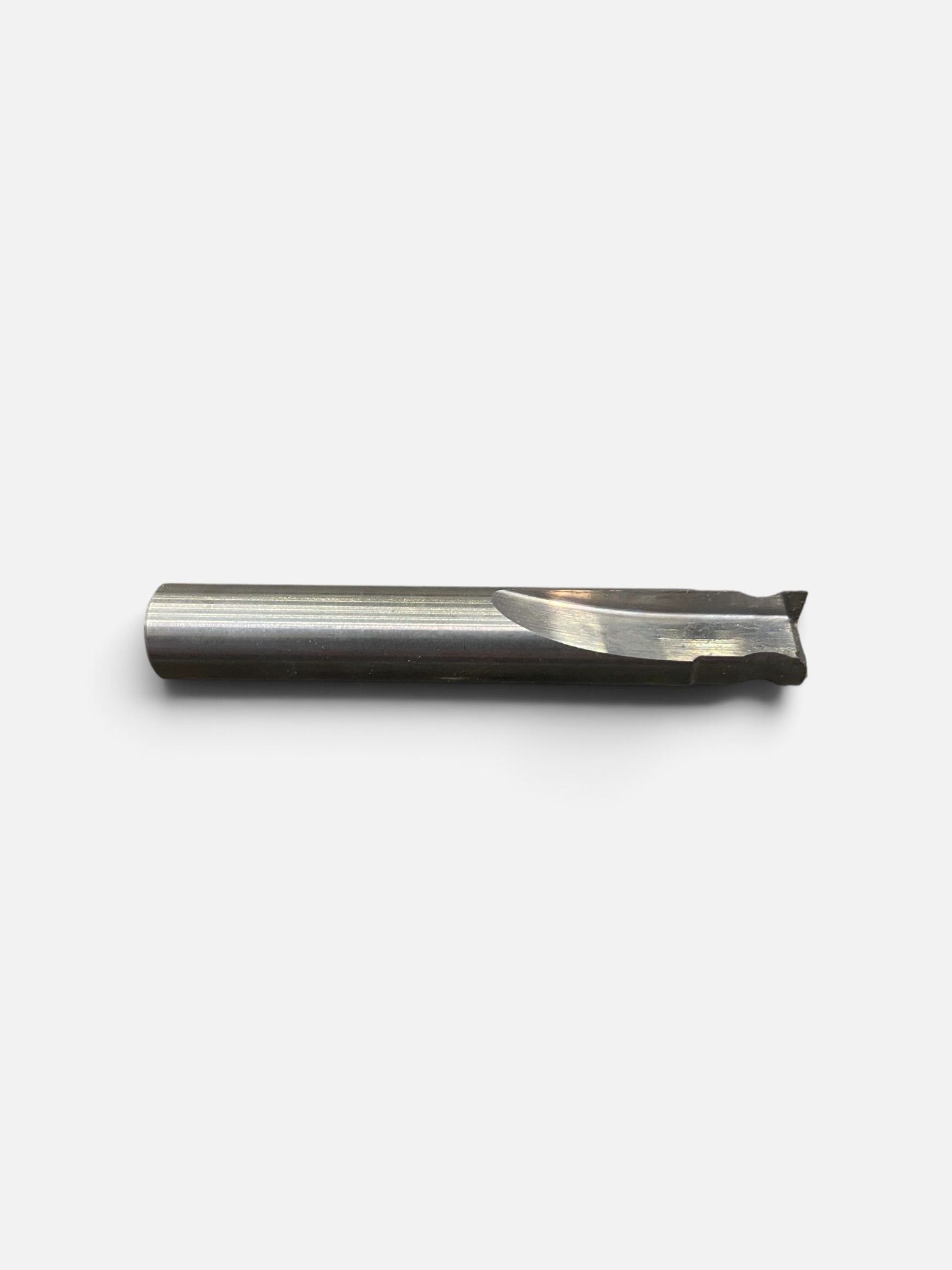

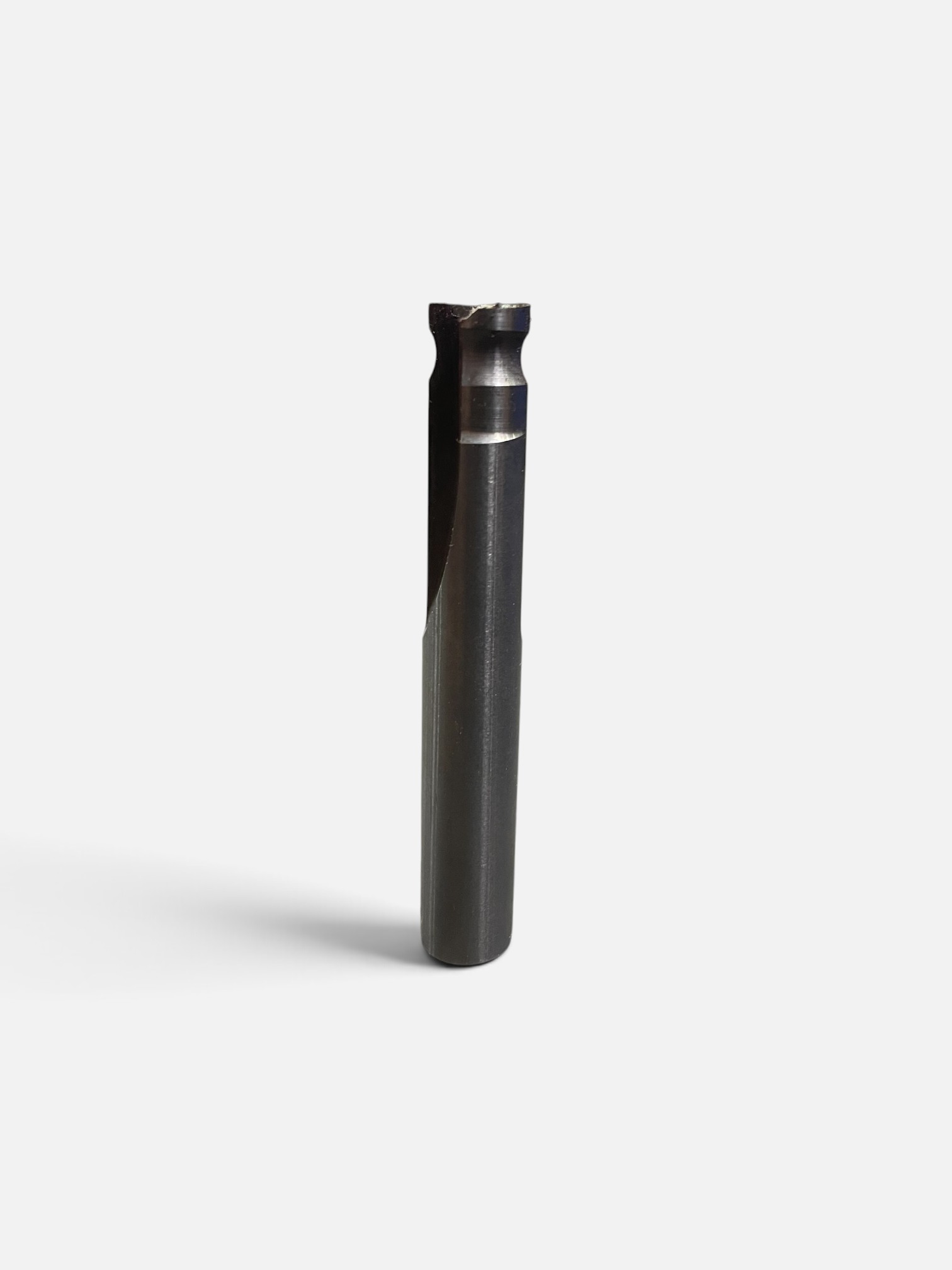

Onsrud Cutter 66-120 3/8″ Carbide 2-Flute V-Flute 1/8″ Radius Router Bit

New Onsrud Cutter 66-120 solid carbide edge-rounding router bit. This precision 2-flute straight V-flute cutter is designed for rounding and finishing the edges of plastic sheets and parts.

The 66-120 features a 3/8″ cutting diameter, 3/8″ length of cut, 3/8″ shank, and 2-1/2″ overall length, with a 1/8″ radius. The tool is designed for finishing applications involving both hard and soft plastics.

Specifications

• Manufacturer: Onsrud Cutter
• Part Number: 66-120
• Series: 66-000
• Cutter Diameter: 3/8″
• Length of Cut (LOC): 3/8″
• Shank Diameter: 3/8″
• Overall Length (OAL): 2-1/2″
• Number of Flutes: 2
• Flute Type: Straight V-Flute
• Helix Angle: 0°
• Radius: 1/8″
• Opening: 5/32″
• Small Flute Length: 0.320″
• Tip to Radius: 1/16″
• Maximum Material Thickness: 1/8″
• Material: Solid Carbide
• Coating: Uncoated
• Cutting Type: Center Cutting
• Cutting Direction: Right Hand
• Application: Finishing
• Primary Materials: Hard Plastic / Soft Plastic

Applications

The Onsrud 66-120 is designed for edge rounding and finishing of plastic sheets and parts.

Ideal applications include:

• Hard plastics
• Soft plastics
• Plastic sheets
• Plastic components
• CNC edge rounding
• Edge finishing
• Profiling
• Routing and finishing operations

The 1/8″ radius is designed to create a smooth, rounded edge on appropriately sized material.

Package Includes

1 × Onsrud Cutter 66-120 Solid Carbide Edge Rounding Router Bit
