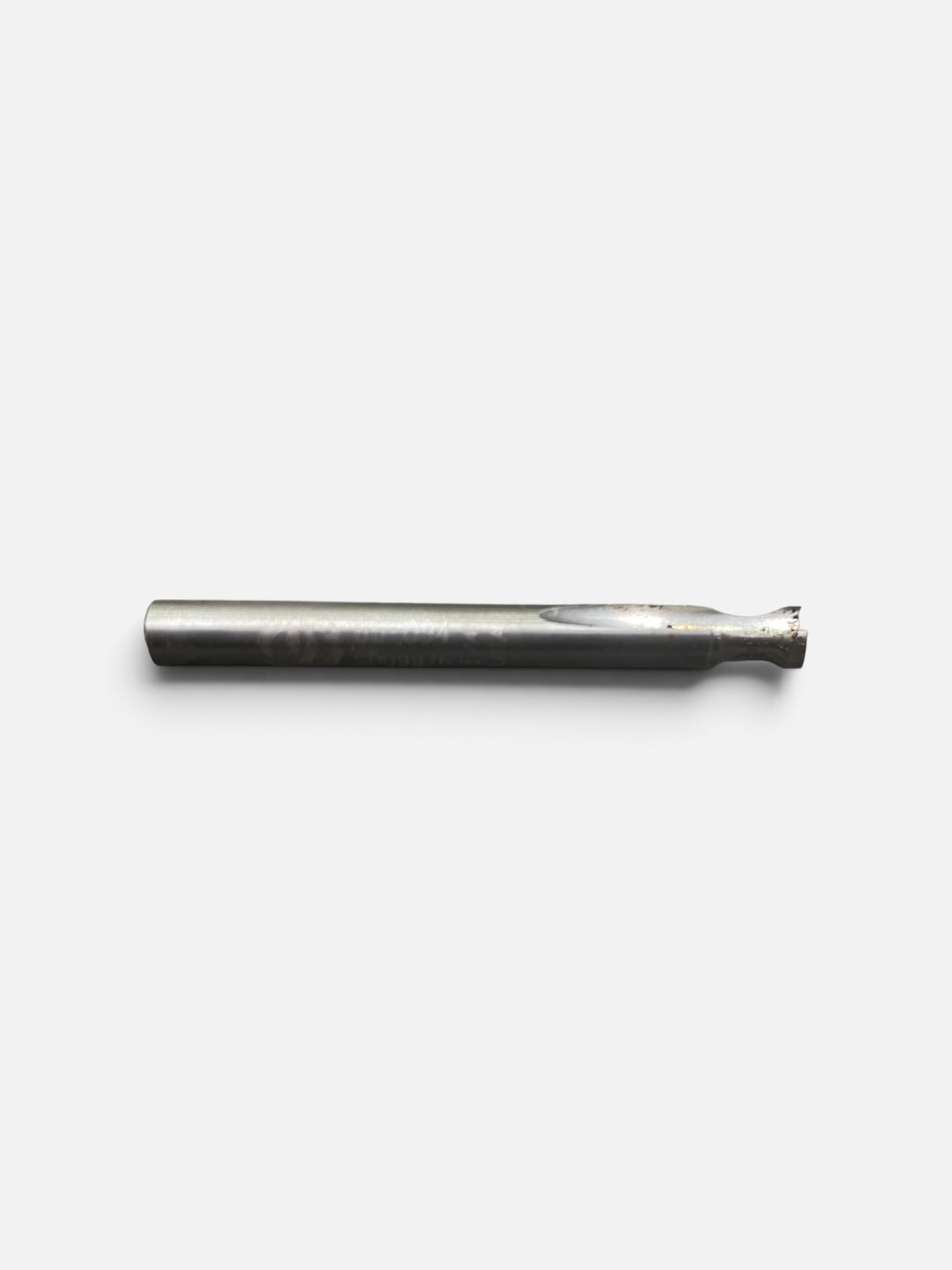

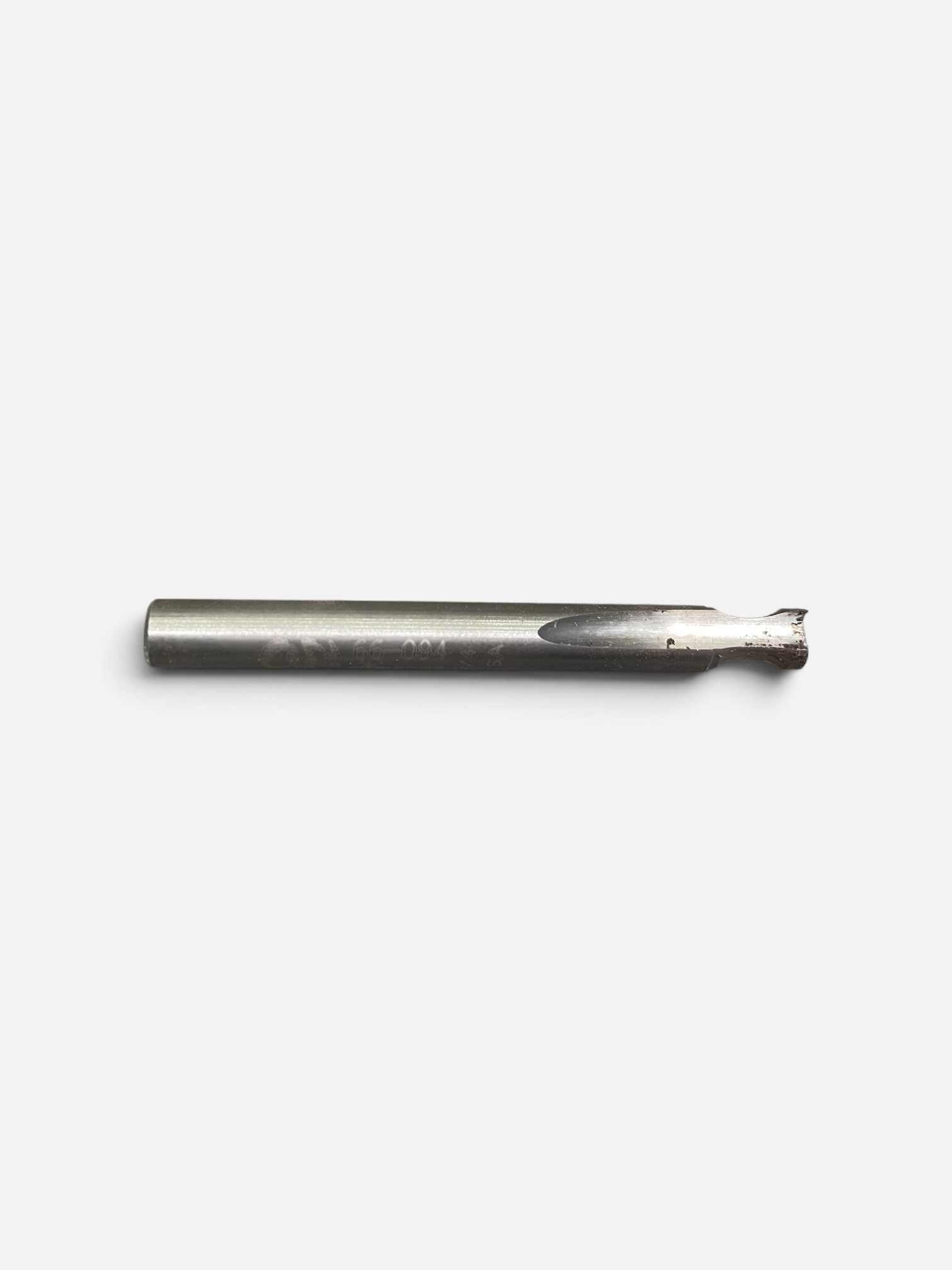

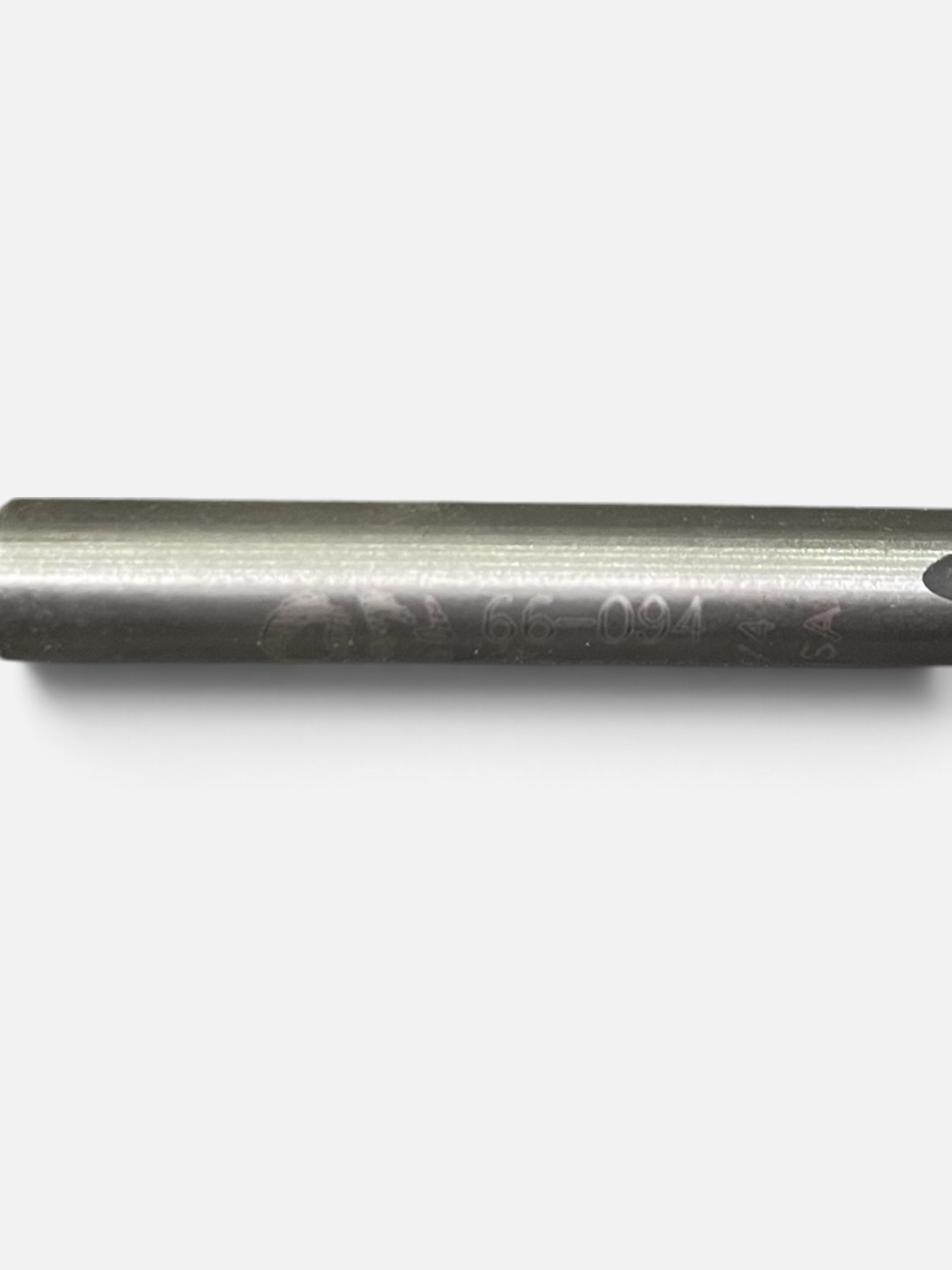

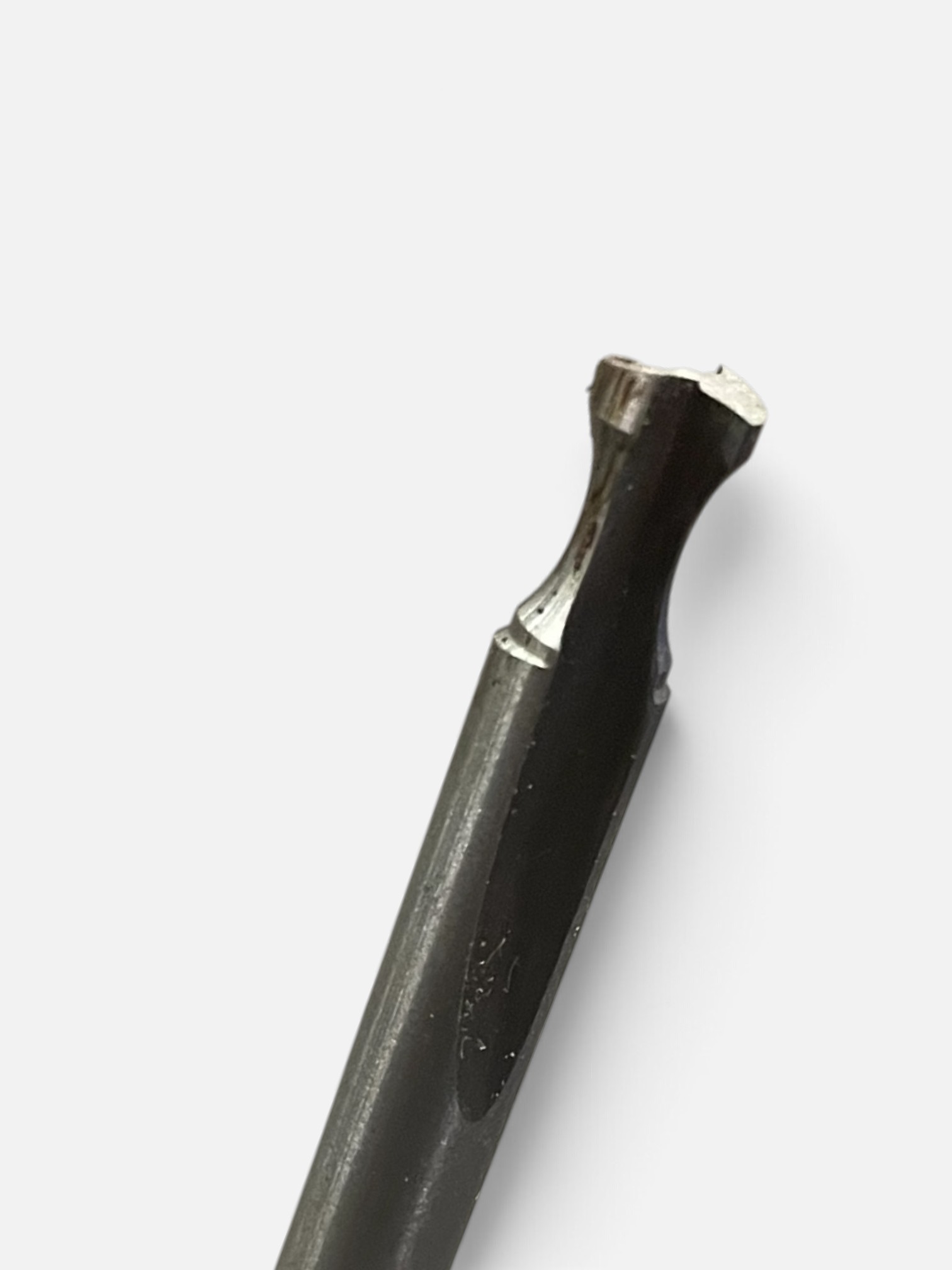

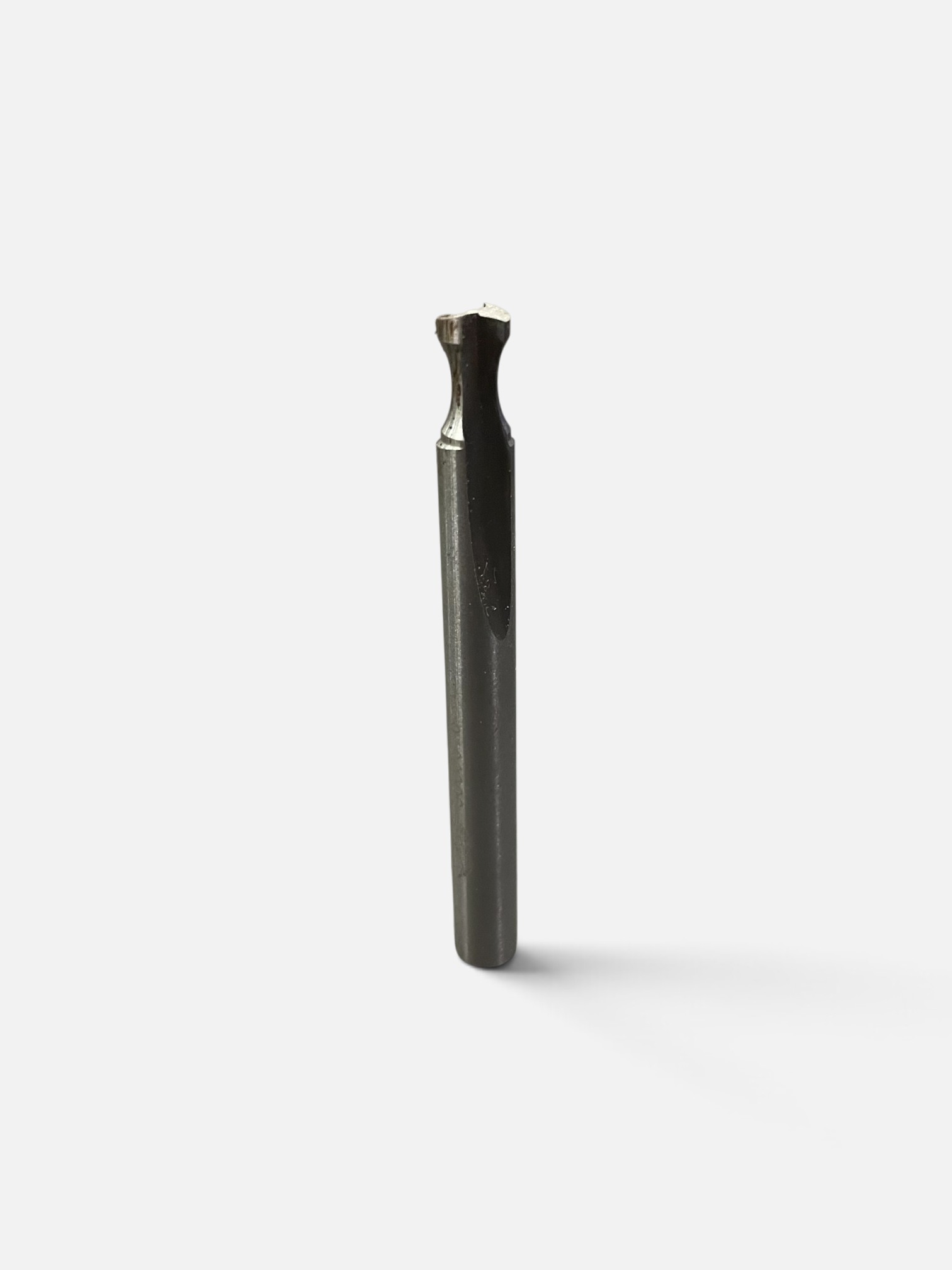

Onsrud Cutter 66-094 1/4″ Carbide 2-Flute Straight O-Flute 1/4″ Radius Bit

New Onsrud Cutter 66-094 solid carbide edge-rounding router bit. This precision 2-flute straight O-flute cutter is designed specifically for rounding the edges of sheets and parts.

The 66-094 features a 1/4″ cutting diameter, 3/8″ length of cut, 1/4″ shank, and 2-1/2″ overall length, with a 1/4″ radius. It is designed for CNC edge-rounding applications involving soft plastics, hard plastics, and solid-surface materials.

Specifications

• Manufacturer: Onsrud Cutter
• Part Number: 66-094
• Series: 66-000
• Cutter Diameter: 1/4″
• Length of Cut (LOC): 3/8″
• Shank Diameter: 1/4″
• Overall Length (OAL): 2-1/2″
• Number of Flutes: 2
• Flute Type: Straight O-Flute
• Radius: 1/4″
• Opening: 9/32″
• Small Flute Length: 0.163″
• Tip to Radius: 1/16″
• Maximum Material Thickness: 1/4″
• Material: Solid Carbide
• Application: Soft Plastic, Hard Plastic, Solid Surface

Applications

The Onsrud 66-094 is designed for CNC edge rounding of plastic sheets and parts. The 1/4″ radius is suitable for rounding material up to approximately 1/4″ thick.

Ideal for:

• Soft plastics
• Hard plastics
• Solid-surface materials
• Plastic sheets
• Plastic components
• CNC edge rounding
• Edge finishing
• Profiling
• Routing

Package Includes

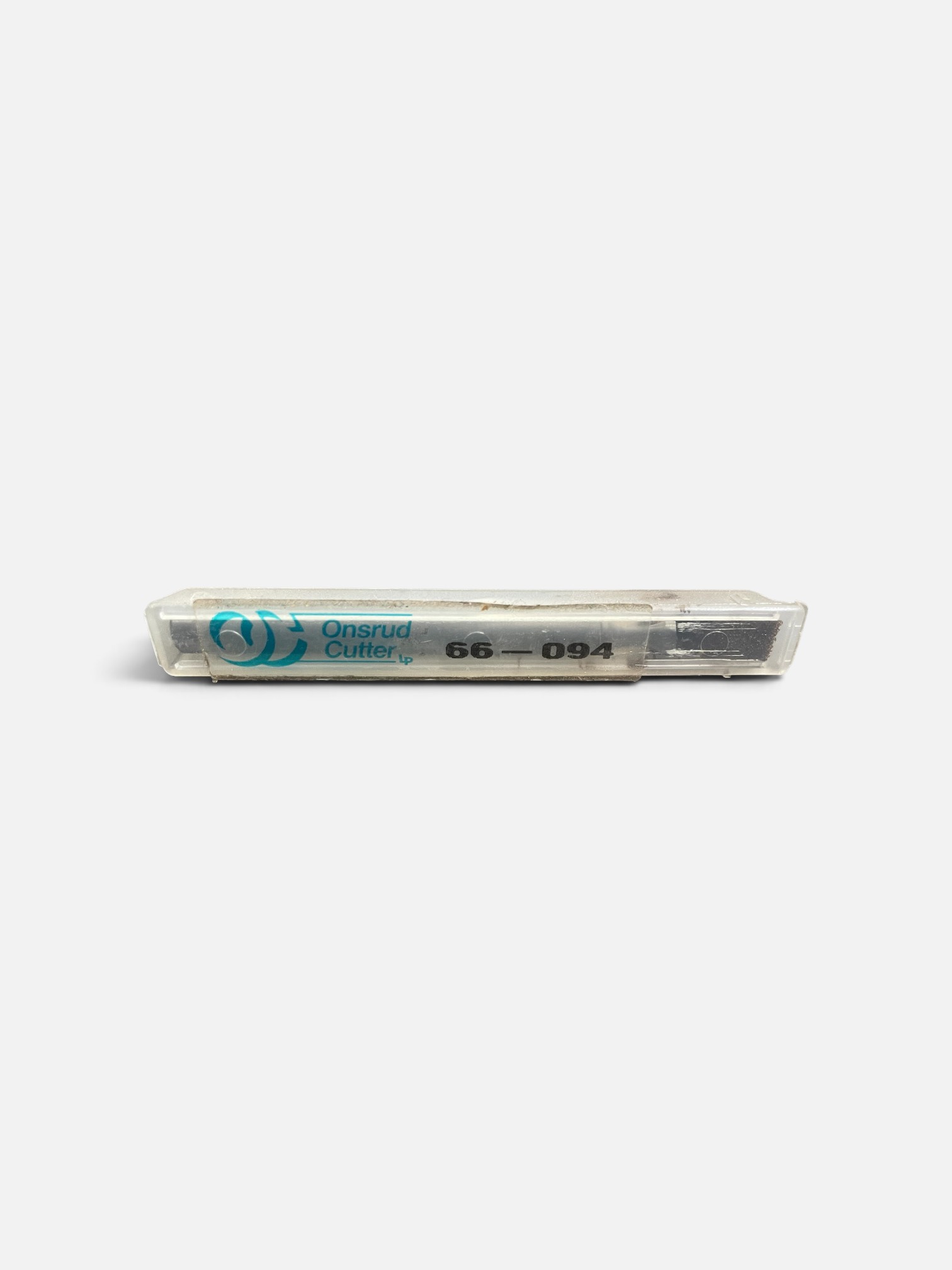

1 × Onsrud Cutter 66-094 Solid Carbide Edge Rounding Router Bit
