Onsrud Cutter 66-093 1/4″ Carbide 2-Flute O-Flute 3/16″ Radius Edge Rounding Bit (DMS P/N CUT-OC-66-093)

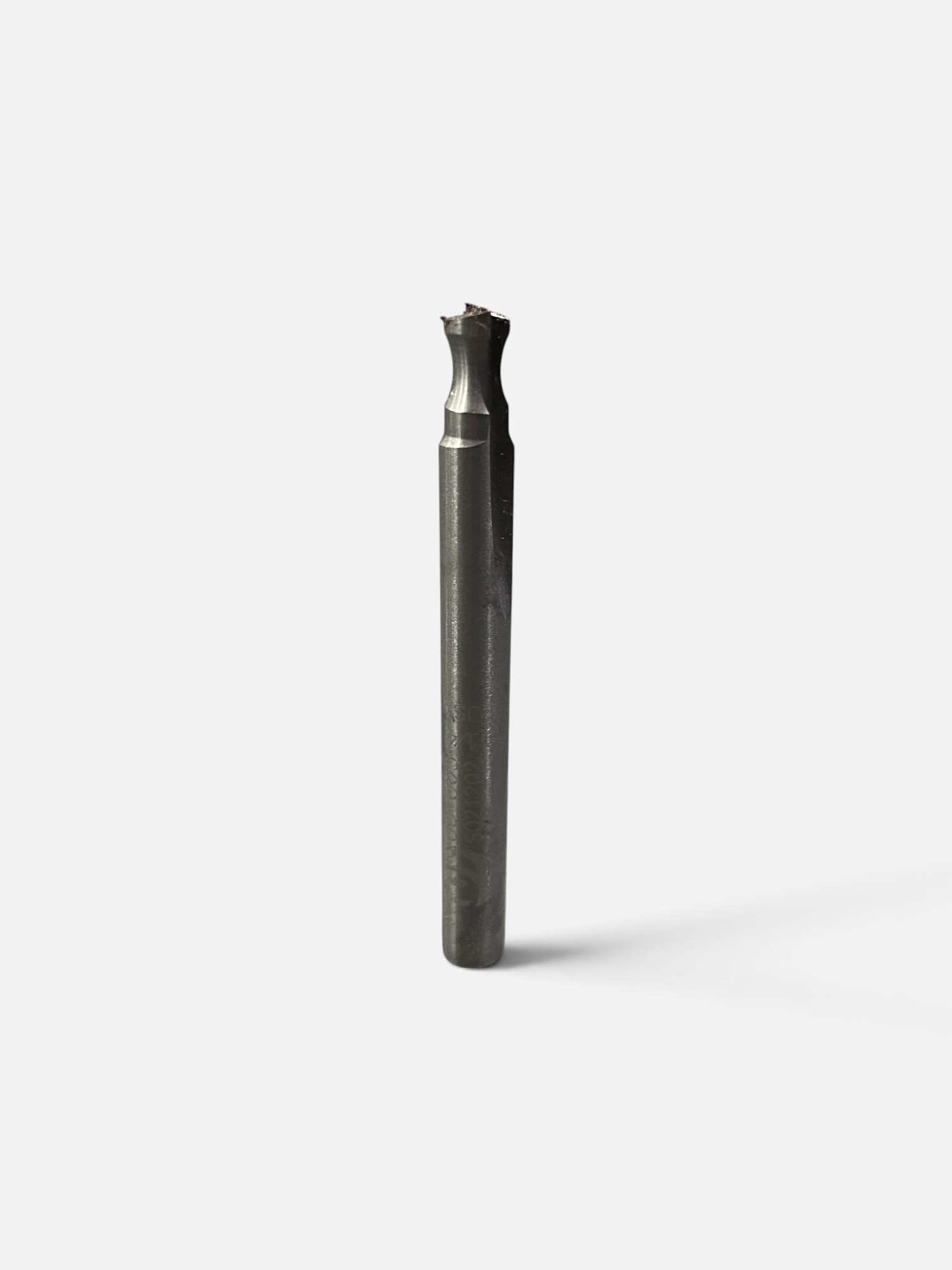

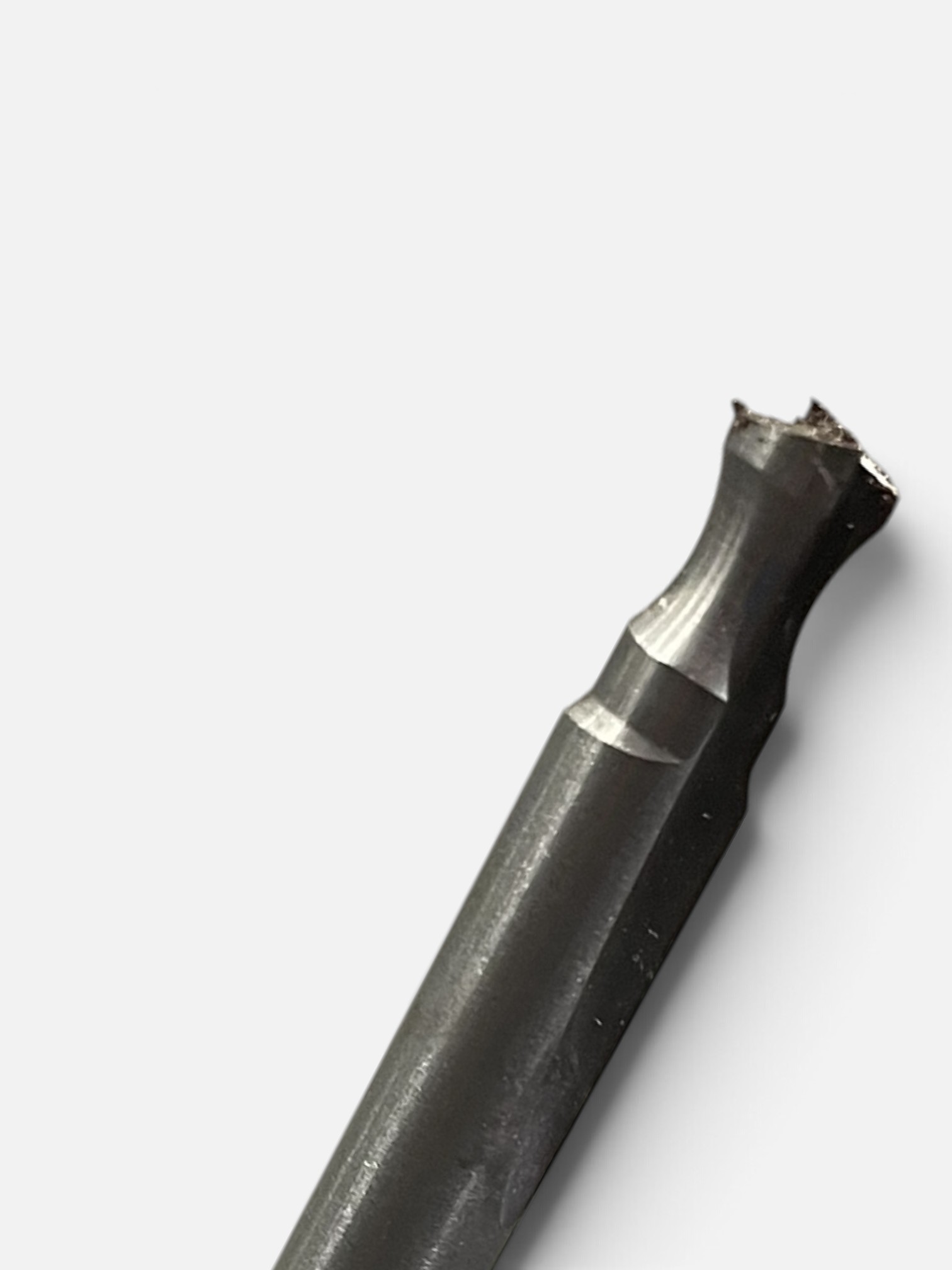

New Onsrud Cutter 66-093 solid carbide edge-rounding router bit. This precision 2-flute straight O-flute cutter is designed specifically for rounding the edges of sheets and parts.

The 66-093 features a 1/4″ cutting diameter, 3/8″ length of cut, 1/4″ shank, and 2-1/2″ overall length, with a 3/16″ radius. It is designed for CNC edge-rounding applications involving soft plastics, hard plastics, and solid-surface materials.

Specifications

• Manufacturer: Onsrud Cutter
• Part Number: 66-093
• Series: 66-000
• Cutter Diameter: 1/4″
• Length of Cut (LOC): 3/8″
• Shank Diameter: 1/4″
• Overall Length (OAL): 2-1/2″
• Number of Flutes: 2
• Flute Type: Straight O-Flute
• Radius: 3/16″ (0.188″)
• Opening: 7/32″
• Small Flute Length: 0.180″
• Tip to Radius: 1/16″
• Maximum Material Thickness: 3/16″
• Material: Solid Carbide
• Application: Soft Plastic, Hard Plastic, Solid Surface

Applications

The Onsrud 66-093 is designed for CNC edge rounding of plastic sheets and parts.

Ideal for:

• Soft plastics
• Hard plastics
• Solid-surface materials
• Plastic sheets
• Plastic components
• CNC edge rounding
• Edge finishing
• Profiling
• Routing

The 3/16″ radius is designed for rounding material up to approximately 3/16″ thick.

Package Includes

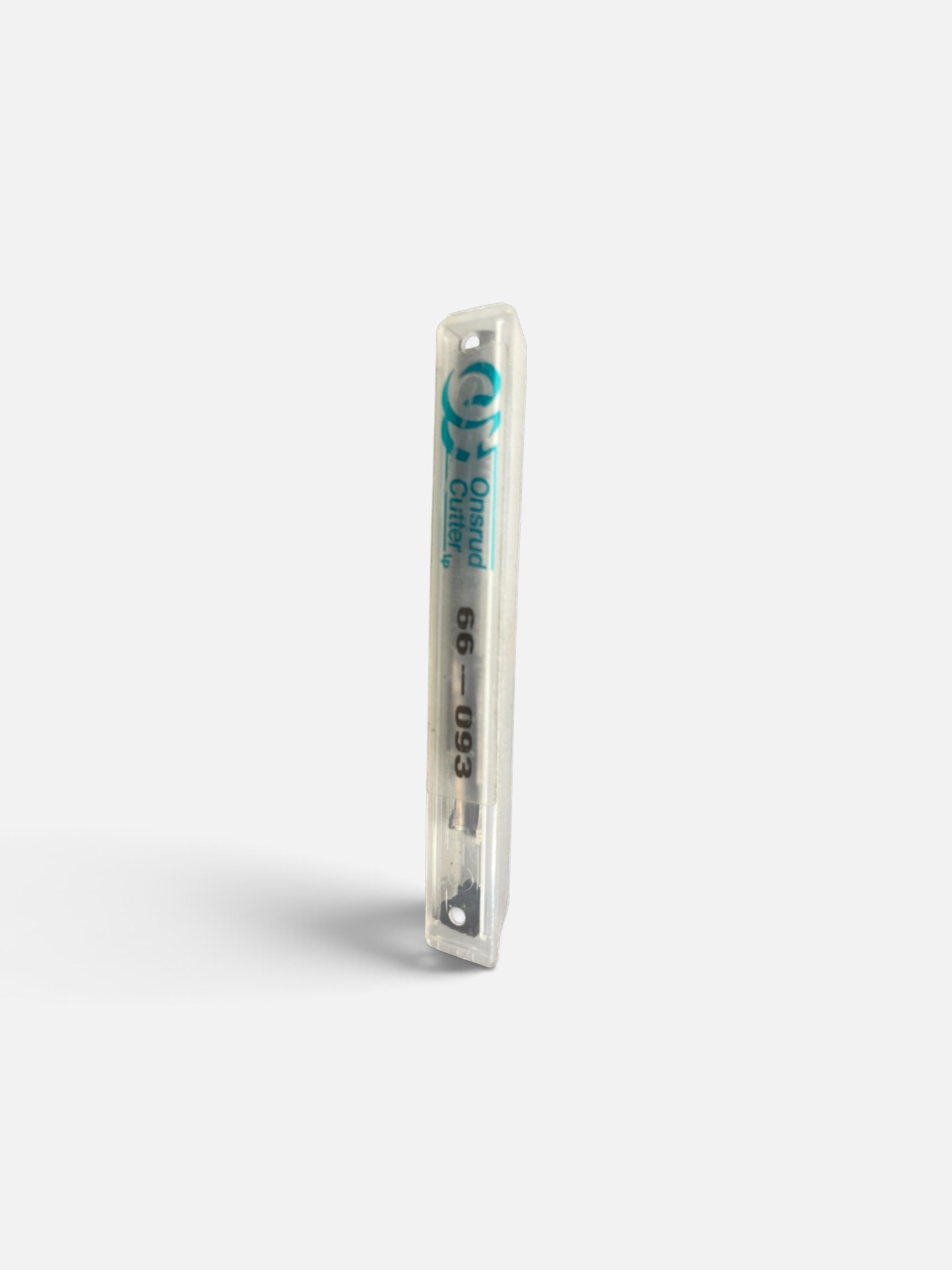

1 × Onsrud Cutter 66-093 Solid Carbide Edge Rounding Router Bit
