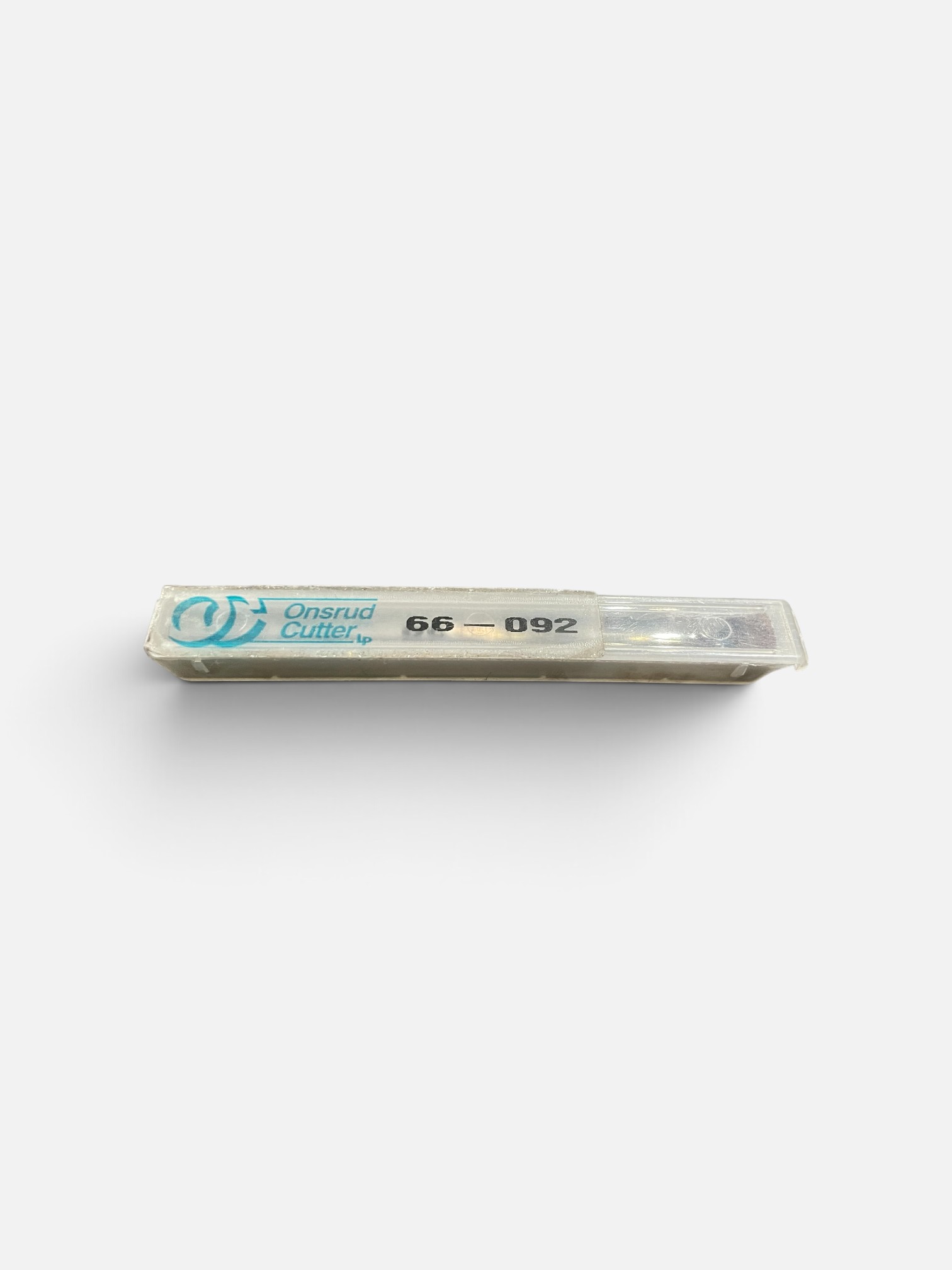

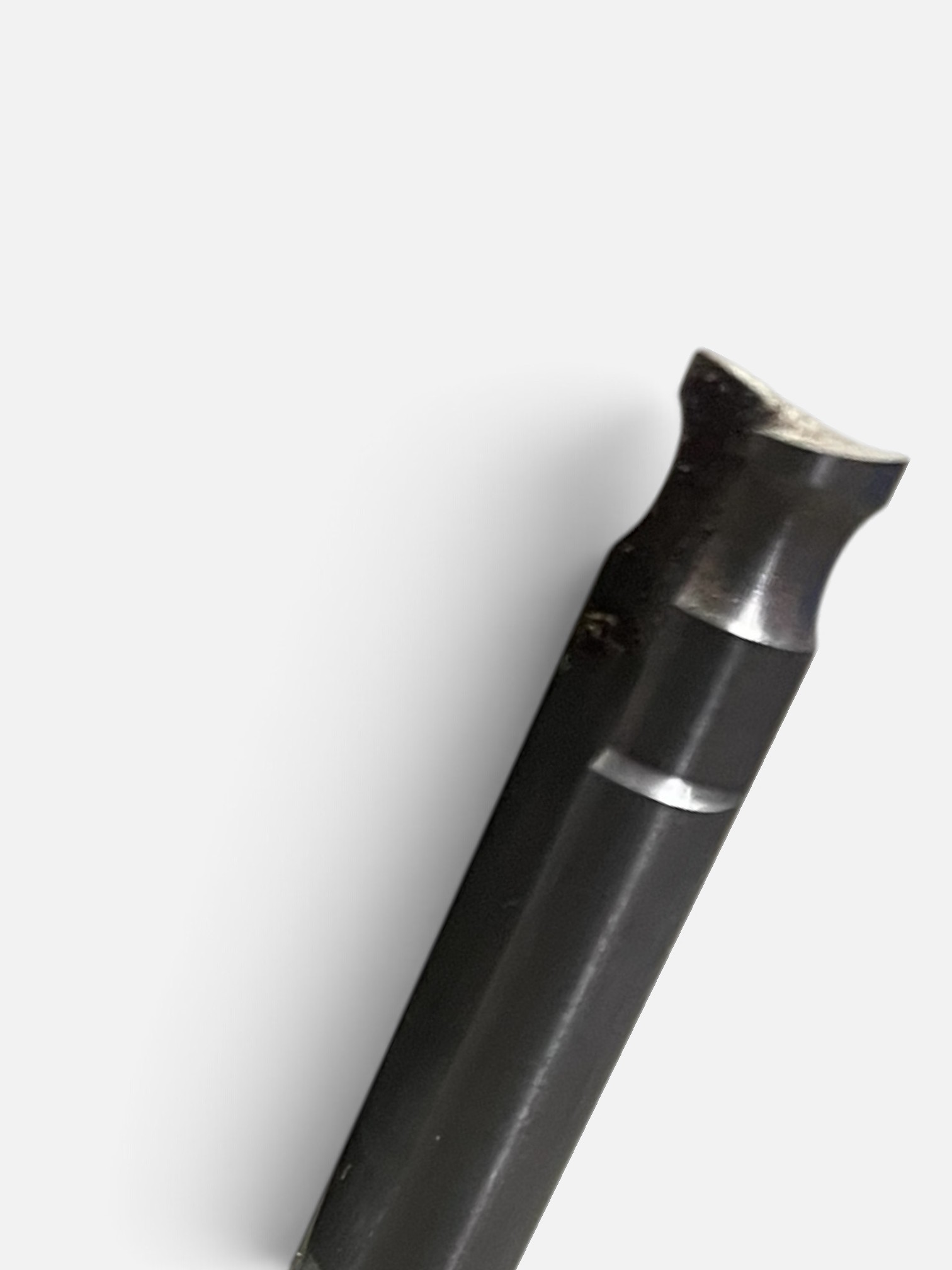

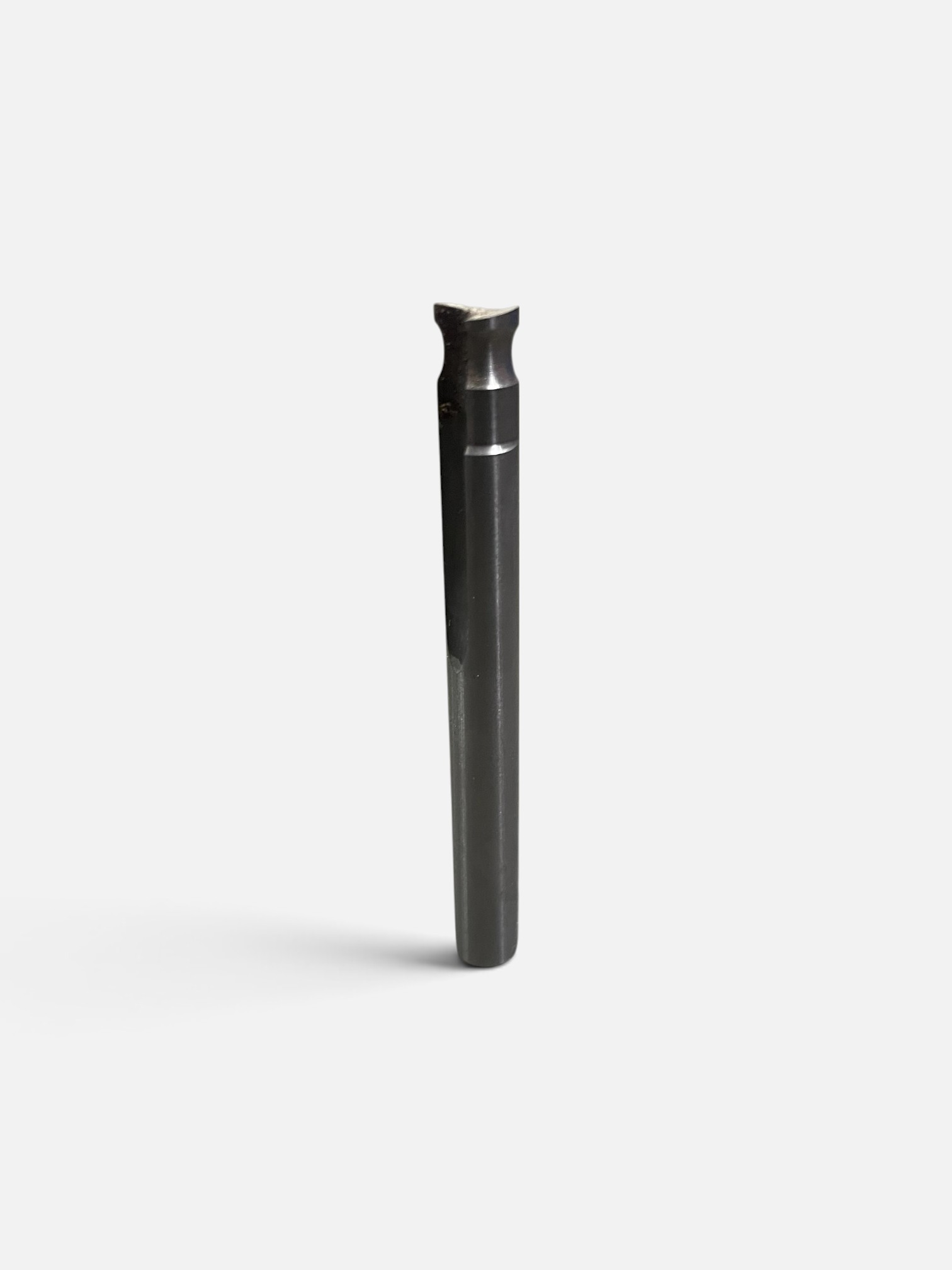

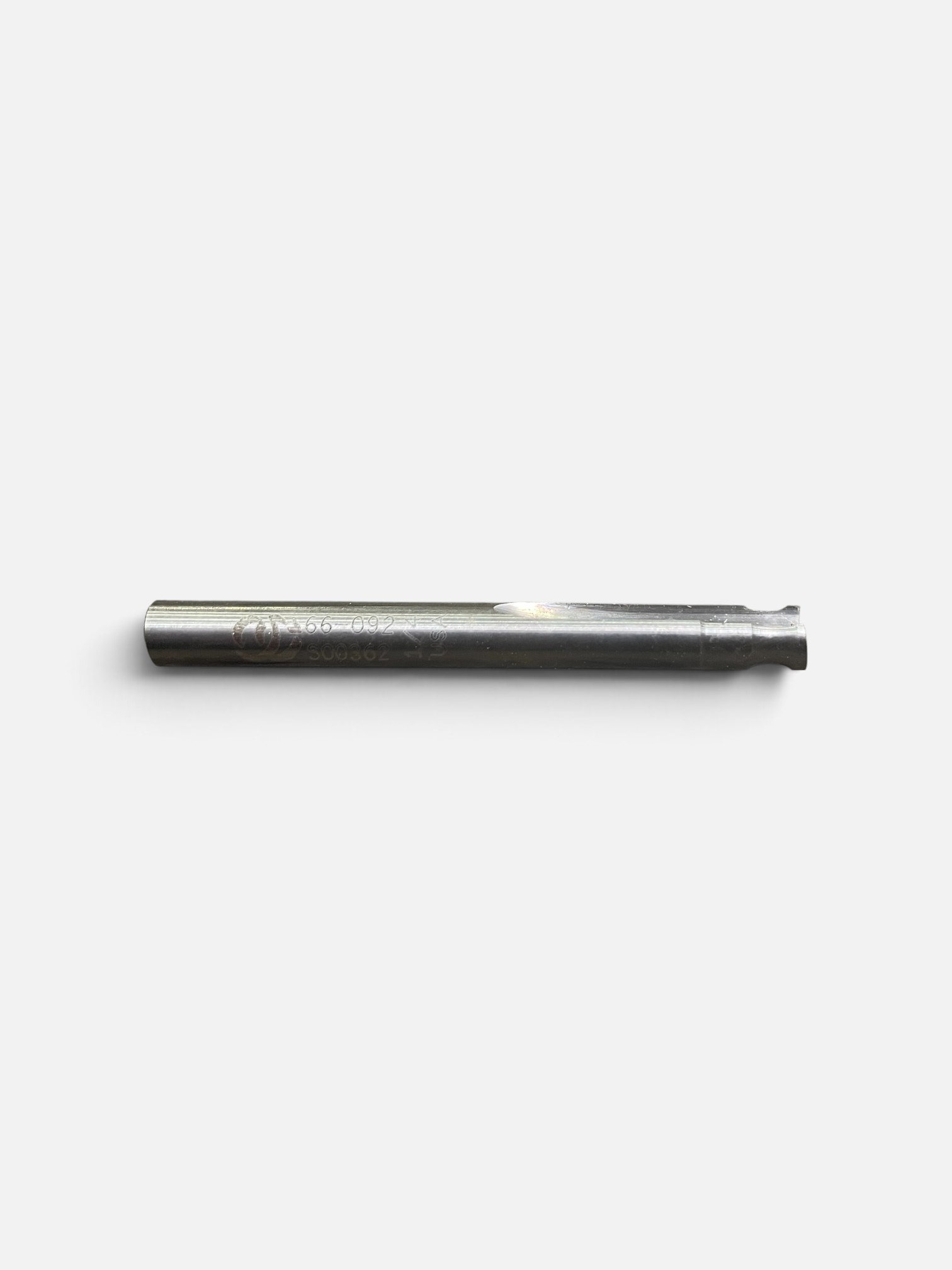

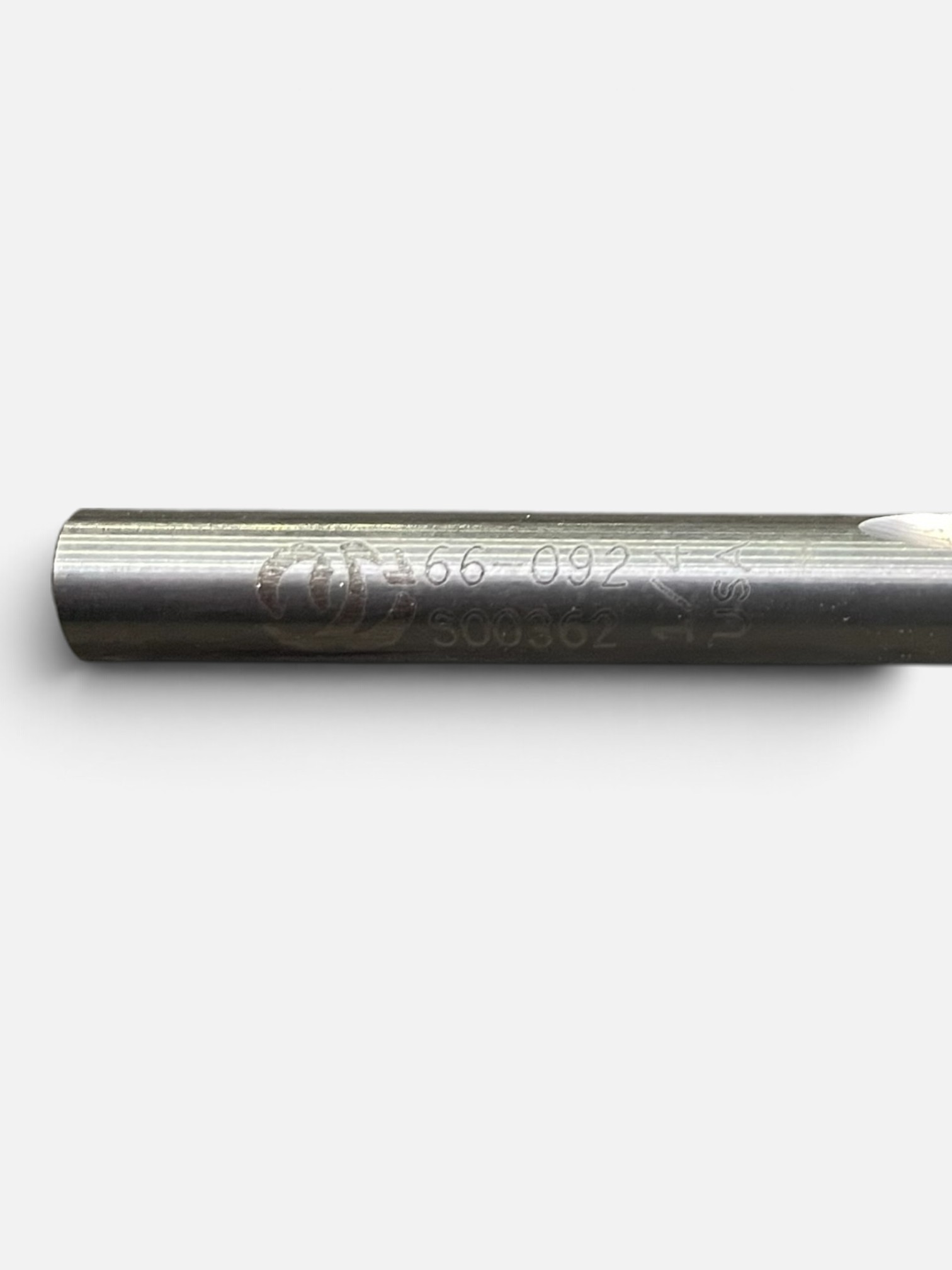

Onsrud Cutter 66-092 1/4″ Carbide 2-Flute O-Flute 1/8″ Radius Edge Rounding Bit (DMS P/N CUT-OC-66-092)

New Onsrud Cutter 66-092 solid carbide edge-rounding router bit. This precision 2-flute straight O-flute cutter is designed for rounding the edges of sheets and parts.

The 66-092 features a 1/4″ cutting diameter, 3/8″ cutting length, 1/4″ shank, and 2-1/2″ overall length with a 1/8″ radius. It is designed for CNC edge-rounding applications involving soft plastics, hard plastics, and solid-surface materials.

Specifications

• Manufacturer: Onsrud Cutter
• Part Number: 66-092
• Series: 66-000
• Cutter Diameter: 1/4″
• Length of Cut (LOC): 3/8″
• Shank Diameter: 1/4″
• Overall Length (OAL): 2-1/2″
• Number of Flutes: 2
• Flute Type: Straight O-Flute
• Radius: 1/8″
• Opening: 5/32″
• Small Flute Length: 0.195″
• Tip to Radius: 1/16″
• Maximum Material Thickness: 1/8″
• Material: Solid Carbide
• Application: Soft Plastic, Hard Plastic, Solid Surface

Applications

The Onsrud 66-092 is specifically designed for edge rounding of plastic sheets and parts.

Ideal for:

• Soft plastics
• Hard plastics
• Solid-surface materials
• Plastic sheets
• Plastic components
• CNC edge rounding
• Edge finishing
• Profiling
• Routing

The 1/8″ radius is designed for rounding material up to approximately 1/8″ thick.

Package Includes

1 × Onsrud Cutter 66-092 Solid Carbide Edge Rounding Router Bit
