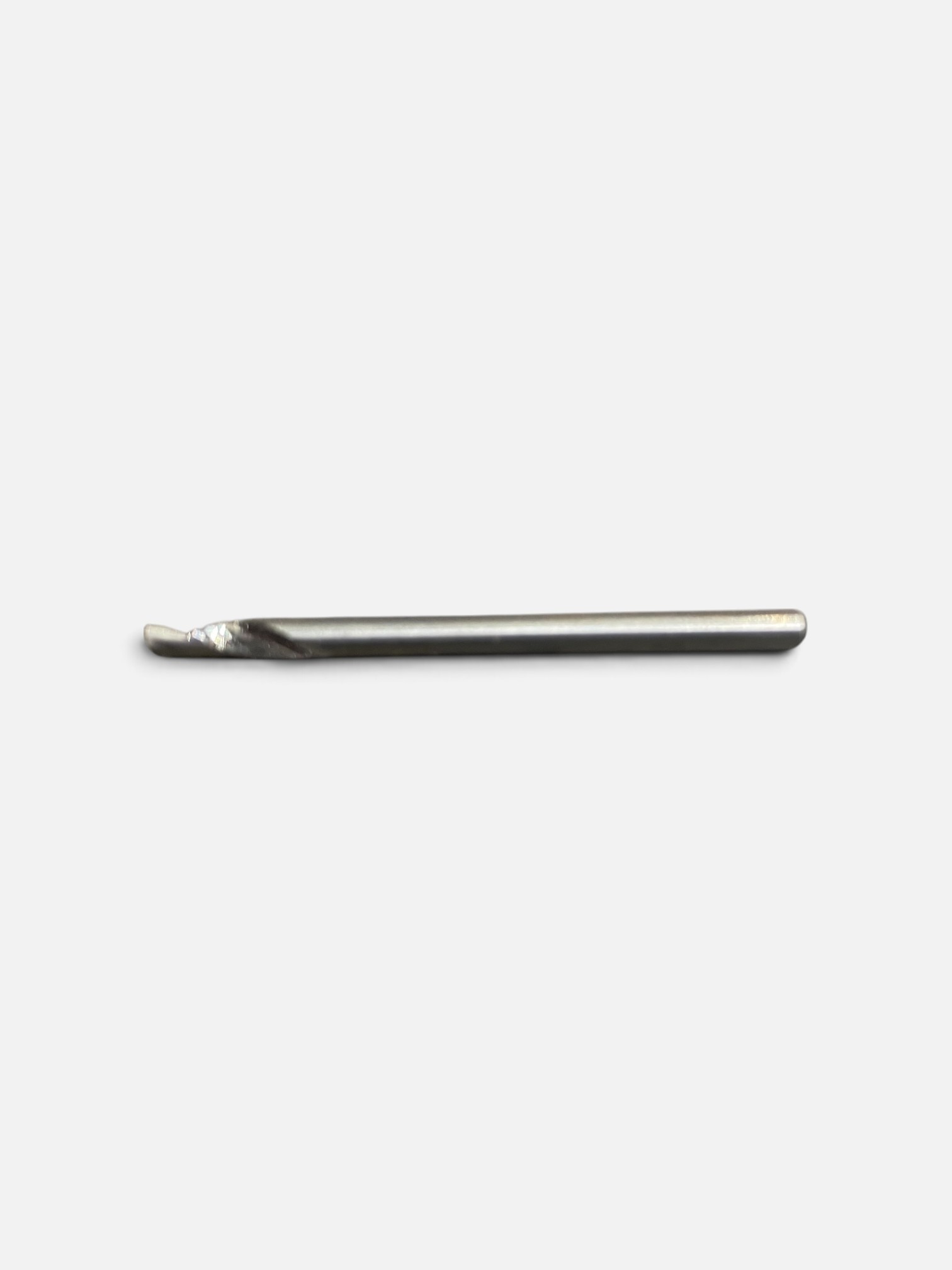

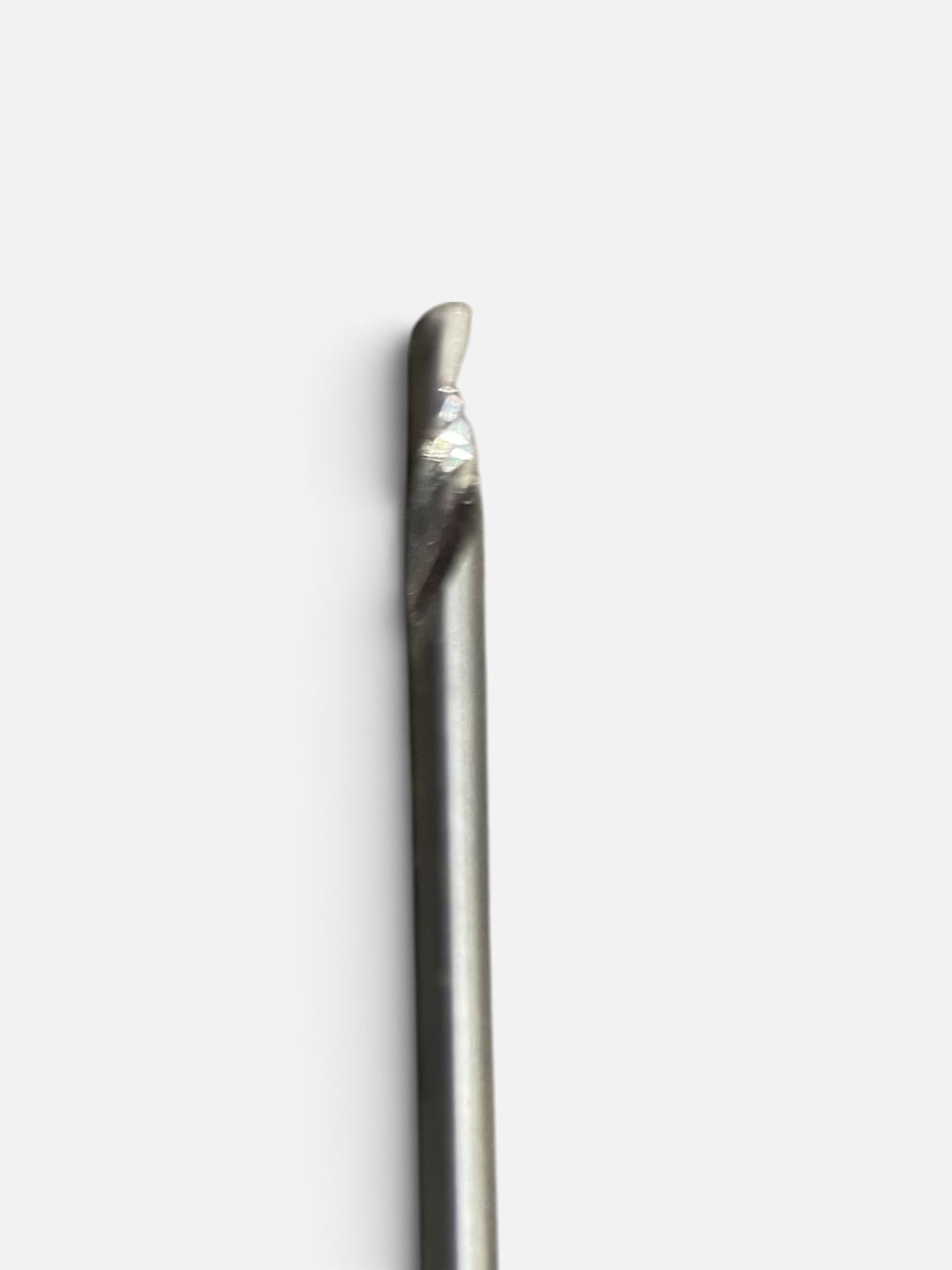

Onsrud Cutter 63-761 1/8″ Solid Carbide Upcut O-Flute CNC Router Bit

New Onsrud Cutter 63-761 solid carbide CNC router bit. This precision single-flute upcut O-flute cutter is designed to provide a smooth finish while providing upward chip removal.

The 63-761 features a 1/8″ cutting diameter, 1/4″ length of cut, 1/8″ shank, and 2″ overall length. It is designed for CNC routing and machining applications involving hard plastics and solid-surface materials.

Specifications

• Manufacturer: Onsrud Cutter
• Part Number: 63-761
• Series: 63-700
• Cutter Diameter: 1/8″ (0.125″)
• Length of Cut (LOC): 1/4″ (0.250″)
• Shank Diameter: 1/8″ (0.125″)
• Overall Length (OAL): 2″
• Number of Flutes: 1
• Flute Type: Upcut O-Flute
• Material: Solid Carbide
• Application: Hard Plastics / Solid Surface
• Cutting Direction: Upcut

Applications

The Onsrud 63-761 is designed for CNC routing, profiling, trimming, and precision machining of hard plastics and solid-surface materials.

Typical applications include:

• Acrylic
• Polycarbonate
• PVC
• Nylon
• Solid-surface materials
• Plastic sheet
• Plastic components
• CNC profiling
• Trimming
• Precision routing

The upcut O-flute geometry provides upward chip removal and is designed to help produce a smooth finished surface.

Package Includes

1 × Onsrud Cutter 63-761 Solid Carbide CNC Router Bit
