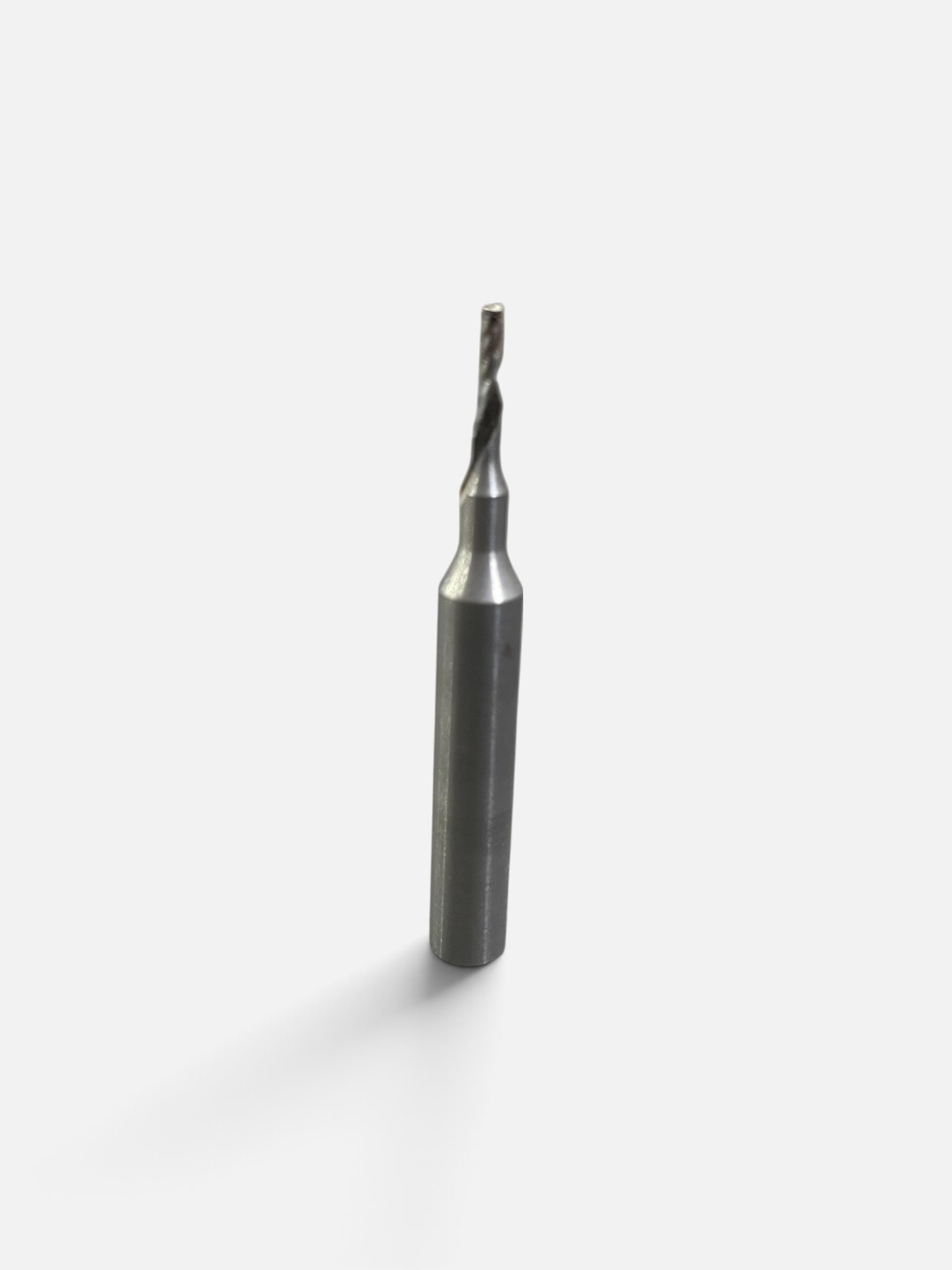

Onsrud Cutter 63-750 1/16″ Solid Carbide Upcut O-Flute CNC Router Bit

New Onsrud Cutter 63-750 solid carbide CNC router bit. This precision single-flute upcut O-flute cutter is designed for machining soft plastics and solid-surface materials.

The O-flute geometry provides increased chip clearance for efficient chip evacuation and helps produce a smooth finished surface. The 63-750 features a compact 1/16″ cutting diameter and is well suited for detailed CNC routing, finishing, profiling, and precision cutting applications.

Specifications

• Manufacturer: Onsrud Cutter
• Part Number: 63-750
• Cutter Diameter: 1/16″ (0.0625″)
• Length of Cut (LOC): 1/4″ (0.250″)

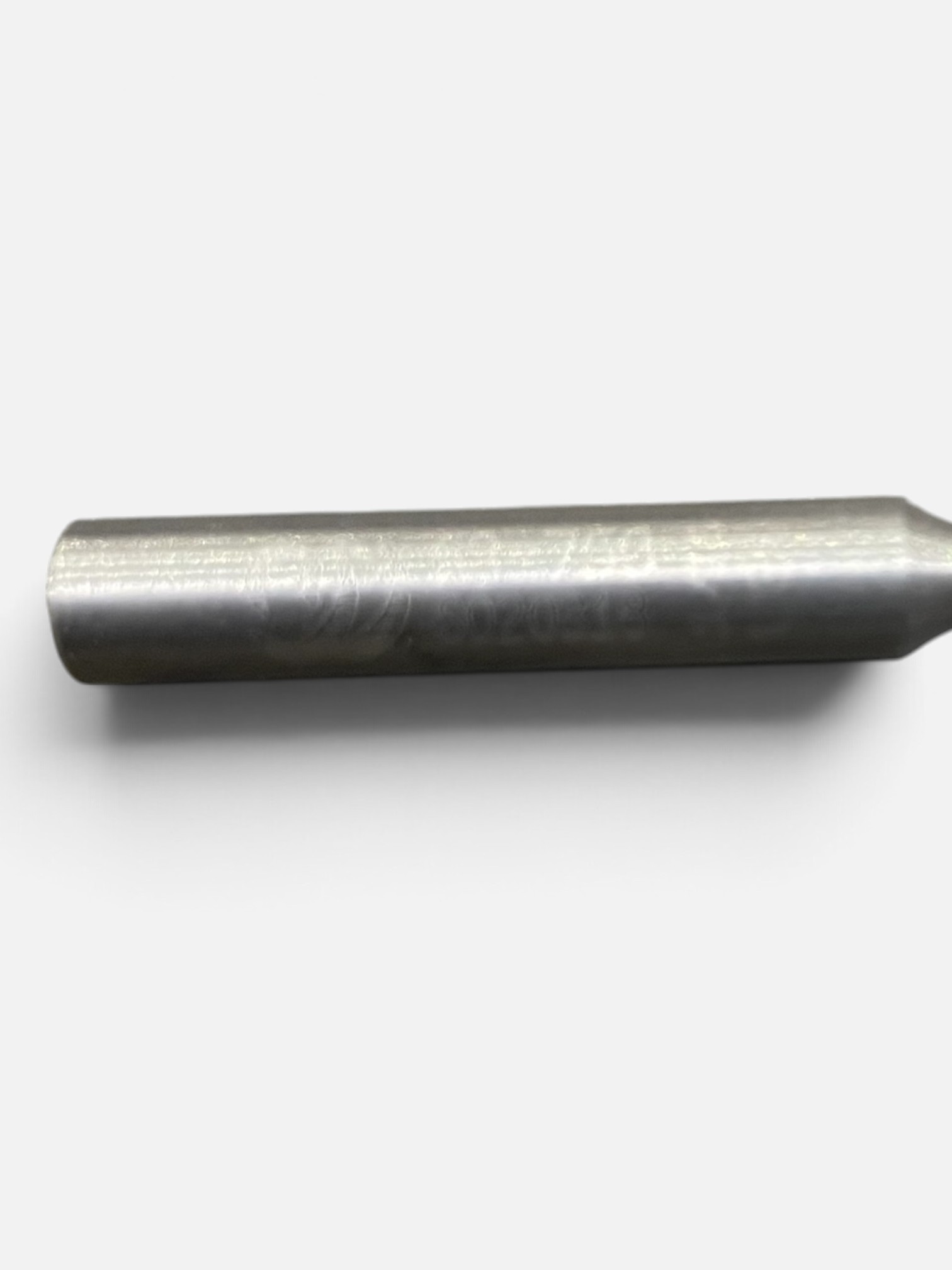

• Shank Diameter: 1/4″
• Overall Length (OAL): 2″
• Number of Flutes: 1

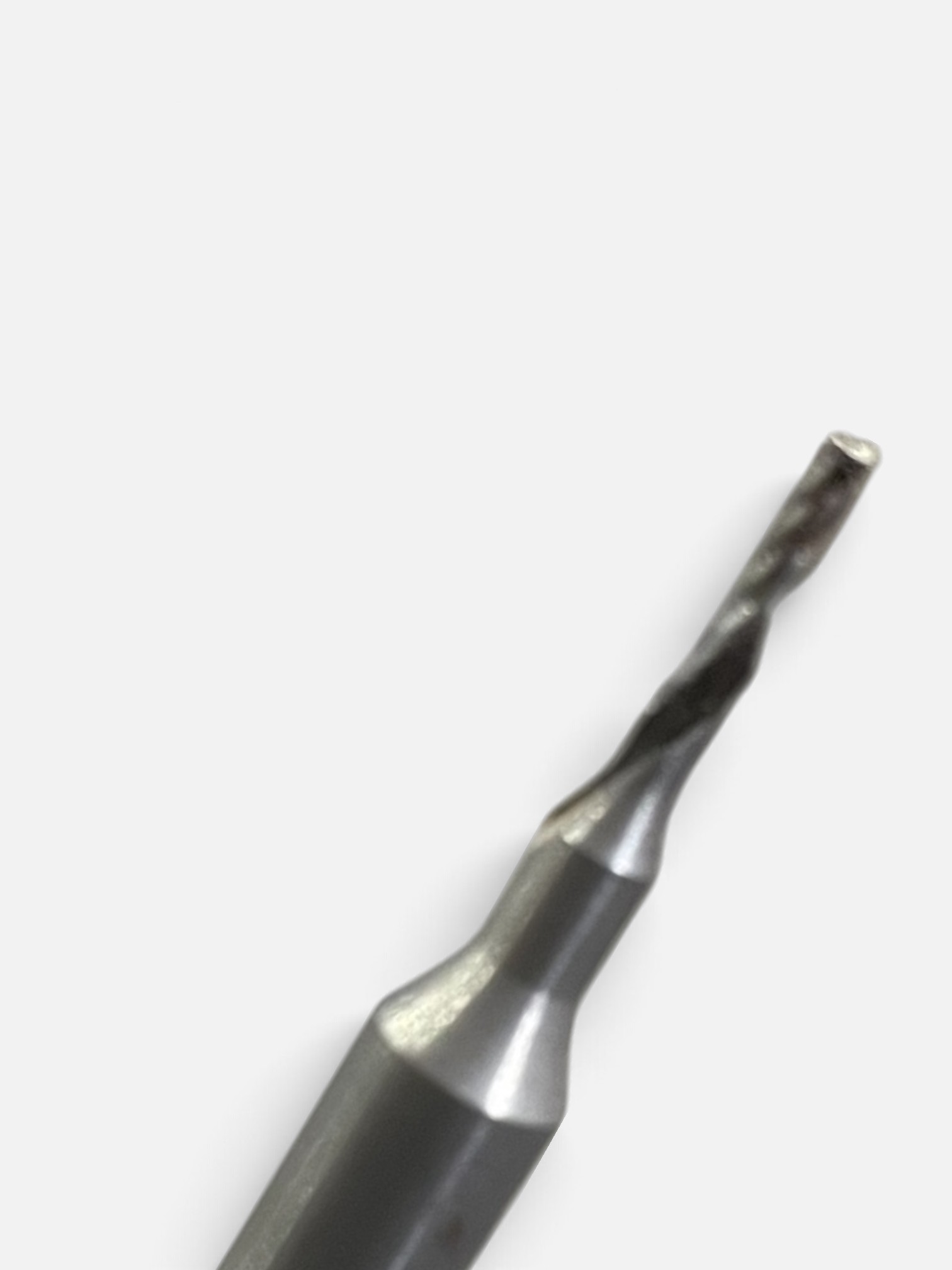

• Flute Type: Spiral O-Flute
• Chip Removal: Upcut
• Helix Angle: 21°
• Material: Solid Carbide
• Coating: Uncoated
• Cutting Type: Center Cutting
• Cutting Direction: Right Hand
• Primary Application: Soft Plastics
• Additional Application: Solid Surface
• Country of Origin: USA

Applications

The Onsrud 63-750 is designed for CNC routing and finishing of soft plastic and solid-surface materials.

Typical applications include:

• Soft plastics
• Plastic sheet
• Acrylic and similar plastic materials
• Solid-surface materials
• CNC routing
• Profiling
• Trimming
• Finishing
• Precision detail cutting

The upcut spiral O-flute geometry helps evacuate chips upward while providing a smooth finished surface.

Package Includes

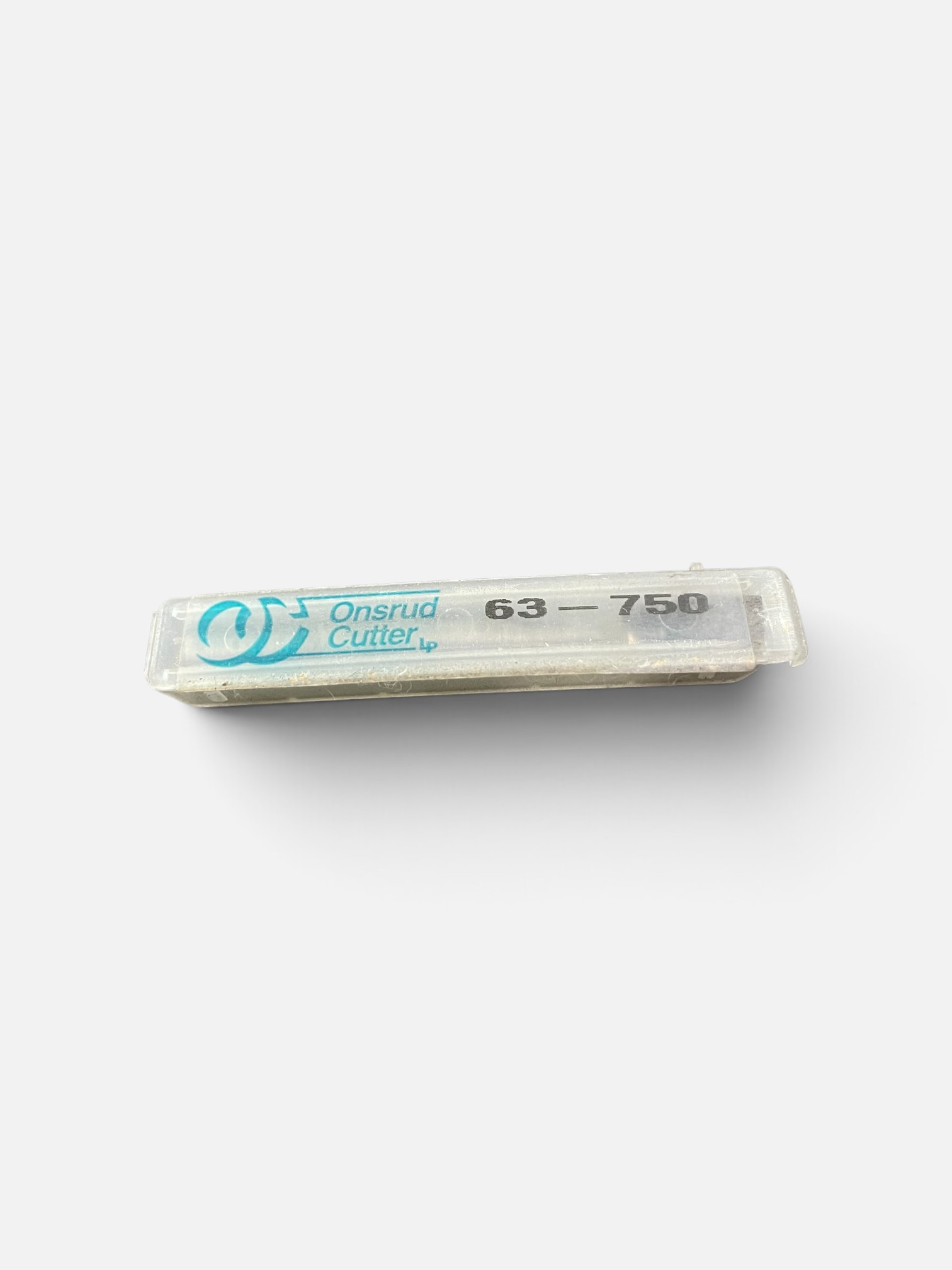

1 × Onsrud Cutter 63-750 Solid Carbide CNC Router Bit
