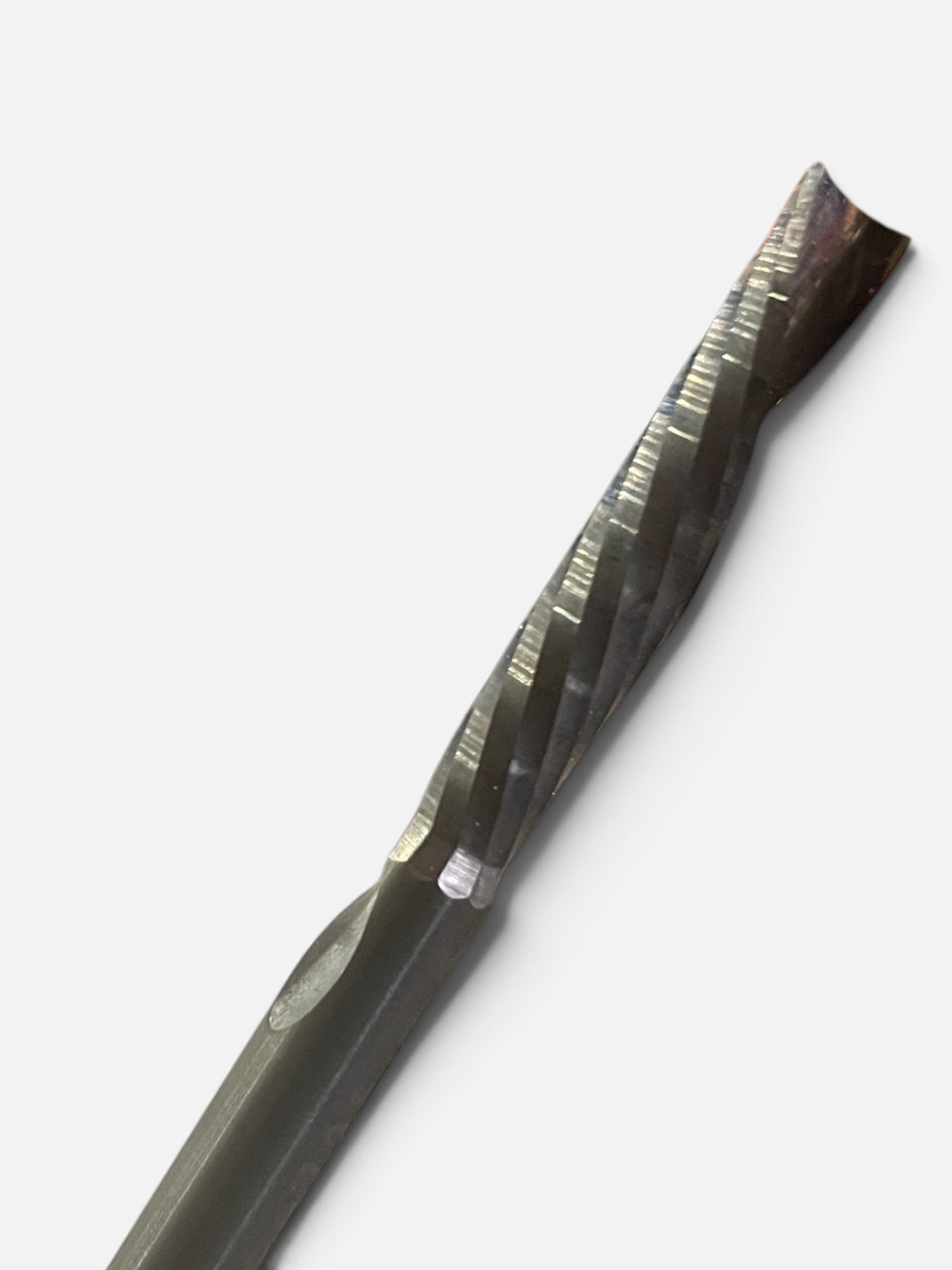

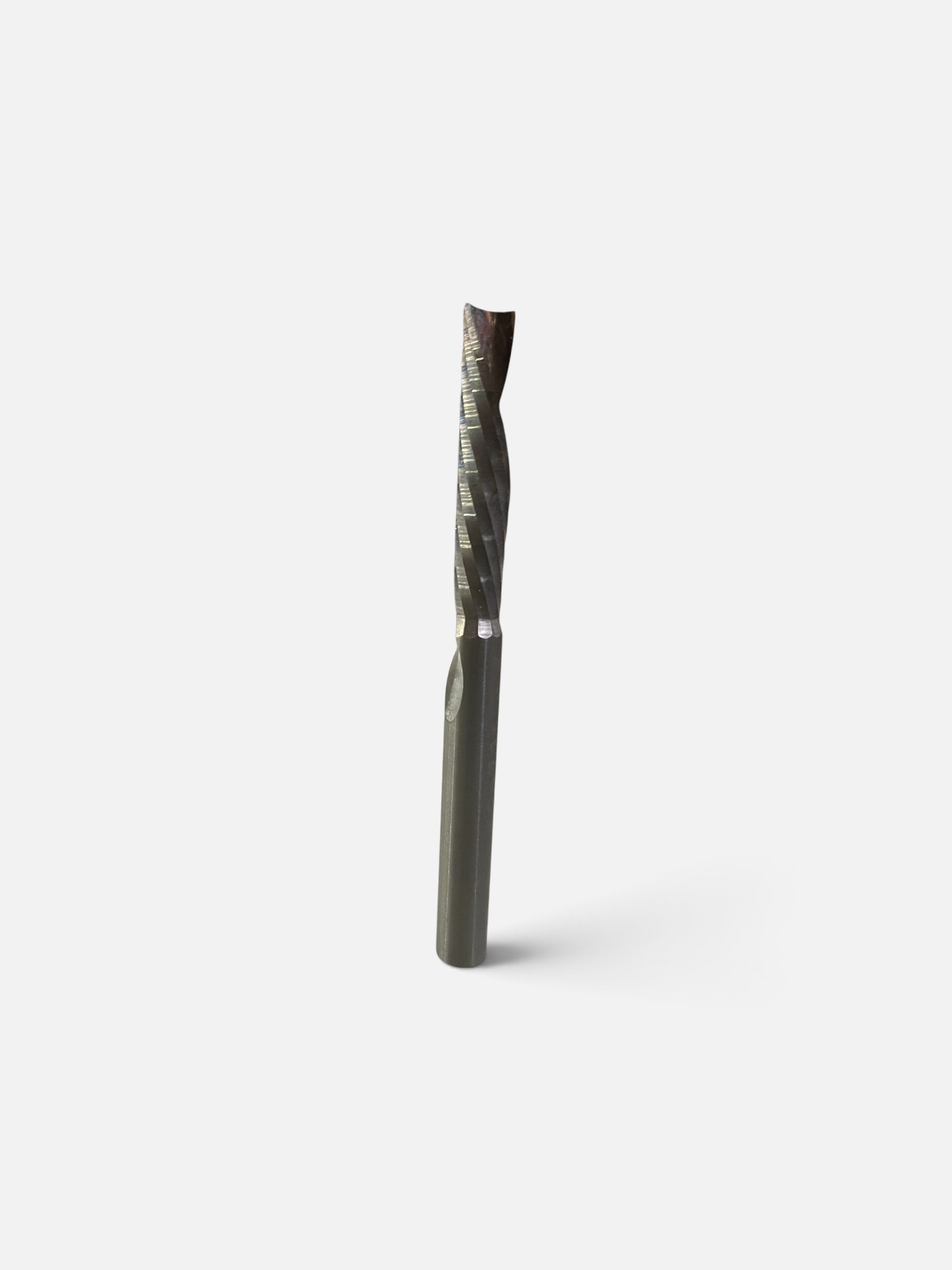

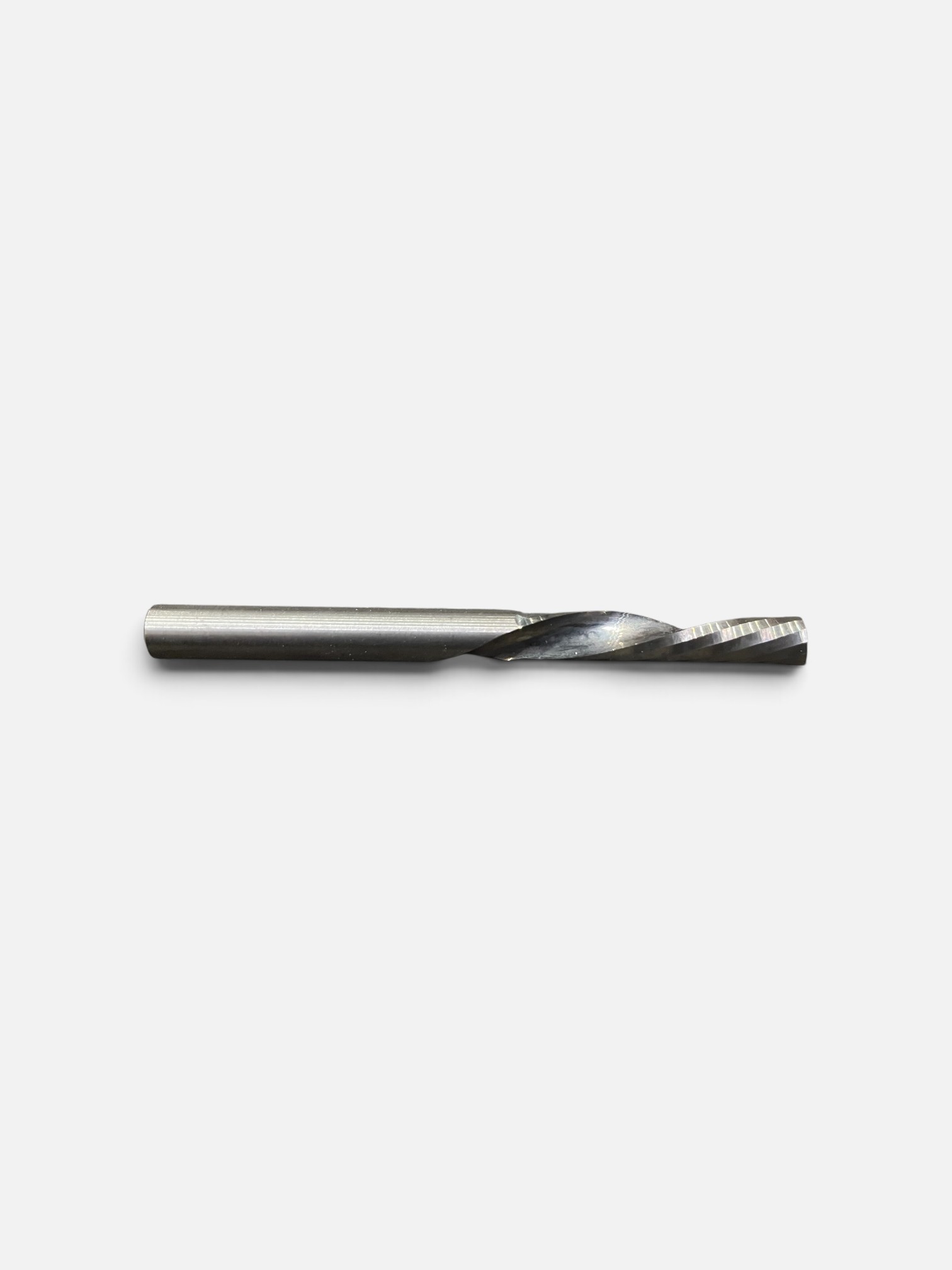

Onsrud Cutter 62-726 1/4″ Solid Carbide Downcut Spiral O-Flute Router Bit (DMS P/N CUT-OC-62-726)

New Onsrud Cutter 62-726 solid carbide CNC router bit. This professional-grade tool features a single-flute downcut spiral O-flute design engineered to provide a smooth finish while directing chips downward.

The 62-726 is designed primarily for hard plastics and solid surface materials and is well suited for CNC routing, profiling, trimming, and finishing applications.

Specifications

• Manufacturer: Onsrud Cutter
• Part Number: 62-726
• Series: 62-700
• Cutter Diameter: 1/4″
• Length of Cut (LOC): 1-1/4″

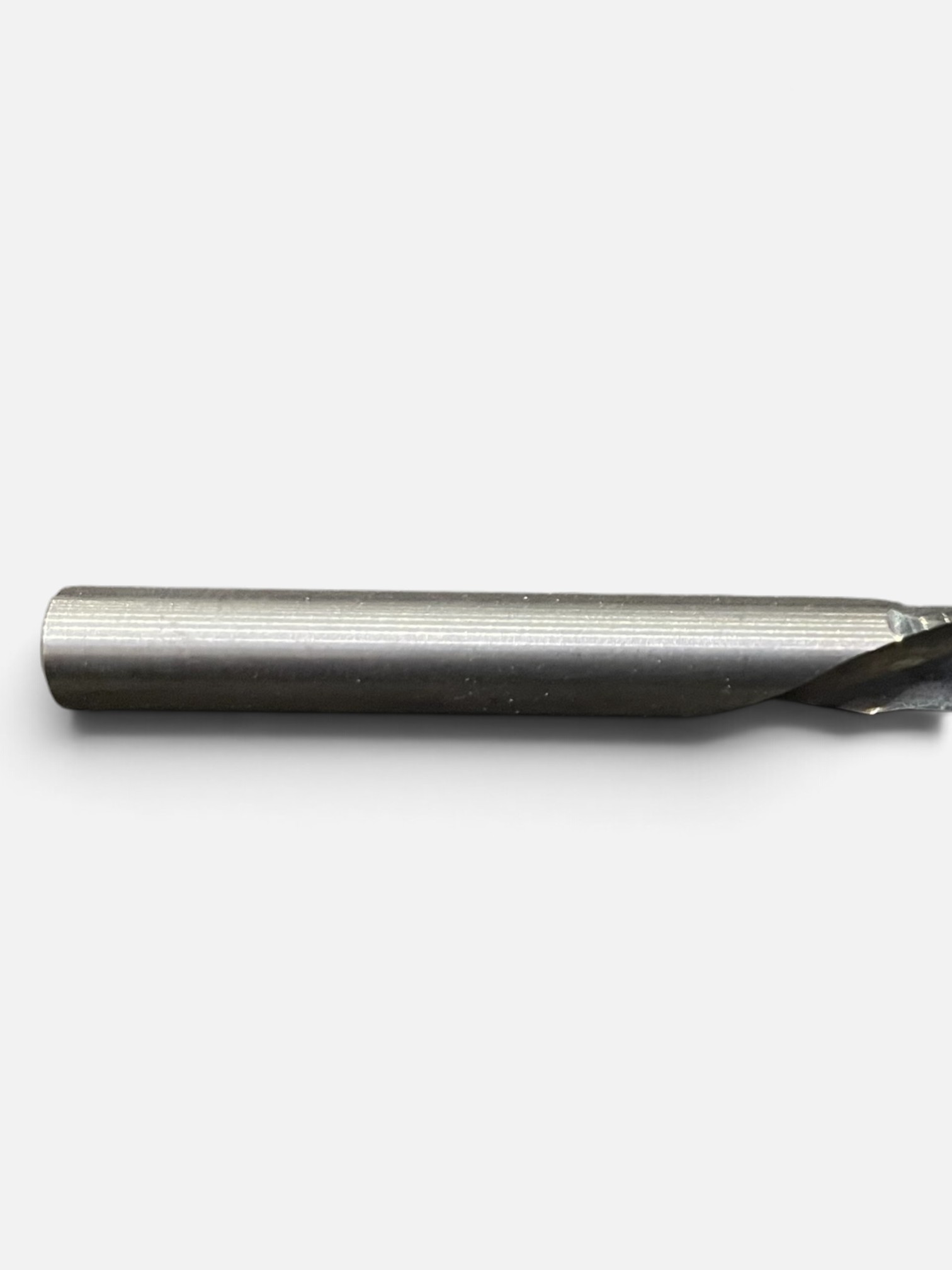

• Shank Diameter: 1/4″
• Overall Length: 3″
• Number of Flutes: 1
• Flute Type: Downcut Spiral O-Flute
• Helix Angle: 21°
• Material: Solid Carbide
• Cutting Direction: Right Hand
• Cutting Type: Center Cutting
• End Style: Square
• Finish: Uncoated
• Grade: High Performance
• Primary Application: Hard Plastics / Solid Surface

Applications

The Onsrud 62-726 is designed for CNC machining and finishing of hard plastic and solid surface materials. Typical applications include:

• Acrylic
• Cast Acrylic
• Nylon
• PVC
• Solid Surface Materials
• Plastic Sheet
• Plastic Components
• CNC Profiling
• Trimming
• Routing
• Finishing

The downcut O-flute geometry helps provide a smooth finished surface while directing chips downward.

Features

• Genuine Onsrud Cutter tooling
• Solid carbide construction
• Single-flute design
• 21° helix
• Downcut spiral O-flute
• Excellent chip evacuation
• Smooth surface finish
• 1/4″ cutting diameter
• 1/4″ shank
• Designed for CNC routing and finishing
• Made in the USA

Package Includes

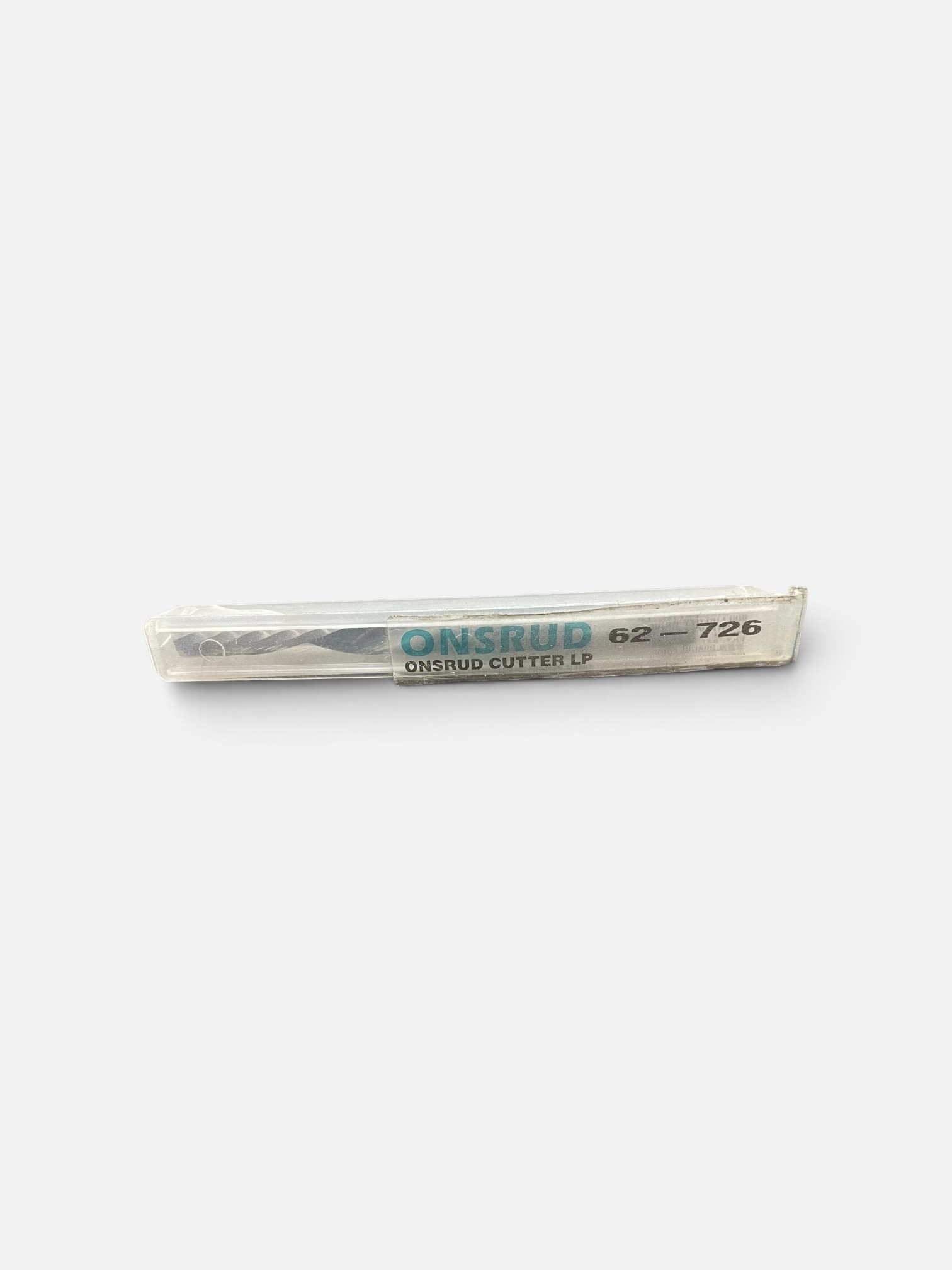

1 × Onsrud Cutter 62-726 Solid Carbide Router Bit
