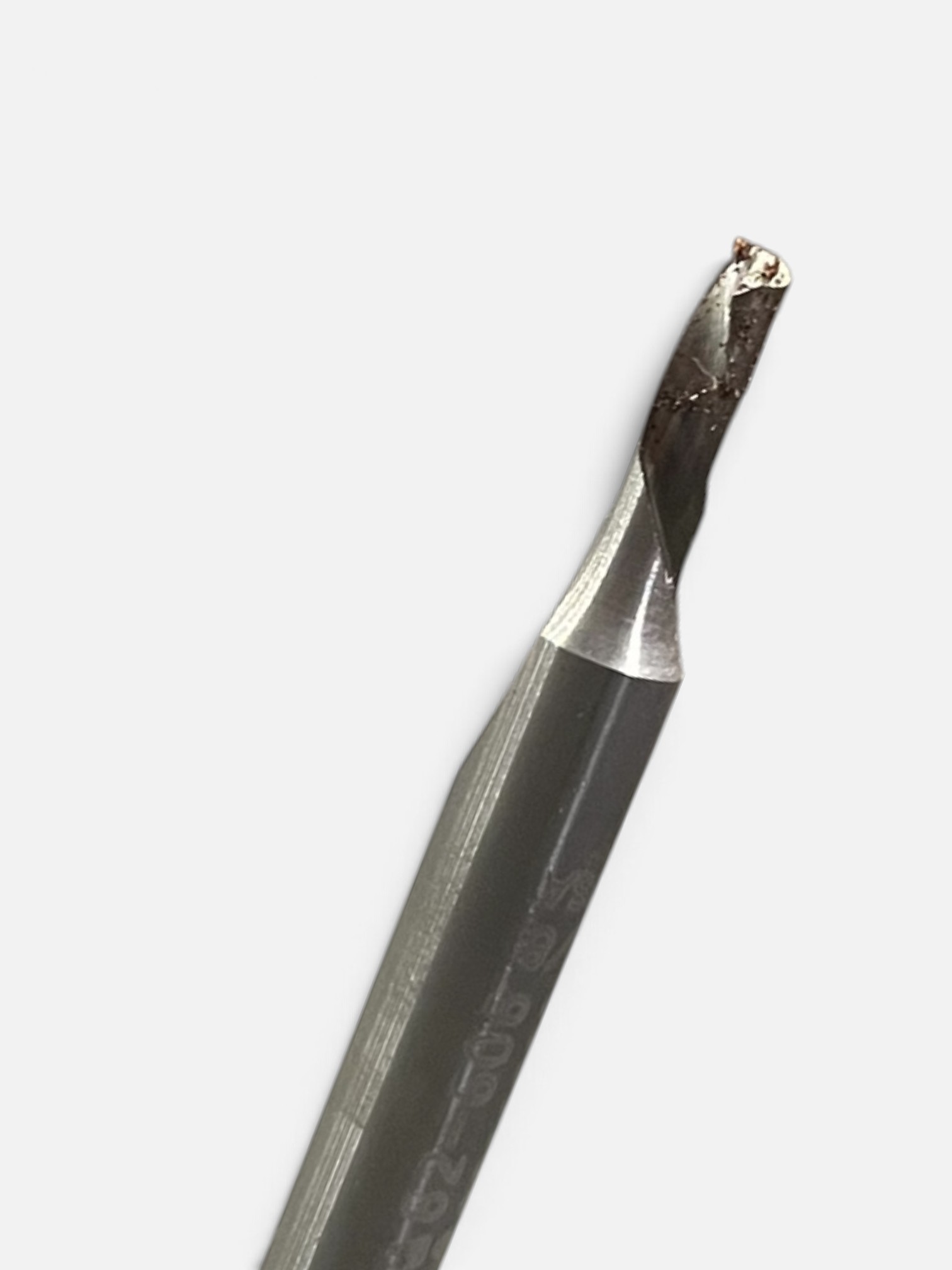

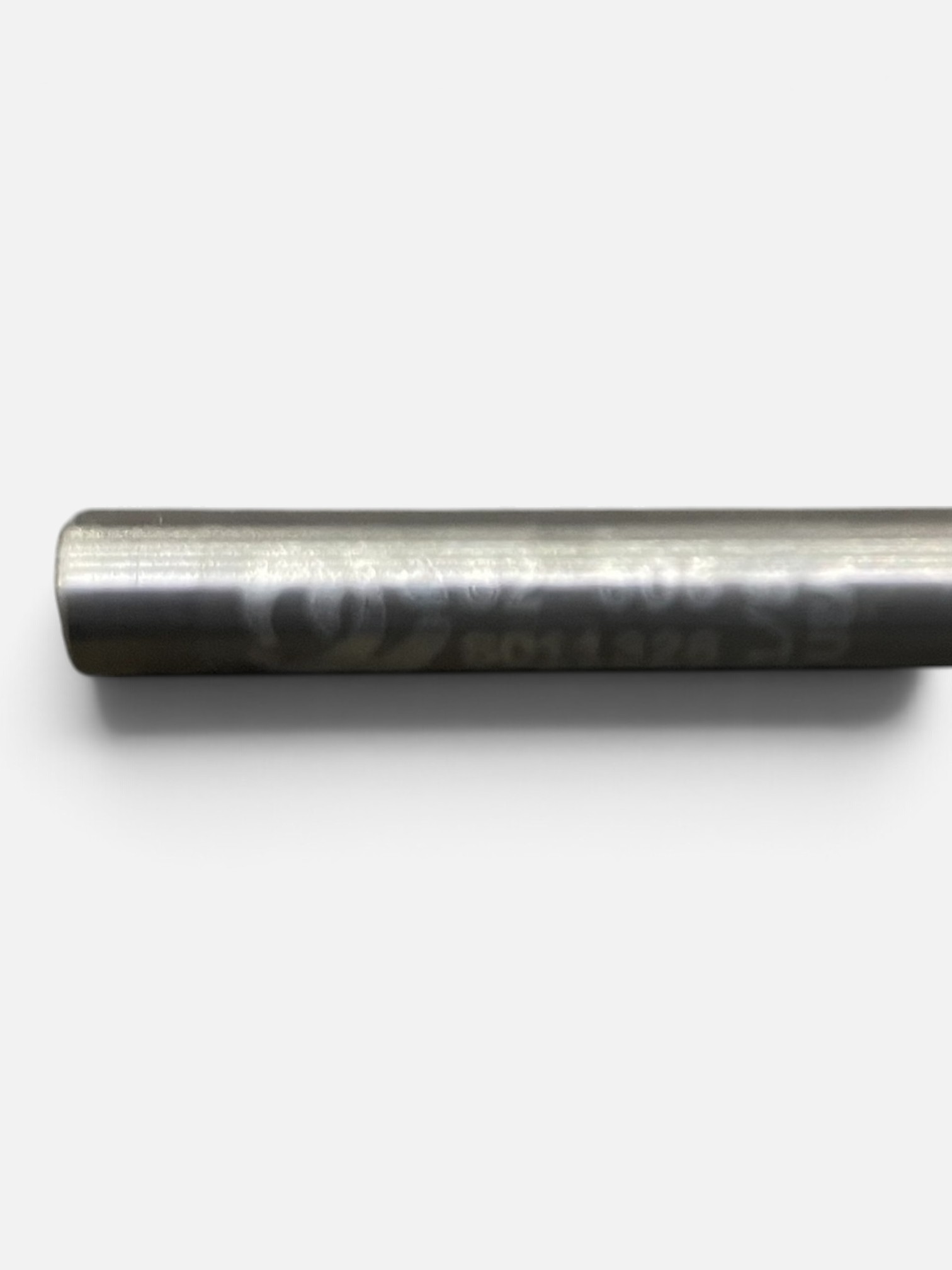

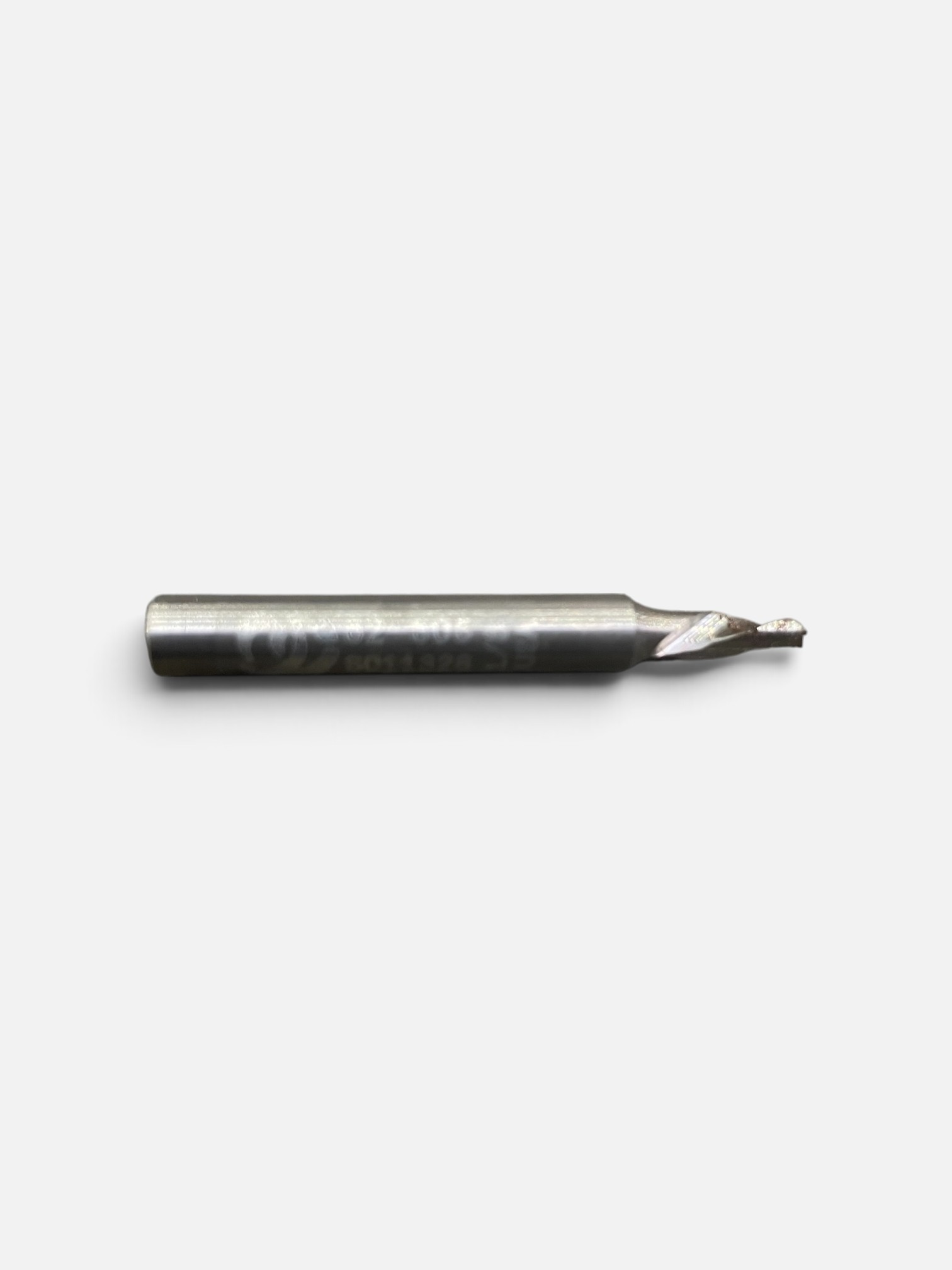

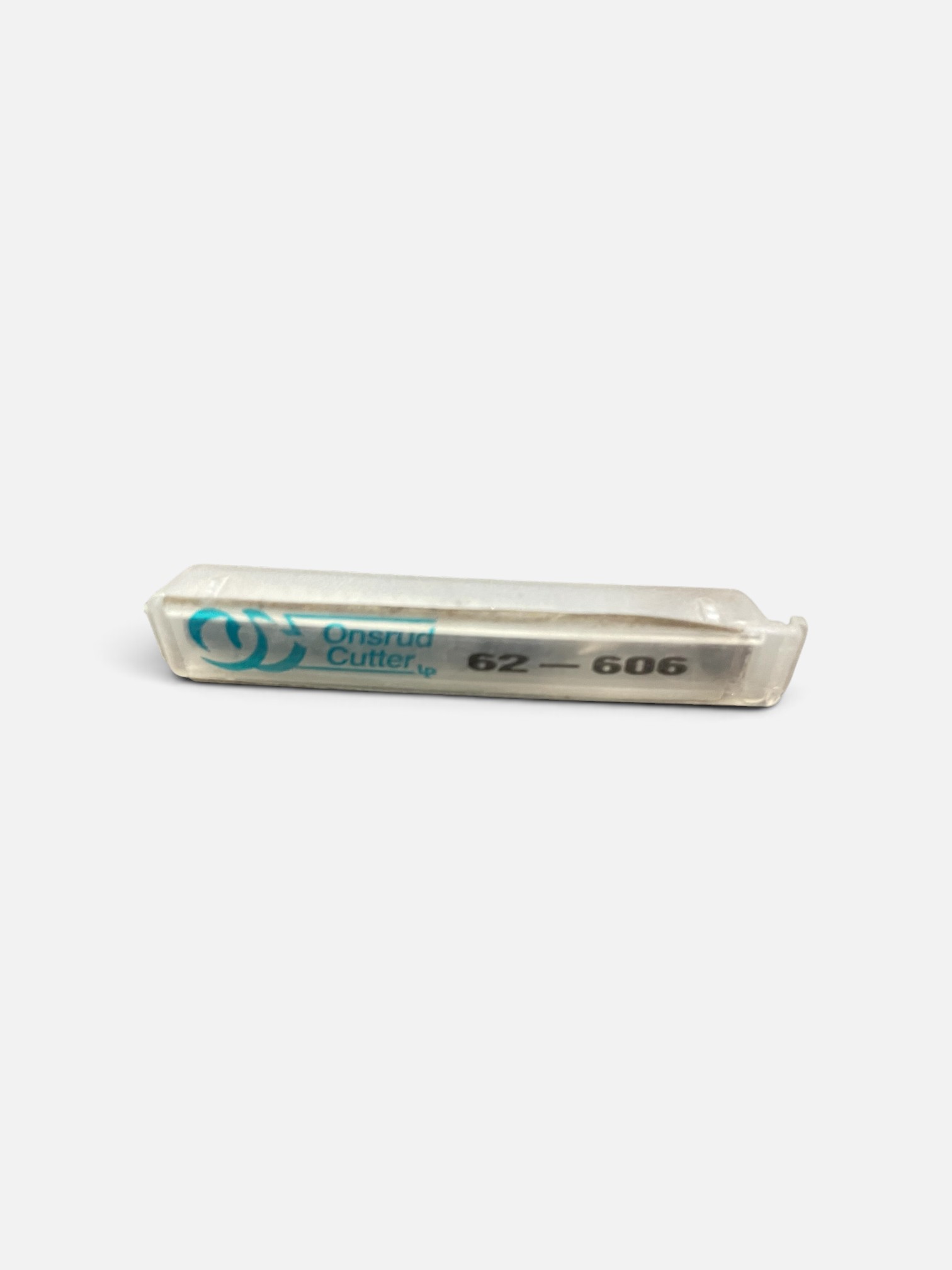

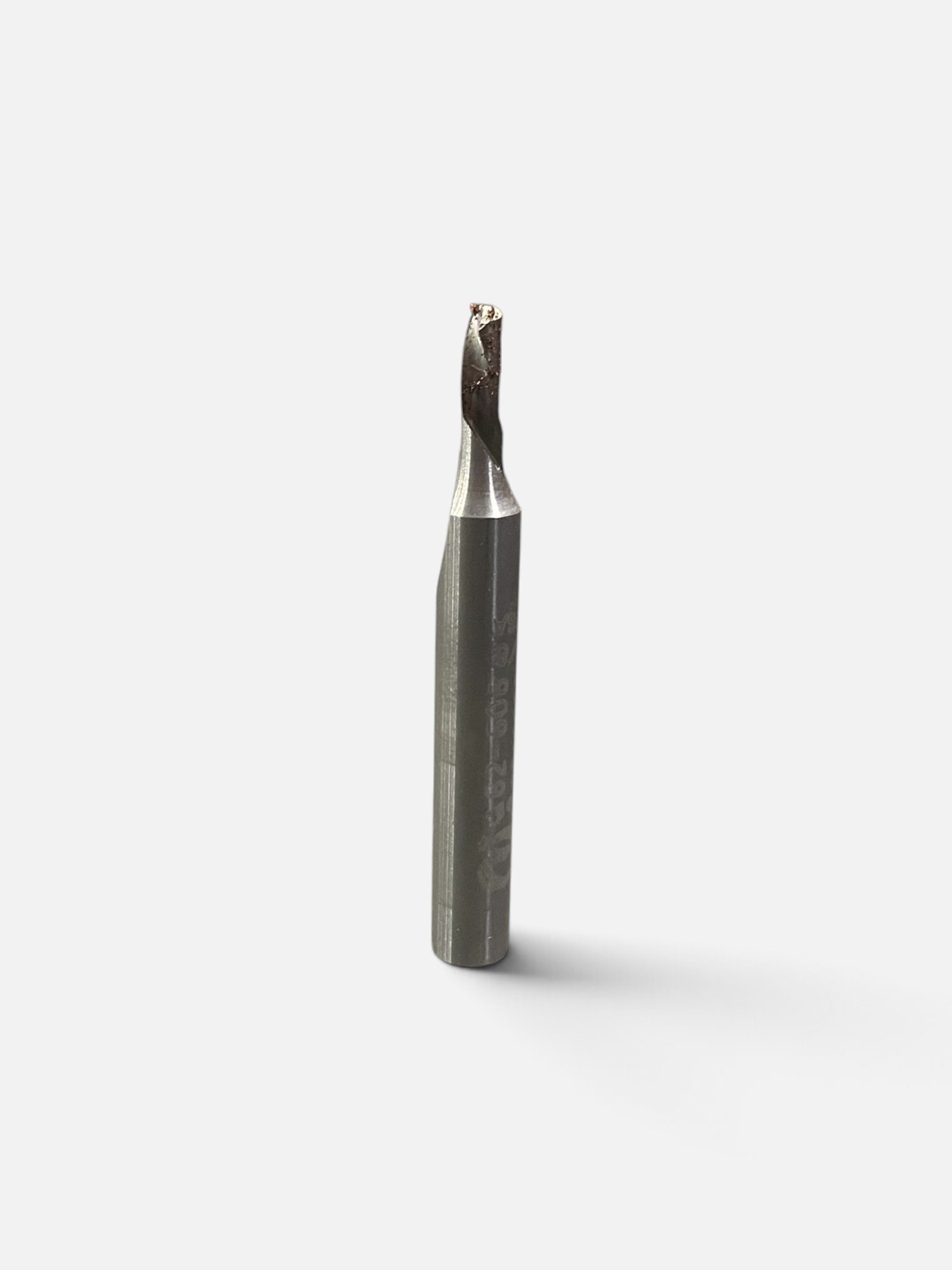

Onsrud Cutter 62-606 1/8″ Carbide Downcut Spiral O-Flute CNC Router Bit (DMS P/N CUT-OC-62-606)

New Onsrud Cutter 62-606 solid carbide CNC router bit. This high-performance, single-flute downcut spiral O-flute tool is designed specifically for machining aluminum sheet and plate on high-speed CNC mills, machining centers, and CNC routers.

The 22° helix and O-flute geometry provide efficient chip removal and a smooth finish during aluminum machining.

Specifications

• Manufacturer: Onsrud Cutter
• Part Number: 62-606
• Series: 62-600
• Cutter Diameter: 1/8″ (0.125″)
• Length of Cut: 1/4″ (0.250″)
• Shank Diameter: 1/4″
• Overall Length: 2″
• Number of Flutes: 1
• Flute Type: Spiral O-Flute Downcut
• Helix Angle: 22°
• Material: Solid Carbide
• Cutting Direction: Right Hand
• Cutting Type: Center Cutting
• End Style: Square
• Finish: Uncoated
• Grade: High Performance
• Primary Material Application: Aluminum

Application

The Onsrud 62-606 is designed for high-speed CNC machining of aluminum, including aluminum sheet and plate. It is suitable for CNC routers, high-speed mills, and machining centers where a small-diameter cutter and clean finish are required.

Features

• Solid carbide construction
• Single-flute design
• Downcut spiral O-flute
• 22° helix angle
• Excellent chip evacuation
• Designed for aluminum machining
• Center cutting
• Right-hand cutting direction
• Suitable for high-speed CNC applications

Package Includes

1 × Onsrud Cutter 62-606 CNC Router Bit
