Onsrud Cutter 61-162 1/2″ Solid Carbide Single Flute O-Flute Router Bit (DMS P/N CUT-OC-61-162)

$88.51

4 in stock

SKU CUT-OC-61-162 Category Tag

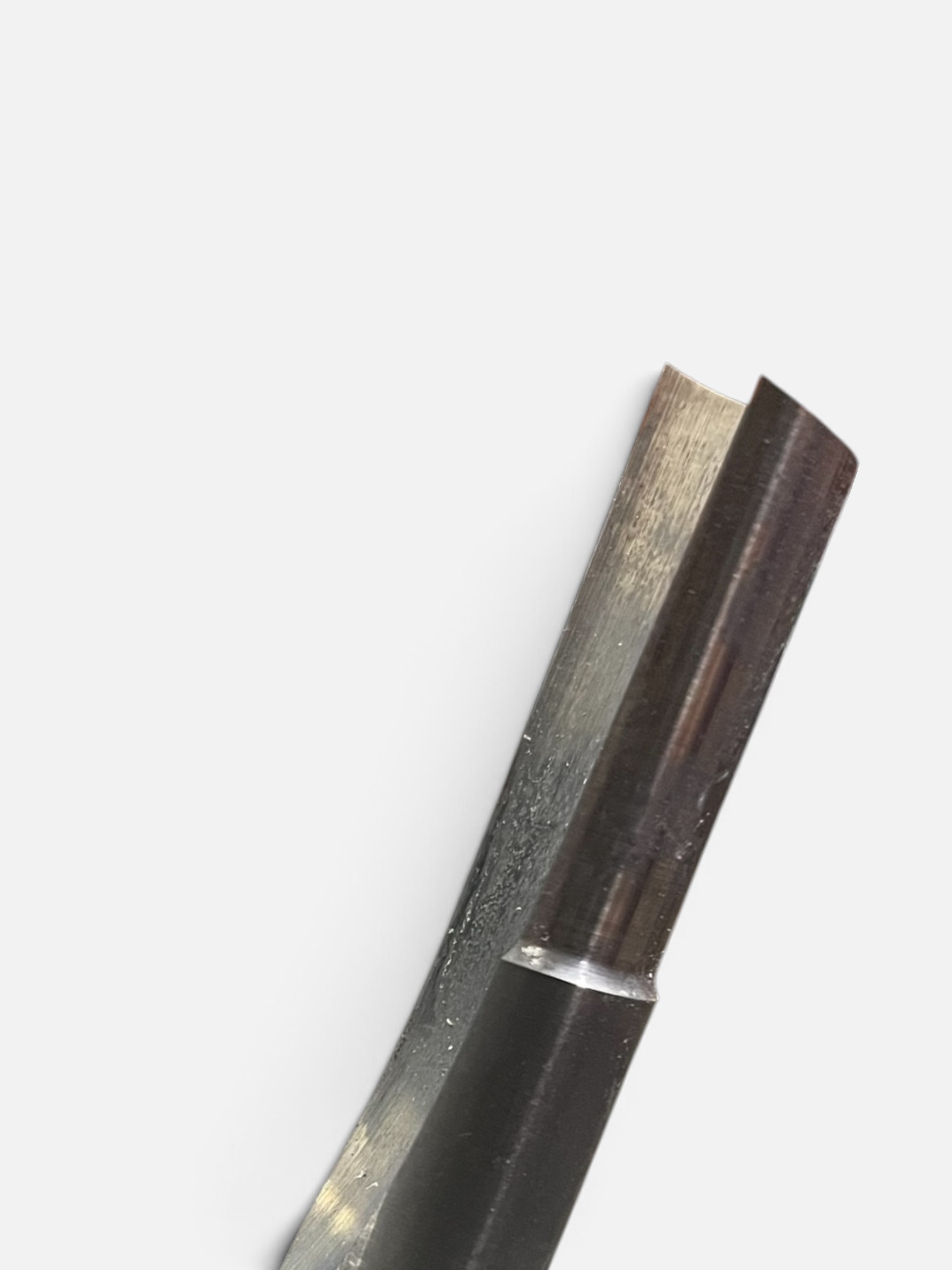

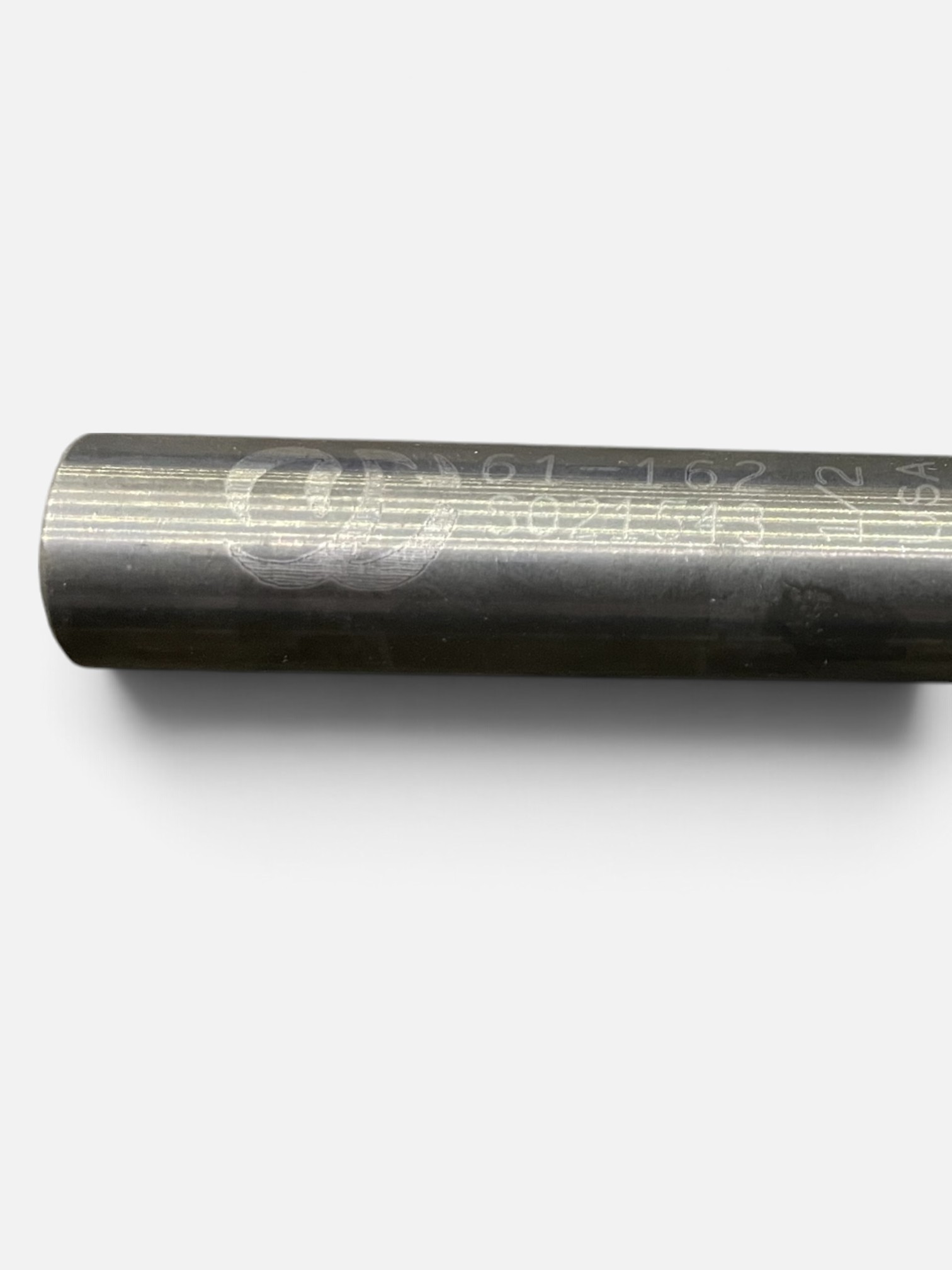

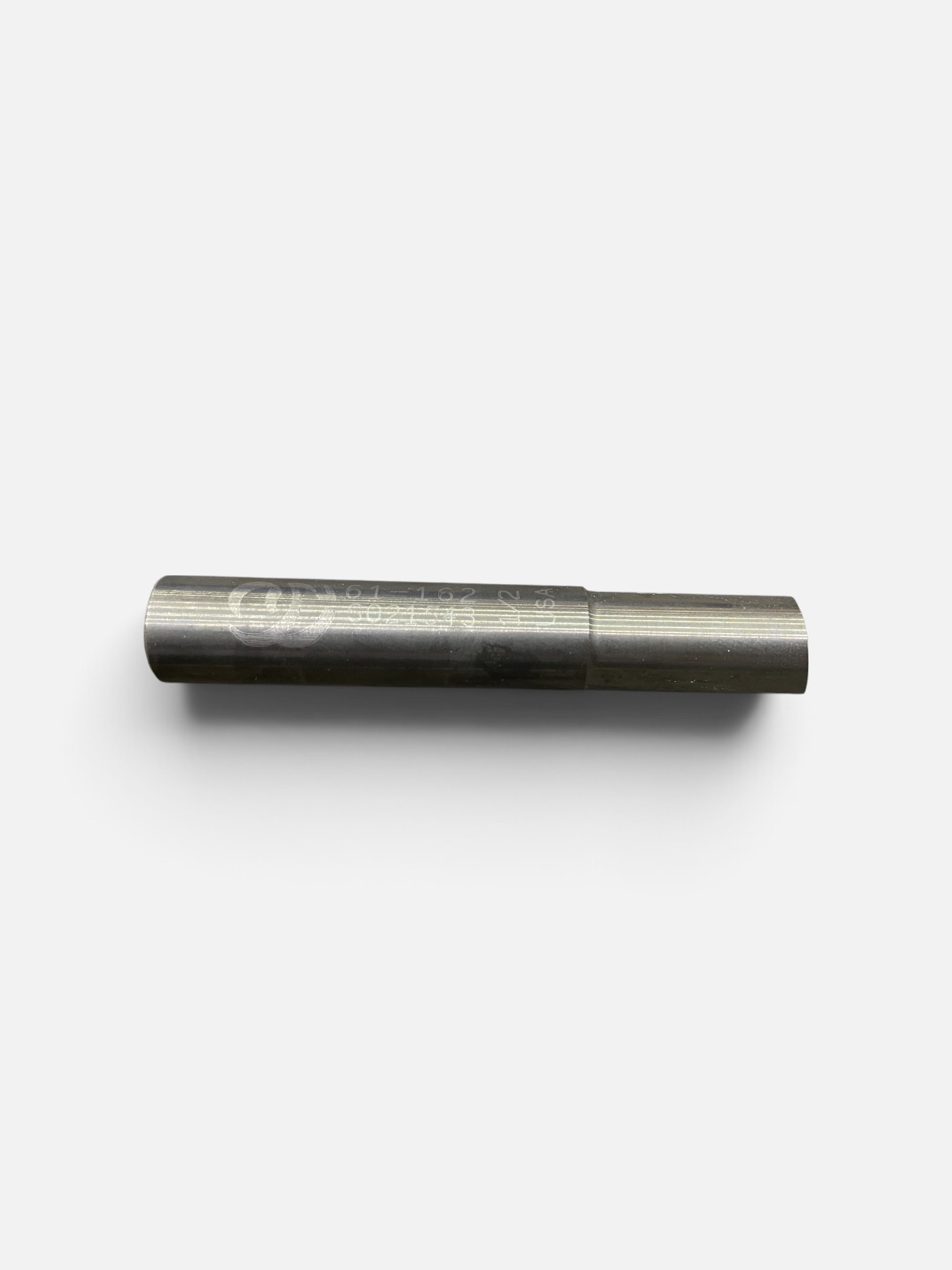

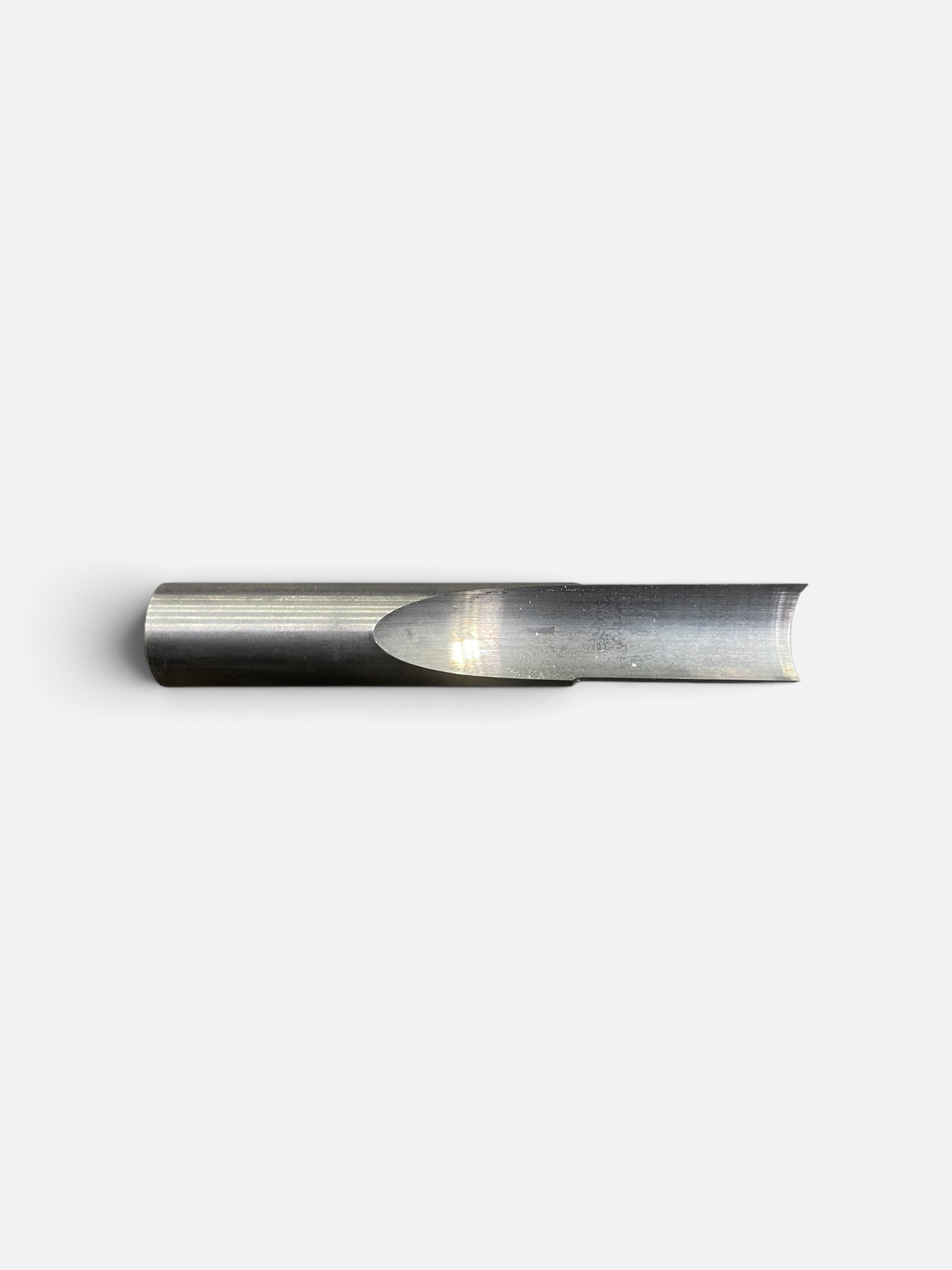

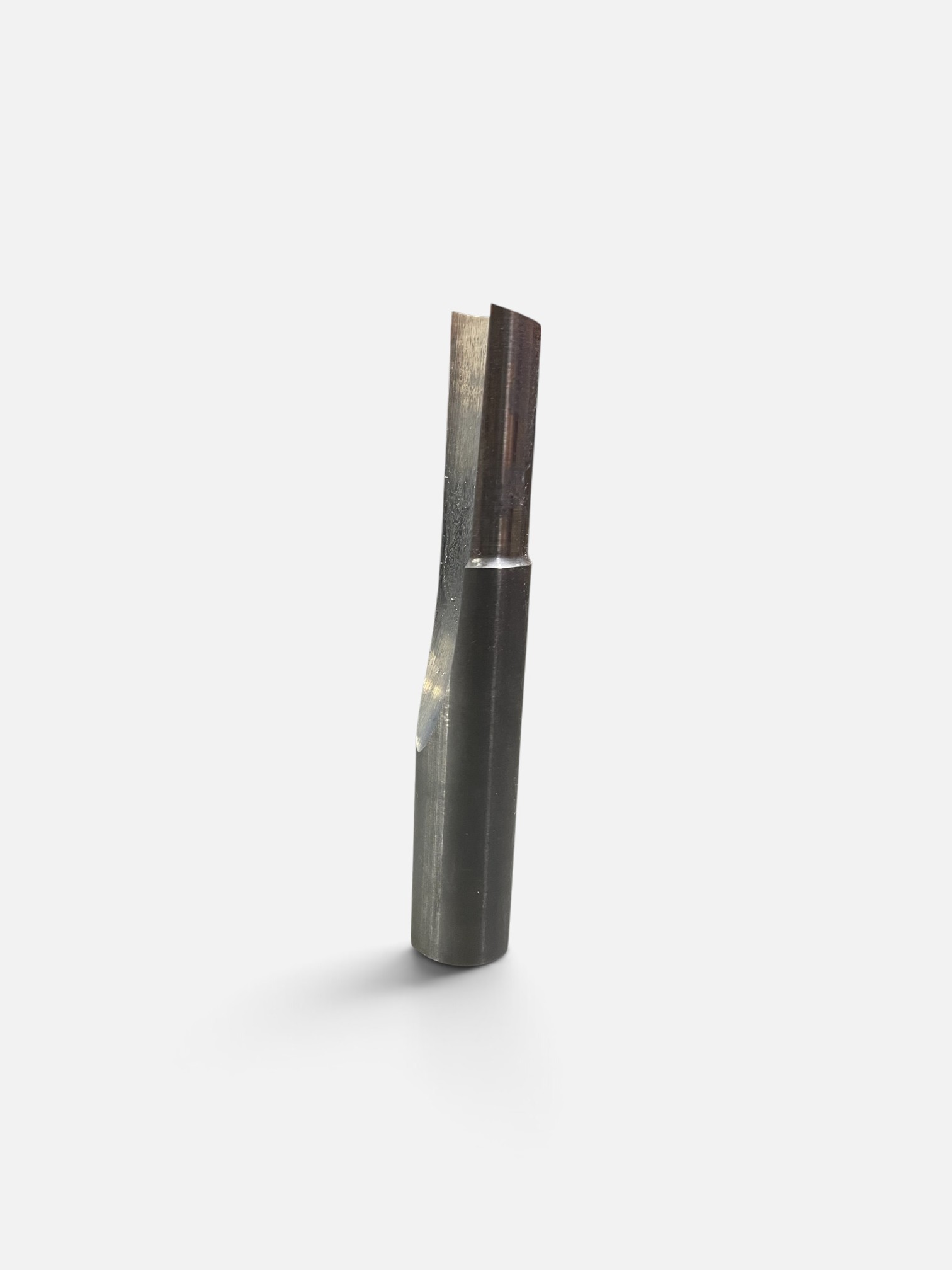

New Onsrud Cutter 61-162 solid carbide router bit. This high-performance, single-flute straight O-flute cutter features a 1/2″ cutting diameter, 1″ length of cut, 1/2″ shank diameter, and 3″ overall length.

The 61-000P series is designed to combine the fast, free-cutting characteristics of O-flute geometry with the tool life of solid carbide. The 61-162 is particularly suited for routing and finishing soft and hard plastics, including materials such as acrylic, polycarbonate, PVC, polyethylene, polypropylene, polystyrene, HDPE, UHMW, and other hard plastics.

Specifications:

  • Manufacturer: Onsrud Cutter
  • Manufacturer Part Number: 61-162
  • Series: 61-000P
  • Cutter Diameter: 1/2″
  • Length of Cut: 1″
  • Shank Diameter: 1/2″
  • Overall Length: 3″
  • Number of Flutes: 1
  • Flute Type: Straight O-Flute
  • Material: Solid Carbide
  • Helix Angle: 0°
  • Cutting Direction: Right Hand
  • End Style: Square
  • Cutting Type: Center Cutting
  • Finish: Uncoated
  • Application: Soft & Hard Plastics

Applications:
Ideal for CNC routing, trimming, profiling, and finishing plastic materials such as acrylic, polycarbonate, PVC, polyethylene, polypropylene, polystyrene, HDPE, UHMW, and other plastics.

Package Includes:

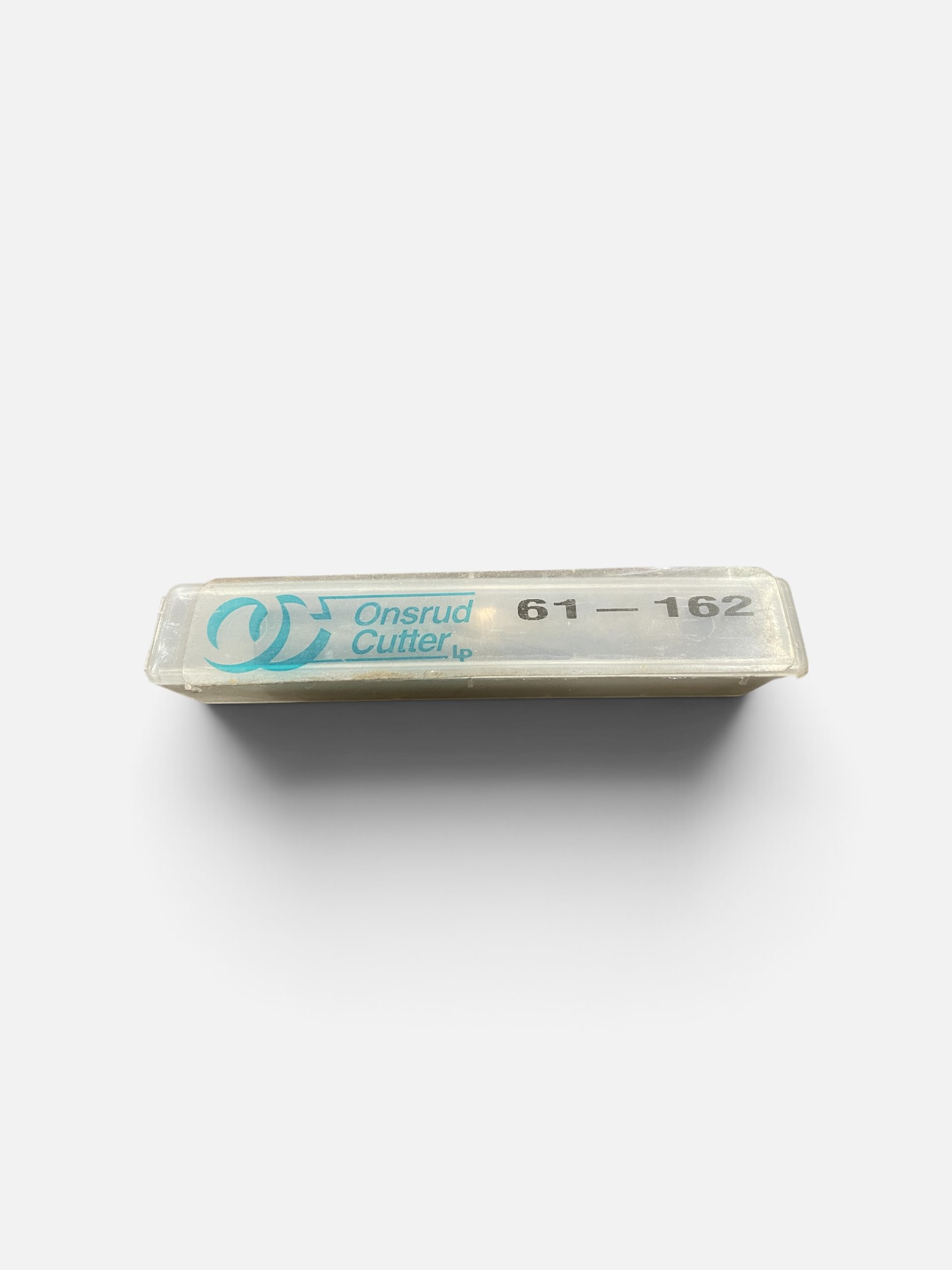

1 × Onsrud Cutter 61-162 Router Bit

Additional information

Dimensions 6 × 2 × 2 in
