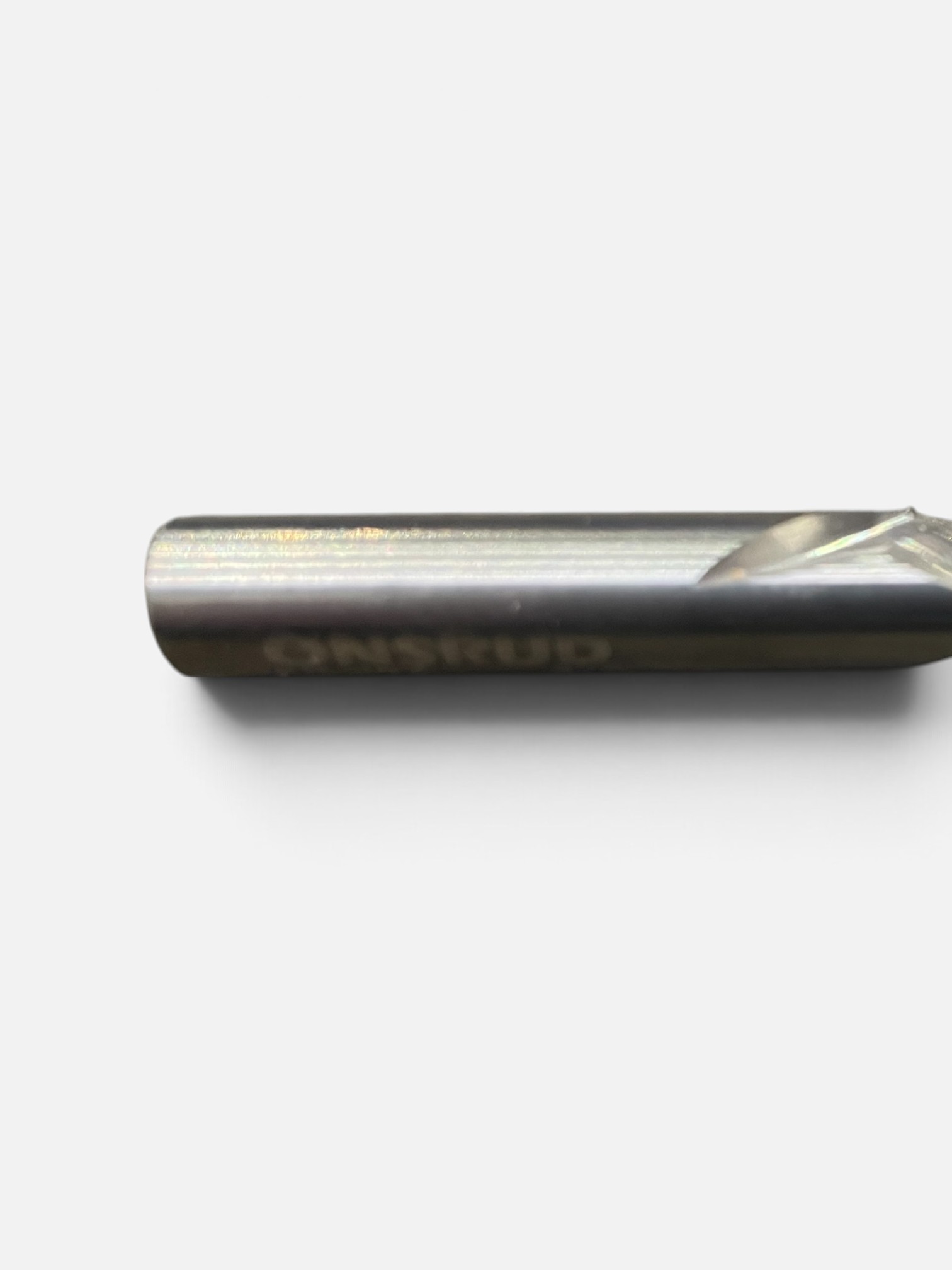

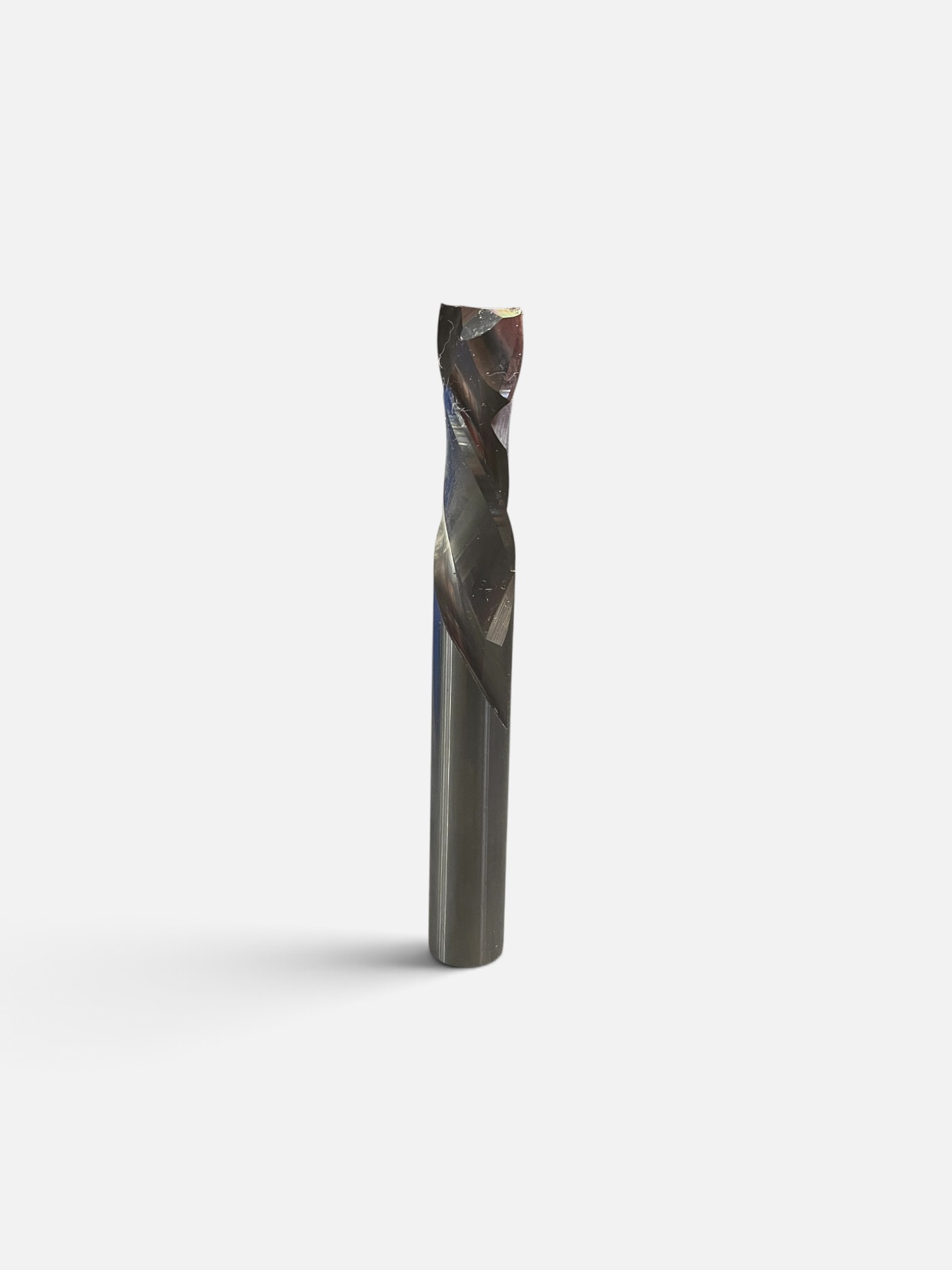

Onsrud 60-124 Solid Carbide 2-Flute Compression Router Bit 3/8″ CNC (DMS P/N CUT-OC-60-124)

The Onsrud 60-124 is a solid carbide 2-flute compression router bit designed for CNC machining of double-sided laminated and veneered wood composites.

The compression geometry combines upcut and downcut cutting action to help produce clean edges on laminated materials while reducing chipping and tear-out. Onsrud’s 60-124 series specifications list a 3/8″ cutting diameter, 1-1/8″ length of cut, 3/8″ shank, and 3″ overall length.

Features

• Manufacturer: Onsrud / LMT Onsrud
• Part Number: 60-124
• Tool Type: Compression Router Bit
• Material: Solid Carbide
• Number of Flutes: 2
• Cutting Diameter: 3/8″ (0.375″)
• Length of Cut: 1-1/8″ (1.125″)
• Upcut Flute Length: 0.406″
• Shank Diameter: 3/8″
• Overall Length: 3″
• Flute Type: Compression
• Designed for laminated and veneered wood composites

Applications

• CNC Routers
• Double-Sided Laminated Wood
• Veneered Wood
• Wood Composites
• Plywood
• Cabinet Manufacturing
• CNC Woodworking
• Industrial Routing

Included

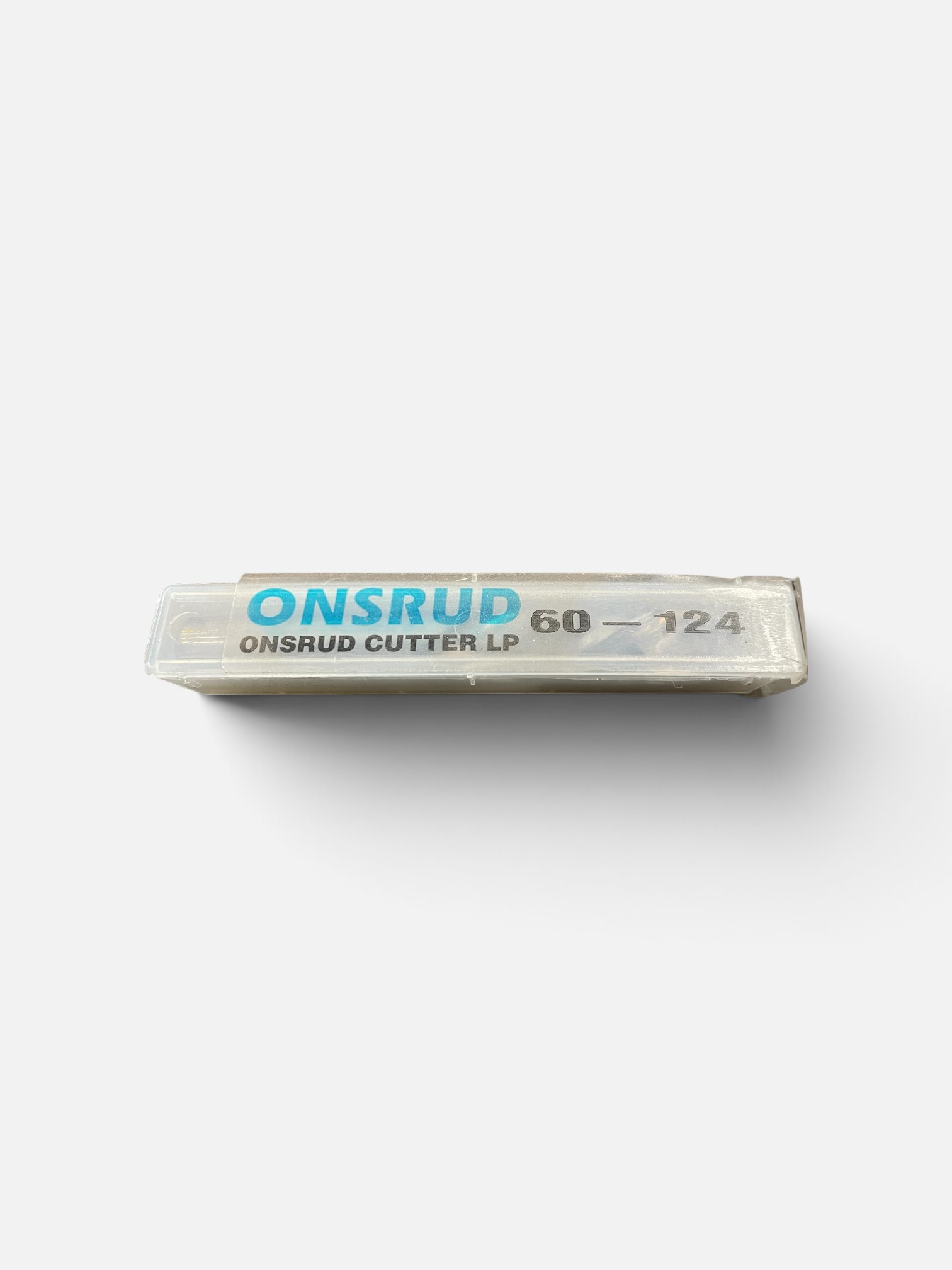

• 1 × Onsrud 60-124 Solid Carbide Compression Router Bit
