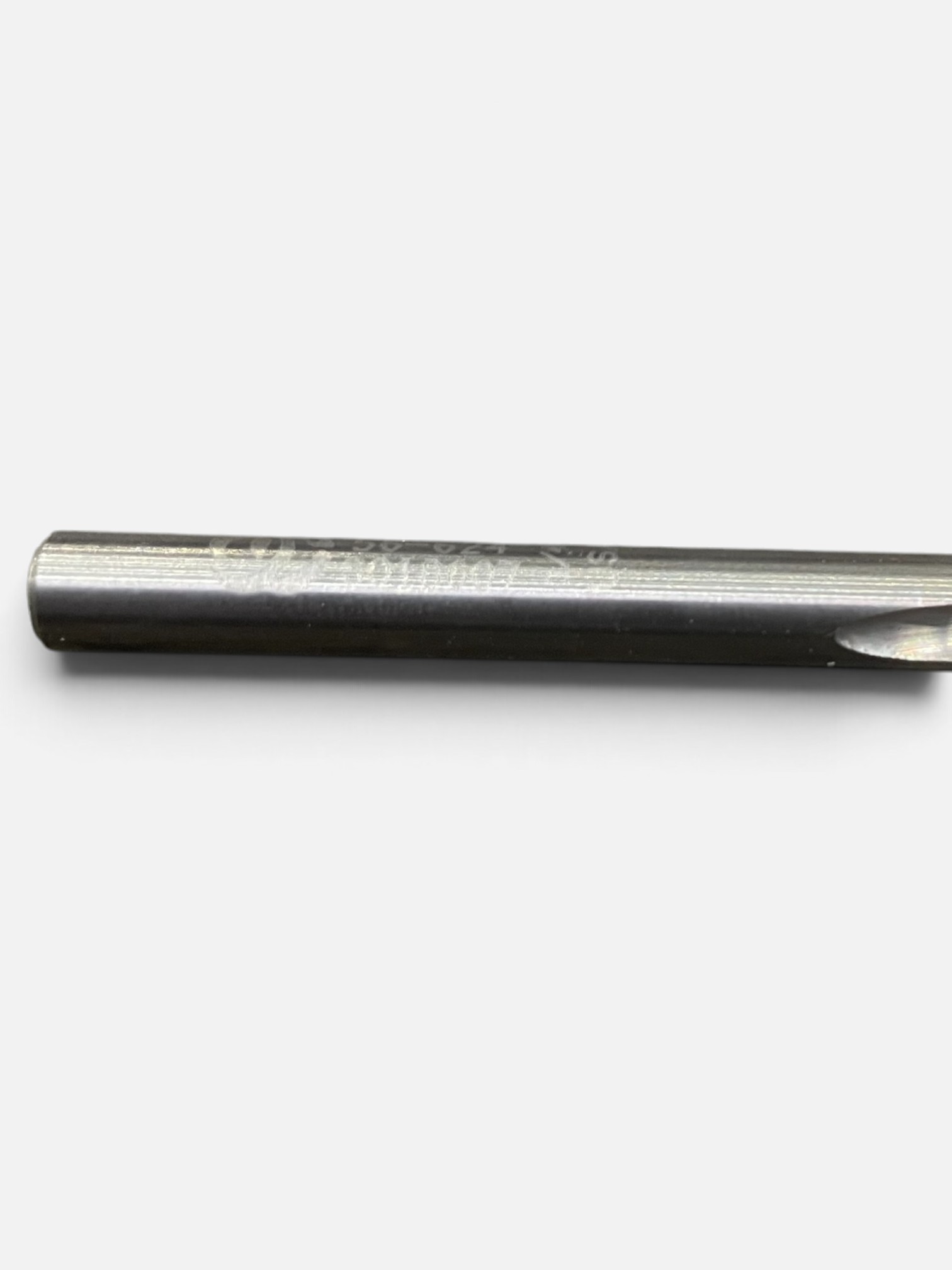

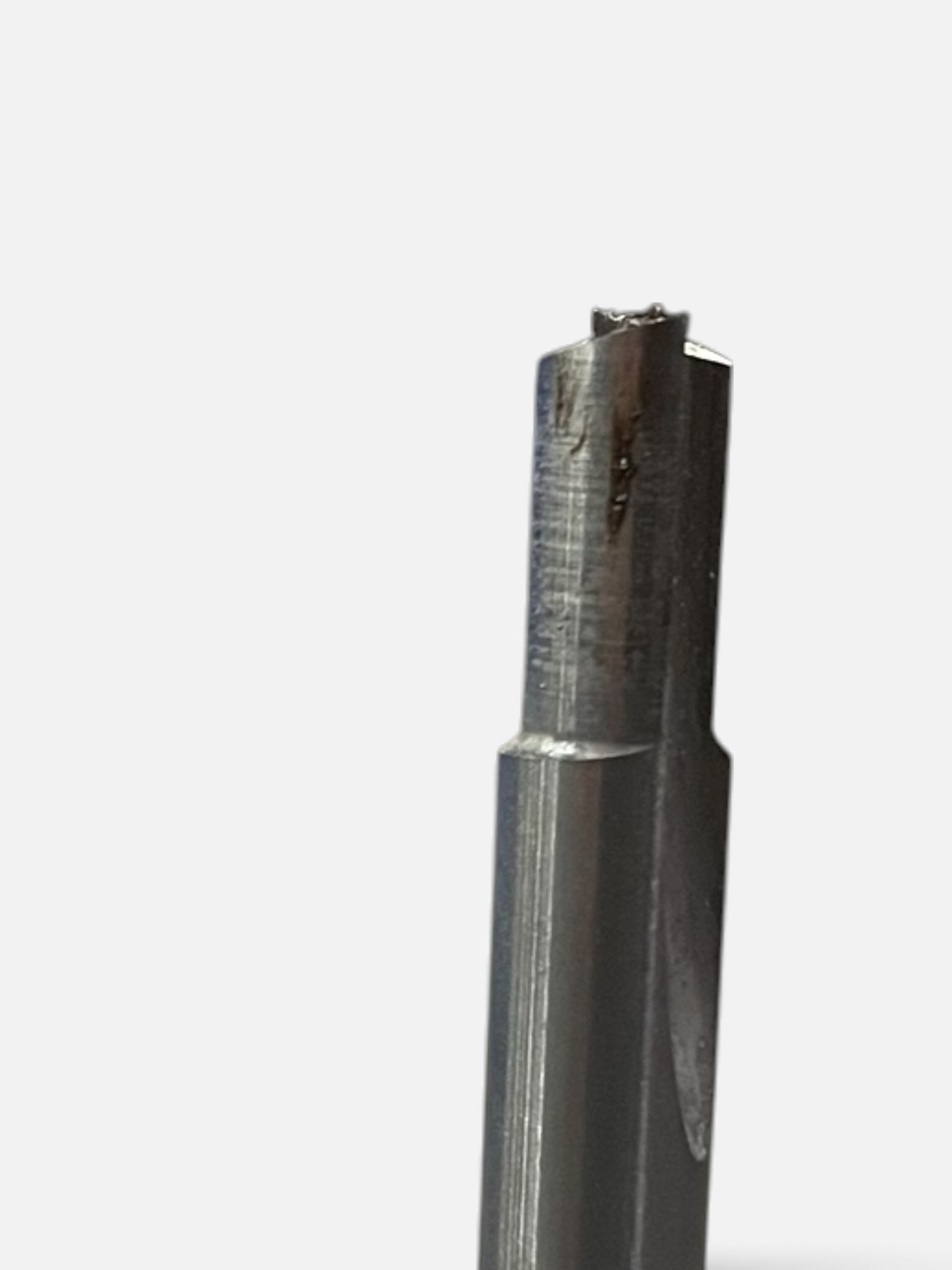

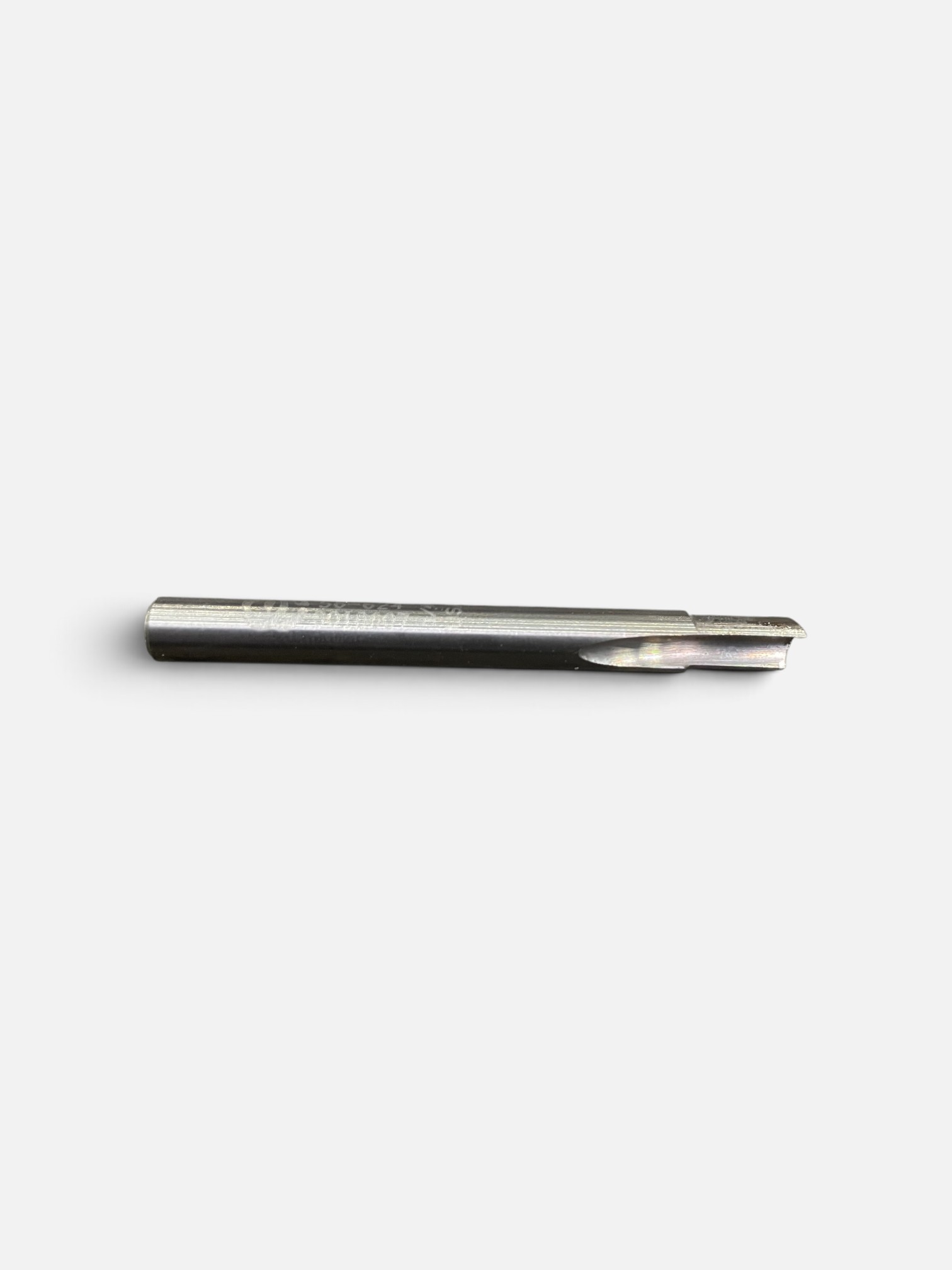

Onsrud 56-624 Solid Carbide 2-Flute Straight O-Flute Router Bit 1/4" (DMS P/N CUT-OC-56-624)
Onsrud 56-624 Solid Carbide 2-Flute Straight O-Flute Router Bit 1/4" (DMS P/N CUT-OC-56-624) - Image 2
Onsrud 56-624 Solid Carbide 2-Flute Straight O-Flute Router Bit 1/4" (DMS P/N CUT-OC-56-624) - Image 3
Onsrud 56-624 Solid Carbide 2-Flute Straight O-Flute Router Bit 1/4" (DMS P/N CUT-OC-56-624) - Image 4
Onsrud 56-624 Solid Carbide 2-Flute Straight O-Flute Router Bit 1/4" (DMS P/N CUT-OC-56-624) - Image 5

Onsrud 56-624 Solid Carbide 2-Flute Straight O-Flute Router Bit 1/4″ (DMS P/N CUT-OC-56-624)

$29.28

5 in stock

SKU CUT-OC-56-624 Category Tag

The Onsrud 56-624 is a solid carbide 2-flute straight O-flute router bit designed for CNC machining of soft and hard plastics. The straight O-flute geometry is designed to efficiently evacuate chips and help prevent chip adhesion during plastic machining.

Features

  • Manufacturer: Onsrud / LMT Onsrud
  • Part Number: 56-624
  • Series: 56-600
  • Tool Type: Straight O-Flute Router Bit
  • Material: Solid Carbide
  • Flute Count: 2
  • Cutting Diameter: 1/4″ (0.250″)
  • Length of Cut: 3/8″ (0.375″)
  • Shank Diameter: 1/4″
  • Overall Length: 2-1/2″
  • Helix Angle: 0°
  • Cutting Direction: Right Hand
  • Cutting Type: Center Cutting
  • Coating: Uncoated

Applications

  • CNC Routers
  • Soft Plastics
  • Hard Plastics
  • Acrylic
  • ABS
  • PVC
  • HDPE
  • Polycarbonate
  • Plastic Fabrication
  • Industrial CNC Routing

Included

  • 1 × Onsrud 56-624 Solid Carbide Router Bit

Additional information

Dimensions 6 × 2 × 2 in
