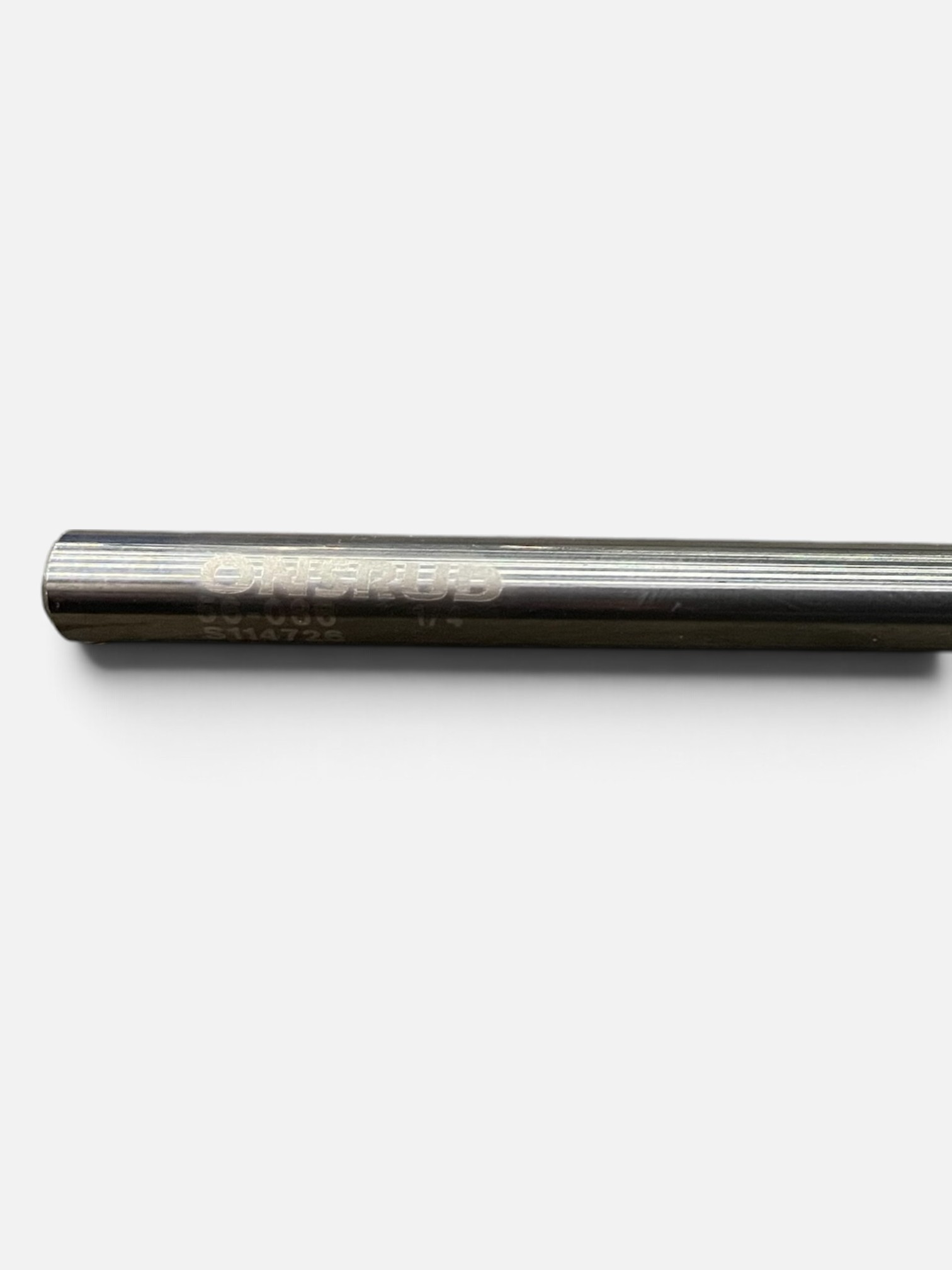

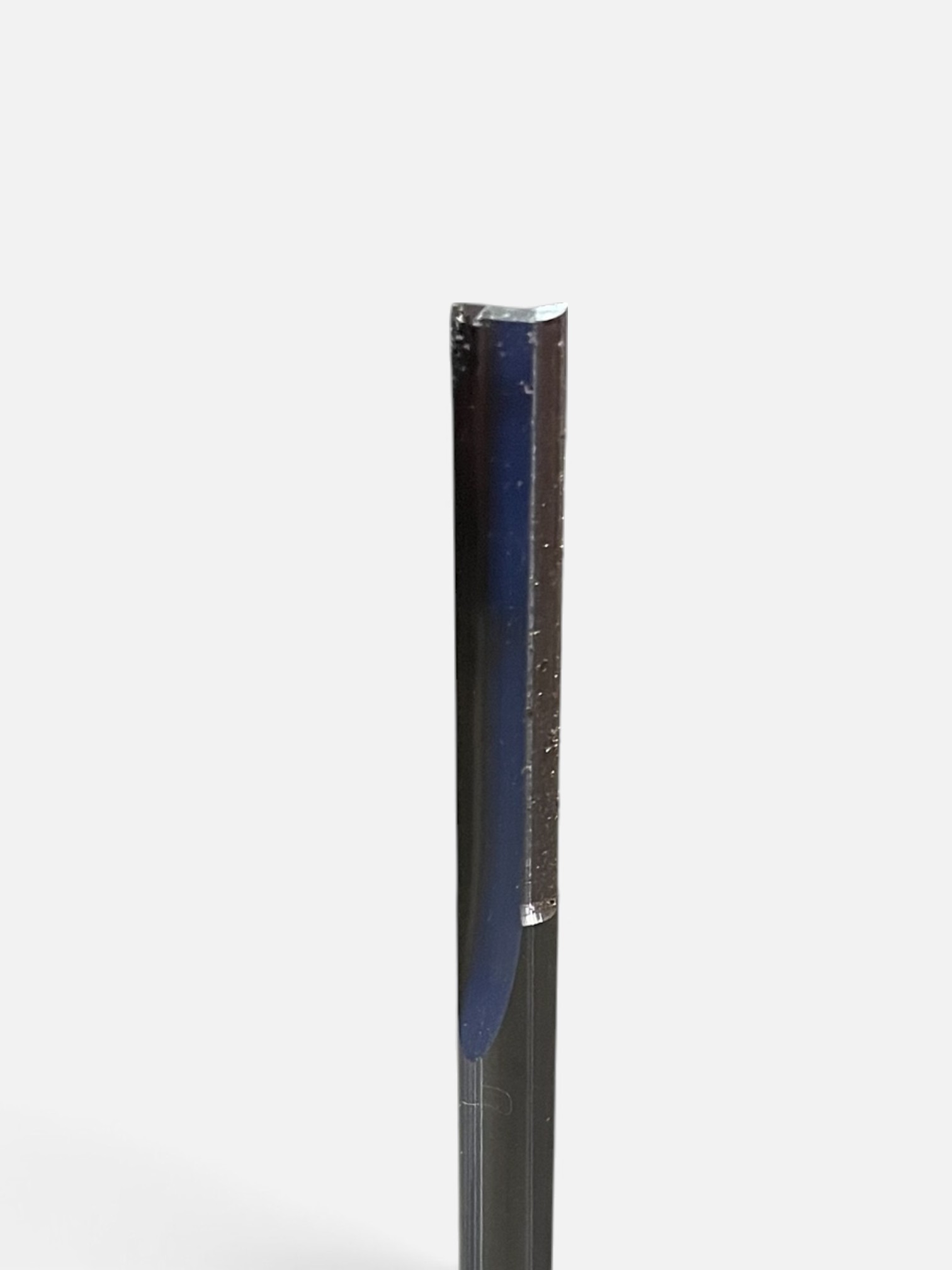

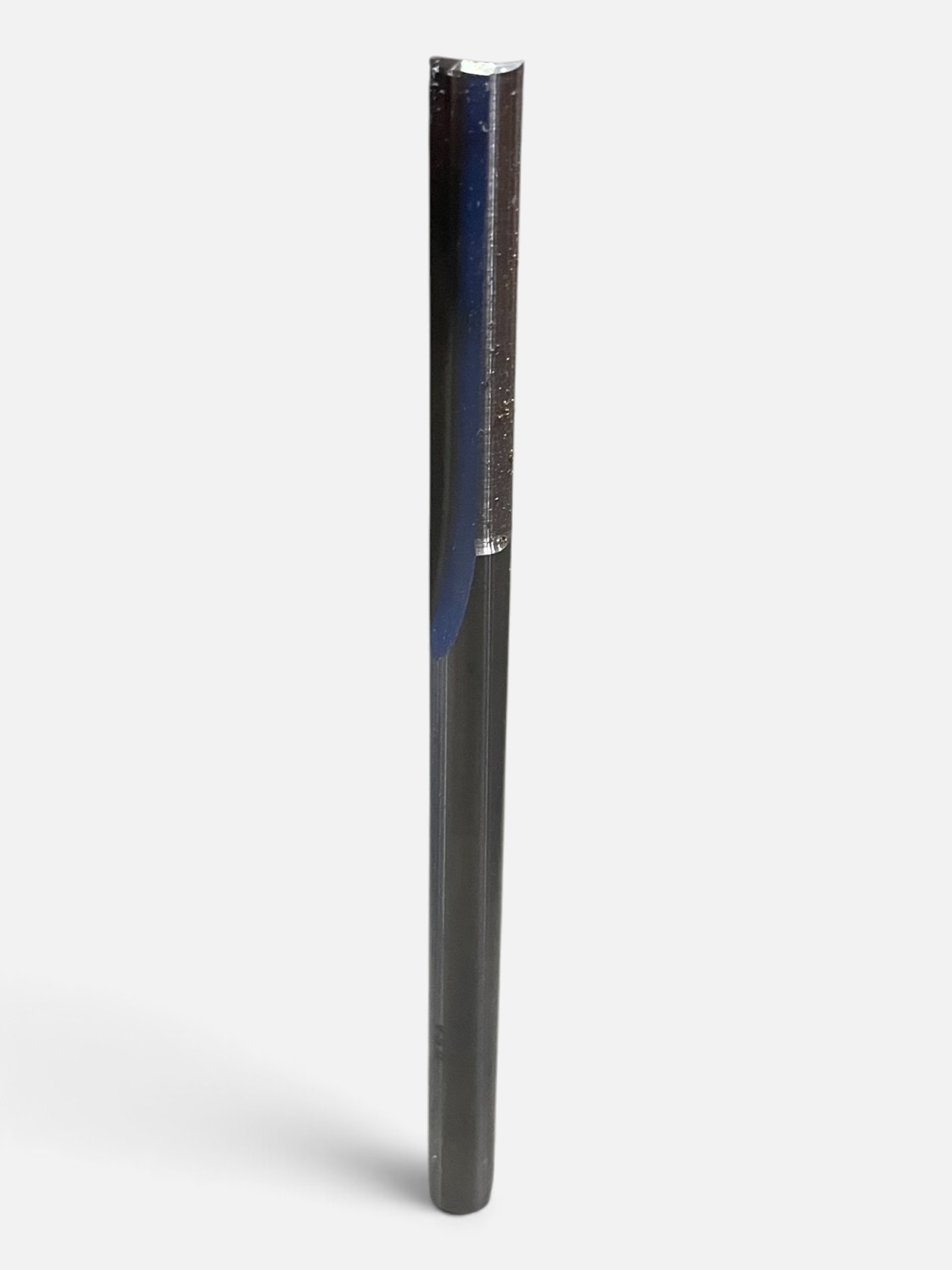

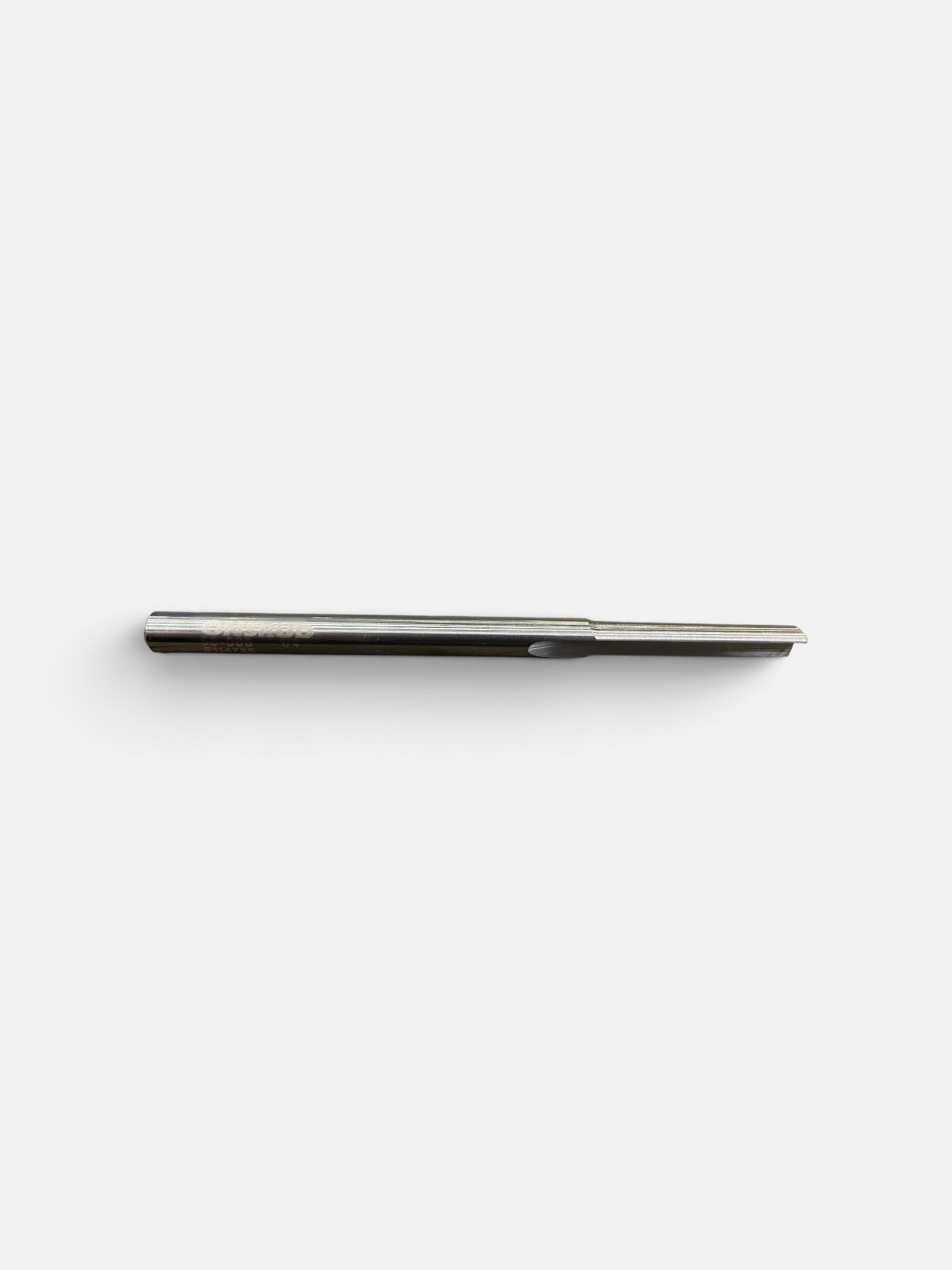

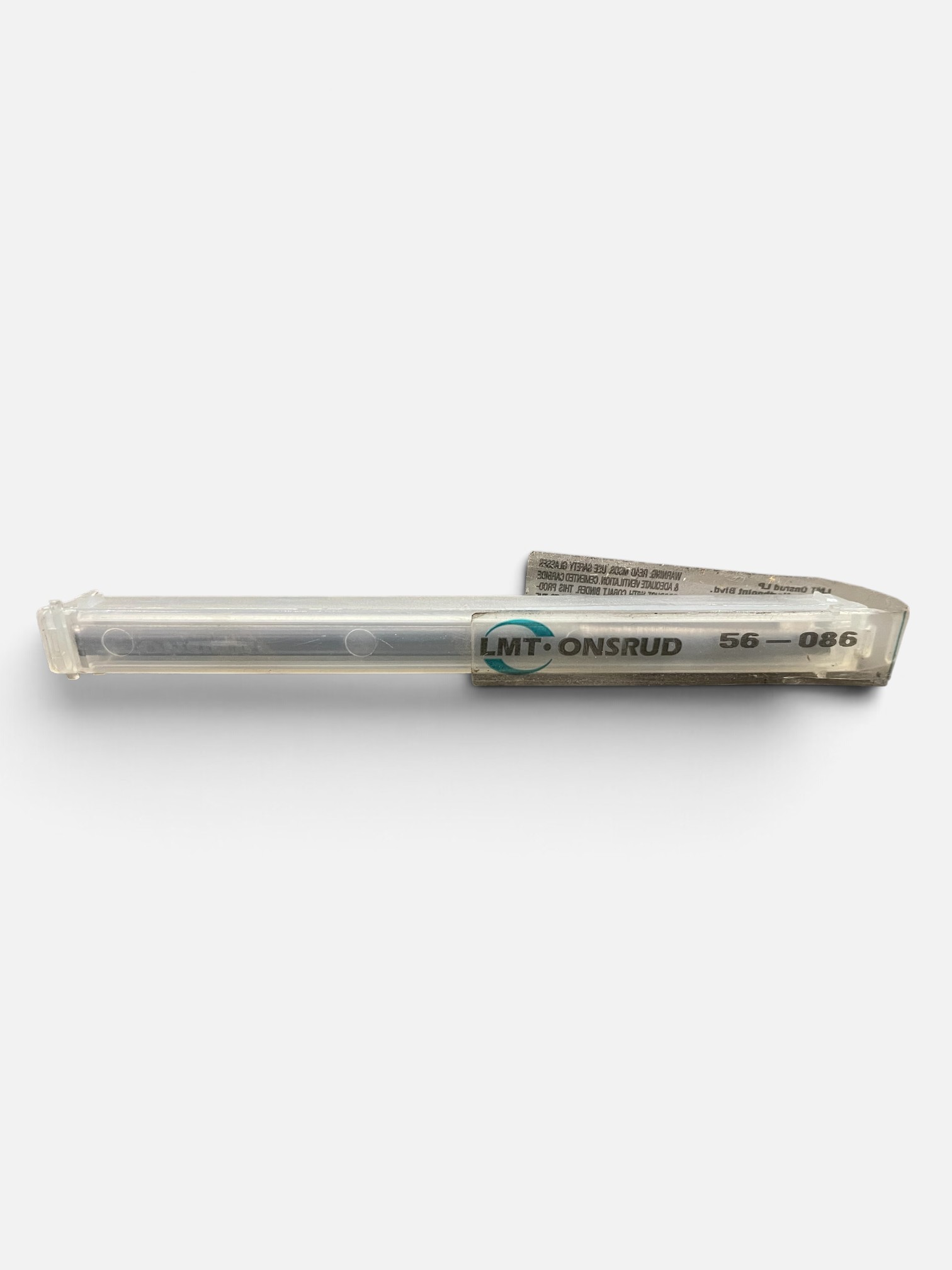

Onsrud 56-086 Solid Carbide 2-Flute Straight V-Flute Router Bit 1/4″ CNC

The Onsrud 56-086 is a solid carbide, 2-flute straight V-flute router bit designed specifically for routing harder, more rigid plastics. Its extended 4-inch overall length provides additional reach for specialized CNC routing applications.

According to Onsrud specifications, the 56-086 features a 1/4″ cutting diameter, 1-1/4″ length of cut, 1/4″ shank, and 4″ overall length. It is designed for applications involving hard plastics, composite plastics, solid surface materials, and foam.

Features

• Manufacturer: Onsrud
• Part Number: 56-086
• Tool Type: Straight V-Flute Router Bit
• Material: Solid Carbide
• Flute Count: 2
• Cutting Diameter: 1/4″ (0.250″)
• Length of Cut: 1-1/4″ (1.250″)
• Shank Diameter: 1/4″
• Overall Length: 4″
• Straight V-flute design
• Extended-length configuration
• Designed for harder, rigid plastics
• Precision CNC cutting tool

Applications

• CNC Routers
• Hard Plastics
• Composite Plastics
• Solid Surface Materials
• Foam
• Acrylic
• Nylon
• PVC
• ABS
• Acetal
• Industrial CNC Routing

Included

• 1 × Onsrud 56-086 Router Cutter
