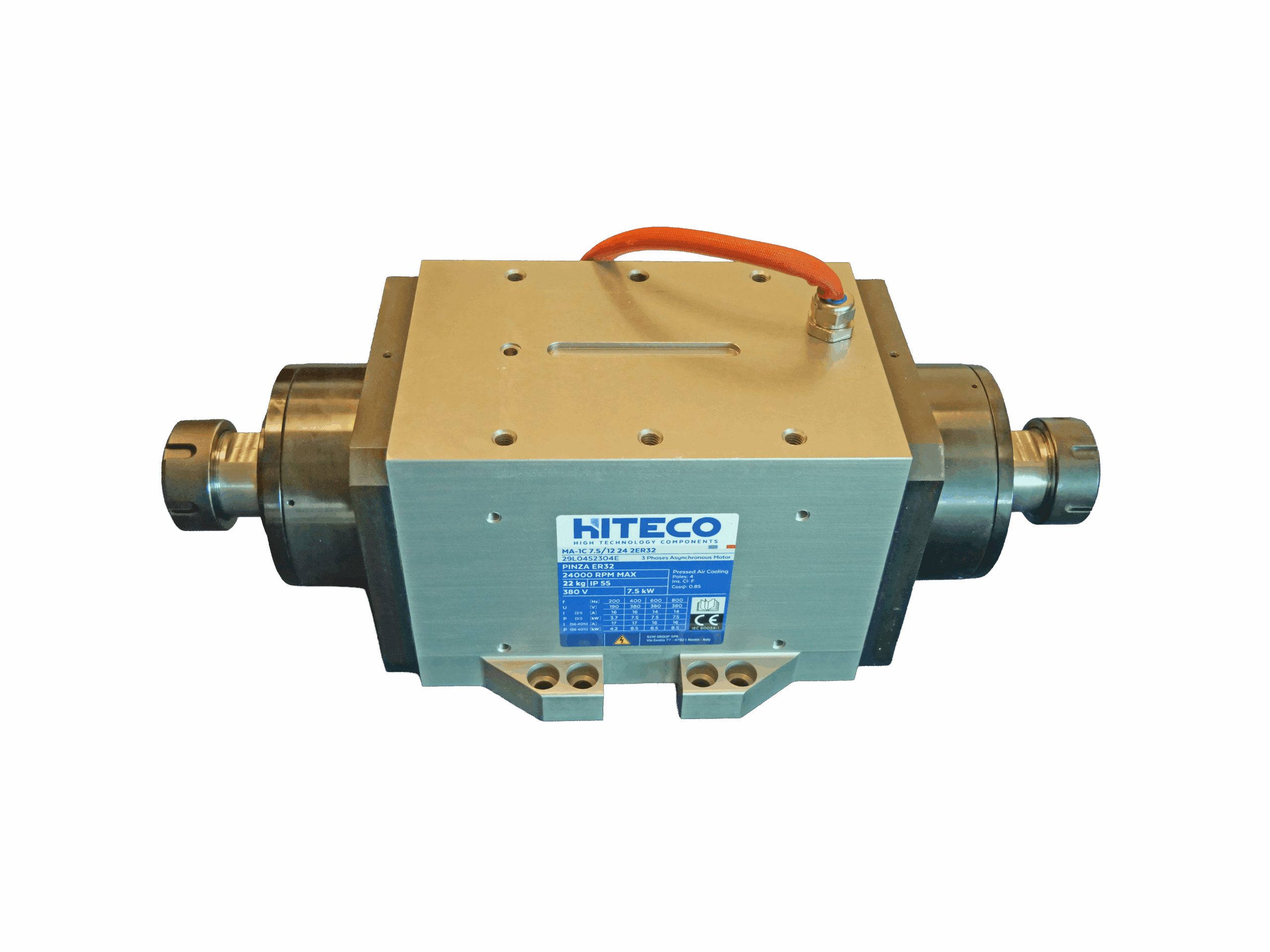

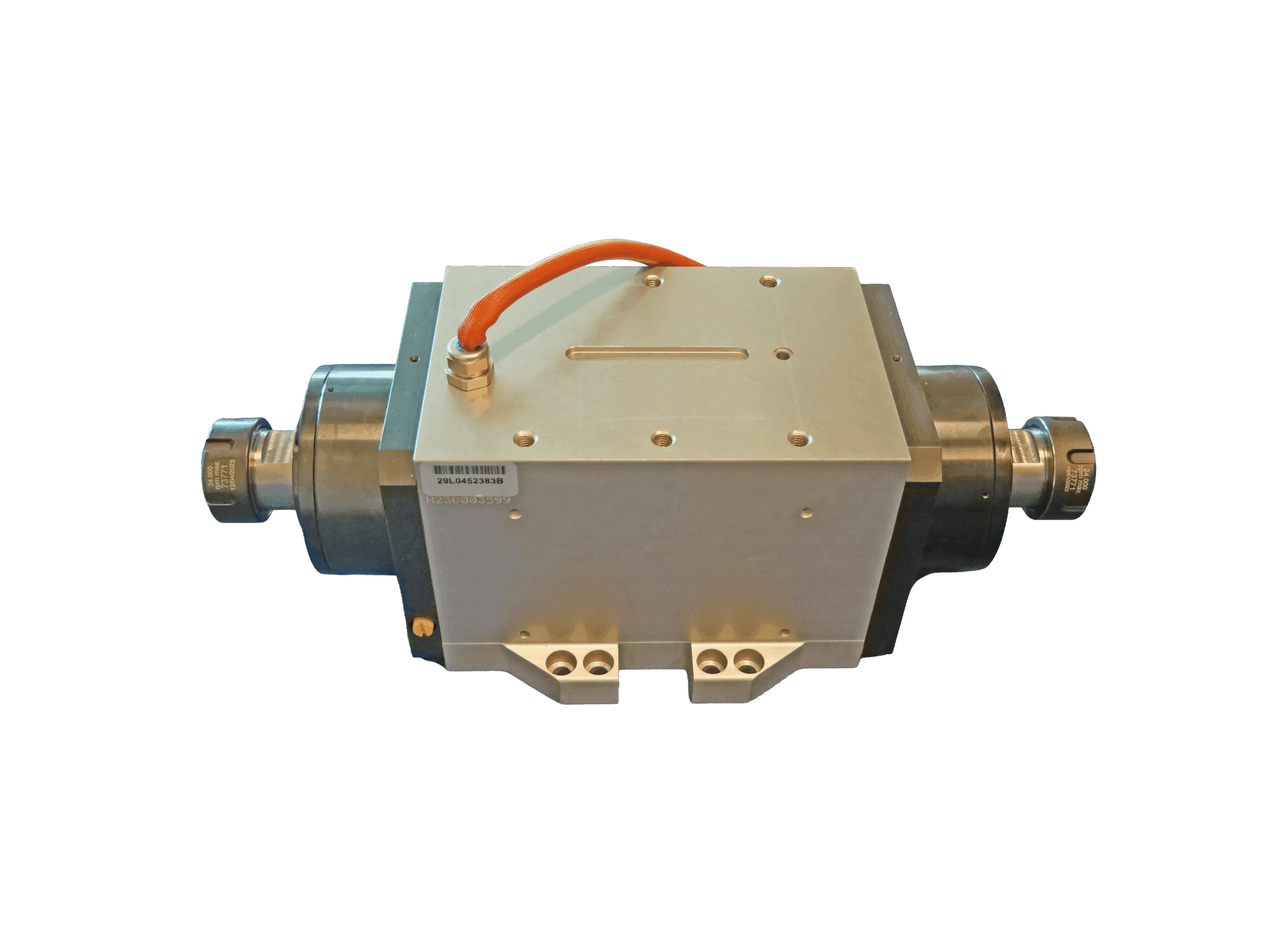

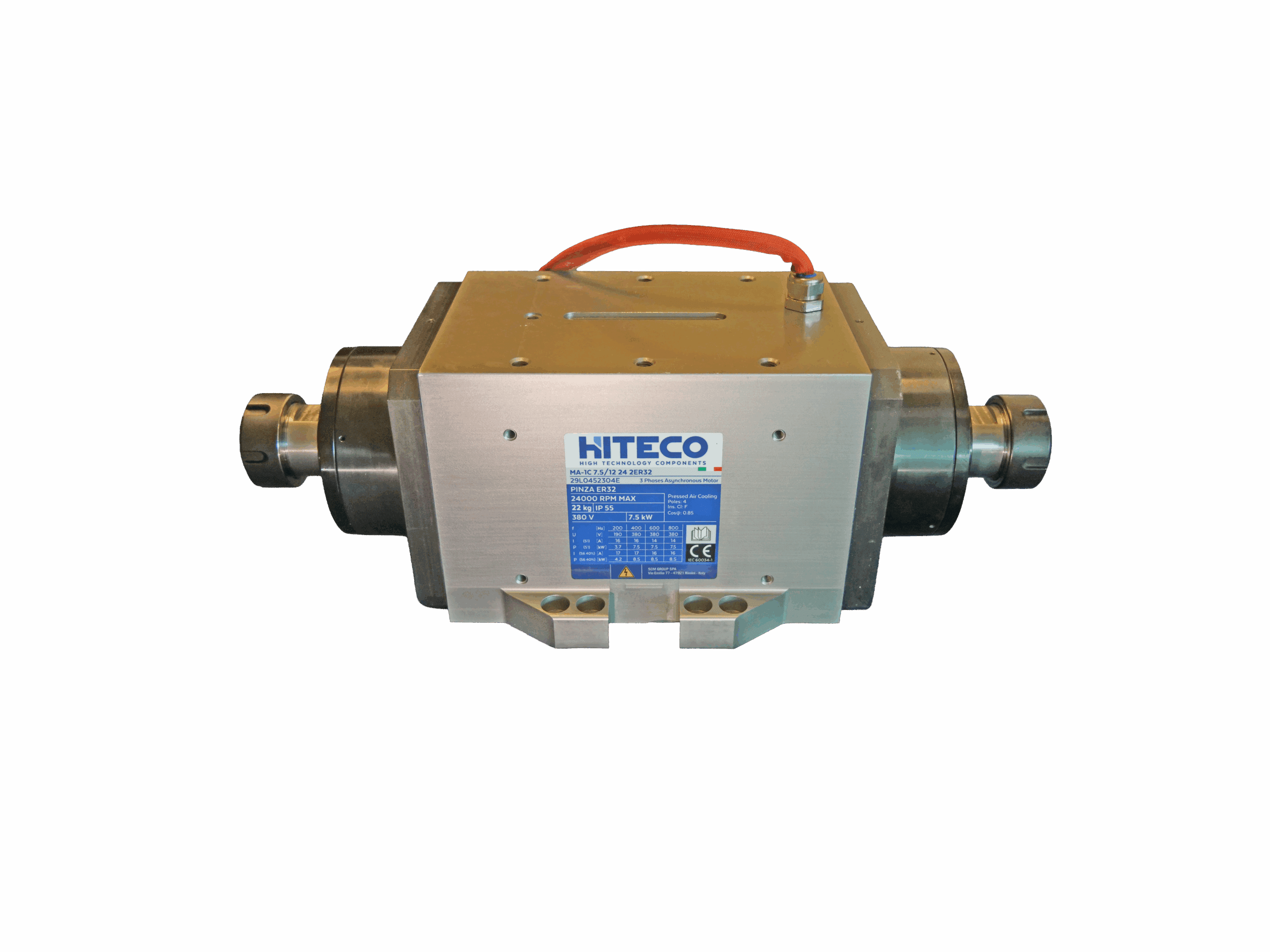

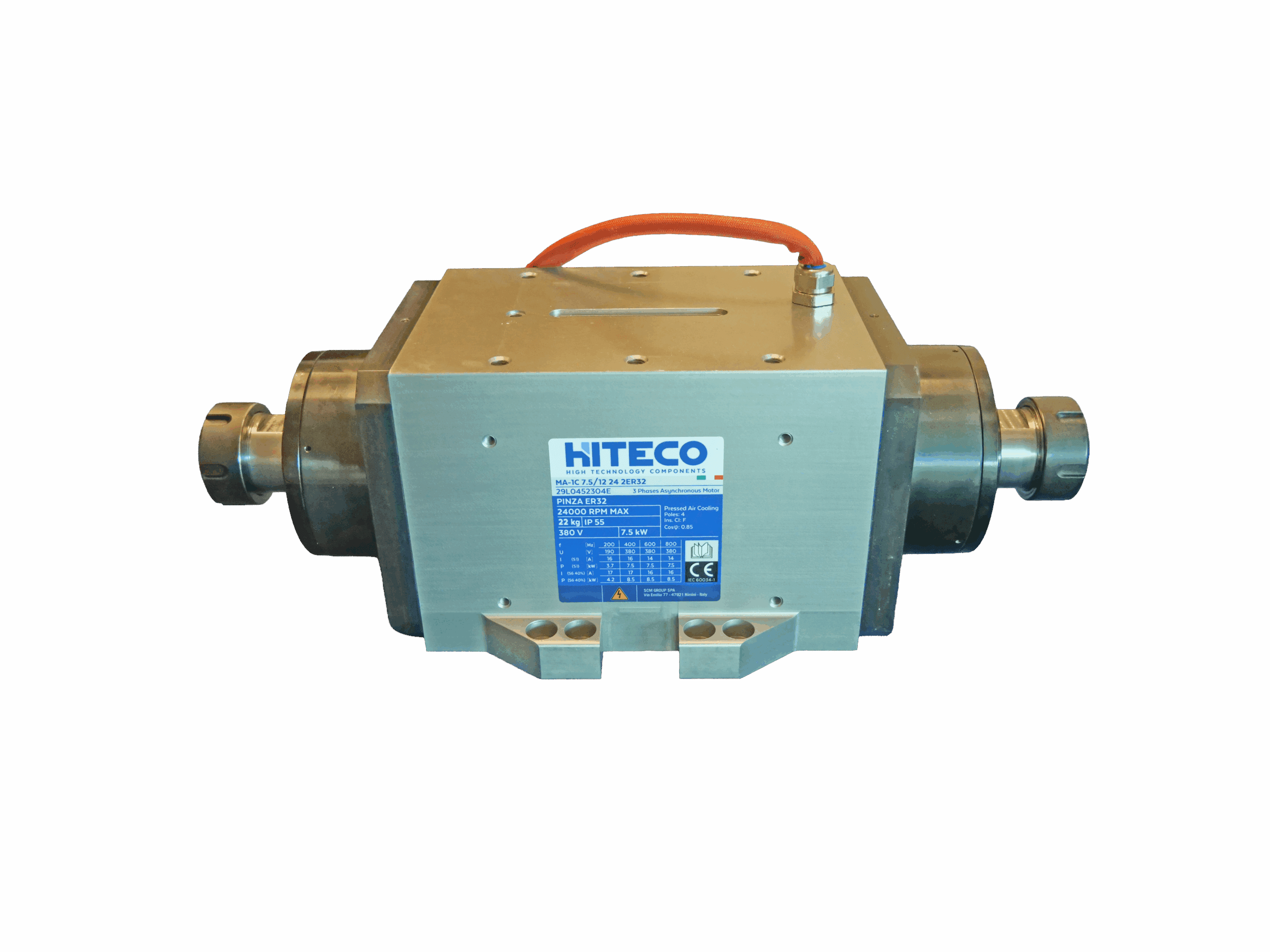

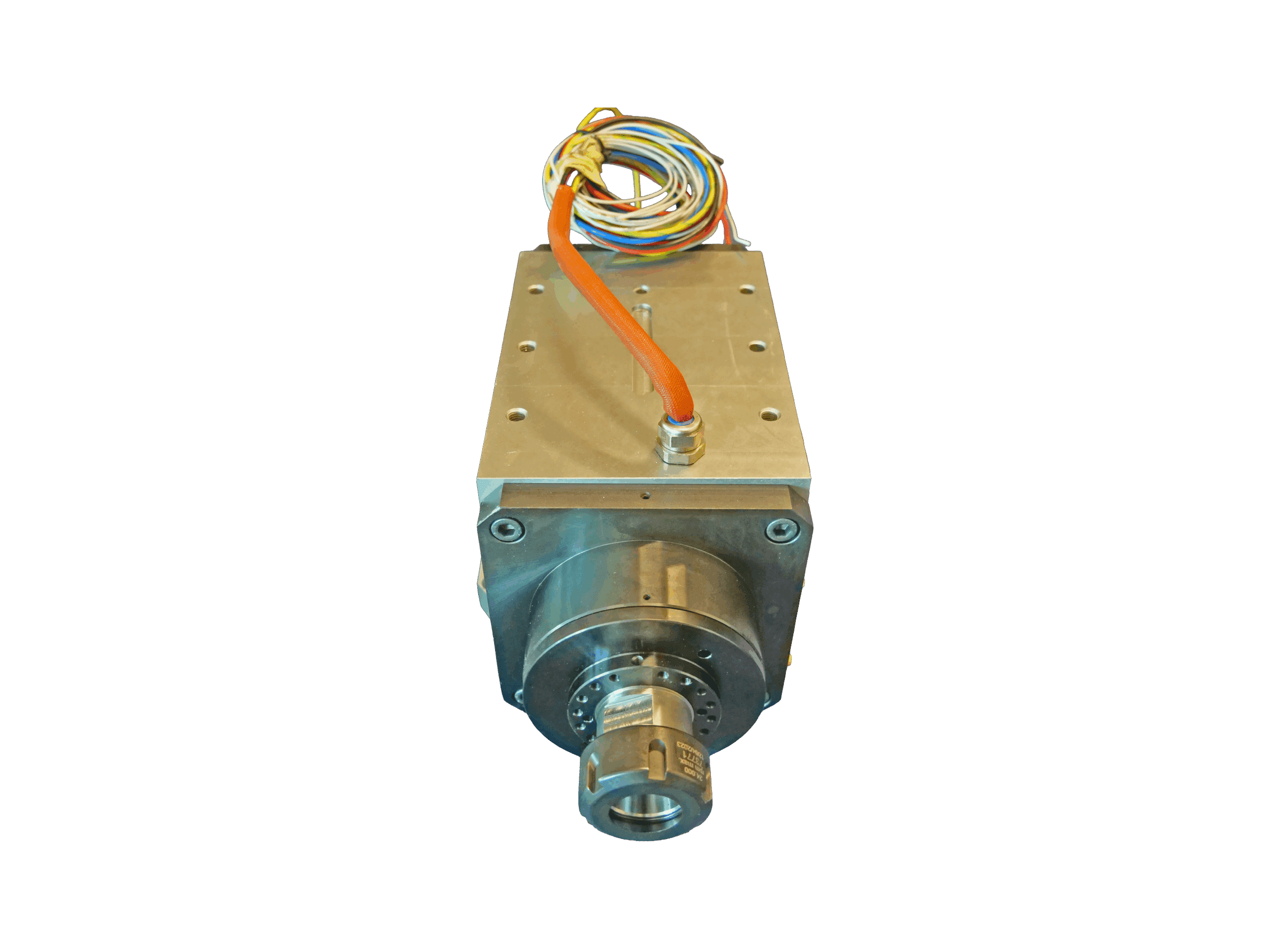

Hiteco MA-1C Double-Ended Spindle – 7.5kW, ER32, 380V, Air Cooled

The Hiteco MA-1C 7.5/12 24 2ER32 is a high-performance, air-cooled CNC spindle engineered for demanding industrial machining. This model features a double-ended ER32 collet design, allowing tooling on both ends for increased versatility in complex operations or multi-tool workflows. Operating at 380V, the spindle delivers 7.5kW (S1) continuous power and up to 8.5kW (S6) peak output, providing strong cutting performance across wood, plastics, composites, and non-ferrous materials. Its compact short-nose configuration and rigid construction make it suitable for precision routing, trimming, and automated production environments requiring dependable accuracy and stability. Built with Hiteco’s robust industrial engineering, this spindle offers excellent longevity, low maintenance needs, and smooth high-speed operation, making it an ideal upgrade or replacement for DMS and other CNC systems.

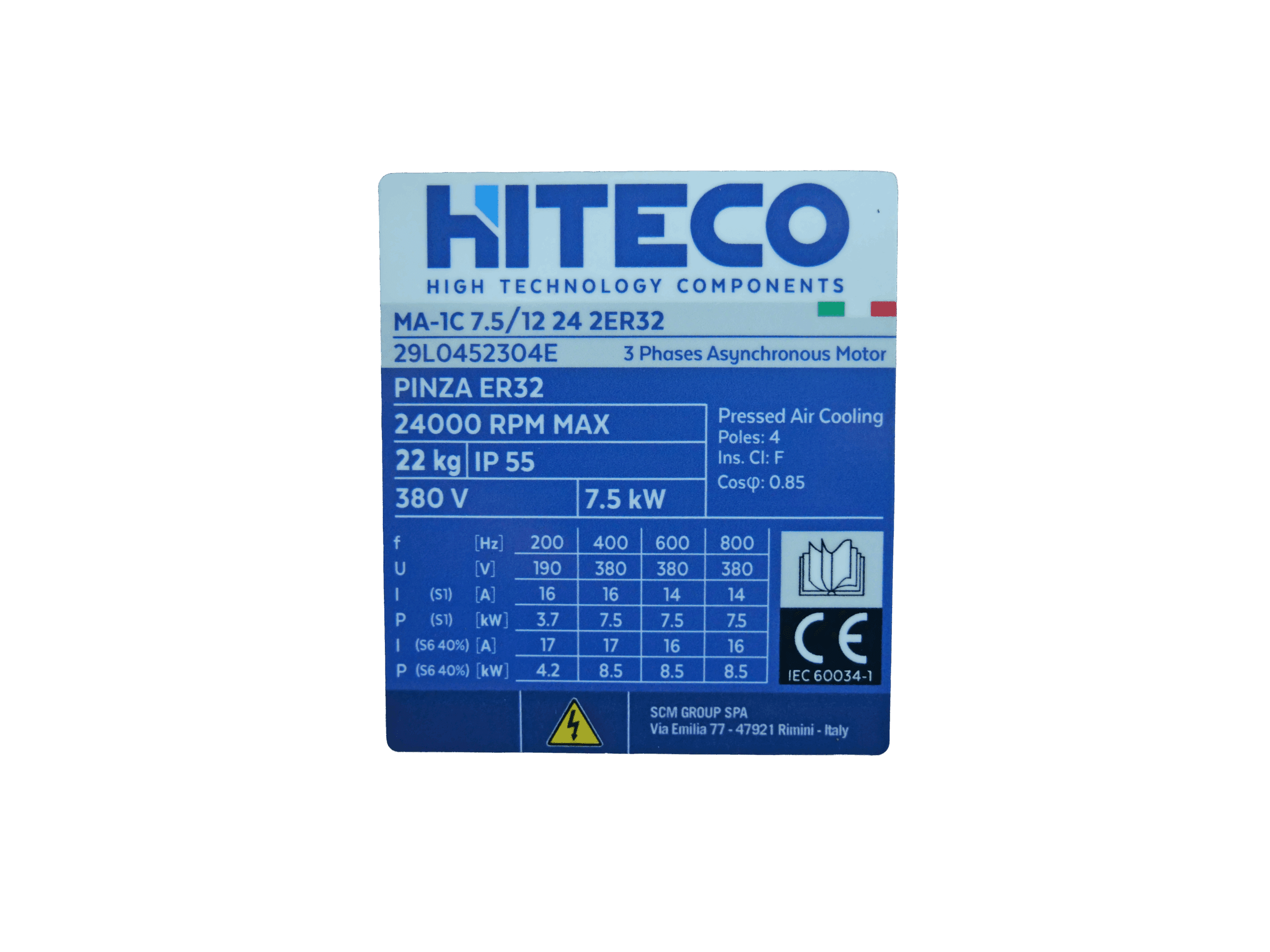

• Specifications:
  ◦ Manufacturer: Hiteco
  ◦ Model: MA-1C 7.5/12 24 2ER32
  ◦ Voltage: 380V
  ◦ S1 Power: 7.5kW / 10HP
  ◦ S6 Power: 8.5kW / 11.4HP
  ◦ Cooling Type: Air cooled
  ◦ Tooling: ER32 (double-ended)
  ◦ Nose Style: Short nose
  ◦ Max Speed: 24,000 RPM
  ◦ Spindle Type: Dual-collet spindle motor
  ◦ Item Number: 29L0452304E
• Applications:
  ◦ CNC routers requiring dual-ended tooling capability
  ◦ Wood, plastic, and composite machining
  ◦ Multi-tool cutting workflows without tool changer systems
  ◦ Industrial trimming, shaping, and routing automation
• Features & Benefits:
  ◦ Double-ended ER32 design for dual-tool capability
  ◦ High-power air-cooled spindle for continuous production
  ◦ Strong torque output for heavy cutting loads
  ◦ Short-nose configuration for compact machine layouts
  ◦ Built for precision, stability, and long-term industrial use
