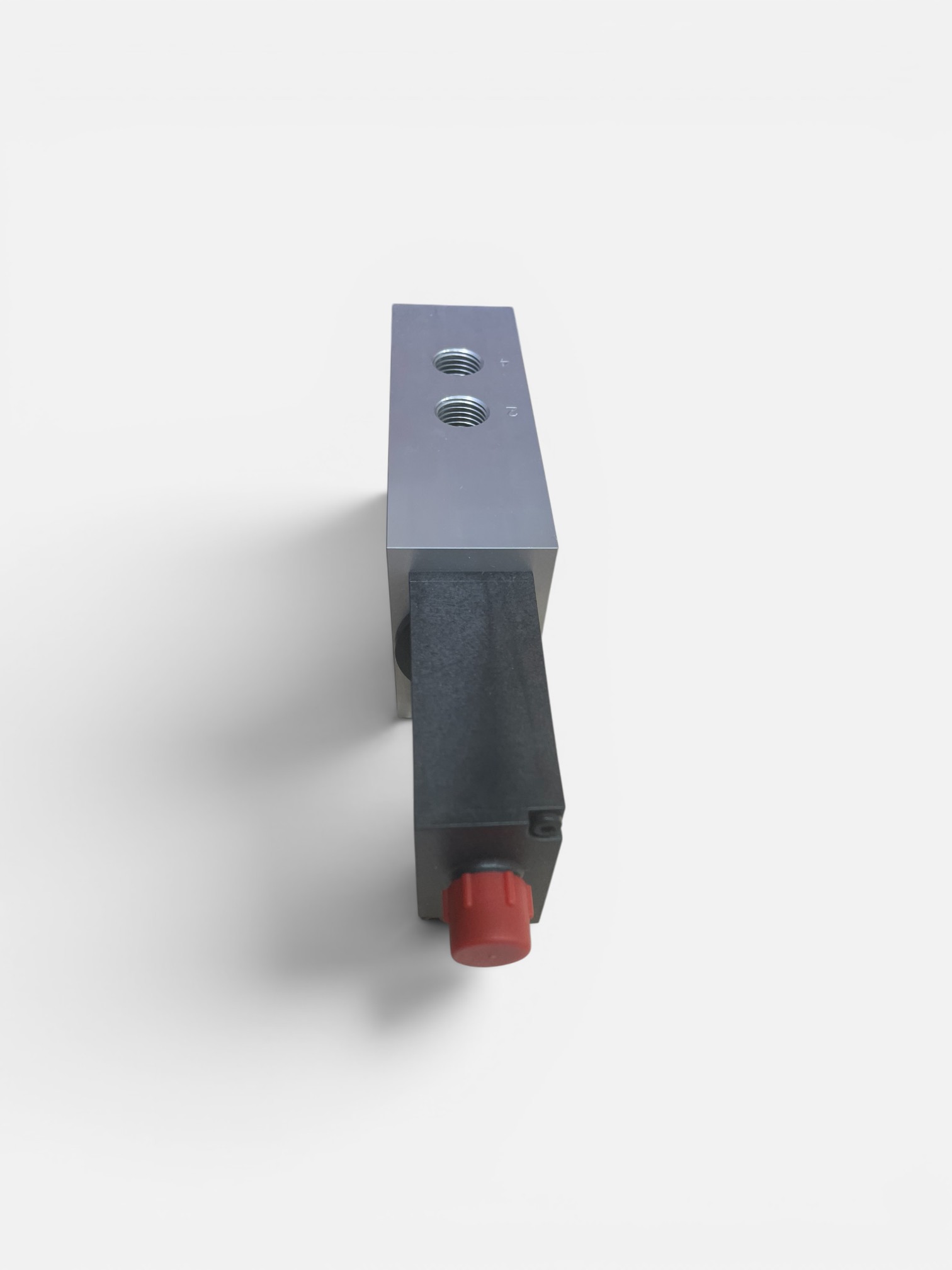

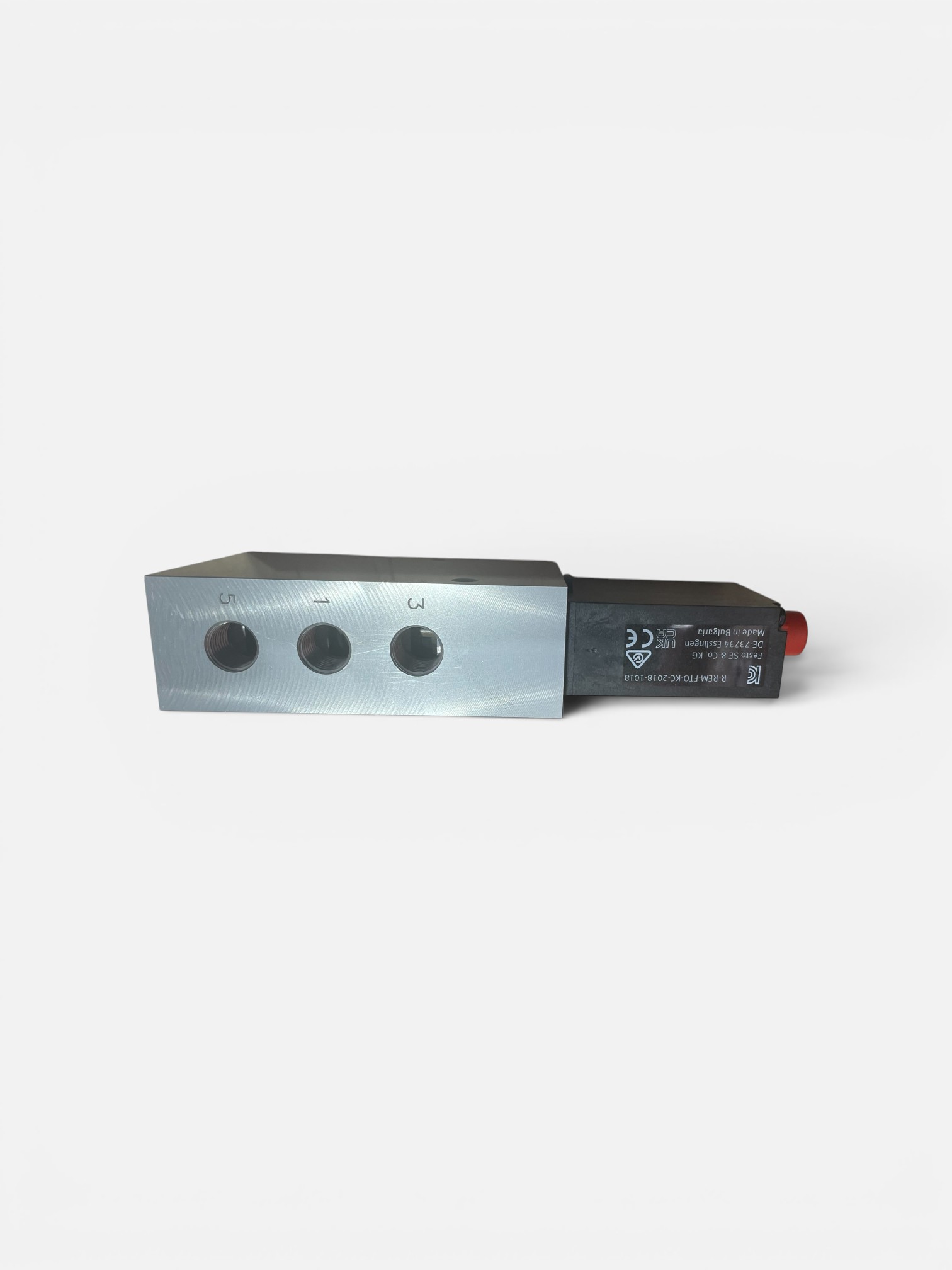

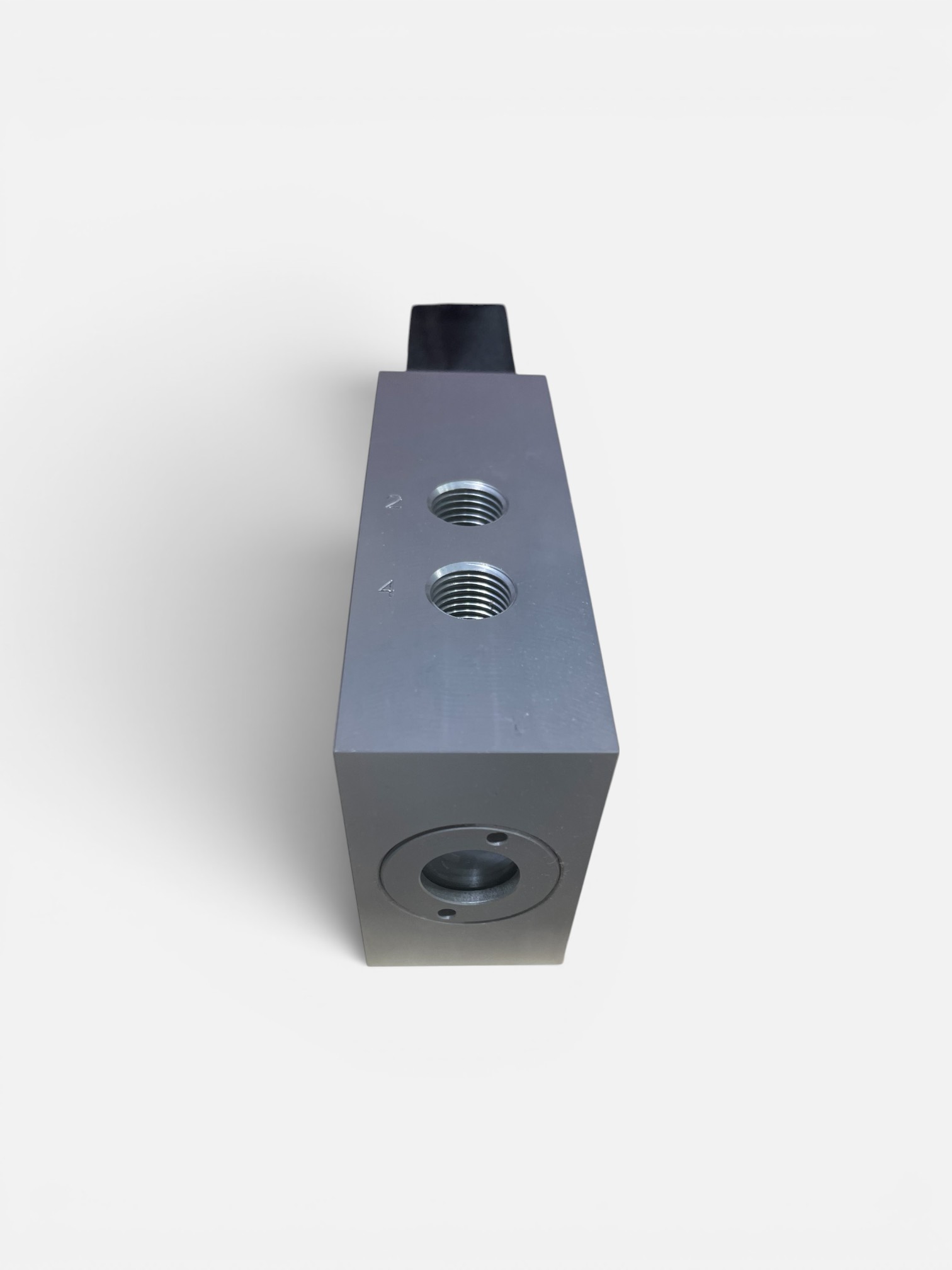

Festo MPYE-5-1/4-010-B Proportional Directional Control Valve 5/3 G1/4 151694

Festo MPYE-5-1/4-010-B Proportional Directional Control Valve (Part No. 151694). This high-performance proportional valve provides precise control of airflow for servo-pneumatic applications, making it ideal for industrial automation, CNC machinery, robotics, and motion control systems.

Designed with a 5/3 closed center configuration, this valve offers accurate proportional control using a 0–10 V analog input, delivering smooth and repeatable performance.

Features

• Manufacturer: Festo
• Model: MPYE-5-1/4-010-B
• Part Number: 151694
• Valve Function: 5/3 Closed Center
• Type: Proportional Directional Control Valve
• Port Size: G 1/4
• Nominal Flow Rate: 1400 L/min
• Operating Voltage: 17–30 VDC
• Analog Control Signal: 0–10 V
• Operating Pressure: 0–10 bar (0–145 psi)
• Electrical Connection: 4-Pin M12
• Mounting Position: Any
• Housing Material: Anodized Aluminum
• Protection Rating: IP65
• Weight: Approximately 1.1 lbs (510 g)

Applications

• Industrial Automation
• CNC Equipment
• Servo Pneumatic Systems
• Motion Control
• Packaging Machinery
• Assembly Equipment
• Robotics


  Package Includes

  • (1) Festo MPYE-5-1/4-010-B Proportional Directional Control Valve
