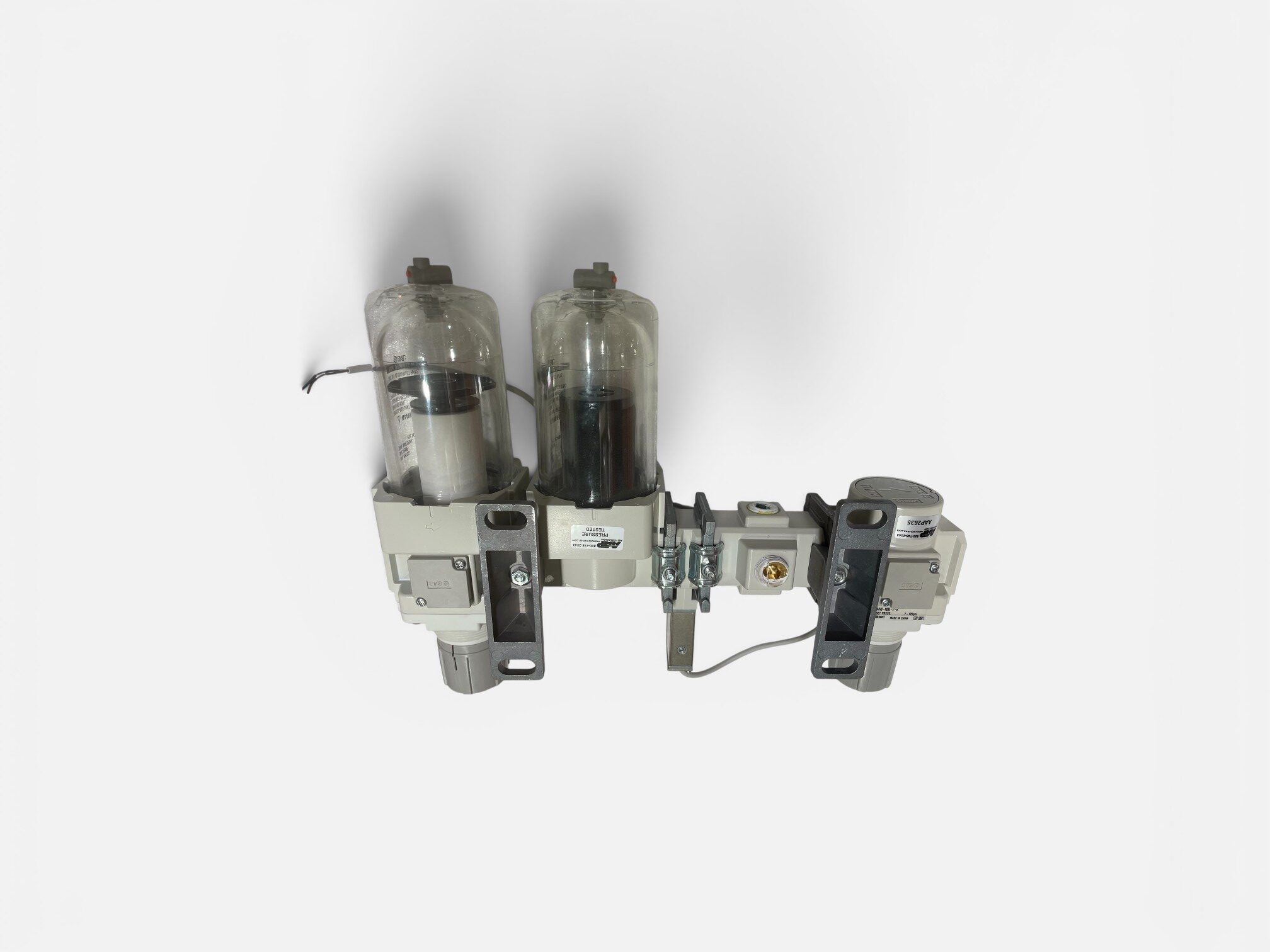

This Main System Air Kit is a professionally assembled pneumatic FRL (Filter, Regulator, Lubricator) system built by DMS using genuine SMC components. Designed to provide clean, regulated compressed air for industrial automation, CNC machinery, and pneumatic equipment.
The assembly combines filtration, isolation, pressure regulation, and connection hardware into a ready-to-install air preparation system, reducing installation time and improving system reliability.
Assembly Information
- Assembled by: DMS Technicians
- Assembly Name: Main System Air Kit
- Assembly Number: AAP3642
- Revision: REV 01
Kit Includes
- (1) SMC AW40-N03CE-Z-D Filter Regulator
- (1) SMC AW40-N04CE-Z-D Filter Regulator
- (1) SMC AF40-N03C-Z-D Air Filter
- (1) SMC AR40-N03E-Z-D Pressure Regulator
- (1) SMC VHS40-N03-Z-D Lockout Valve
- (1) SMC VHS44P-190AS Handle Assembly
- (1) SMC IS10M-40-6LP-D Pressure Switch
- (1) SMC Y44-N03-D Bracket
- (2) SMC Y400T-D Mounting Brackets
- (3) SMC Y400-D Mounting Brackets
- (5) SMC KK2S-04H One-Touch Fittings
- (5) SMC KK2P-04H One-Touch Fittings
- (10) Part #9020-01 Fittings
Features
- Complete industrial air preparation assembly
- Genuine SMC pneumatic components
- Ready for installation
- Provides filtration and pressure regulation
- Includes lockout valve for maintenance safety
- Ideal for compressed air distribution systems
- Suitable for industrial automation and CNC equipment
Applications
- CNC Machine Tools
- Industrial Automation
- Manufacturing Equipment
- Pneumatic Control Systems
- Robotics
- Packaging Machinery
- Assembly Equipment
- OEM Machine Builds
Item Specifics
- Brand: DMS / SMC
- Assembly Number: AAP3642
- Revision: REV 01
- Product Type: Main System Air Kit
- System Type: FRL Assembly
- Mounting Style: Panel Mount
- Media: Compressed Air
