Freedom4
Compact Industrial CNC for Small Shops and Specialty Manufacturing

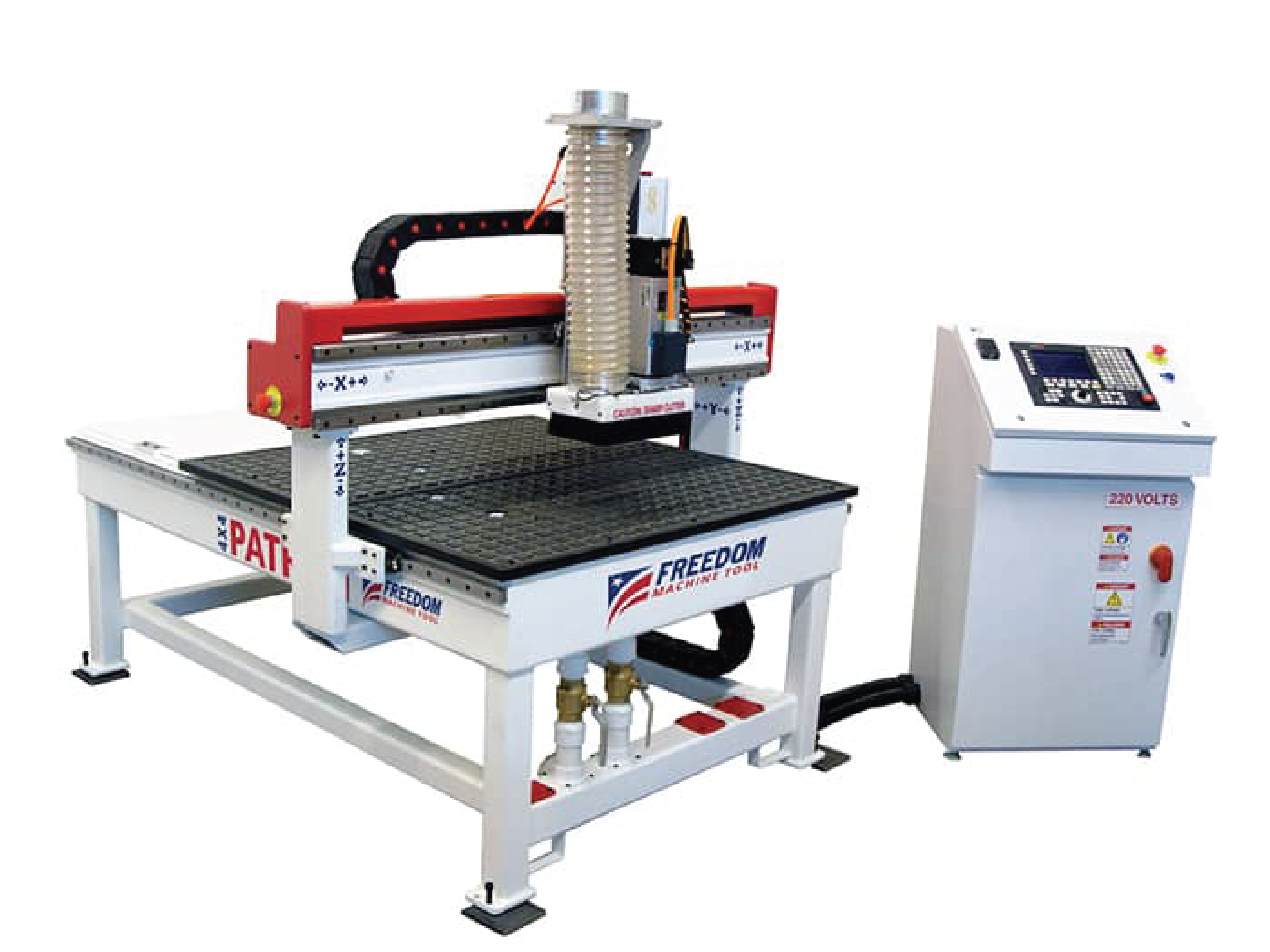

The Freedom 4 CNC Router by Diversified Machine Systems (DMS) delivers industrial-grade performance in a compact footprint. Designed for tight workspaces like garage shops, home-based operations, and specialty manufacturing facilities, the Freedom 4×4 offers powerful, precise motion control in a size-conscious design.
With a full 48″ x 48″ cutting area and 12″ of Z-axis travel, it’s ideal for applications like orthotics, custom plastics, and small-run prototyping. Built on a rigid steel frame with high-speed motion components, the Freedom 4×4 is a trusted choice for small businesses and professionals who need precision without sacrificing space.
Support & Warranty
• 3-axis CNC router with moving gantry design
• Fagor 8070 OL industrial controller with 17” color LCD
• Rigid steel frame for stability and repeatability
• Ball screw drive on all axes for high-precision motion
– Fagor AC servo motors & amplifiers across all axes
• 4’x4’ phenolic table (aluminum available as upgrade)
• Dust collection hood accepts 5″ line from user’s system
• Optional Becker vacuum pump: 10 or 15 HP
• Hiteco 10 HP electro spindle standard (optional upgrades available)
• Connectivity via Ethernet, USB, and Serial Port
• Cutting Area: 48” x 48”
• Z-Axis Travel: 12” with 9” clearance under bridge
• Rapid Feed Rate: Up to 1,400 IPM
• Calibration: Laser-calibrated X & Y axes
• Spindle Rotation: M04 M-code for reverse operation
• Power Requirements: 220V, 3-phase, 60 Hz (Amps depend on spindle)
• Lubrication: Manual system
• Table Material: 1” phenolic (optional aluminum upgrade)
Wood, Foam, Composites, Aluminum, Plastics, Acrylics
Woodworking, Orthotics, Automotive, Plastics & Acrylics, Sign Making, Aerospace, Medical, Marine, Energy, Manufacturing
Compare Freedom Machines
48″
48″
12″
C Axis Optional
48″
96″
12″
C Axis Optional
60″
120″
12″
C Axis Optional
60″
144″
12″
C Axis Optional
8kW
24000
4.5-8kW
Hiteco MT200, MT201, PT300, PT400
13kW/ 15kW
24000
4.5-13kW
Hiteco MT200, MT201, PT300, PT400
8kW
24000
4.5-8kw
Hiteco MT200, MT201, PT300, PT402
8kW
24000
8kW
Hiteco PT300, PT400
Spinning Ball Nut & Recirculating Ball Screw
4’x4′
Rack-Man
Fagor + Fagor
10
Spinning Ball Nut & Recirculating Ball Screw
4’x8′
Rack-Man
Fagor + Fagor
10
Spinning Ball Nut & Recirculating Ball Screw
5’x10′
Rack-Man
Fagor + Fagor
12
Rack & Pinion
5’x12′
Rack-Man
Fagor + Fagor
12
