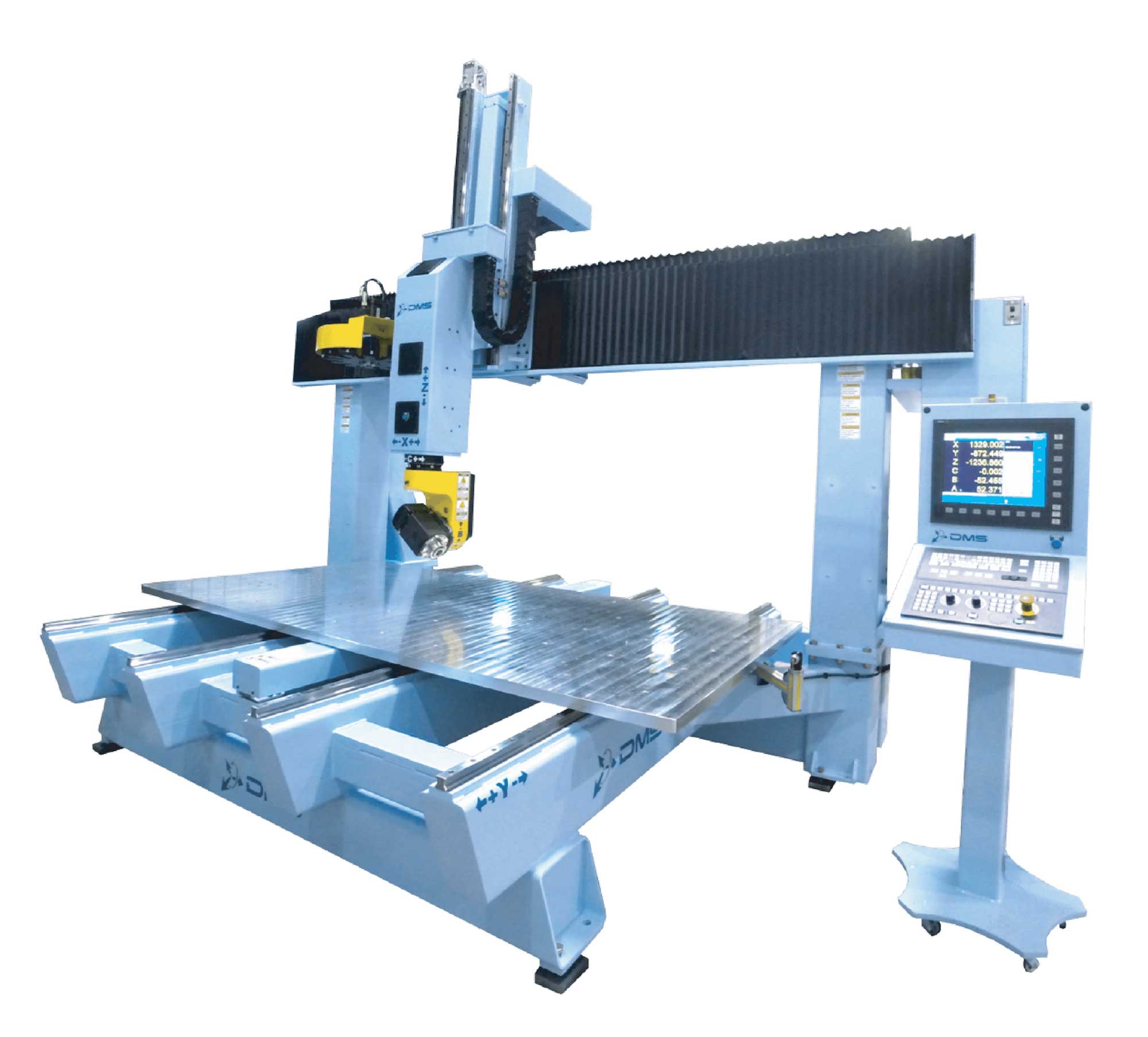

The DMS 5 -Axis Moving Table CNC machine features a moving table design with moving single or twin tables and single or multiple spindle options. This line of router is available in a range of sizes and styles to accommodate various production needs and provide ultimate flexibility in part design. These high-precision machines are commonly used for trimming, shaping, drilling, pattern making and architectural design such as sculpting. All models have 36” of Z and Fagor controllers.

DMS-5-Axis-Moving-Table-CNC-Router

Common Materials

Wood – Composites – Aluminum – Plastics & Acrylics – Foam – Tooling Board

Common Industries

Woodworking – Automotive – Plastics & Acrylics – Sign Making – Aerospace – Other Medical – Marine – Energy – Manufacturing – Construction – Thermoforming

Average Build Time

10-12 weeks



Base Features

  • 5-Axis Moving Table CNC Router
  • Fagor 8065/8070 Controller
  • Moving Gantry Design
  • Rigid Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • Drives & Motors: Fagor AC digital drives with closed-loop brushless AC servo motors with
    absolute encoders on all linear axes
  • 460-480 Volt 3 Phase Power (other voltage options available)
  • Recirculating Ball Screw Assembly On All Axes
  • Hiteco Electrospindle – 16hp / 12 kW Standard (other hp options available)
  • All Axes Laser Calibrated

Specs

  • Common: 5’x5′ Twin Table with 36″ or 48″ of Z or 5×10 Single Table with 36″ or 48″ of Z; many other sizes available
  • Rapid Feed Rate  –  Up to 1400 inches per minute
  • X & Y Axes  –  Laser calibrated
  • 36” Of Clearance Under The Bridge
  • Power Requirement – 220V, 3-phase, 60 HZ (Amps determined by spindle option)
  • Lubrication  –  Manual
  • M04 M-Code for counter clockwise spindle rotation
  • Compressed Air Requirements: 10 CFM at 95 PSI

Customizations

  • Hiteco Spindle (multiple hp and voltage options available)
  • Spindle Accessories
  • Table Options – Phenolic or Aluminum; Machined Flat, Vacuum Plenum or T-Slot
  • Table Accessories
  • Control Accessories
  • Utility Options
  • Dust Collection Options
  • Multiple Vacuum Pump Options Available
  • Vacuum Accessories
  • Safety Options for Compliance
  • CAD/CAM Software Options
  • Enclosed or Unenclosed
  • Lubrication – Automatic
  • Custom Axes Configuration Options Available
  • Table Options: 5’x5′, 5’x10′, 10’x5′, 5’x12′, 12’x5′, 6’x12′ or Twin Table: 5’x5′ 5’x10′, 5’x12′, 6’x5′

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty
