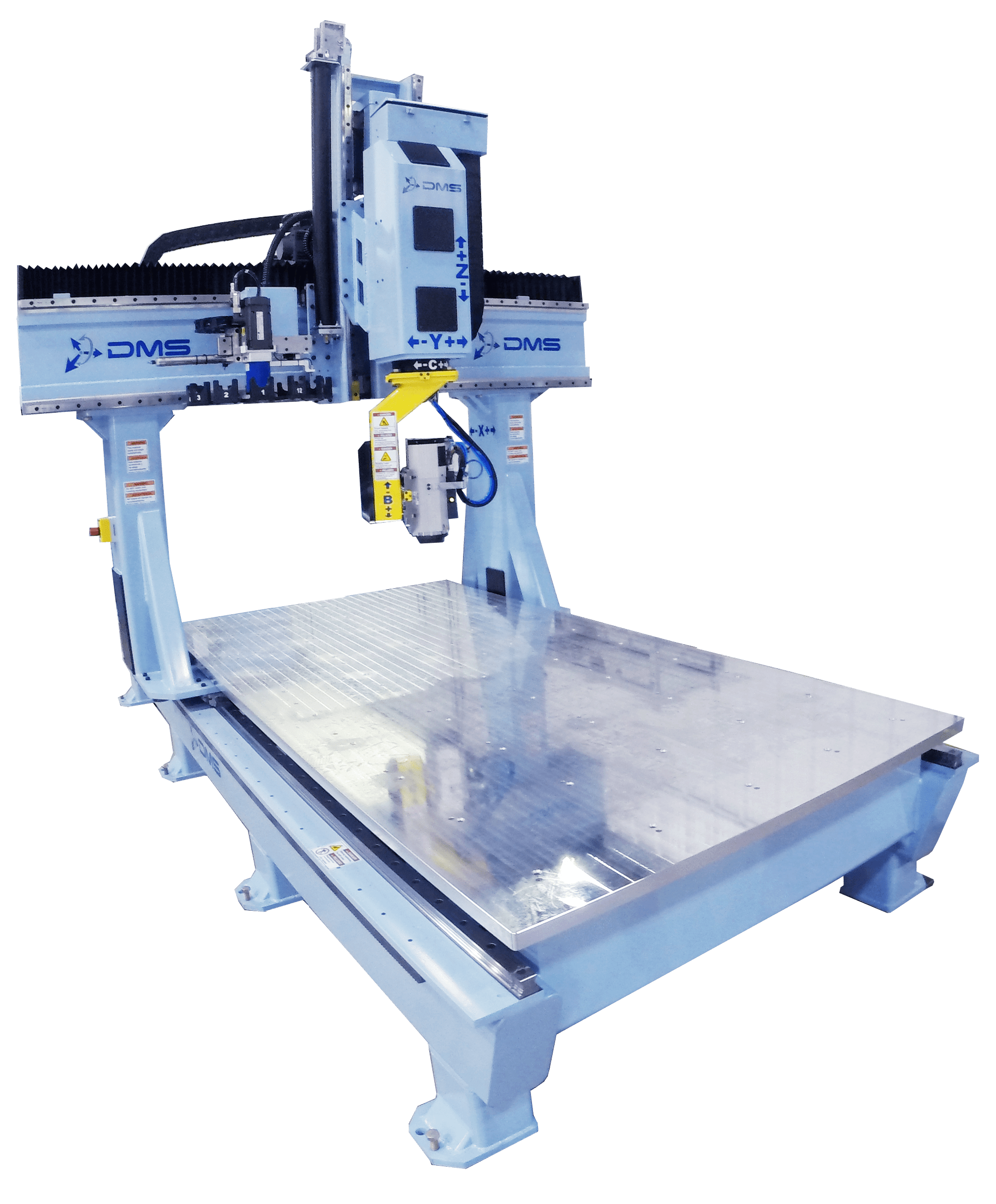

This 5 -Axis Large Format Gantry CNC Machine is a continuous-use, heavy duty, large scale machine that can be used to process a wide range of applications from light materials such as wood and foam to composites to ferrous and non -ferrous metals. These routers allow more flexibility and are suitable for complex machining requirements, including particularly large parts in the aerospace and transportation industries. The dual helical rack and pinion drive system provides superior speed and accuracy. All models have 36” of Z and Fagor controllers

This 5-Axis Large Format Gantry CNC

Common Materials

Wood – Composites – Aluminum – Plastics & Acrylics – Foam – Solid Surface materials

Common Industries

Woodworking – Automotive – Plastics & Acrylics – Sign Making – Aerospace – Other Medical – Marine – Energy – Manufacturing – Construction – Thermoforming

Average Build Time

10-12 weeks



Base Features

  • 5-Axis Moving Gantry
  • Fagor 8065/8070
  • Moving Gantry Design
  • Rigid Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • 460-480 volts standard 3 phase power (other voltage options available)
  • Ball Screw Drive  –  Recirculating ball screw assembly on all axes
  • Hiteco Electro Spindle – 16hp / 12 kW Standard (other hp options available)
  • All Axes Laser Calibrated

Specs

  • Rapid Feed Rate  –  Up to 1400 inches per minute
  • X Axis Stroke – 60” / 1524 mm
  • Y Axis Stroke – 144” / 3658 mm
  • Z Axis Stroke – 18” / 457 mm
  • X & Y Axes  –  Laser calibrated
  • 9” Of Clearance Under The Bridge
  • Power Requirement – 220V, 3-phase, 60 HZ (Amps determined by spindle option)
  • Lubrication  –  Manual
  • M04 M-Code for counter clockwise spindle rotation
  • Compressed Air Requirements: 5 CFM at 95 PSI

Customizations

  • Hiteco Electric Spindle (multiple hp and voltage options available)
  • Custom Stroke Sizes Available
  • Spindle Accessories
  • Table Options – Phenolic or Aluminum; Machined Flat, Vacuum Plenum or T-Slot
  • Table Accessories
  • Control Accessories
  • Utility Options
  • Lubrication – Automatic
  • Dust Collection Options
  • Vacuum Options
  • Vacuum Accessories
  • Multiple Vacuum Pump Options Available
  • Safety Options for Compliance
  • CAD/CAM Software Options
  • Custom Axes Configuration Options Available
  • Table Options: 5’x10′, 5’x12′, 5’x15′, 5’x20′, 5’x25′, 5’x30′, 6’x12′, 6’x12′, 10’x10′, 10’x15′, 10’x20′, 10’x25′, 10’x30′

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty
