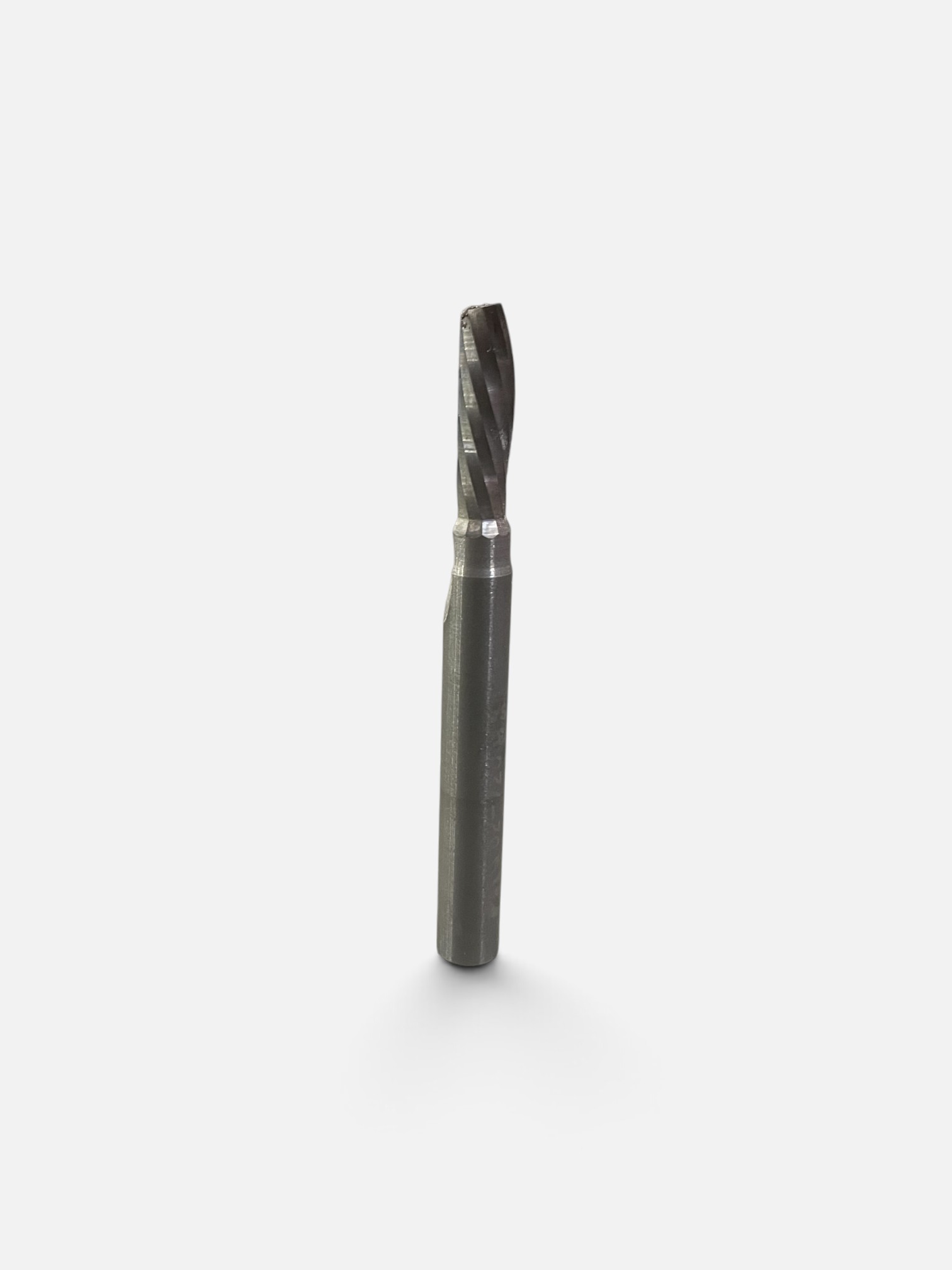

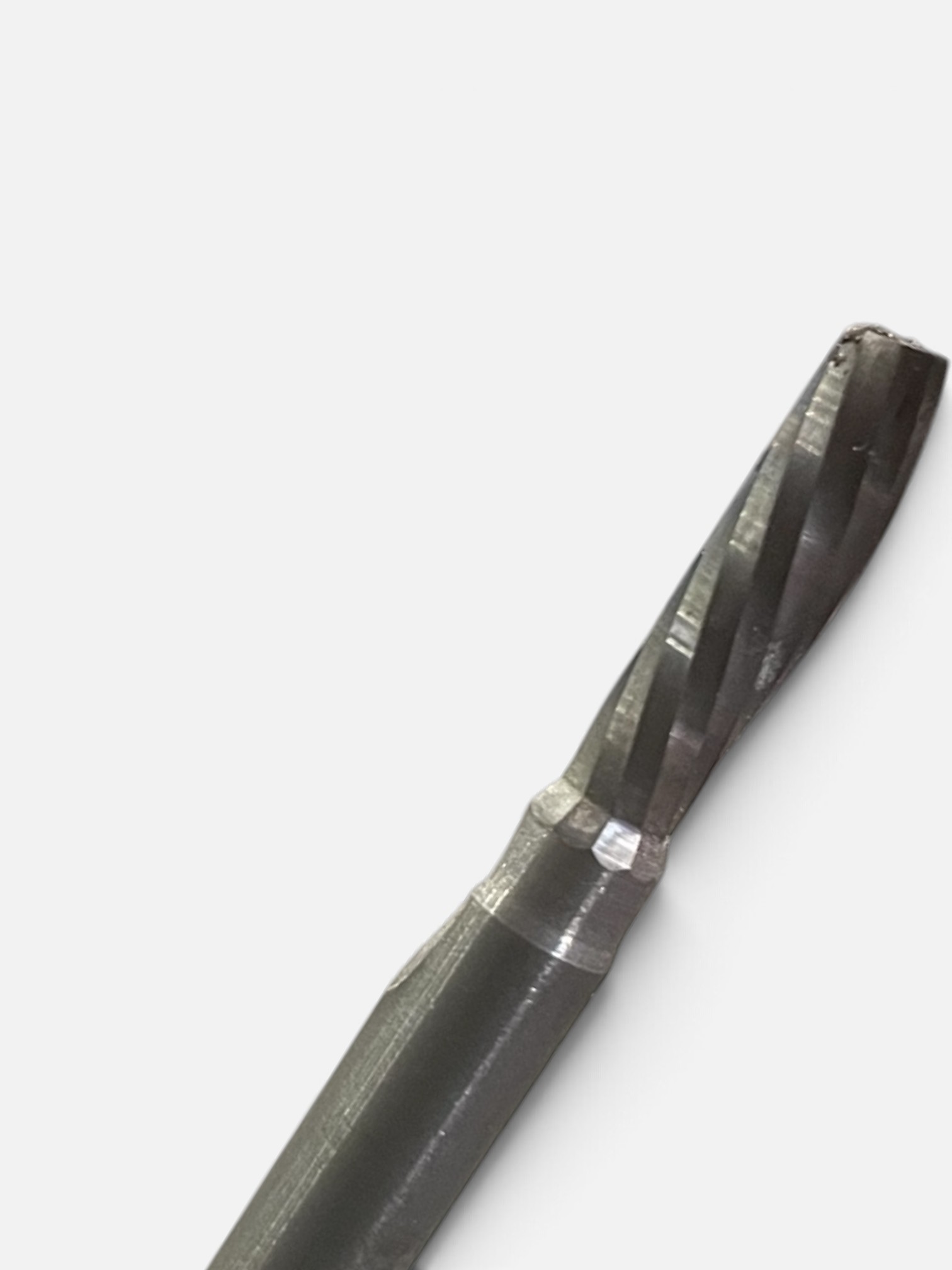

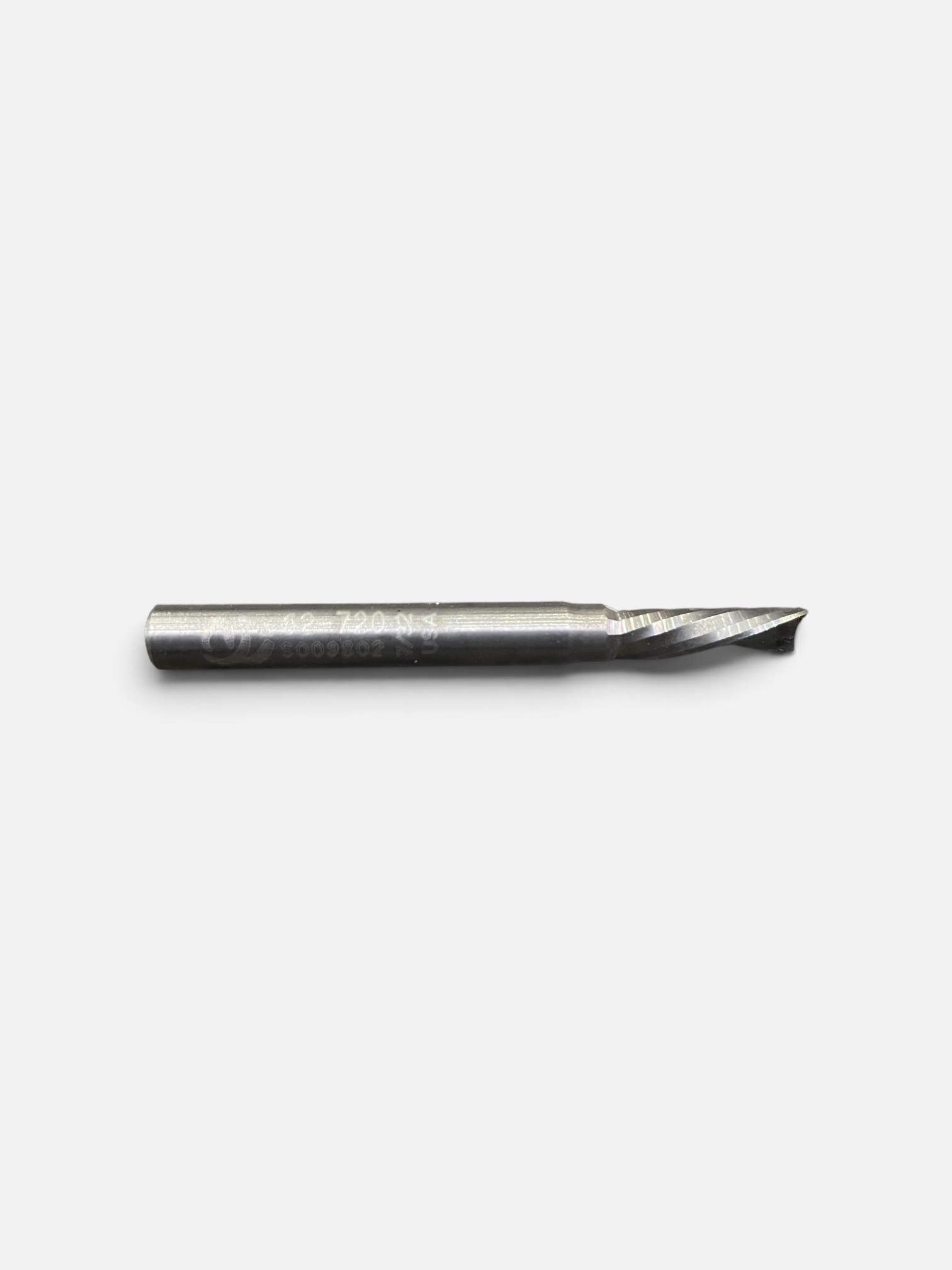

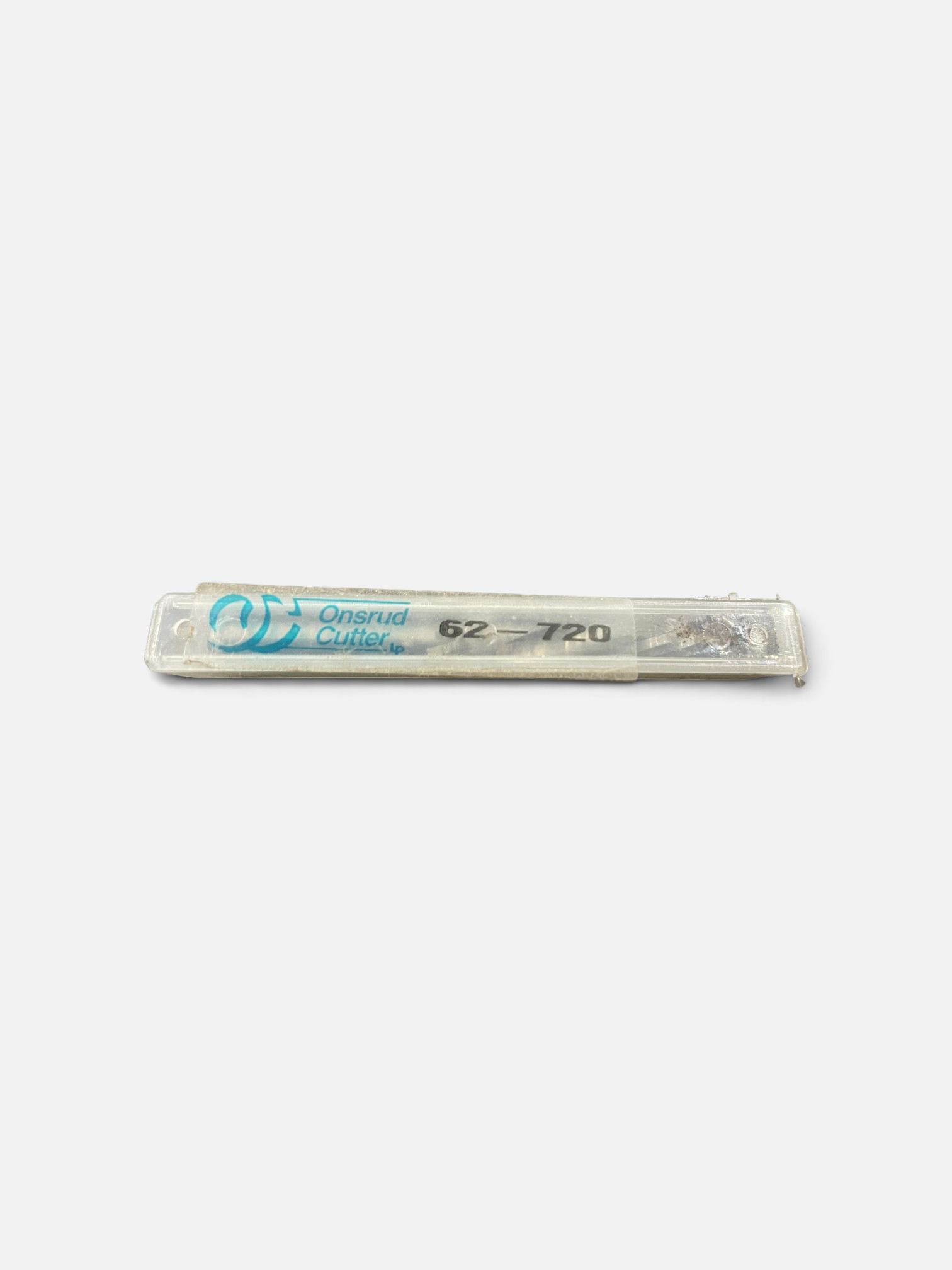

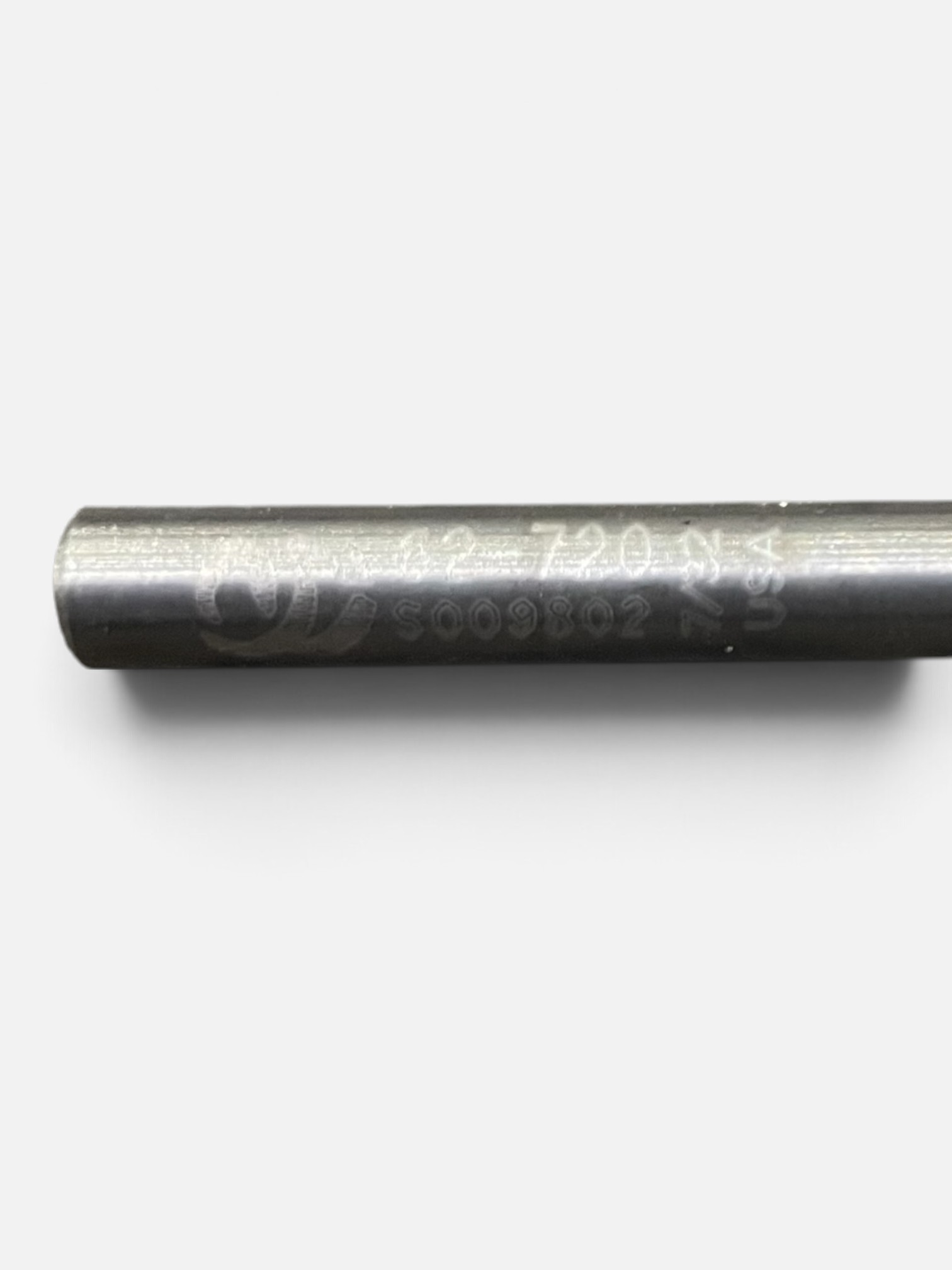

Onsrud Cutter 62-720 7/32″ Solid Carbide Downcut Spiral O-Flute Router Bit (DMS P/N CUT-OC-62-720)

New and unused Onsrud Cutter 62-720 solid carbide CNC router bit. This precision cutting tool features a single-edge downcut spiral O-flute design and was manufactured for clean, efficient machining of hard plastic materials.

The downcut geometry directs chips downward while helping produce a smooth finished surface. The 62-720 is well suited for CNC routing, profiling, trimming, and machining applications involving hard plastics. Historical Onsrud specifications list this tool with a 7/32″ cutting diameter, 3/4″ cutting length, 1/4″ shank diameter, and 2-1/2″ overall length.

Important: Onsrud no longer sells the 62-720 as a current product, making this a useful hard-to-find/discontinued Onsrud Cutter for customers looking to replace an existing tool.

Specifications

• Manufacturer: Onsrud Cutter
• MPN: 62-720
• Series: 62-700
• Cutter Diameter: 7/32″ (0.21875″)
• Length of Cut: 3/4″
• Shank Diameter: 1/4″
• Overall Length: 2-1/2″
• Flute Design: Single Edge Downcut Spiral O-Flute
• Material: Solid Carbide
• Helix Angle: Approximately 21°
• Cutting Direction: Downcut
• Application: Hard Plastics
• Condition: New / Unused

Applications

The Onsrud 62-720 was designed primarily for machining hard plastics, including applications involving:

• Acrylic
• Nylon
• PVC
• Polycarbonate
• Solid surface materials
• Plastic sheet and plastic components

The downcut spiral O-flute design provides downward chip removal and a smooth finish in hard plastic materials.

Features

• Genuine Onsrud Cutter
• Solid carbide construction
• Single-edge design
• Downcut spiral O-flute
• Approximately 21° helix
• 7/32″ cutting diameter
• 1/4″ shank
• Designed for CNC routing
• Discontinued / no longer sold by Onsrud
• Excellent replacement or spare for existing CNC tooling

Package Includes

1 × Onsrud Cutter 62-720 Solid Carbide Router Bit
