9 kW / 12 HP CNC Spindle Motor – ISO 30 Long Nose, Air Cooled, 4-Pole, 380 V

The HSD ES929 ISO 30 Long Nose spindle provides exceptional cutting power and precision for CNC routers and machining centers. Engineered for 380 V three-phase operation, this 4-pole asynchronous motor delivers 10 kW continuous (S1) and 12 kW peak (S6) power output, achieving up to 24 000 RPM.
Its air-cooling system with integrated fan ensures efficient heat dissipation, enabling consistent performance in demanding production environments. The ISO 30 tool interface supports fast and secure tool changes, while the long-nose design extends reach for deep milling, drilling, or profiling operations.
Constructed with precision ceramic bearings and a durable aluminum housing, the ES929 ISO 30 spindle offers reliability, low vibration, and smooth operation across wood, composite, and aluminum materials.

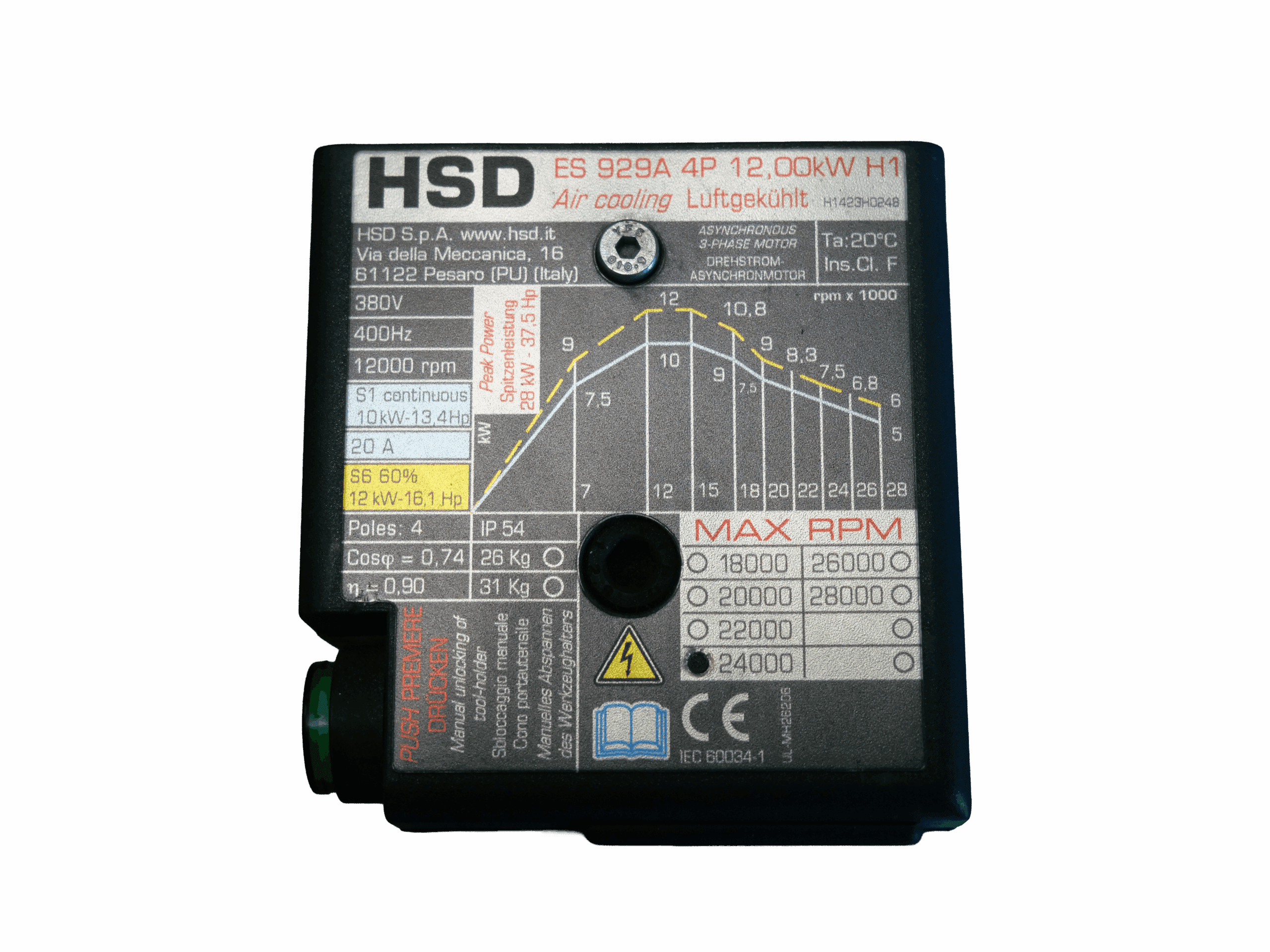

• Specifications:
  • Power: 10 kW (S1) / 12 kW (S6)
  • Horsepower: 13.4 HP (S1) / 16.1 HP (S6)
  • Voltage: 380 V (3 Phase)
  • Speed (RPM): Up to 24 000 RPM
  • Poles: 4-Pole

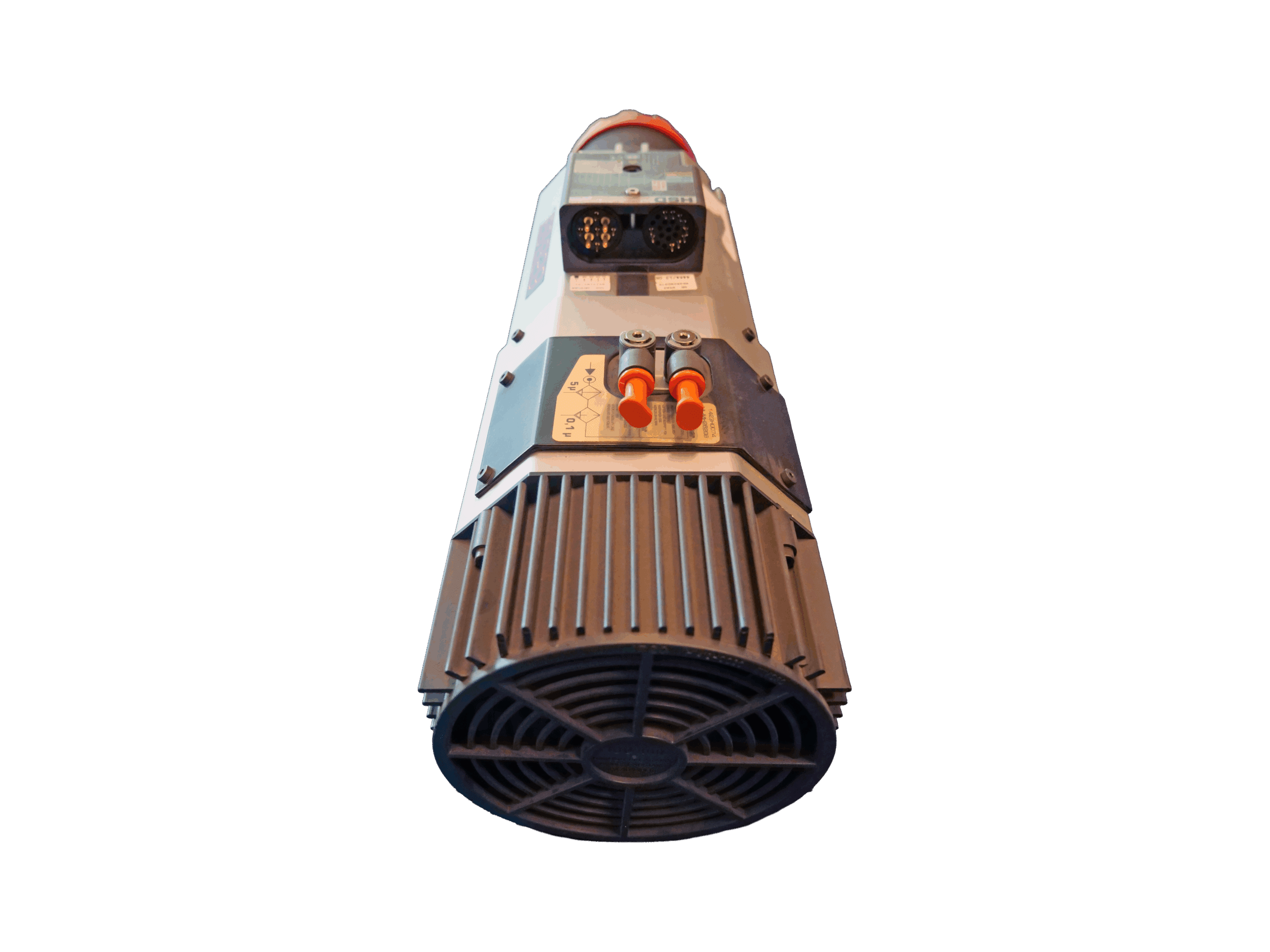

  • Cooling Type: Air Cooled (Fan Assisted)
  • Tool Interface: ISO 30 Long Nose
  • Bearing Type: Ceramic Bearings
  • Weight: 26 – 31 kg
  • Material / Finish: Machined Aluminum Body with Silver and Black Finish
  • Connection Type: Pre-wired electrical harness with air fittings
  • Included Components: Spindle motor assembly only

• Applications:
  • CNC routers and machining centers for wood, composite, and metal machining
  • High-speed routing, cutting, and drilling applications
  • Precision engraving and profiling
  • OEM and retrofit replacement for ISO 30 spindle systems

• Features & Benefits:
  • Delivers up to 12 kW peak output with 24 000 RPM high-speed capability
  • Air-cooled design reduces complexity and eliminates external chillers
  • ISO 30 tool holder system supports quick, secure tool changes
  • Long-nose body enhances reach for deep-profile and complex geometries
  • Ceramic bearings ensure long life, stability, and minimal vibration
