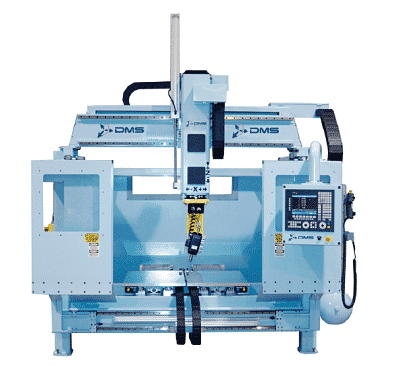

5 Axis D5E Overhead Gantry CNC Machine

5 Axis D5E Overhead Gantry CNC Machine

The 5 Axis D5E Overhead Gantry CNC Machine is a continuous medium duty “Trim Center” style machine that can be used to process a wide variety of applications ranging from foam, aluminum, composites, wood, and more…

The 5 Axis D5E is the ideal choice for companies looking to have a high-precision 5 Axis CNC machine, but without the large footprint that often comes with such machines. The D5E brings precision and productivity together in a footprint that you can manage. Our unique enclosed design offers a proven solution effective at keeping debris inside the machine and not on your shop floor. Our exclusive quick change fixture system pairs seamlessly with the D5E to expand and grow your production capabilities.

Our engineers have over 70 years of combined CNC experience with a proven track record of designing custom CNC solutions. Contact us with your production goals and we will design a machine to fit your floor space and exceed your goals.

Base Features

Fagor 8055i Power Controller
Fagor Sercos Drive System
32" Z Stroke
Spinning Ball Nut & Recirculating Ball Screw Assembly
4' x 3' Stationary Aluminum Table
Multiple Spindle Options
C Axis +/- Rotation of 363 Degrees
Table Machined Flat with 3/8" Inserts on 12" Centers

Absolute Feedback on All Axes
Dual-Core Windows 7 Processor
Teach Pendant
Sealed Electrical Cabinet with A/C
Manual Doors with Safety Interlock
Roof Enclosure
Stress-Relieved Steel Frame
380-480 Volt, 3-Phase Power

Customizable Options

Dual Shuttle Table
Custom Table Size(s)
Upgrade to Fagor 8065 Controller
Automatic Doors
Automatic Tool Changer
Tool Height Sensor
Automatic Vacuum Valves
Automatic Lubrication System
Barcode Reader
Quick-Change Fixture
