Denali

This CNC router is a perfect mid-range “Trim Center” style machine that can be used to process a wide range of applications, from light materials such as wood and foam to composites and ferrous and non-ferrous metals. This machining center is the ideal choice for companies looking for a high-precision 5-axis CNC router without the large footprint. The 5 -axis overhead gantry will help you expand your production capabilities with its efficient, compact design, ideal for dust containment, and its exclusive quick -change fixture system.

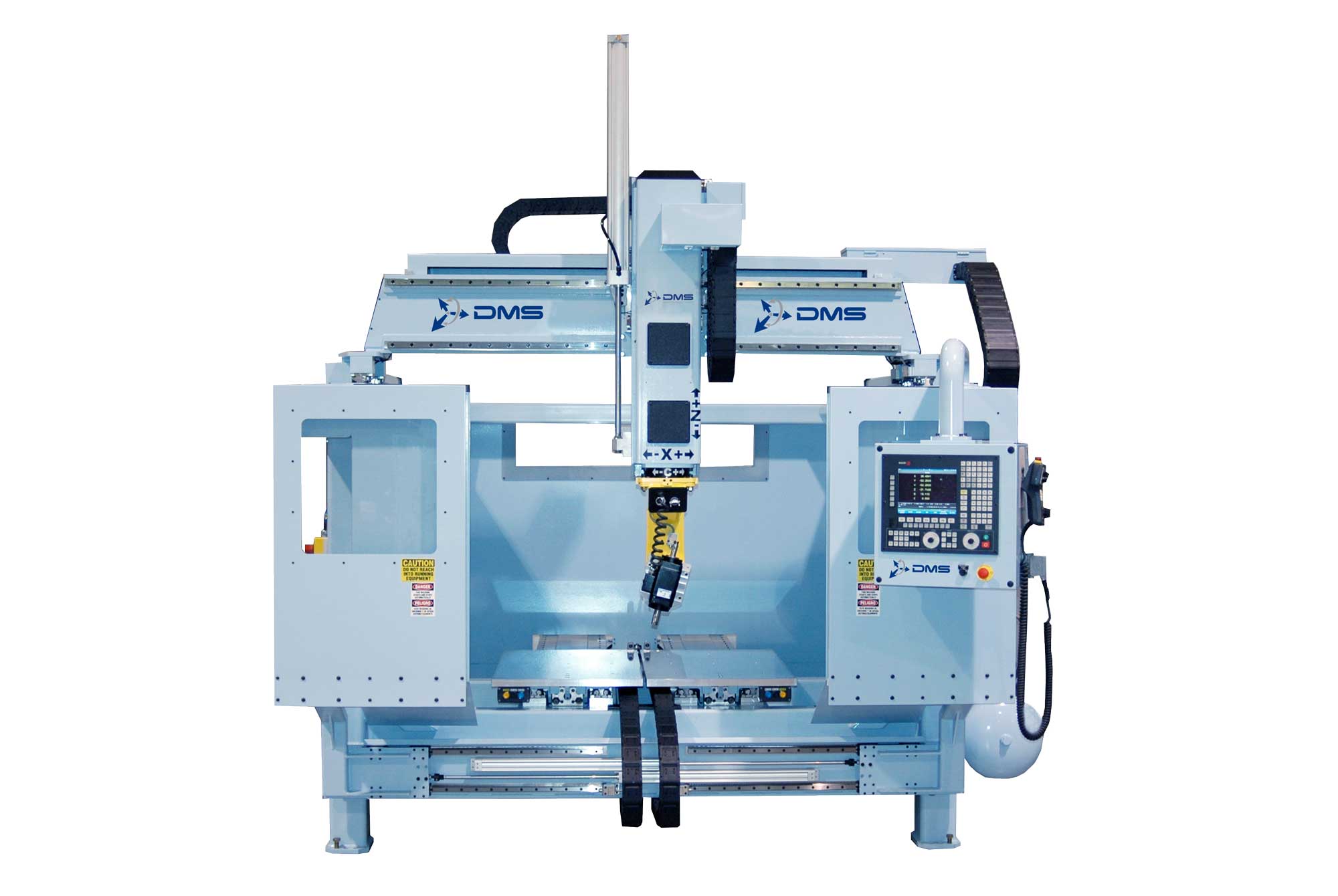

5 Axis Low Rail Enclosed Overhead Gantry With Logo

Common Materials

Wood – Composites – Aluminum – Plastics – Foam

Common Industries

Woodworking – Automotive – Plastics & Acrylics – Sign Making – Aerospace – Medical – Marine – Energy – Manufacturing

Base Features

  • 5-Axis CNC Router
  • Fagor 8065/8070 Power Controller
  • Moving Gantry Design
  • Stress-Relieved Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • Fagor Sercos Drive System
  • 10′ x 25′ Stationary Aluminum Table Machined Flat with 3/8″ Inserts on 12″ Centers
  • Spinning Ball Nut & Recirculating Ball Screw Assembly
  • Hiteco Electrospindle 16hp / 12kW standard
  • 460-480 volts standard 3 phase power (other voltage options available)
  • All Axes Laser Calibrated
  • Dual-Core Windows 10 Processor
  • Teach Pendant
  • Sealed Electrical Cabinet with A/C

Specs

  • Rapid Feed Rate  –  Up to 1400 inches per minute
  • Z Axis Stroke –  30″
  • X & Y Axes  –  Laser calibrated
  • 380-480 Volt, 3-Phase Power
  • Lubrication  –  Manual
  • M04 M-Code for counter clockwise spindle rotation
  • Compressed Air Requirements: 10 CFM at 95 PSI

Customizations

  • Custom Table Sizes
  • Custom Stroke Sizes Available
  • Sliding Tool Rack
  • Multiple Vacuum Pump Options Available
  • Automatic Tool Changer
  • Tool Height Sensor
  • Lubrication – Automatic
  • Barcode Reader
  • Hiteco Electrospindle (multiple hp and voltage options available)
  • Custom Axes Configuration Options Available
  • Table Sizes: 4’x3′ or shuttle table: 4’x3′ or (2) 2’x3′

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty
