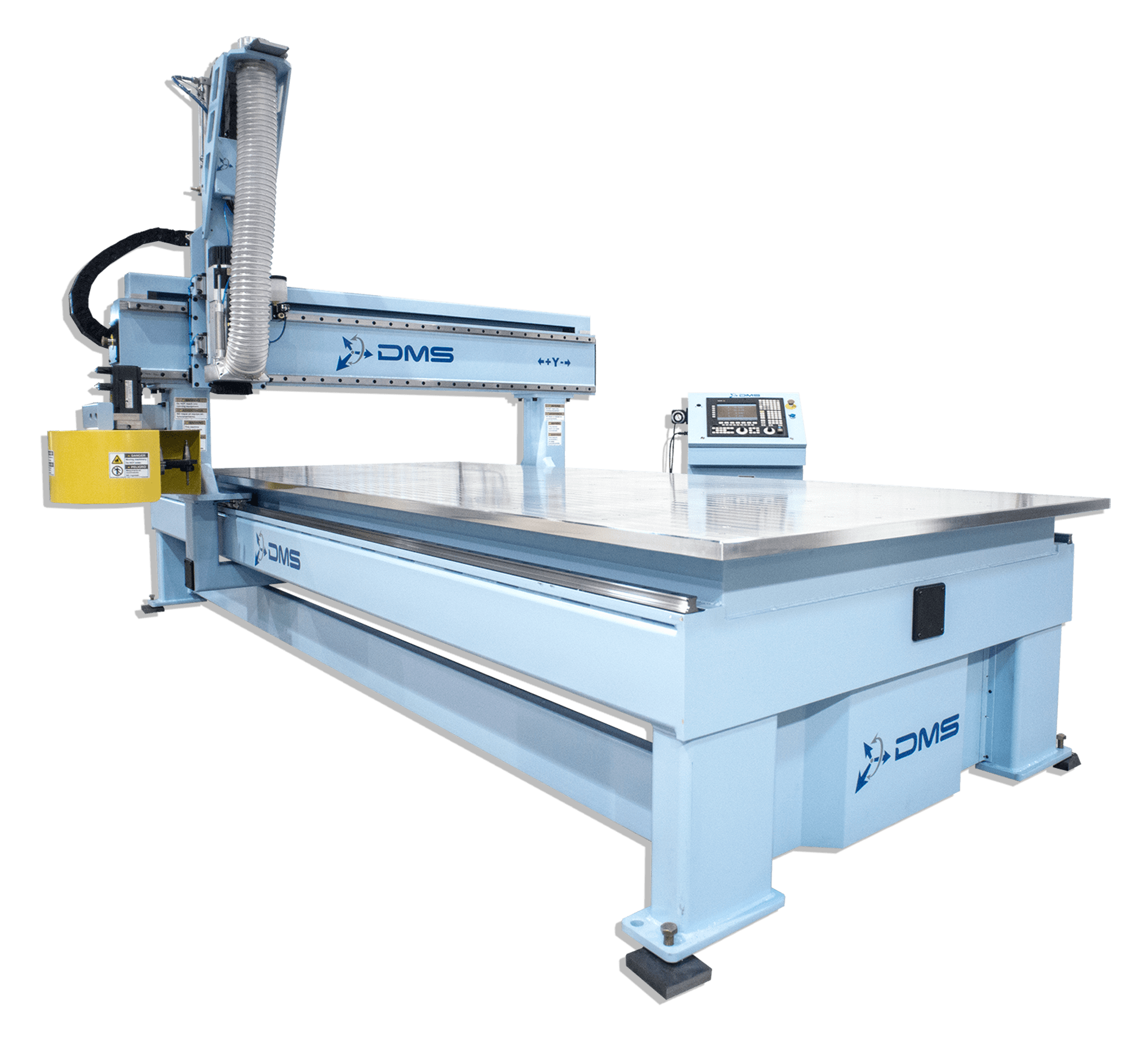

The DMS 3-Axis Low-Rail, Small-Format, Moving Gantry CNC machine features a stationary table design with various customization options. This machine configuration is perfect for medium-duty work and nested-based machining typical of cabinet companies. It is also good for cutting hardwoods, Baltic Birch sheets, thin aluminum sheets, solid surface material and composite panel machining. All models have Fagor controllers.

DMS_3-Axis-

Common Materials

Wood – Composites – Aluminum – Plastics & Acrylics – Foam – Solid Surface Materials

Common Industries

Woodworking – Automotive – Plastics & Acrylics – Sign Making – Aerospace – Medical – Marine – Energy – Manufacturing – Construction

Average Build Time

10-12 weeks



Base Features

  • 3-Axis Moving Gantry CNC Router
  • Fagor 8065/8070 Controller
  • Rigid Steel Frame
  • Moving Gantry Design
  • Rigid Steel Frame
  • Ethernet TCP/IP, USB & Serial Port Connections
  • Fagor AC digital drives with closed-loop brushless AC servo motors with absolute encoders on all linear axes
  • Rack and Pinion Design
  • 460-480 Volt Standard 3-Phase Power (other voltage options available)
  • Table – 5’x12’ 1” Phenolic Machined Flat Table (other table options available)
  • Dust Collection  –  Hood provided and dust delivery collection on top of Z-axis accepts a 5″ dust collection line from customer’s system
  • All Axes Laser Calibrated

Specs

  • Rapid Feed Rate  –  Up to 1200 inches per minute
  • X Axis Stroke – 60” / 1524 mm
  • Y Axis Stroke – 144” / 3658 mm
  • Z Axis Stroke – 12” / 305 mm, or 16″ / 406 mm
  • Lubrication  –  Manual
  • M04 M-Code for counter clockwise spindle rotation
  • Compressed Air Requirements (10 CFM at 95 PSI)

Customizations

  • Spindle Accessories
  • Custom Stroke Sizes Available
  • Table Options – Phenolic or Aluminum; Machined Flat, Vacuum Plenum or T-Slot
  • Table Sizes: 5’x5, 5’x10′, 5’x12′, 6’x12′
  • Table Accessories
  • Lubrication – Automatic
  • Control Accessories
  • Utility Options
  • Dust Collection Options
  • Vacuum Options
  • Vacuum Accessories
  • Safety Options for Compliance
  • CAD/CAM Software Options
  • Hiteco Electro Spindle (multiple hp and voltage options available)
  • Custom Axes Configuration Options Available

Support

  • Complimentary Technical Support
  • Professional installation & training available
  • Warranty  –  1 Year limited warranty and basic phone support
  • Parts Warranty
